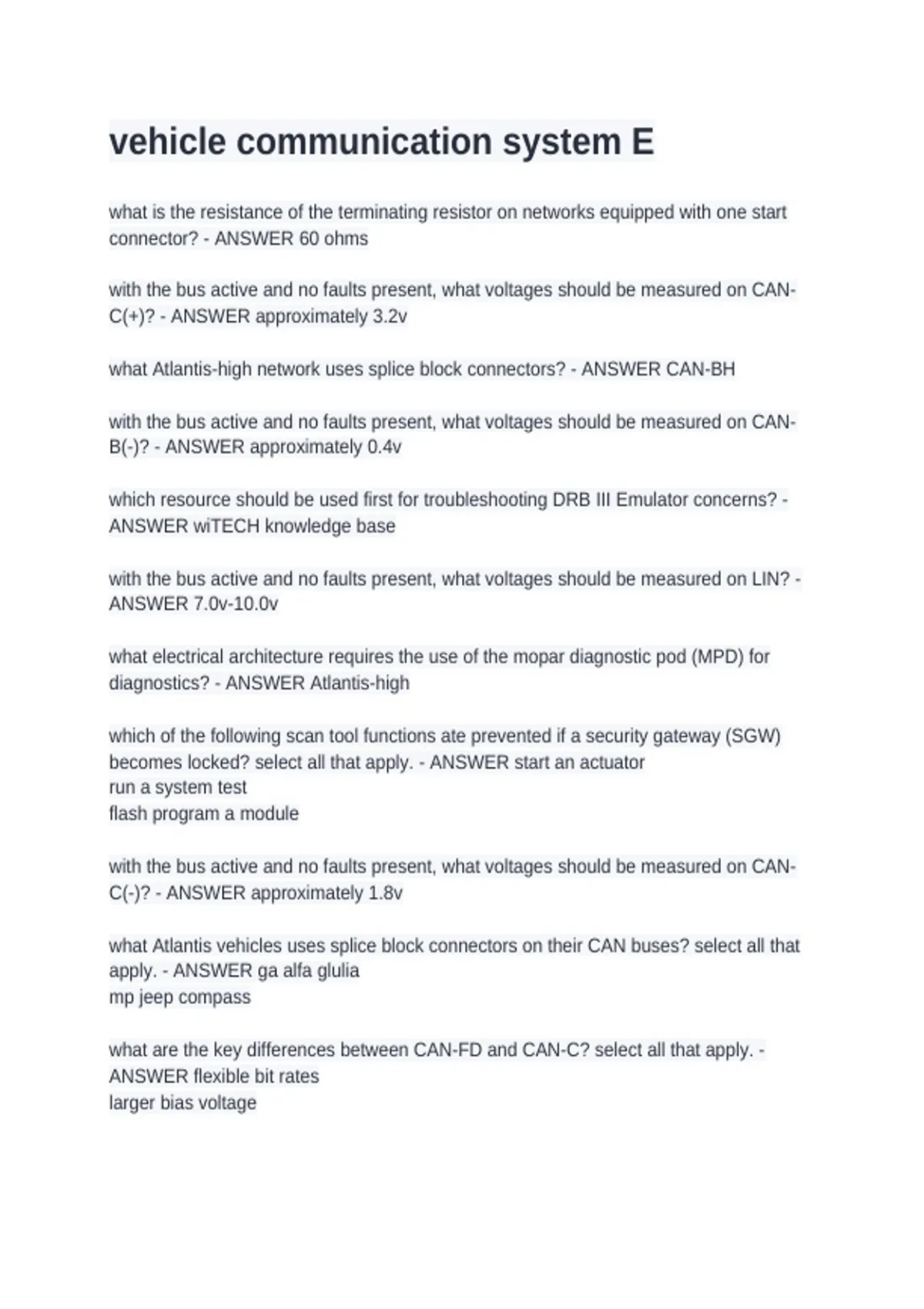

vehicle communication system E
what is the resistance of the terminating resistor on networks equipped with one start
connector? - ANSWER 60 ohms
with the bus active and no faults present, what voltages should be measured on CAN-
C(+)? - ANSWER approximately 3.2v
what Atlantis-high network uses splice block connectors? - ANSWER CAN-BH
with the bus active and no faults present, what voltages should be measured on CAN-
B(-)? - ANSWER approximately 0.4v
which resource should be used first for troubleshooting DRB III Emulator concerns? -
ANSWER wiTECH knowledge base
with the bus active and no faults present, what voltages should be measured on LIN? -
ANSWER 7.0v-10.0v
what electrical architecture requires the use of the mopar diagnostic pod (MPD) for
diagnostics? - ANSWER Atlantis-high
which of the following scan tool functions ate prevented if a security gateway (SGW)
becomes locked? select all that apply. - ANSWER start an actuator
run a system test
flash program a module
with the bus active and no faults present, what voltages should be measured on CAN-
C(-)? - ANSWER approximately 1.8v
what Atlantis vehicles uses splice block connectors on their CAN buses? select all that
apply. - ANSWER ga alfa glulia
mp jeep compass
what are the key differences between CAN-FD and CAN-C? select all that apply. -
ANSWER flexible bit rates
larger bias voltage
