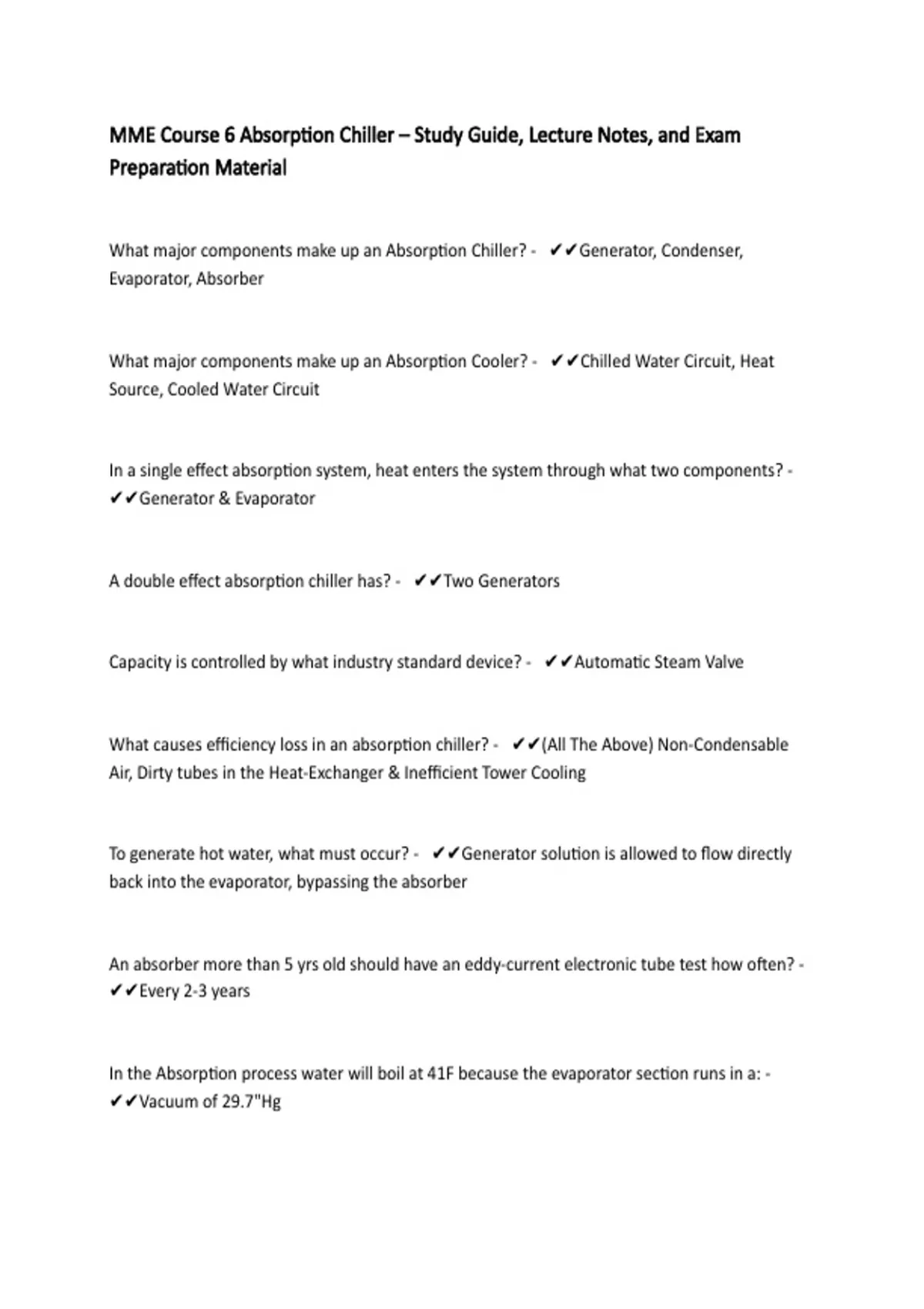

MME Course 6 Absorption Chiller – Study Guide, Lecture Notes, and Exam
Preparation Material
What major components make up an Absorption Chiller? - ✔✔Generator, Condenser,
Evaporator, Absorber
What major components make up an Absorption Cooler? - ✔✔Chilled Water Circuit, Heat
Source, Cooled Water Circuit
In a single effect absorption system, heat enters the system through what two components? -
✔✔Generator & Evaporator
A double effect absorption chiller has? - ✔✔Two Generators
Capacity is controlled by what industry standard device? - ✔✔Automatic Steam Valve
What causes efficiency loss in an absorption chiller? - ✔✔(All The Above) Non-Condensable
Air, Dirty tubes in the Heat-Exchanger & Inefficient Tower Cooling
To generate hot water, what must occur? - ✔✔Generator solution is allowed to flow directly
back into the evaporator, bypassing the absorber
An absorber more than 5 yrs old should have an eddy-current electronic tube test how often? -
✔✔Every 2-3 years
In the Absorption process water will boil at 41F because the evaporator section runs in a: -
✔✔Vacuum of 29.7"Hg
, What is not used in an absorption chiller? - ✔✔Compressor
In an absorption chiller what is water used as? - ✔✔Refrigerant
AT 29.7 Hg, water will boil at what temperature? - ✔✔+41 F
Lithium Bromide is both a: - ✔✔Toxic Salt & Desiccant
A refrigeration effect takes place in the evaporator when what is circulated? - ✔✔Chilled
Water
The evaporator/absorber is kept in a vacuum by? - ✔✔the Lithium Bromide solution
What does the generator in an absorption chiller separate? - ✔✔Water Vapor & Lithium
Bromide
What absorbs heat at the absorber? - ✔✔Cooling Water
What is found at the bottom of the absorber? - ✔✔Diluted Lithium Bromide Solution
The water vapor is absorbed in the _______ and released at the ________ by the Lithium
Bromide - ✔✔Absorber, Generator
The diluted Lithium Bromide solution is heated where before going to the generator? -
✔✔Heat Exchanger
The undiluted lithium bromide solution is cooled where before going to the absorber? -
✔✔Heat Exchanger
