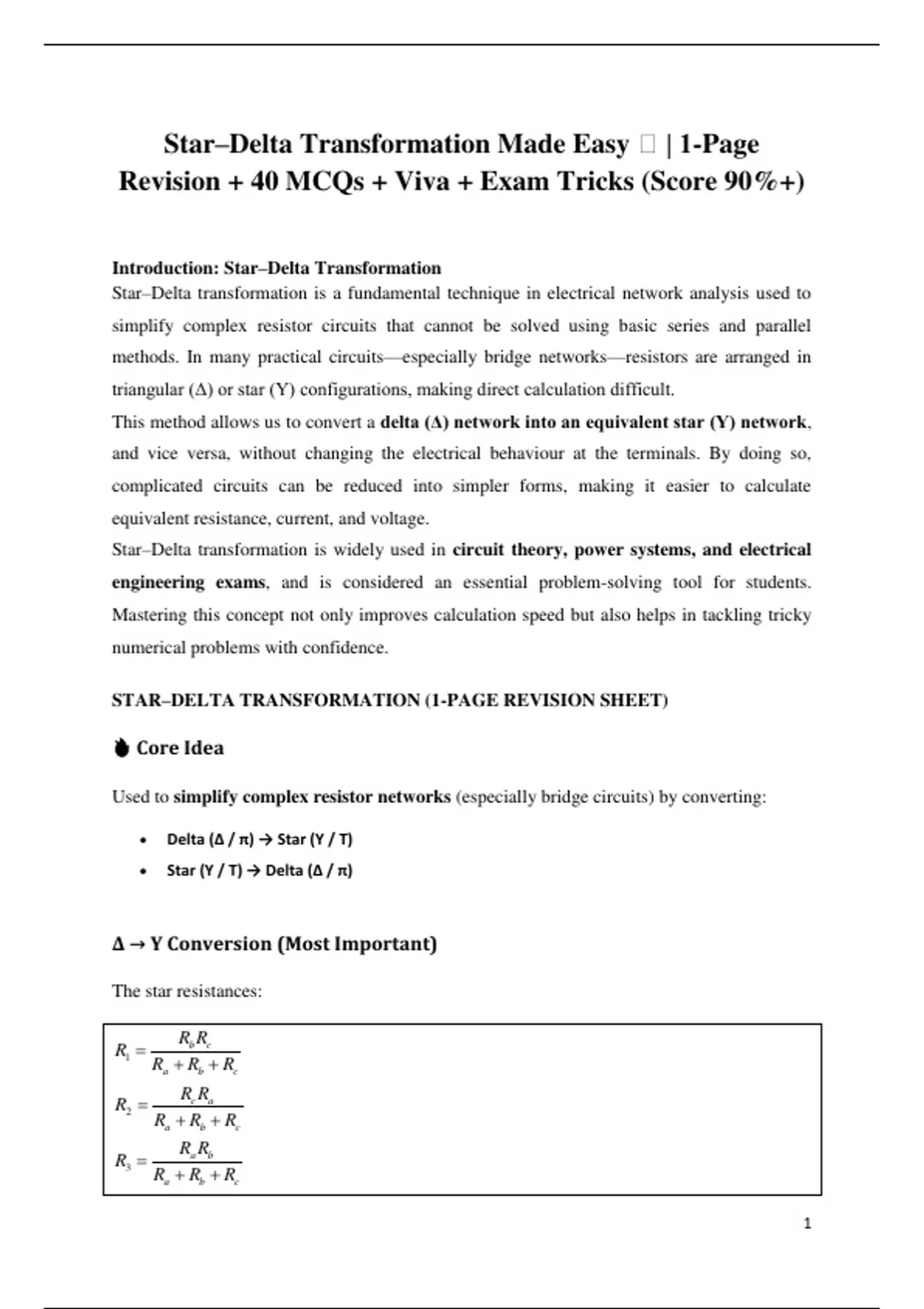

Introduction: Star–Delta Transformation
Star–Delta transformation is a fundamental technique in electrical network analysis used to
simplify complex resistor circuits that cannot be solved using basic series and parallel
methods. In many practical circuits—especially bridge networks—resistors are arranged in
triangular (Δ) or star (Y) configurations, making direct calculation difficult.
This method allows us to convert a delta (Δ) network into an equivalent star (Y) network,
and vice versa, without changing the electrical behaviour at the terminals. By doing so,
complicated circuits can be reduced into simpler forms, making it easier to calculate
equivalent resistance, current, and voltage.
Star–Delta transformation is widely used in circuit theory, power systems, and electrical
engineering exams, and is considered an essential problem-solving tool for students.
Mastering this concept not only improves calculation speed but also helps in tackling tricky
numerical problems with confidence.
STAR–DELTA TRANSFORMATION (1-PAGE REVISION SHEET)
🔥 Core Idea
Used to simplify complex resistor networks (especially bridge circuits) by converting:
Delta (Δ / π) → Star (Y / T)
Star (Y / T) → Delta (Δ / π)
Δ → Y Conversion (Most Important)
The star resistances:
Rb Rc
R1
Ra Rb Rc
Rc Ra
R2
Ra Rb Rc
Ra Rb
R3
Ra Rb Rc
1
,👉 Shortcut:
Each star resistor =
Product of adjacent Δ resistors / Sum of all Δ resistors
Y → Δ Conversion
The delta resistances:
R1 R2 R2 R3 R3 R1 RR
Ra R2 R3 2 3
R1 R1
R1 R2 R2 R3 R3 R1 RR
Rb R3 R1 3 1
R2 R2
R1 R2 R2 R3 R3 R1 RR
Rc R1 R2 1 2
R3 R3
👉 Shortcut:
Each Δ resistor =
Sum of products of all pairs / Opposite star resistor
Special Case (Balanced Network)
If Δ resistors = R → Y resistors = R/3
If Y resistors = R → Δ resistors = 3R
When to Use?
✔ Bridge circuits (no simple series/parallel)
✔ Symmetrical networks
✔ To reduce circuit complexity
Exam Strategy (Very Important)
1. Identify Δ or Y clearly
2. Convert only required part (don’t over-convert)
3. Redraw circuit after conversion
4. Then apply series/parallel rules
5. Always recheck final equivalent resistance
2
, 🚀 Memory Trick
Δ → Y = Product / Sum
Y → Δ = Sum of Products / Opposite
COMMON MISTAKES (Exam Killers)
1. 🔄 Formula Confusion
❌ Mixing Δ→Y and Y→Δ formulas
✔ Fix: Memorize shortcut rules separately
2. 📍 Wrong Resistor Mapping
❌ Using non-adjacent resistors in formula
✔ Fix: Always follow correct node labelling
3. ⚡ Forgetting Total Sum (Δ→Y)
❌ Missing denominator (sum of all Δ resistors)
✔ Fix: Write full formula first, then substitute
4. 🔁 Not Redrawing Circuit
❌ Solving directly after conversion
✔ Fix: Always redraw → avoids confusion
5. Ignoring Balanced Shortcut
❌ Doing long calculation when all resistors equal
✔ Fix: Use R/3 or 3R instantly
6. Overusing Transformation
❌ Applying conversion unnecessarily
✔ Fix: First check series/parallel possibility
