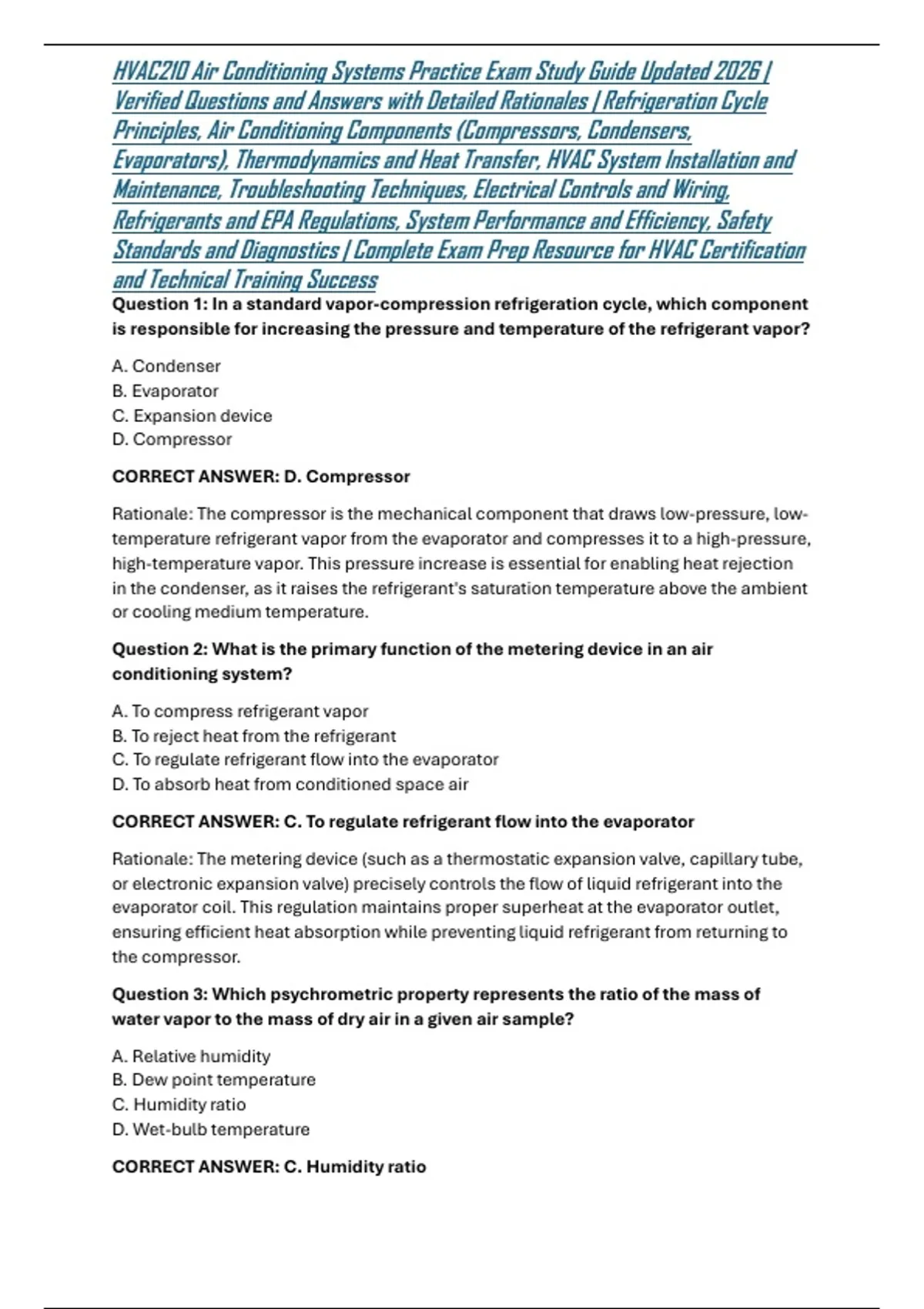

HVAC210 Air Conditioning Systems Practice Exam Study Guide Updated 2026 |
Verified Questions and Answers with Detailed Rationales | Refrigeration Cycle
Principles, Air Conditioning Components (Compressors, Condensers,
Evaporators), Thermodynamics and Heat Transfer, HVAC System Installation and
Maintenance, Troubleshooting Techniques, Electrical Controls and Wiring,
Refrigerants and EPA Regulations, System Performance and Efficiency, Safety
Standards and Diagnostics | Complete Exam Prep Resource for HVAC Certification
and Technical Training Success
Question 1: In a standard vapor-compression refrigeration cycle, which component
is responsible for increasing the pressure and temperature of the refrigerant vapor?
A. Condenser
B. Evaporator
C. Expansion device
D. Compressor
CORRECT ANSWER: D. Compressor
Rationale: The compressor is the mechanical component that draws low-pressure, low-
temperature refrigerant vapor from the evaporator and compresses it to a high-pressure,
high-temperature vapor. This pressure increase is essential for enabling heat rejection
in the condenser, as it raises the refrigerant's saturation temperature above the ambient
or cooling medium temperature.
Question 2: What is the primary function of the metering device in an air
conditioning system?
A. To compress refrigerant vapor
B. To reject heat from the refrigerant
C. To regulate refrigerant flow into the evaporator
D. To absorb heat from conditioned space air
CORRECT ANSWER: C. To regulate refrigerant flow into the evaporator
Rationale: The metering device (such as a thermostatic expansion valve, capillary tube,
or electronic expansion valve) precisely controls the flow of liquid refrigerant into the
evaporator coil. This regulation maintains proper superheat at the evaporator outlet,
ensuring efficient heat absorption while preventing liquid refrigerant from returning to
the compressor.
Question 3: Which psychrometric property represents the ratio of the mass of
water vapor to the mass of dry air in a given air sample?
A. Relative humidity
B. Dew point temperature
C. Humidity ratio
D. Wet-bulb temperature
CORRECT ANSWER: C. Humidity ratio
,Rationale: The humidity ratio (also called specific humidity or moisture content) is
defined as the mass of water vapor per unit mass of dry air, typically expressed in grains
of moisture per pound of dry air or kg/kg. It is a fundamental psychrometric property
used in load calculations and system design, unlike relative humidity which is a
percentage ratio dependent on temperature.
Question 4: In air conditioning terminology, what does SEER stand for?
A. Standard Energy Efficiency Ratio
B. Seasonal Energy Efficiency Ratio
C. Systematic Environmental Efficiency Rating
D. Specific Evaporative Energy Requirement
CORRECT ANSWER: B. Seasonal Energy Efficiency Ratio
Rationale: SEER (Seasonal Energy Efficiency Ratio) is a standardized rating that
measures the cooling output of an air conditioning system over a typical cooling season
divided by the total electrical energy input in watt-hours. It accounts for varying outdoor
temperatures and part-load operation, providing a more realistic efficiency metric than
the steady-state EER.
Question 5: Which refrigerant classification indicates a substance with zero ozone
depletion potential and low global warming potential?
A. CFC
B. HCFC
C. HFC
D. HFO
CORRECT ANSWER: D. HFO
Rationale: HFO (Hydrofluoroolefin) refrigerants, such as R-1234yf and R-1234ze, are
fourth-generation refrigerants designed with zero ozone depletion potential (ODP) and
very low global warming potential (GWP), typically less than 10. They represent a
significant environmental advancement over HFCs, which have zero ODP but high GWP
values.
Question 6: What is the primary purpose of a receiver in a commercial air
conditioning system?
A. To subcool refrigerant before the metering device
B. To store excess liquid refrigerant during varying load conditions
C. To separate oil from refrigerant vapor
D. To filter moisture and contaminants from the refrigerant
CORRECT ANSWER: B. To store excess liquid refrigerant during varying load
conditions
Rationale: A receiver is a storage vessel located after the condenser that holds excess
liquid refrigerant not currently needed by the evaporator. This allows the system to
,accommodate load variations, refrigerant migration during off-cycles, and ensures a
steady supply of liquid refrigerant to the metering device under all operating conditions.
Question 7: Which type of compressor uses a rotating scroll mechanism to
compress refrigerant vapor?
A. Reciprocating
B. Rotary vane
C. Scroll
D. Centrifugal
CORRECT ANSWER: C. Scroll
Rationale: Scroll compressors utilize two interleaved spiral scrolls—one fixed and one
orbiting—to trap and progressively compress refrigerant vapor toward the center. This
design offers high efficiency, low noise, fewer moving parts, and smooth operation
compared to reciprocating compressors, making them popular in residential and light
commercial HVAC applications.
Question 8: In psychrometrics, what condition occurs when air is cooled to the
point where it can no longer hold all its water vapor, causing condensation?
A. Saturation point
B. Dry-bulb temperature
C. Adiabatic saturation
D. Sensible heat ratio
CORRECT ANSWER: A. Saturation point
Rationale: The saturation point (or dew point) is the temperature at which air becomes
fully saturated with water vapor (100% relative humidity). Further cooling below this
temperature causes excess moisture to condense as liquid water. This principle is
critical for evaporator coil design, dehumidification processes, and preventing
condensate-related issues in ductwork.
Question 9: What is the primary advantage of a variable refrigerant flow (VRF)
system over conventional split systems?
A. Lower initial equipment cost
B. Simpler installation requirements
C. Independent zone temperature control with simultaneous heating and cooling
D. Reduced need for refrigerant piping
CORRECT ANSWER: C. Independent zone temperature control with simultaneous
heating and cooling
Rationale: VRF systems use inverter-driven compressors and electronic expansion
valves to precisely modulate refrigerant flow to multiple indoor units. Advanced heat
recovery VRF configurations can provide simultaneous heating to some zones while
, cooling others, significantly improving energy efficiency and occupant comfort in
buildings with diverse thermal loads.
Question 10: Which component in an air handling unit is primarily responsible for
removing particulate contaminants from supply air?
A. Humidifier
B. Cooling coil
C. Air filter
D. Mixing box
CORRECT ANSWER: C. Air filter
Rationale: Air filters, rated by MERV (Minimum Efficiency Reporting Value) or other
standards, capture dust, pollen, mold spores, and other airborne particles as air passes
through the air handling unit. Proper filtration protects downstream components like
coils and fans from fouling while improving indoor air quality and meeting ventilation
code requirements.
Question 11: What is the effect of increasing evaporator superheat in a properly
functioning TXV-controlled system?
A. Increased cooling capacity and reduced compressor risk
B. Decreased cooling capacity and potential compressor overheating
C. No significant effect on system performance
D. Improved dehumidification with higher airflow
CORRECT ANSWER: B. Decreased cooling capacity and potential compressor
overheating
Rationale: Excessive superheat indicates insufficient refrigerant flow through the
evaporator, reducing the coil's effective heat transfer area and cooling capacity.
Additionally, higher suction gas temperatures provide less cooling for the compressor
motor windings, increasing the risk of overheating and premature failure. Proper
superheat settings balance capacity and compressor protection.
Question 12: Which ASHRAE standard specifically addresses ventilation for
acceptable indoor air quality in commercial buildings?
A. ASHRAE 90.1
B. ASHRAE 55
C. ASHRAE 62.1
D. ASHRAE 15
CORRECT ANSWER: C. ASHRAE 62.1
Rationale: ASHRAE Standard 62.1, "Ventilation for Acceptable Indoor Air Quality,"
establishes minimum ventilation rates and indoor air quality requirements for
commercial and institutional buildings. It specifies outdoor air requirements based on
