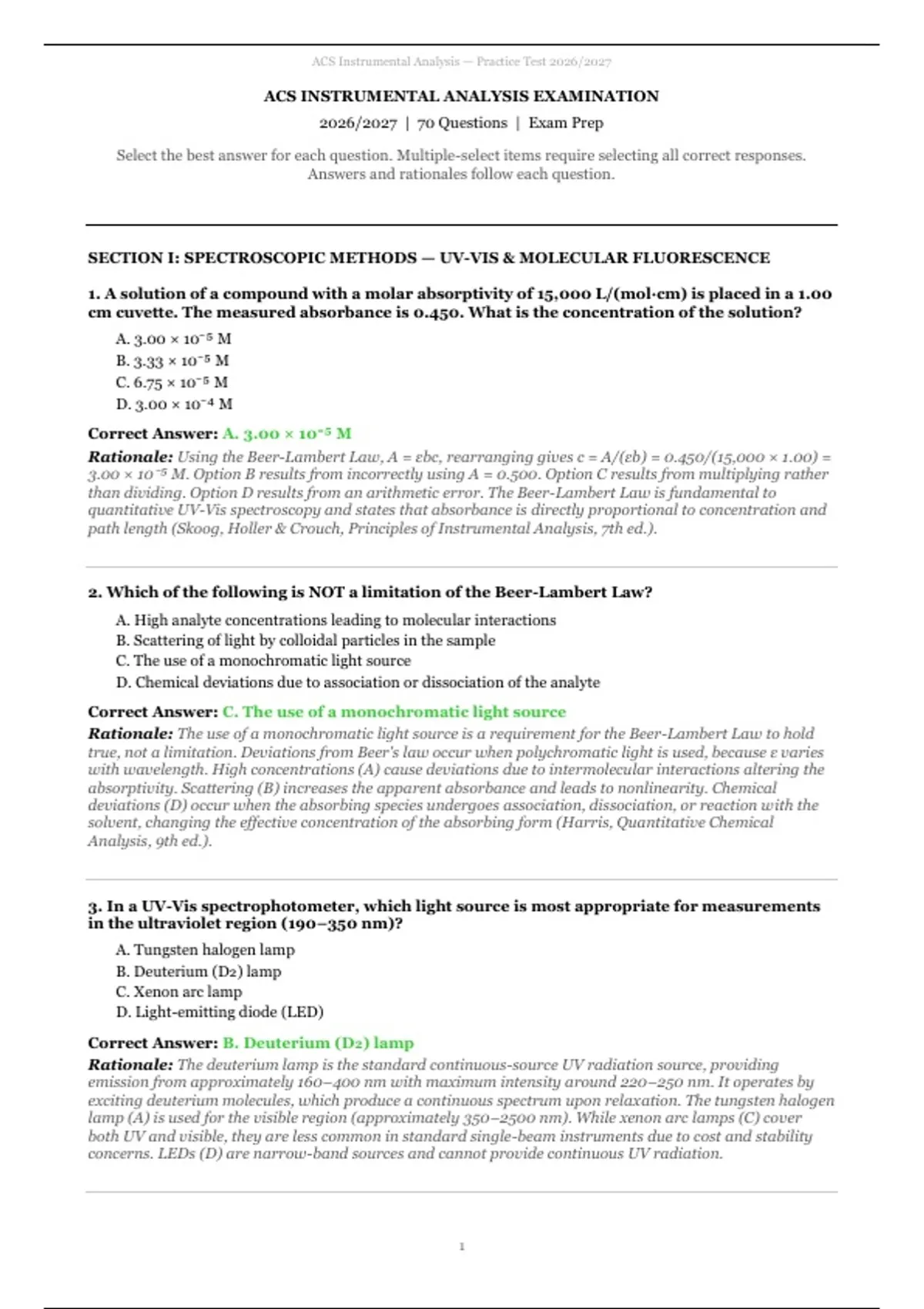

ACS Instrumental Analysis — Practice Test 2026/2027
ACS INSTRUMENTAL ANALYSIS EXAMINATION
2026/2027 | 70 Questions | Exam Prep
Select the best answer for each question. Multiple-select items require selecting all correct responses.
Answers and rationales follow each question.
SECTION I: SPECTROSCOPIC METHODS — UV-VIS & MOLECULAR FLUORESCENCE
1. A solution of a compound with a molar absorptivity of 15,000 L/(mol·cm) is placed in a 1.00
cm cuvette. The measured absorbance is 0.450. What is the concentration of the solution?
A. 3.00 × 10⁻⁵ M
B. 3.33 × 10⁻⁵ M
C. 6.75 × 10⁻⁵ M
D. 3.00 × 10⁻⁴ M
Correct Answer: A. 3.00 × 10⁻⁵ M
Rationale: Using the Beer-Lambert Law, A = εbc, rearranging gives c = A/(εb) = 0.450/(15,000 × 1.00) =
3.00 × 10⁻⁵ M. Option B results from incorrectly using A = 0.500. Option C results from multiplying rather
than dividing. Option D results from an arithmetic error. The Beer-Lambert Law is fundamental to
quantitative UV-Vis spectroscopy and states that absorbance is directly proportional to concentration and
path length (Skoog, Holler & Crouch, Principles of Instrumental Analysis, 7th ed.).
2. Which of the following is NOT a limitation of the Beer-Lambert Law?
A. High analyte concentrations leading to molecular interactions
B. Scattering of light by colloidal particles in the sample
C. The use of a monochromatic light source
D. Chemical deviations due to association or dissociation of the analyte
Correct Answer: C. The use of a monochromatic light source
Rationale: The use of a monochromatic light source is a requirement for the Beer-Lambert Law to hold
true, not a limitation. Deviations from Beer's law occur when polychromatic light is used, because ε varies
with wavelength. High concentrations (A) cause deviations due to intermolecular interactions altering the
absorptivity. Scattering (B) increases the apparent absorbance and leads to nonlinearity. Chemical
deviations (D) occur when the absorbing species undergoes association, dissociation, or reaction with the
solvent, changing the effective concentration of the absorbing form (Harris, Quantitative Chemical
Analysis, 9th ed.).
3. In a UV-Vis spectrophotometer, which light source is most appropriate for measurements
in the ultraviolet region (190–350 nm)?
A. Tungsten halogen lamp
B. Deuterium (D₂) lamp
C. Xenon arc lamp
D. Light-emitting diode (LED)
Correct Answer: B. Deuterium (D₂) lamp
Rationale: The deuterium lamp is the standard continuous-source UV radiation source, providing
emission from approximately 160–400 nm with maximum intensity around 220–250 nm. It operates by
exciting deuterium molecules, which produce a continuous spectrum upon relaxation. The tungsten halogen
lamp (A) is used for the visible region (approximately 350–2500 nm). While xenon arc lamps (C) cover
both UV and visible, they are less common in standard single-beam instruments due to cost and stability
concerns. LEDs (D) are narrow-band sources and cannot provide continuous UV radiation.
1
, ACS Instrumental Analysis — Practice Test 2026/2027
4. A fluorescence emission spectrum is obtained by scanning the emission monochromator
while holding the excitation wavelength constant. Which of the following correctly describes
the relationship between excitation and emission wavelengths for most fluorophores?
A. The emission wavelength is shorter than the excitation wavelength (anti-Stokes shift)
B. The emission wavelength is longer than the excitation wavelength (Stokes shift)
C. The emission wavelength equals the excitation wavelength
D. There is no predictable relationship between excitation and emission wavelengths
Correct Answer: B. The emission wavelength is longer than the excitation wavelength (Stokes
shift)
Rationale: The Stokes shift is the difference between the excitation (shorter wavelength, higher energy)
and emission (longer wavelength, lower energy) maxima. This occurs because some energy is lost through
vibrational relaxation before fluorescence emission. The Stokes shift is essential for fluorescence detection
because it allows the excitation and emission signals to be separated spectrally, dramatically improving
selectivity and signal-to-noise ratio compared to absorption spectroscopy. An anti-Stokes shift (A) would
require energy gain from the environment and is extremely rare (upconversion). Options C and D are
incorrect for normal fluorescence phenomena.
5. Which type of quenching mechanism involves the formation of a non-fluorescent complex
between the fluorophore and the quencher in the ground state?
A. Dynamic (collisional) quenching
B. Static quenching
C. Inner-filter effect
D. Resonance energy transfer (FRET)
Correct Answer: B. Static quenching
Rationale: Static quenching occurs when the fluorophore and quencher form a non-fluorescent ground-
state complex. This complex does not emit because the new complex has different electronic properties than
the free fluorophore. Static quenching does not affect the excited-state lifetime (unlike dynamic quenching)
because no collision occurs in the excited state. Dynamic quenching (A) involves diffusional collisions
during the excited-state lifetime, reducing both fluorescence intensity and lifetime. The inner-filter effect (C)
is an artifact where high absorbance reduces the excitation light reaching the fluorophore. FRET (D) is a
distance-dependent non-radiative energy transfer between donor and acceptor.
6. An environmental chemist needs to quantify trace levels of polycyclic aromatic
hydrocarbons (PAHs) in river water at concentrations near 0.1 ppb. Which spectroscopic
technique would be MOST appropriate for this analysis and why?
A. UV-Vis absorption spectroscopy, because it provides the best sensitivity for organic compounds
B. Molecular fluorescence spectroscopy, because it offers superior detection limits and selectivity for
fluorescent PAHs
C. Atomic absorption spectroscopy, because PAHs contain carbon that absorbs in the UV region
D. Infrared spectroscopy, because PAHs have strong characteristic IR absorptions
Correct Answer: B. Molecular fluorescence spectroscopy, because it offers superior detection
limits and selectivity for fluorescent PAHs
Rationale: Molecular fluorescence spectroscopy is the best choice because many PAHs (e.g., naphthalene,
anthracene, pyrene, benzo[a]pyrene) are naturally fluorescent, and fluorescence typically offers 10–1000
times lower detection limits than absorption spectroscopy. The selectivity advantage comes from using two
wavelengths (excitation and emission), which reduces matrix interference. UV-Vis absorption (A) has
higher detection limits (typically ppm range) and lower selectivity. Atomic absorption (C) is for elemental
analysis, not molecular PAHs. IR spectroscopy (D) has poor sensitivity for trace analysis and is primarily
used for structural identification rather than quantification.
7. The quantum yield (Φ) of a fluorophore is defined as the ratio of which two quantities?
A. Emitted photons to absorbed photons
2
, ACS Instrumental Analysis — Practice Test 2026/2027
B. Absorbed photons to incident photons
C. Emitted photons to incident photons
D. Absorbed photons to emitted photons
Correct Answer: A. Emitted photons to absorbed photons
Rationale: The fluorescence quantum yield (Φ) is defined as the number of photons emitted divided by the
number of photons absorbed: Φ = (photons emitted)/(photons absorbed). It represents the efficiency of the
fluorescence process. A quantum yield of 1.0 means every absorbed photon results in an emitted photon
(theoretical maximum). Fluorescein has a quantum yield of approximately 0.93 in basic aqueous solution,
while quinine sulfate has a quantum yield of approximately 0.55. Non-radiative decay processes
(vibrational relaxation, internal conversion, intersystem crossing) compete with fluorescence and reduce
the quantum yield. Option B describes absorbance (fraction of incident light absorbed). Option C is the
overall efficiency including absorption. Option D is the inverse of the correct definition.
8. What is the key difference between fluorescence and phosphorescence?
A. Fluorescence involves singlet-to-singlet transitions; phosphorescence involves triplet-to-singlet
transitions
B. Fluorescence has a longer lifetime than phosphorescence
C. Phosphorescence occurs at shorter wavelengths than fluorescence
D. Fluorescence requires a higher-energy excitation source than phosphorescence
Correct Answer: A. Fluorescence involves singlet-to-singlet transitions; phosphorescence
involves triplet-to-singlet transitions
Rationale: Fluorescence involves transitions between electronic states of the same spin multiplicity
(typically S₁ → S₀, singlet-to-singlet), while phosphorescence involves a spin-forbidden transition from the
lowest triplet state (T₁) to the ground singlet state (S₀). Because the triplet-to-singlet transition is spin-
forbidden, phosphorescence has a much longer lifetime (microseconds to seconds or longer) compared to
fluorescence (nanoseconds). Option B is incorrect—fluorescence has shorter lifetimes. Option C is
incorrect—phosphorescence occurs at longer wavelengths (lower energy) because the triplet state is lower
in energy than the corresponding singlet state. Option D is incorrect—both can be excited by similar
wavelengths.
9. A two-component mixture contains species X and Y. The molar absorptivities at 450 nm are
εX = 3,500 and εY = 8,200 L/(mol·cm). If the total absorbance at 450 nm is 0.730 in a 1.00 cm
cell, and the concentration of X is 5.00 × 10⁻⁵ M, what is the concentration of Y?
A. 5.43 × 10⁻⁵ M
B. 6.78 × 10⁻⁵ M
C. 8.90 × 10⁻⁵ M
D. 4.50 × 10⁻⁵ M
Correct Answer: B. 6.78 × 10⁻⁵ M
Rationale: The total absorbance is the sum of individual absorbances: A_total = A_X + A_Y = εX·cX·b +
εY·cY·b. Substituting: 0.730 = (3,500)(5.00 × 10⁻⁵)(1.00) + (8,200)(cY)(1.00). This gives 0.730 = 0.175 +
8,200(cY). Solving: 8,200(cY) = 0.730 − 0.175 = 0.555, so cY = 0.555/8,200 = 6.77 × 10⁻⁵ M ≈ 6.78 × 10⁻⁵
M. This simultaneous analysis approach requires measurements at at least as many wavelengths as there
are components (two measurements for two components), and is a standard application of the Beer-
Lambert Law for multi-component analysis (Skoog, Holler & Crouch).
10. Select all that apply. Which of the following are standard components of a
spectrofluorometer? [Select All That Apply]
A. Excitation monochromator
B. Emission monochromator
C. Sample cuvette positioned at 90° to the excitation beam
D. Reference beam path for ratio recording
E. Photomultiplier tube (PMT) detector
3
