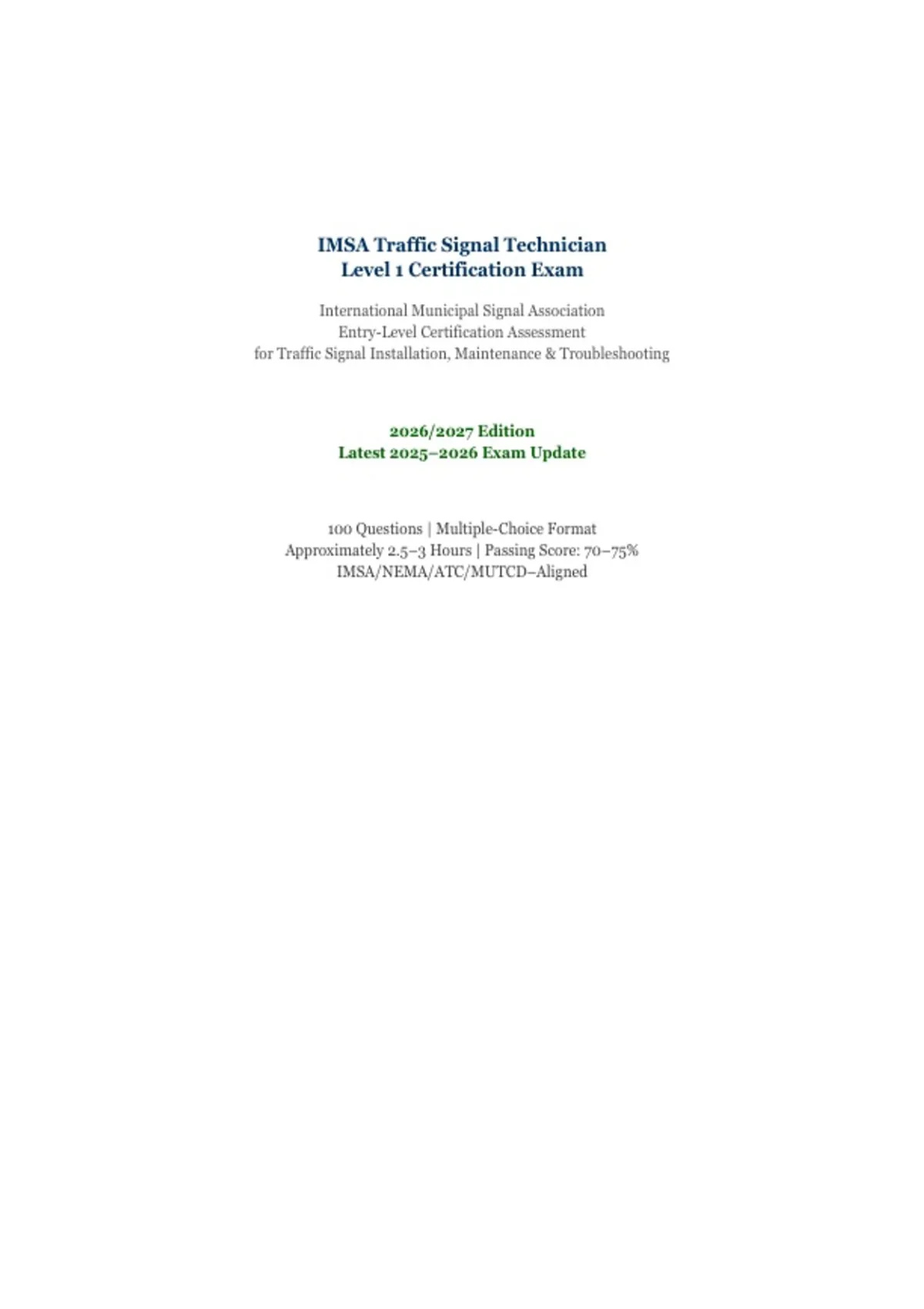

IMSA Traffic Signal Technician
Level 1 Certification Exam
International Municipal Signal Association
Entry-Level Certification Assessment
for Traffic Signal Installation, Maintenance & Troubleshooting
2026/2027 Edition
Latest 2025–2026 Exam Update
100 Questions | Multiple-Choice Format
Approximately 2.5–3 Hours | Passing Score: 70–75%
IMSA/NEMA/ATC/MUTCD–Aligned
,Table of Contents
Section 1: Electrical Fundamentals (Q1–10)
Section 2: Traffic Signal Equipment & Components (Q11–22)
Section 3: Detection Systems (Q23–32)
Section 4: Wiring & Cabling Standards (Q33–42)
Section 5: Traffic Signal Timing & Phasing (Q43–50)
Section 6: Conflict Monitoring & Safety Systems (Q51–60)
Section 7: MUTCD Compliance (Q61–68)
Section 8: Troubleshooting Methodologies (Q69–80)
Section 9: Safety Protocols (Q81–88)
Section 10: Documentation & Recordkeeping (Q89–93)
Section 11: Scenario-Based Operational Decision-Making (Q94–100)
Answer Key Summary
,Section 1: Electrical Fundamentals (Q1–10)
1. Using Ohm's Law, what current flows through a circuit with 120V applied across a 10-
ohm resistor?
A) 10 amperes
B) 12 amperes
C) 1.2 amperes
D) 120 amperes
Rationale: Ohm's Law states that current (I) equals voltage (V) divided by resistance (R). Therefore,
I = V/R = 120V / 10 ohms = 12 amperes. This fundamental relationship is essential for traffic signal
technicians when calculating circuit loads and verifying proper operation of signal components.
2. What is the total resistance of three 6-ohm resistors connected in series?
A) 2 ohms
B) 6 ohms
C) 12 ohms
D) 18 ohms
Rationale: In a series circuit, the total resistance is the sum of all individual resistances. R_total = R1
+ R2 + R3 = 6 + 6 + 6 = 18 ohms. Traffic signal technicians must understand series circuits when
troubleshooting series-connected indicator lamps or field wiring runs where multiple loads share a
common current path.
3. What is the total resistance of three 6-ohm resistors connected in parallel?
A) 2 ohms
B) 6 ohms
C) 12 ohms
D) 18 ohms
Rationale: For parallel resistors of equal value, the total resistance equals the value of one resistor
divided by the number of resistors. R_total = 6 ohms / 3 = 2 ohms. Parallel circuits are common in
traffic signal installations where multiple signal heads share the same phase output from the
controller.
4. A traffic signal head draws 2.5 amperes at 120V. What is the power consumption of this
signal head?
A) 48 watts
B) 300 watts
C) 30 watts
D) 240 watts
Rationale: Power is calculated using the formula P = V x I. Therefore, P = 120V x 2.5A = 300 watts.
Power calculations are critical for traffic signal technicians to ensure that load switches and field
wiring are properly rated for the total connected load on each phase.
5. What is the primary difference between alternating current (AC) and direct current
(DC)?
A) AC flows in one direction only; DC reverses direction periodically
B) AC reverses direction periodically; DC flows in one direction only
C) AC is always at higher voltage than DC
, D) DC is used only in residential wiring
Rationale: Alternating current (AC) periodically reverses its direction of flow, typically at 60 Hz in
North American power systems, while direct current (DC) flows continuously in one direction.
Traffic signal controllers typically operate on 120V AC power, though internal circuitry may convert
this to DC for electronic components.
6. When using a digital multimeter to measure voltage in a live traffic signal circuit, the
meter should be connected in which configuration?
A) Series with the load
B) Parallel across the load or power source
C) Series with a shunt resistor
D) Connected only when power is off
Rationale: Voltage measurements are always made by connecting the multimeter in parallel across
the component or circuit being measured. This is because voltage is a potential difference between
two points. Connecting in series would introduce the meter's impedance into the circuit and give an
incorrect reading. Technicians must always verify the meter is set to the correct voltage range and
AC/DC setting before measuring.
7. According to Kirchhoff's Current Law (KCL), the sum of currents entering a junction
equals what?
A) The voltage at that junction
B) The sum of currents leaving the junction
C) The resistance of the junction
D) Zero, because current is consumed at junctions
Rationale: Kirchhoff's Current Law states that the algebraic sum of currents entering a junction
equals the sum of currents leaving that junction, reflecting the conservation of electric charge. This
principle is useful in traffic signal work when analyzing current distribution in parallel circuits, such
as when multiple signal heads are connected to a single phase output.
8. A conductor with a resistance of 4 ohms carries 5 amperes of current. How much power
is dissipated in the conductor?
A) 20 watts
B) 25 watts
C) 80 watts
D) 100 watts
Rationale: Using the power formula P = I squared x R, P = 5A x 5A x 4 ohms = 100 watts. This
formula is derived from combining Ohm's Law (V = IR) with P = VI. Understanding power
dissipation is important for selecting properly rated wiring and components to prevent overheating
in traffic signal installations.
9. How does increasing the length of a conductor affect its resistance?
A) Resistance decreases proportionally
B) Resistance increases proportionally
C) Resistance remains the same
D) Resistance increases exponentially
