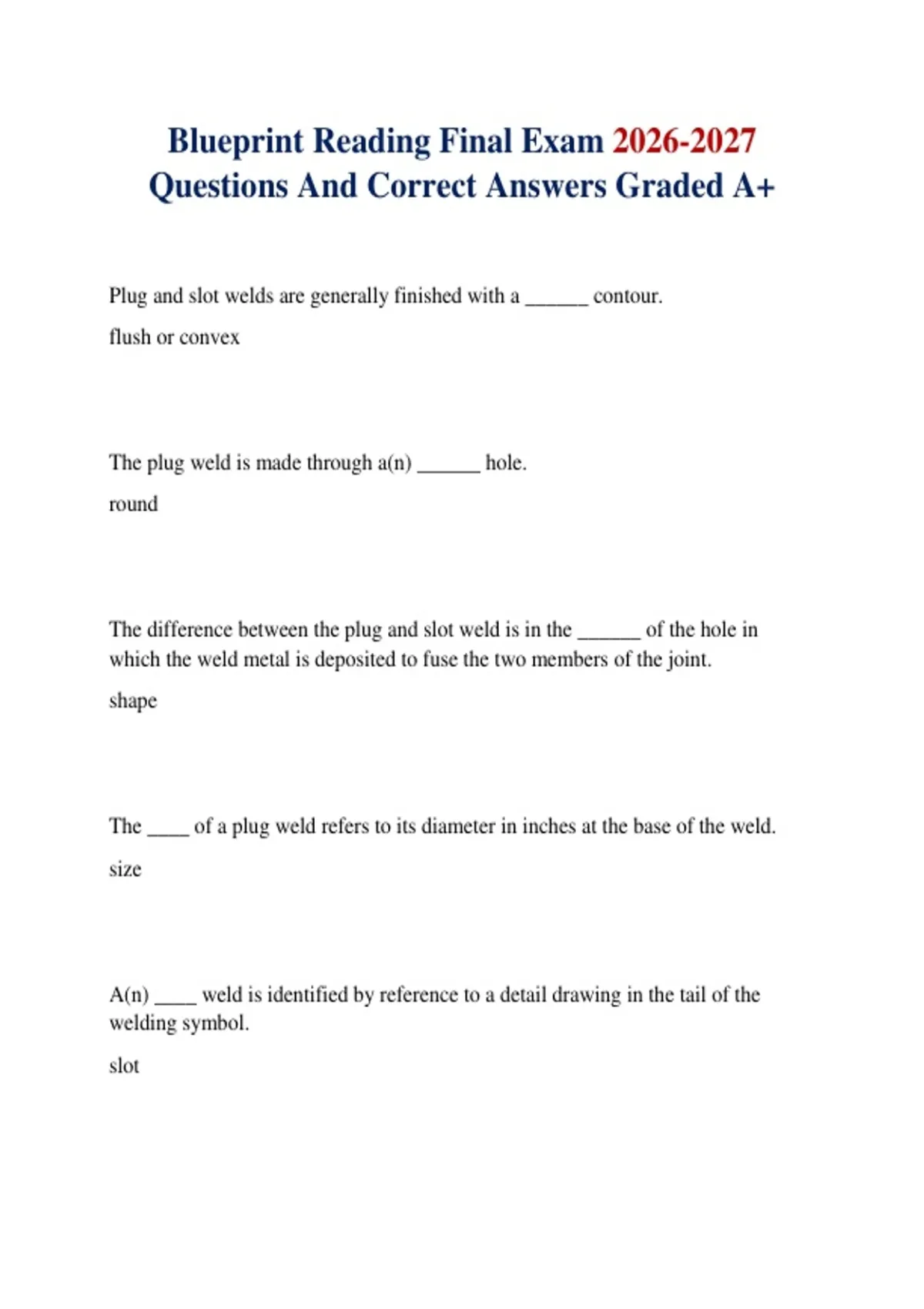

Blueprint Reading Final Exam 2026-2027
Questions And Correct Answers Graded A+
Plug and slot welds are generally finished with a ______ contour.
flush or convex
The plug weld is made through a(n) ______ hole.
round
The difference between the plug and slot weld is in the ______ of the hole in
which the weld metal is deposited to fuse the two members of the joint.
shape
The ____ of a plug weld refers to its diameter in inches at the base of the weld.
size
A(n) ____ weld is identified by reference to a detail drawing in the tail of the
welding symbol.
slot
,If a method of postweld finish is also to be specified, it is placed _____ the contour
symbol.
above or below
The slot weld is made through a(n) ______ hole.
elongated
The number of welds is shown in ______ below an arrow side of the plug and slot
weld symbols or may be specified in the tail of the welding symbol.
parentheses
The _____ drawing shows the member or members that will require joint
preparation.
section
Depth of _______ is shown within the symbol for both plug and slot welds.
Filling
In the case of a(n) _______ finish requirement, it is so specified by a note in the
tail of the welding symbol
flat
, A(n) _____ weld symbol is used to designate a fillet weld in a round or slotted
hole.
plug
The ______ drawing shows the shape, location, and orientation of the slot weld.
detail
When two or more members are welded to another member by means of a plug
weld, the joint or joints to be welded are shown by a(n) ________ drawing.
section
When a specific height is not desired, a dimension is not given.
True
When only a portion of the surface must be built up, the extent, location, and
orientation of the are to be built up is shown on the print instead of the symbol.
False
Special applications of surface welds may be undicated by a note in the tail of the
welding symbol, such as adjusting the fitup of grooved joints.
True
