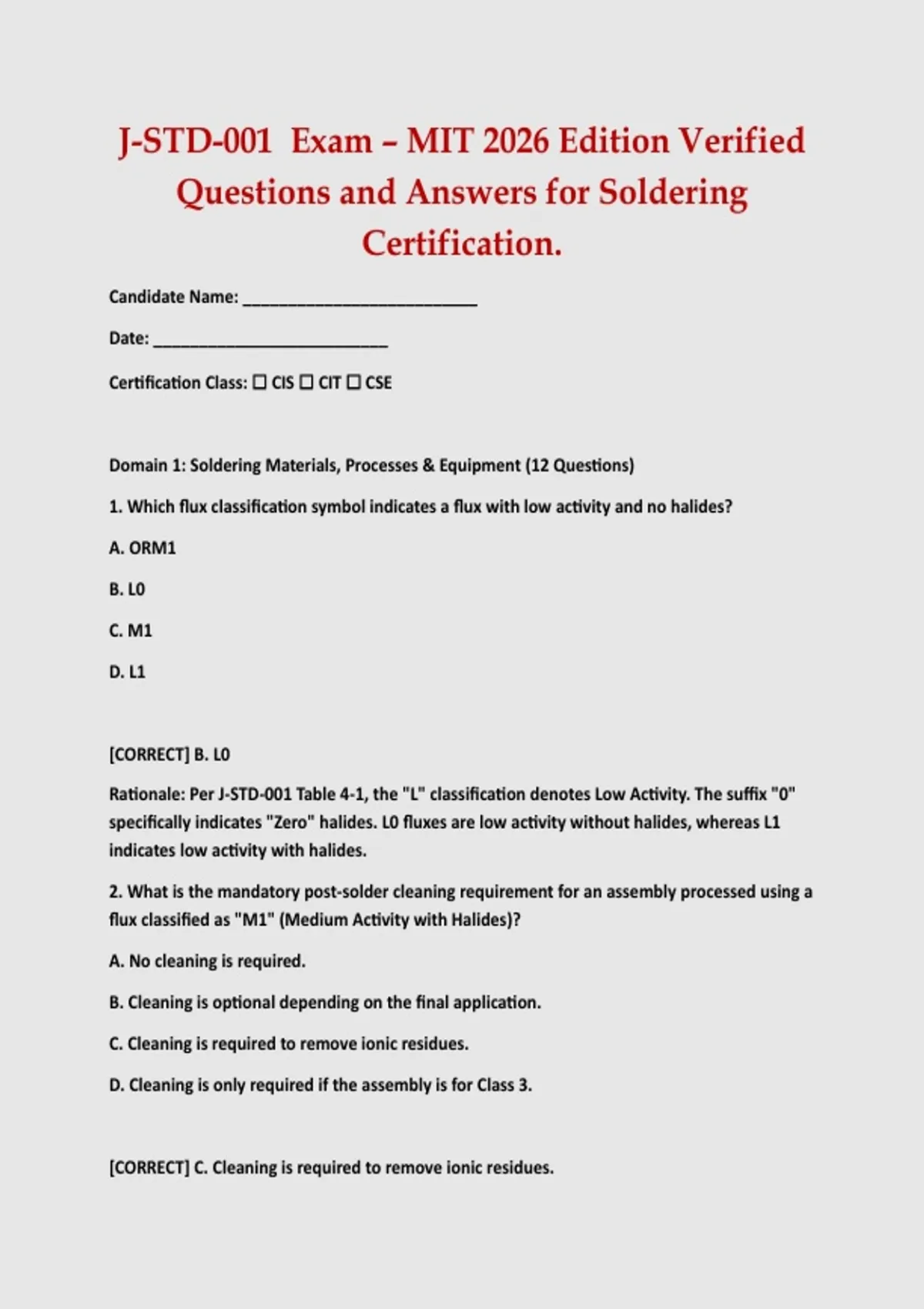

J-STD-001 Exam – MIT 2026 Edition Verified
Questions and Answers for Soldering
Certification.
Candidate Name: __________________________
Date: __________________________
Certification Class: ☐ CIS ☐ CIT ☐ CSE
Domain 1: Soldering Materials, Processes & Equipment (12 Questions)
1. Which flux classification symbol indicates a flux with low activity and no halides?
A. ORM1
B. L0
C. M1
D. L1
[CORRECT] B. L0
Rationale: Per J-STD-001 Table 4-1, the "L" classification denotes Low Activity. The suffix "0"
specifically indicates "Zero" halides. L0 fluxes are low activity without halides, whereas L1
indicates low activity with halides.
2. What is the mandatory post-solder cleaning requirement for an assembly processed using a
flux classified as "M1" (Medium Activity with Halides)?
A. No cleaning is required.
B. Cleaning is optional depending on the final application.
C. Cleaning is required to remove ionic residues.
D. Cleaning is only required if the assembly is for Class 3.
[CORRECT] C. Cleaning is required to remove ionic residues.
,Rationale: Fluxes classified as "M" (Medium Activity) and "H" (High Activity) contain activated
materials that can cause corrosion if left on the assembly. J-STD-001 Section 4.3 mandates
that these flux residues be removed by a suitable cleaning process.
3. The eutectic Sn63/Pb37 solder alloy transitions directly from a solid to a liquid state at a
specific temperature. Which statement accurately describes this behavior?
A. It transitions at 183°C with a plastic range of 10°C.
B. It transitions at 361°F with a pasty range of 0°C.
C. It transitions at 217°C with no plastic range.
D. It transitions gradually over a 20°C range starting at 183°C.
[CORRECT] B. It transitions at 361°F with a pasty range of 0°C.
Rationale: The Sn63/Pb37 alloy is eutectic, meaning it melts and solidifies at a single
temperature (183°C / 361°F) rather than over a range. There is no "pasty" or "plastic" zone; it
goes instantly from solid to liquid and vice versa.
4. During the cooling phase of a Sn63/Pb37 solder joint, how does the eutectic structure
affect the final grain structure compared to a non-eutectic alloy?
A. It forms a coarse, grainy structure due to slow solidification.
B. It forms a shiny, smooth surface as it solidifies instantly at a single point.
C. It creates a dull surface due to the extended plastic phase.
D. It requires rapid forced cooling to prevent segregation.
[CORRECT] B. It forms a shiny, smooth surface as it solidifies instantly at a single point.
Rationale: Because the eutectic alloy has no plastic range, it solidifies uniformly without the
phase segregation that causes a dull or grainy appearance in non-eutectic alloys (assuming
proper soldering technique). This rapid solidification at a fixed point promotes the desired
shiny "Target" appearance.
5. When verifying the calibration of a soldering iron tip for a Lead-Free (SAC305) application,
what is the critical temperature consideration compared to a Tin-Lead application?
A. The tip temperature must be lowered to prevent thermal shock.
, B. The tip temperature is typically set higher to overcome the higher melting point and
wetting time.
C. The tip temperature must be identical to Tin-Lead to prevent pad lifting.
D. The tip temperature is irrelevant; only the dwell time matters.
[CORRECT] B. The tip temperature is typically set higher to overcome the higher melting point
and wetting time.
Rationale: Lead-free solders generally have higher melting points (approx. 217°C–220°C)
compared to Sn63/Pb37 (183°C). To achieve adequate wetting within the required time
without prolonging heat exposure, the tip temperature is usually increased by 20°C–40°C over
standard Tin-Lead settings.
6. A soldering iron tip used for Lead-Free soldering shows signs of oxidation and poor wetting
during the daily verification check. Which maintenance action is required?
A. Increase the temperature to burn off the oxidation.
B. Apply active flux directly to the hot tip to strip the coating.
C. Remove the oxidation using a wet sponge or brass wool and re-tin immediately.
D. Discard the tip immediately as it is contaminated beyond use.
[CORRECT] C. Remove the oxidation using a wet sponge or brass wool and re-tin immediately.
Rationale: Proper maintenance (Section 4.6) requires cleaning the tip of oxides and
immediately coating it with fresh solder (tinning) to prevent re-oxidation and ensure proper
thermal transfer.
7. What is the specific retouch guideline for lifting a pad on a gold-plated immersion contact
during a rework operation?
A. The pad may be lifted up to 50% of its width.
B. The pad must not be lifted; any lifting constitutes a defect.
C. The pad may be lifted if the underlying laminate is not exposed.
D. The pad may be lifted if the circuit trace remains intact.
