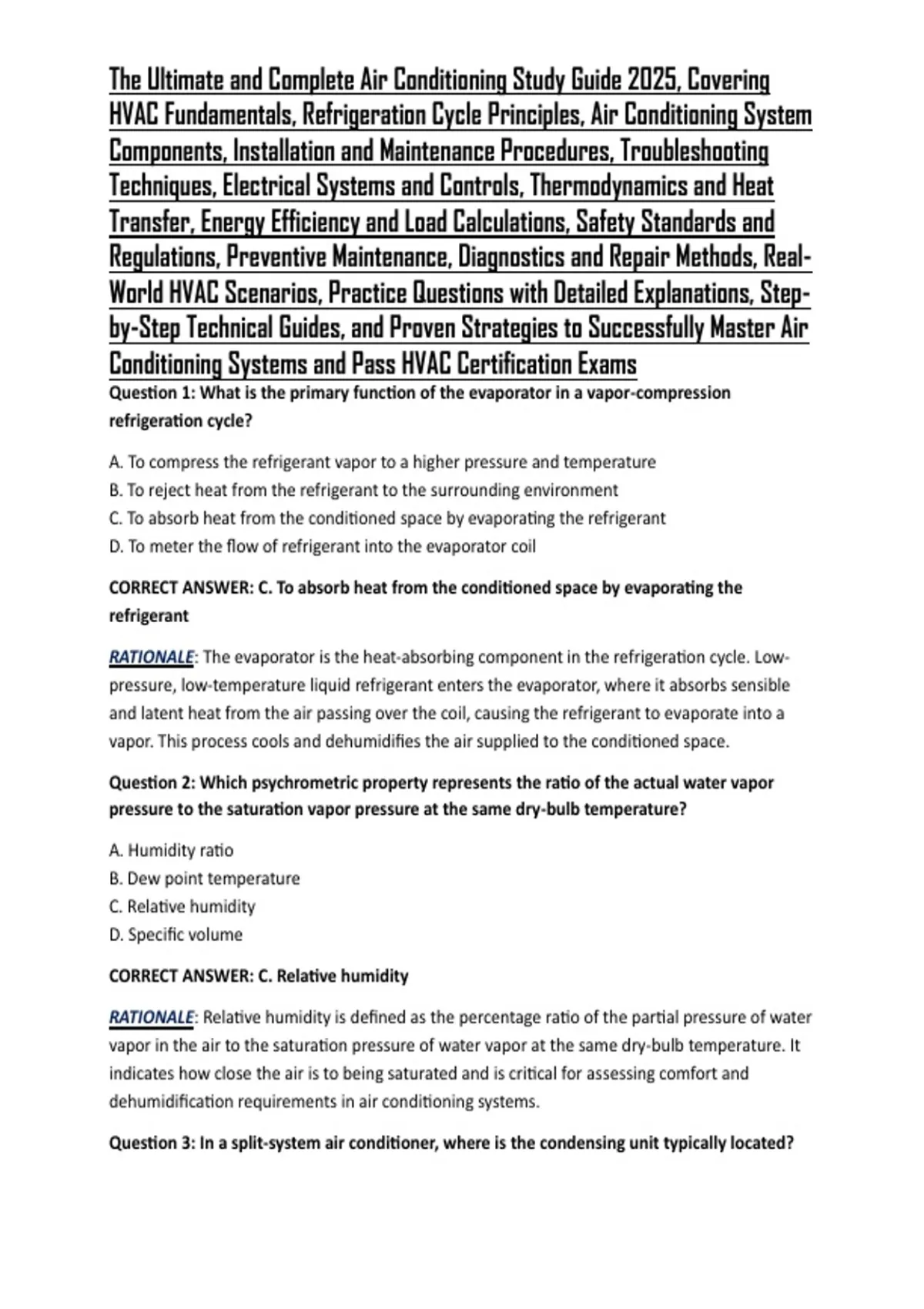

The Ultimate and Complete Air Conditioning Study Guide 2025, Covering
HVAC Fundamentals, Refrigeration Cycle Principles, Air Conditioning System
Components, Installation and Maintenance Procedures, Troubleshooting
Techniques, Electrical Systems and Controls, Thermodynamics and Heat
Transfer, Energy Efficiency and Load Calculations, Safety Standards and
Regulations, Preventive Maintenance, Diagnostics and Repair Methods, Real-
World HVAC Scenarios, Practice Questions with Detailed Explanations, Step-
by-Step Technical Guides, and Proven Strategies to Successfully Master Air
Conditioning Systems and Pass HVAC Certification Exams
Question 1: What is the primary function of the evaporator in a vapor-compression
refrigeration cycle?
A. To compress the refrigerant vapor to a higher pressure and temperature
B. To reject heat from the refrigerant to the surrounding environment
C. To absorb heat from the conditioned space by evaporating the refrigerant
D. To meter the flow of refrigerant into the evaporator coil
CORRECT ANSWER: C. To absorb heat from the conditioned space by evaporating the
refrigerant
RATIONALE: The evaporator is the heat-absorbing component in the refrigeration cycle. Low-
pressure, low-temperature liquid refrigerant enters the evaporator, where it absorbs sensible
and latent heat from the air passing over the coil, causing the refrigerant to evaporate into a
vapor. This process cools and dehumidifies the air supplied to the conditioned space.
Question 2: Which psychrometric property represents the ratio of the actual water vapor
pressure to the saturation vapor pressure at the same dry-bulb temperature?
A. Humidity ratio
B. Dew point temperature
C. Relative humidity
D. Specific volume
CORRECT ANSWER: C. Relative humidity
RATIONALE: Relative humidity is defined as the percentage ratio of the partial pressure of water
vapor in the air to the saturation pressure of water vapor at the same dry-bulb temperature. It
indicates how close the air is to being saturated and is critical for assessing comfort and
dehumidification requirements in air conditioning systems.
Question 3: In a split-system air conditioner, where is the condensing unit typically located?
,A. Inside the conditioned space
B. Within the air handler cabinet
C. Outside the building envelope
D. In the return air ductwork
CORRECT ANSWER: C. Outside the building envelope
RATIONALE: Split-system air conditioners separate the system into two main assemblies: the
indoor evaporator/air handler and the outdoor condensing unit. The condensing unit,
containing the compressor and condenser coil, is placed outdoors to reject heat to the ambient
environment and to minimize indoor noise and space requirements.
Question 4: Which refrigerant classification denotes a substance with zero ozone depletion
potential and low global warming potential?
A. CFC
B. HCFC
C. HFC
D. HFO
CORRECT ANSWER: D. HFO
RATIONALE: Hydrofluoroolefins (HFOs) are fourth-generation refrigerants designed with zero
ozone depletion potential (ODP) and significantly lower global warming potential (GWP)
compared to HFCs. They are increasingly adopted to meet environmental regulations such as
the Kigali Amendment to the Montreal Protocol.
Question 5: What is the primary purpose of a thermostatic expansion valve (TXV) in a
refrigeration system?
A. To compress refrigerant vapor before it enters the condenser
B. To maintain a constant superheat at the evaporator outlet
C. To subcool liquid refrigerant before it reaches the metering device
D. To reverse refrigerant flow for heating mode operation
CORRECT ANSWER: B. To maintain a constant superheat at the evaporator outlet
RATIONALE: A TXV meters refrigerant flow into the evaporator based on the superheat
measured at the evaporator outlet. By maintaining optimal superheat, the TXV ensures efficient
evaporator utilization, prevents liquid refrigerant from returning to the compressor, and adapts
to varying load conditions.
Question 6: Which factor most directly influences the sensible heat ratio (SHR) of a cooling
coil?
,A. Refrigerant type used in the system
B. Ratio of sensible cooling to total cooling capacity
C. Condenser fan motor horsepower
D. Compressor displacement volume
CORRECT ANSWER: B. Ratio of sensible cooling to total cooling capacity
RATIONALE: The sensible heat ratio (SHR) is defined as the sensible cooling load divided by the
total cooling load (sensible plus latent). It determines the coil's ability to remove sensible heat
versus moisture and is critical for selecting equipment that meets both temperature and
humidity control requirements.
Question 7: What is the standard unit of refrigeration capacity in the United States customary
system?
A. Kilowatt (kW)
B. British Thermal Unit per hour (BTU/h)
C. Ton of refrigeration
D. Horsepower (hp)
CORRECT ANSWER: C. Ton of refrigeration
RATIONALE: One ton of refrigeration equals 12,000 BTU/h, representing the rate of heat
removal required to freeze one short ton (2,000 lb) of water at 32°F into ice over 24 hours. This
unit remains standard for rating residential and commercial air conditioning equipment in the
U.S.
Question 8: Which component prevents liquid refrigerant from entering the compressor
during system operation?
A. Accumulator
B. Receiver
C. Filter-drier
D. Sight glass
CORRECT ANSWER: A. Accumulator
RATIONALE: An accumulator is installed on the suction line upstream of the compressor to
capture and vaporize any liquid refrigerant or oil that may not have fully evaporated in the
evaporator. This prevents liquid slugging, which can cause mechanical damage to compressor
valves and pistons.
Question 9: In psychrometrics, what does the wet-bulb temperature primarily indicate?
, A. The temperature at which condensation begins
B. The total heat content (enthalpy) of moist air
C. The cooling potential of evaporative processes
D. The density of air-vapor mixture
CORRECT ANSWER: C. The cooling potential of evaporative processes
RATIONALE: Wet-bulb temperature is measured using a thermometer with a moistened wick
exposed to airflow. It reflects the lowest temperature achievable through evaporative cooling at
constant pressure and is essential for evaluating cooling tower performance, evaporative
coolers, and air washer efficiency.
Question 10: Which ASHRAE standard specifies thermal environmental conditions for human
occupancy?
A. ASHRAE Standard 55
B. ASHRAE Standard 62.1
C. ASHRAE Standard 90.1
D. ASHRAE Standard 15
CORRECT ANSWER: A. ASHRAE Standard 55
RATIONALE: ASHRAE Standard 55, "Thermal Environmental Conditions for Human Occupancy,"
establishes combinations of indoor temperature, humidity, air speed, radiant temperature,
clothing insulation, and metabolic rate that produce acceptable thermal comfort for at least
80% of occupants.
Question 11: What is the primary advantage of a variable refrigerant flow (VRF) system over
conventional HVAC systems?
A. Lower initial equipment cost
B. Simpler refrigerant piping design
C. Independent zone temperature control with simultaneous heating and cooling
D. Reduced need for electrical service upgrades
CORRECT ANSWER: C. Independent zone temperature control with simultaneous heating and
cooling
RATIONALE: VRF systems use inverter-driven compressors and branch circuit controllers to
deliver precise refrigerant flow to multiple indoor units. Heat recovery VRF configurations can
simultaneously provide heating to some zones while cooling others, improving energy efficiency
and occupant comfort in diverse load scenarios.
