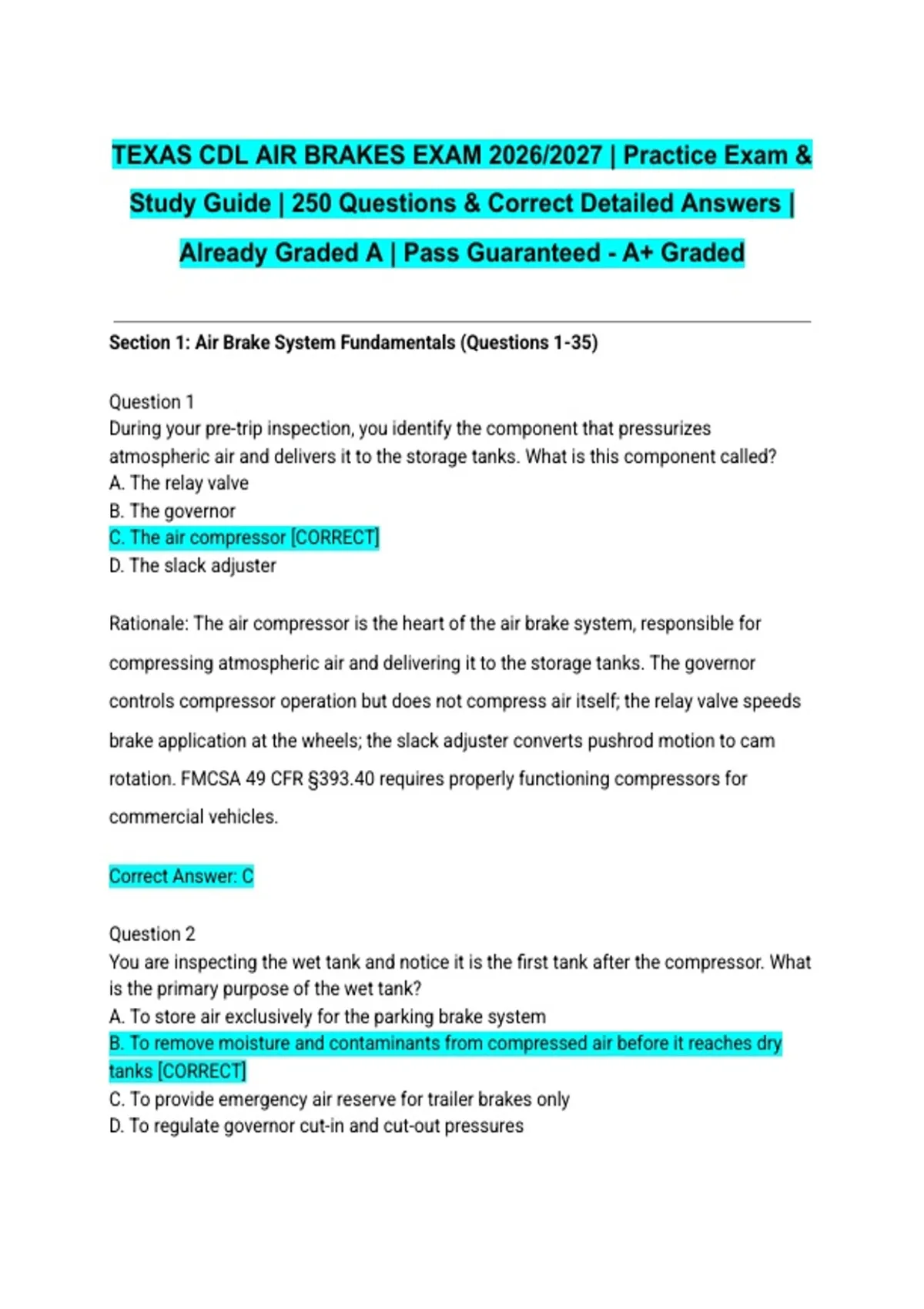

TEXAS CDL AIR BRAKES EXAM 2026/2027 | Practice Exam & Study Guide | 250 Questions & Correct Detailed Answers | Already Graded A | Pass Guaranteed - A+ Graded

Pass the Texas CDL Air Brakes Exam on your first attempt with this newest actual exam resource featuring 250 questions and correct detailed answers with verified answers, already graded A. This A+ Graded resource contains a complete study guide, practice exam, and actual exam Q&A bank covering everything required for the Texas CDL Air Brakes endorsement. Key Content Areas Covered: Part 1: Why Air Brakes – advantages of air brakes over hydraulic brakes (continuous supply of compressed air, ability to operate even with leaks, parking brake functionality), components requiring special attention (low air pressure warning devices, air compressor, air tanks, brake drums/shoes, slack adjusters, pushrod stroke), and why air brakes are required for heavy commercial vehicles Part 2: Air Brake System Components – air compressor (governor controlled, cut-in pressure, cut-out pressure), air compressor operation (cuts in at 100-105 psi, cuts out at 120-135 psi for most systems, gear-driven by engine), alcohol evaporator (prevents ice in valves during cold weather), air dryer (removes moisture and oil from compressed air, optional but recommended), air tanks (storage reservoirs for compressed air, drain valves at bottom to remove moisture/oil), drain valve types (manual (daily draining), automatic (self-draining), manual back-up), safety valve (protects tanks from over-pressurization, typically set at 150 psi), brake pedal (foot valve, applies service brakes, modulated pressure application), foundation brakes (brake chambers, slack adjusters, brake drums, brake shoes, S-cam, pushrod), brake chambers (convert air pressure into mechanical force), slack adjusters (convert pushrod linear motion into rotational motion of S-cam, adjust automatically or manually), S-cam (rotates to push brake shoes against brake drum), brake drums and shoes (friction material that stops the vehicle), wedge brakes (used on some vehicles instead of S-cam), disc brakes (used on some heavy vehicles, similar to automotive disc brakes) Part 3: Dual Air Brake Systems – two separate air brake systems (primary system (rear brakes), secondary system (front brakes)), operation of each system (dual control foot valve sends air to both systems, if one system fails the other still operates), air pressure gauges (primary air tank pressure gauge, secondary air tank pressure gauge), warning devices (low air pressure warning light and buzzer, activates at 55-75 psi), and system integrity tests Part 4: Parking Brakes – spring brakes (most common parking brake mechanism, held off by air pressure, apply automatically when air pressure drops below 20-45 psi), emergency brake function (spring brakes apply automatically if air pressure is lost), parking brake control valve (pull to apply spring brakes, push in to release (requires adequate air pressure)), parking brake application (yellow diamond-shaped knob usually controls parking brakes), and modulating valve (allows gradual spring brake application in emergencies) Part 5: Air Brake Safety and Emergency Features – low air pressure warning (light and buzzer activate before pressure drops below 55-75 psi), automatic spring brake application at 20-45 psi, safety valve operation (opens at 150 psi to prevent over-pressurization), one-way check valve (prevents air from flowing backward from tanks to compressor), stop light switch (activates brake lights when brake pedal applied), and front brake limiting valve (not required on modern vehicles, some older vehicles have "dry road" and "slippery road" settings) Part 6: Pre-Trip Air Brake Inspection – governor cut-in and cut-out tests (run engine at fast idle, pump brakes to reduce pressure, observe cut-in at 100-105 psi, cut-out at 120-135 psi), air system leakage tests (with engine off, release parking brakes, hold foot brake, check for leaks (loss of more than 3 psi in one minute is excessive)), low air pressure warning test (with key on, pump brakes to reduce pressure, warning light/buzzer activates at 55-75 psi), spring brake activation test (continue pumping brakes, emergency spring brakes apply at 20-45 psi), tank draining procedures (open drain valves to check for moisture/oil, close securely after draining), brake adjustment check (pushrod stroke measurement, typical maximum stroke (Type 30 chamber: 1.75 inches slack adjuster (manual), 2 inches automatic, Type 20: 1.375 manual, 1.75 automatic)), slack adjuster inspection (no more than 1 inch of movement with heavy pull, automatic adjusters should not have excessive pushrod stroke), air compressor mounting (check for secure mounting, no leaks), air dryer operation (check moisture purge cycle), and alcohol evaporator (check fluid level in winter conditions) Part 7: Air Brake System Tests During Driving – normal driving (wait for air pressure to reach at least 100 psi before moving vehicle), engine compartment checks (listen for air leaks during and after starting), low pressure warning during driving (if warning activates, stop safely, identify cause, do not drive with low pressure), parking brake test (apply parking brake, put vehicle in low gear, attempt to move forward (vehicle should not move)), service brake test (apply foot brake while moving slowly, vehicle should stop smoothly without pulling to either side), and heavy brake application (avoid lock-up on wet/slippery surfaces, controlled braking techniques) Part 8: Brake Fade and Stopping Distance – brake fade causes (excessive heat from repeated/hard braking, reduced friction between brake shoes and drums), stopping distance components (perception distance, reaction distance, braking distance), factors affecting braking distance (vehicle weight, speed, road conditions, brake system condition), extended braking in mountains (use proper gear selection, avoid riding brakes, use engine braking, pull over to cool brakes if fade occurs), and differences between hydraulic and air brakes (air brakes have slightly longer stopping distance due to chamber pressurization time (approximately 0.5 seconds)) Part 9: Air Brake Endorsement Written Exam – required knowledge for CDL Air Brakes endorsement (all of above), tanker/hazmat combination considerations, state-specific Texas regulations (Texas Commercial Driver's License Manual - Air Brakes section), inspection requirements for Texas CDL exam (pre-trip air brake inspection on test vehicle), and passing score requirements (typically 80% or higher) Part 10: 250 Practice Questions with Detailed Answers – includes scenario-based questions, component identification questions, diagnostic questions (what to do when low air pressure warning activates), calculation questions (how often to drain air tanks (daily)), and regulation questions (minimum air pressure to operate vehicle (100 psi normal operation, spring brakes apply at 20-45 psi)), and CDL air brake system failure analysis (deterministic effects of system component failure, how dual air systems provide redundancy, emergency procedures for air loss during driving (controlled stop, avoid panic braking)), brake adjustment limits for various vehicles, Texas-specific legal requirements for pre-trip and CDL testing, and brake system troubleshooting (slack adjuster stroke exceeding maximum, air compressor governor cycling too frequently (short cycling), excessive moisture in air system, brake imbalance causing pulling to one side, foundation brake issues (grease/oil on brake linings, cracked brake drums) and system repair protocols) Each answer includes detailed rationales and step-by-step explanations to reinforce air brake system knowledge and safety procedures. Perfect for commercial driver's license (CDL) applicants in Texas, truck and bus drivers, and anyone requiring the Air Brakes endorsement. With our Pass Guarantee, you can confidently pass the Texas CDL Air Brakes Exam. Download your complete Texas CDL Air Brakes Exam, Practice Exam and Study Guide with 250 Q&A instantly!
