1

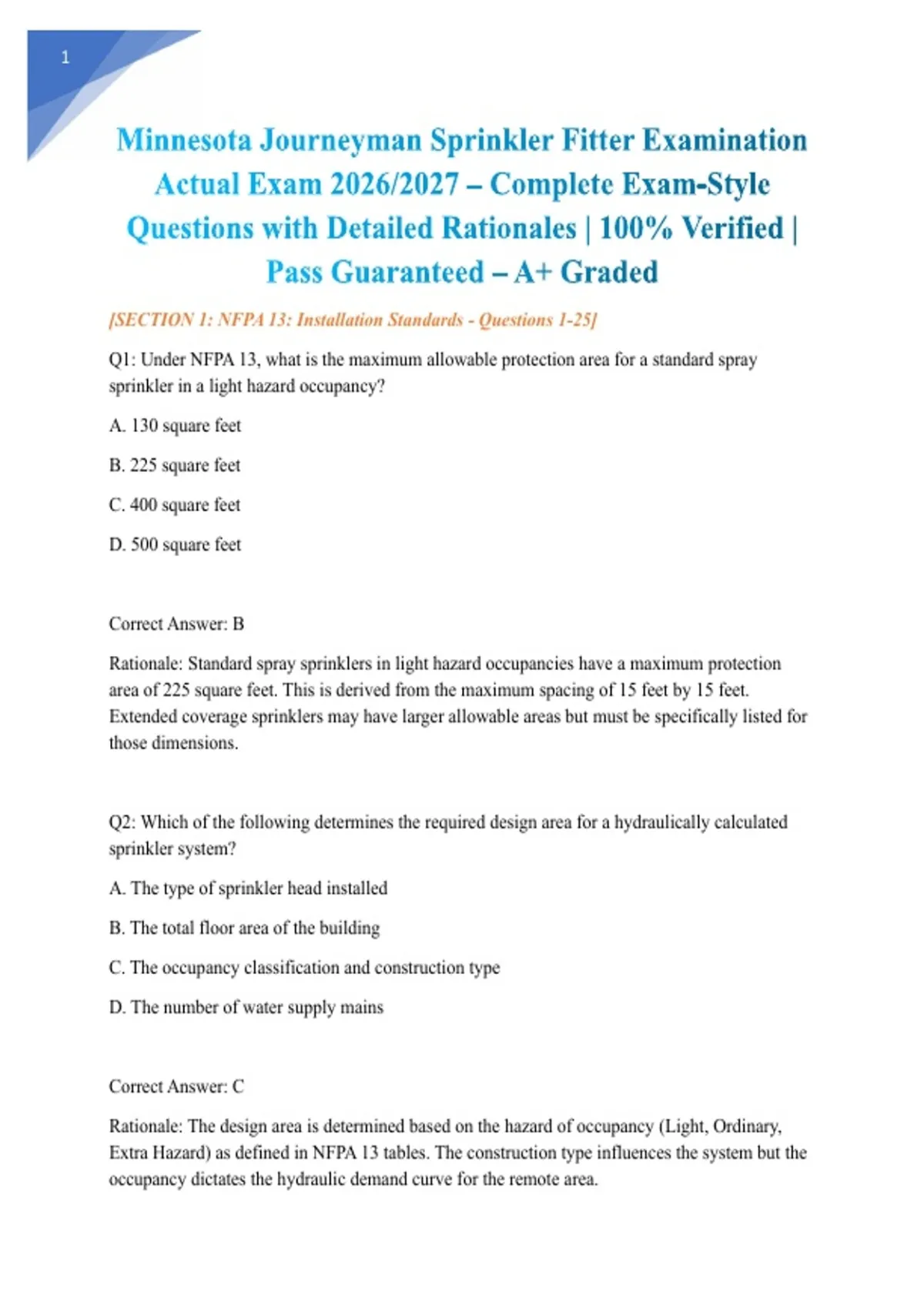

Minnesota Journeyman Sprinkler Fitter Examination
Actual Exam 2026/2027 – Complete Exam-Style
Questions with Detailed Rationales | 100% Verified |
Pass Guaranteed – A+ Graded
[SECTION 1: NFPA 13: Installation Standards - Questions 1-25]
Q1: Under NFPA 13, what is the maximum allowable protection area for a standard spray
sprinkler in a light hazard occupancy?
A. 130 square feet
B. 225 square feet
C. 400 square feet
D. 500 square feet
Correct Answer: B
Rationale: Standard spray sprinklers in light hazard occupancies have a maximum protection
area of 225 square feet. This is derived from the maximum spacing of 15 feet by 15 feet.
Extended coverage sprinklers may have larger allowable areas but must be specifically listed for
those dimensions.
Q2: Which of the following determines the required design area for a hydraulically calculated
sprinkler system?
A. The type of sprinkler head installed
B. The total floor area of the building
C. The occupancy classification and construction type
D. The number of water supply mains
Correct Answer: C
Rationale: The design area is determined based on the hazard of occupancy (Light, Ordinary,
Extra Hazard) as defined in NFPA 13 tables. The construction type influences the system but the
occupancy dictates the hydraulic demand curve for the remote area.
,2
Q3: In a standard wet pipe sprinkler system, what is the maximum distance allowed between a
sprinkler deflector and the bottom of a solid obstructing beam?
A. 12 inches
B. 18 inches
C. 24 inches
D. 36 inches
Correct Answer: B
Rationale: NFPA 13 requires sprinklers to be positioned no more than 18 inches below the
bottom of a solid obstructing beam. This spacing ensures that the sprinkler spray pattern is not
blocked or deflected significantly by the structural beam. Obstruction rules are critical for
effective coverage.
Q4: Which of the following sprinkler types is characterized by a large droplet and high flow rate,
specifically designed to suppress high-challenge fires in storage applications?
A. Extended Coverage
B. Control Mode Density Area (CMDA)
C. Early Suppression Fast Response (ESFR)
D. CMSA (Control Mode Specific Application)
Correct Answer: C
Rationale: ESFR sprinklers are designed to release large water droplets with high momentum to
penetrate the strong fire plumes found in high-piled storage fires. They are intended to suppress
the fire quickly, often eliminating the need for in-rack sprinklers. CMDA and CMSA are older
generations of storage sprinklers intended for fire control rather than suppression.
Q5: When installing upright sprinklers under a concrete roof deck, what is the minimum required
clearance between the deflector and the deck?
A. 1 inch
,3
B. 4 inches
C. 7 inches
D. 12 inches
Correct Answer: C
Rationale: NFPA 13 requires a minimum clearance of 7 inches between the deflector of an
upright sprinkler and the roof deck. This distance allows the water spray to develop its intended
pattern without being obstructed by the ceiling. Closer spacing can significantly reduce the spray
pattern's effectiveness.
Q6: Which of the following is a requirement for piping in dry pipe sprinkler systems regarding
the pitch?
A. Piping must be level to prevent water hammer.
B. Piping must be pitched a minimum of 1/4 inch per foot toward the main drain.
C. Piping must be pitched to drain toward the dry-pipe valve.
D. Pitch is only required for piping larger than 4 inches.
Correct Answer: C
Rationale: All piping in a dry system must be pitched to drain water back toward the main drain
or the dry-pipe valve to prevent water accumulation. Accumulated water can freeze, block pipes,
or cause delays in water delivery. A minimum slope is required (typically 1/4 inch per foot) on
branch lines and mains.
Q7: What is the purpose of an auxiliary drain (drum drip) in a dry pipe sprinkler system?
A. To supply water to the inspector's test connection
B. To collect small amounts of water that condense or accumulates in low points
C. To provide an emergency water supply to the fire department
D. To test the operation of the water motor gong
, 4
Correct Answer: B
Rationale: Auxiliary drains, or drum drips, are installed at low points in dry system piping to
collect water that collects due to condensation or trapped air. This water must be removed to
prevent pipe freezing or corrosion during cold weather. They are typically installed on the system
side of the dry valve.
Q8: Under NFPA 13, when is a system required to be supervised by a central station supervising
service or a local alarm that sounds on the premises?
A. Only for systems in high-rise buildings
B. Only for systems exceeding 100 sprinkler heads
C. For all systems where the water supply is cut off by an automatically controlled valve
D. For all hydraulic calculations
Correct Answer: C
Rationale: If a system's water supply is controlled by an automatically operated valve (like an
automatic control valve on a river intake or tank), a supervisory signal is required. This notifies
personnel if the valve is accidentally closed or fails to open.
Q9: Which of the following sprinkler temperature ratings would be appropriate for an attic space
in Minnesota that routinely reaches 120°F?
A. 135°F (Orange)
B. 155°F (Red)
C. 175°F (Yellow)
D. 200°F (Green)
Correct Answer: B
Rationale: NFPA 13 requires the sprinkler temperature rating to be at least 30°F to 50°F above
the maximum ambient ceiling temperature. Since the attic reaches 120°F, the minimum rating
would be 155°F (Red bulb). A 135°F sprinkler might activate accidentally due to normal attic
temperatures.
