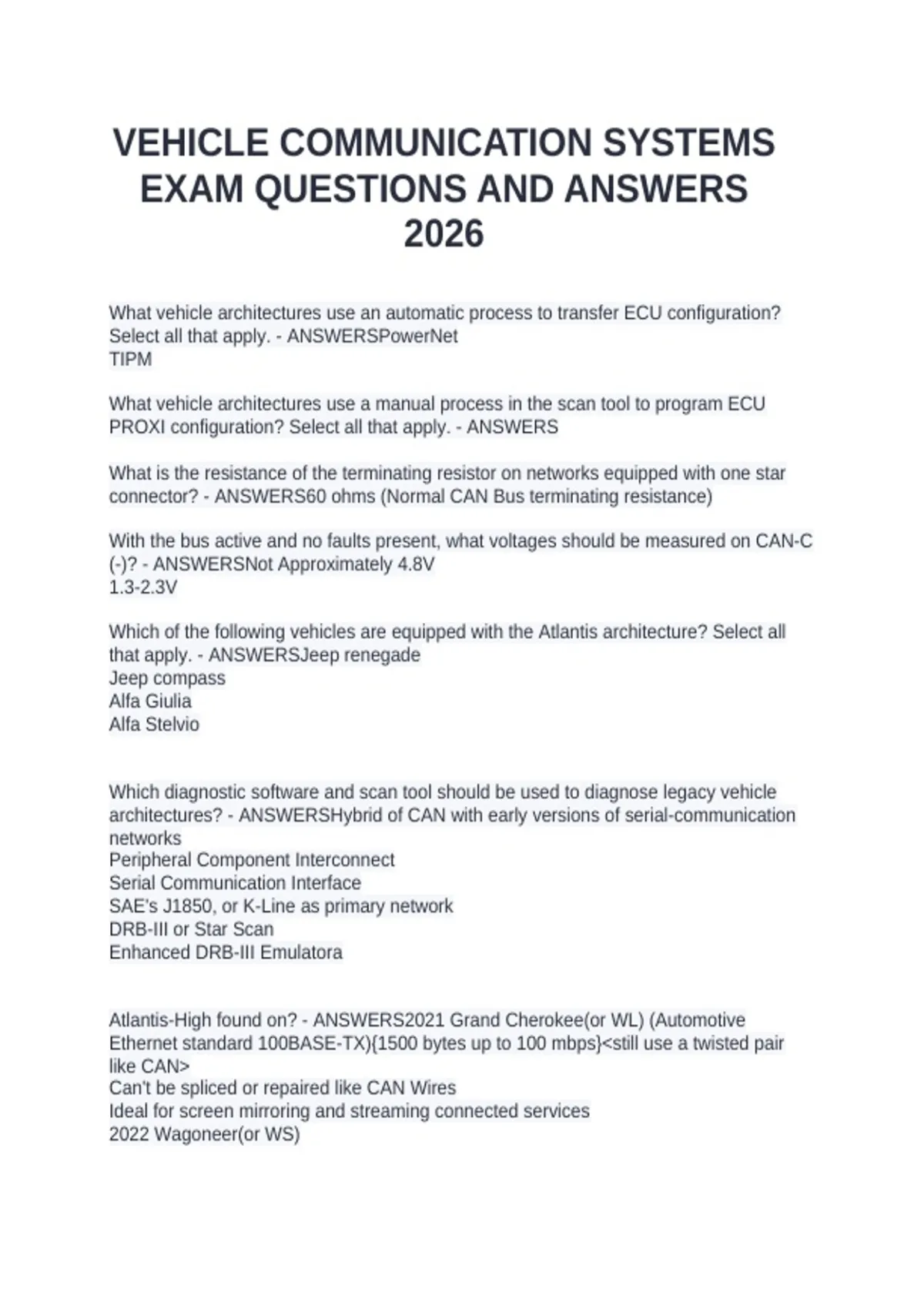

VEHICLE COMMUNICATION SYSTEMS
EXAM QUESTIONS AND ANSWERS
2026
What vehicle architectures use an automatic process to transfer ECU configuration?
Select all that apply. - ANSWERSPowerNet
TIPM
What vehicle architectures use a manual process in the scan tool to program ECU
PROXI configuration? Select all that apply. - ANSWERS
What is the resistance of the terminating resistor on networks equipped with one star
connector? - ANSWERS60 ohms (Normal CAN Bus terminating resistance)
With the bus active and no faults present, what voltages should be measured on CAN-C
(-)? - ANSWERSNot Approximately 4.8V
1.3-2.3V
Which of the following vehicles are equipped with the Atlantis architecture? Select all
that apply. - ANSWERSJeep renegade
Jeep compass
Alfa Giulia
Alfa Stelvio
Which diagnostic software and scan tool should be used to diagnose legacy vehicle
architectures? - ANSWERSHybrid of CAN with early versions of serial-communication
networks
Peripheral Component Interconnect
Serial Communication Interface
SAE's J1850, or K-Line as primary network
DRB-III or Star Scan
Enhanced DRB-III Emulatora
Atlantis-High found on? - ANSWERS2021 Grand Cherokee(or WL) (Automotive
Ethernet standard 100BASE-TX){1500 bytes up to 100 mbps}<still use a twisted pair
like CAN>
Can't be spliced or repaired like CAN Wires
Ideal for screen mirroring and streaming connected services
2022 Wagoneer(or WS)
