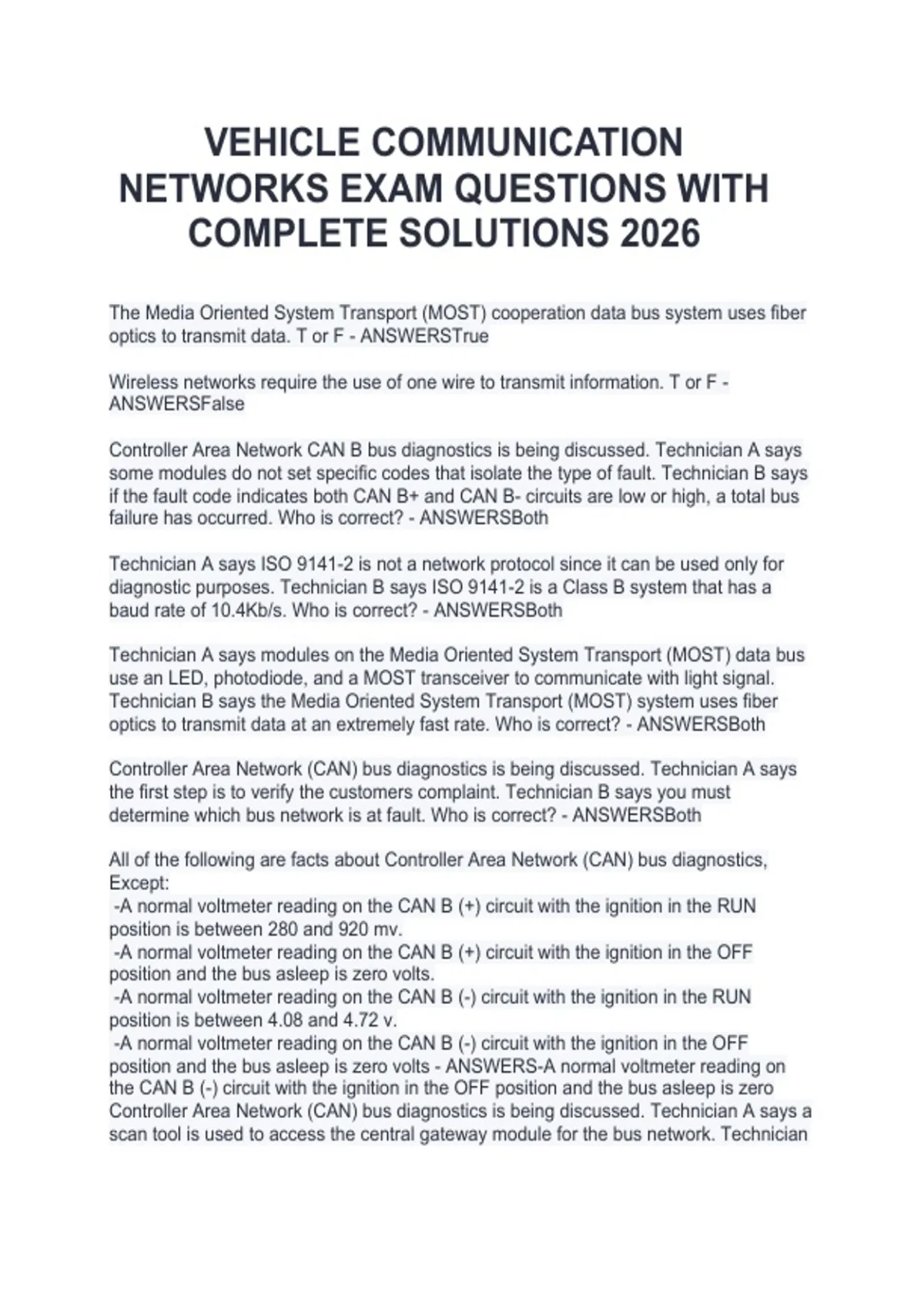

VEHICLE COMMUNICATION
NETWORKS EXAM QUESTIONS WITH
COMPLETE SOLUTIONS 2026
The Media Oriented System Transport (MOST) cooperation data bus system uses fiber
optics to transmit data. T or F - ANSWERSTrue
Wireless networks require the use of one wire to transmit information. T or F -
ANSWERSFalse
Controller Area Network CAN B bus diagnostics is being discussed. Technician A says
some modules do not set specific codes that isolate the type of fault. Technician B says
if the fault code indicates both CAN B+ and CAN B- circuits are low or high, a total bus
failure has occurred. Who is correct? - ANSWERSBoth
Technician A says ISO 9141-2 is not a network protocol since it can be used only for
diagnostic purposes. Technician B says ISO 9141-2 is a Class B system that has a
baud rate of 10.4Kb/s. Who is correct? - ANSWERSBoth
Technician A says modules on the Media Oriented System Transport (MOST) data bus
use an LED, photodiode, and a MOST transceiver to communicate with light signal.
Technician B says the Media Oriented System Transport (MOST) system uses fiber
optics to transmit data at an extremely fast rate. Who is correct? - ANSWERSBoth
Controller Area Network (CAN) bus diagnostics is being discussed. Technician A says
the first step is to verify the customers complaint. Technician B says you must
determine which bus network is at fault. Who is correct? - ANSWERSBoth
All of the following are facts about Controller Area Network (CAN) bus diagnostics,
Except:
-A normal voltmeter reading on the CAN B (+) circuit with the ignition in the RUN
position is between 280 and 920 mv.
-A normal voltmeter reading on the CAN B (+) circuit with the ignition in the OFF
position and the bus asleep is zero volts.
-A normal voltmeter reading on the CAN B (-) circuit with the ignition in the RUN
position is between 4.08 and 4.72 v.
-A normal voltmeter reading on the CAN B (-) circuit with the ignition in the OFF
position and the bus asleep is zero volts - ANSWERS-A normal voltmeter reading on
the CAN B (-) circuit with the ignition in the OFF position and the bus asleep is zero
Controller Area Network (CAN) bus diagnostics is being discussed. Technician A says a
scan tool is used to access the central gateway module for the bus network. Technician
