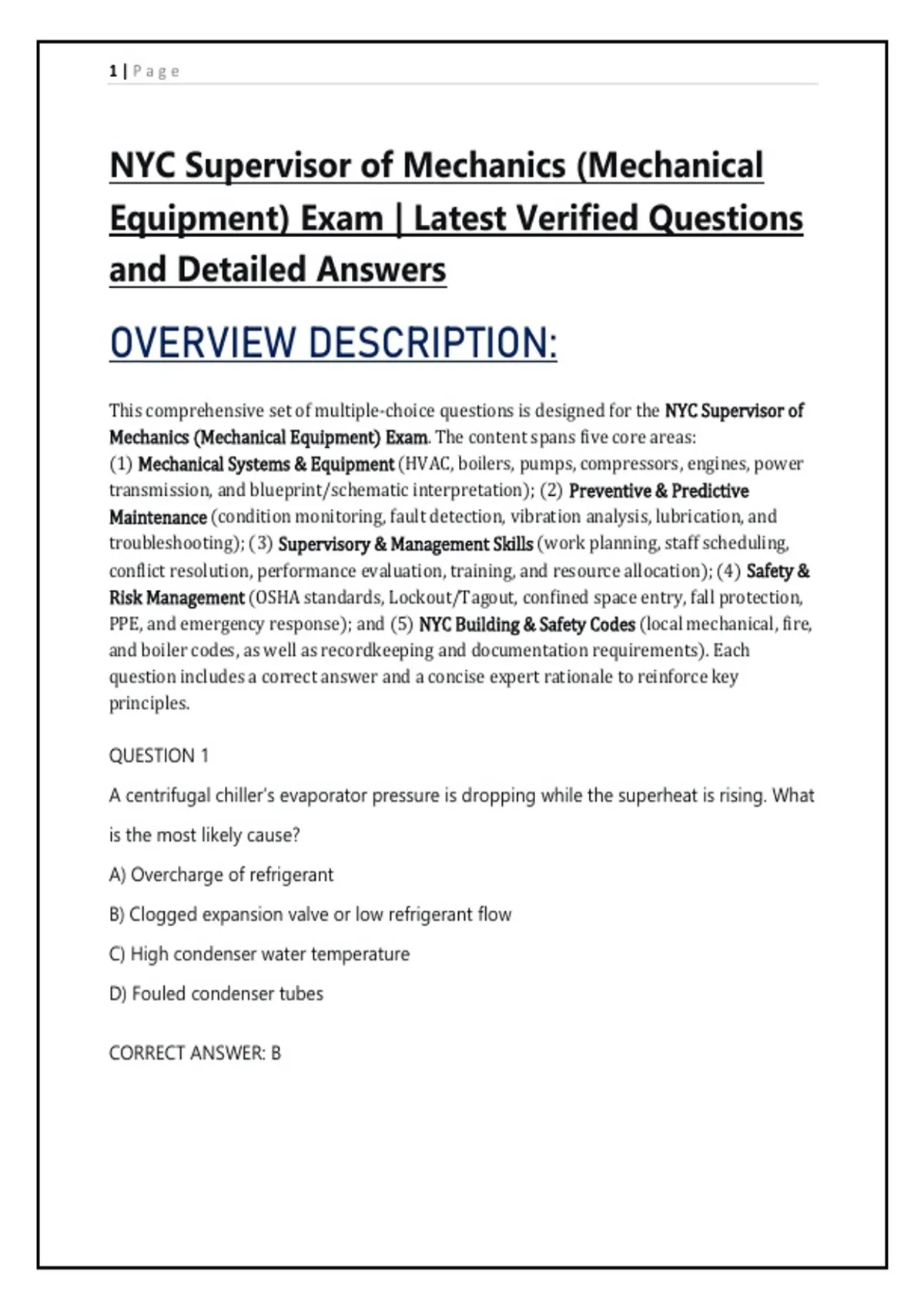

1|Page
NYC Supervisor of Mechanics (Mechanical
Equipment) Exam | Latest Verified Questions
and Detailed Answers
OVERVIEW DESCRIPTION:
This comprehensive set of multiple-choice questions is designed for the NYC Supervisor of
Mechanics (Mechanical Equipment) Exam. The content spans five core areas:
(1) Mechanical Systems & Equipment (HVAC, boilers, pumps, compressors, engines, power
transmission, and blueprint/schematic interpretation); (2) Preventive & Predictive
Maintenance (condition monitoring, fault detection, vibration analysis, lubrication, and
troubleshooting); (3) Supervisory & Management Skills (work planning, staff scheduling,
conflict resolution, performance evaluation, training, and resource allocation); (4) Safety &
Risk Management (OSHA standards, Lockout/Tagout, confined space entry, fall protection,
PPE, and emergency response); and (5) NYC Building & Safety Codes (local mechanical, fire,
and boiler codes, as well as recordkeeping and documentation requirements). Each
question includes a correct answer and a concise expert rationale to reinforce key
principles.
QUESTION 1
A centrifugal chiller’s evaporator pressure is dropping while the superheat is rising. What
is the most likely cause?
A) Overcharge of refrigerant
B) Clogged expansion valve or low refrigerant flow
C) High condenser water temperature
D) Fouled condenser tubes
CORRECT ANSWER: B
,2|Page
EXPERT RATIONALE: Low evaporator pressure with high superheat indicates insufficient
refrigerant reaching the evaporator, often due to a restricted expansion device or low
refrigerant charge.
QUESTION 2
In a large air handler, what bearing type is most suitable for a fan shaft operating
continuously at 1,800 RPM under heavy load?
A) Sleeve bearing with oil wick
B) Sealed ball bearing
C) Roller thrust bearing
D) Needle bearing
CORRECT ANSWER: B
EXPERT RATIONALE: Sealed ball bearings handle moderate to high speeds and loads
with minimal maintenance, ideal for continuous fan operation.
QUESTION 3
A supervisor notices a pump vibration that increases with flow rate. The most likely issue
is:
A) Cavitation
B) Misalignment
C) Bent shaft
D) Bearing wear
,3|Page
CORRECT ANSWER: A
EXPERT RATIONALE: Cavitation causes vibration that worsens as flow increases due to
pressure drop and bubble collapse at impeller vanes.
QUESTION 4
What is the correct sequence for shutting down a steam boiler for routine inspection?
A) Close fuel valve, stop feedwater, vent pressure, drain
B) Stop firing, let pressure drop, close steam stop valve, drain when cool
C) Drain immediately, close feedwater, lock out, purge
D) Close steam stop valve, vent, then stop firing
CORRECT ANSWER: B
EXPERT RATIONALE: Boilers must be removed from service by stopping firing, allowing
natural pressure drop, and only draining after cooling to prevent thermal shock.
QUESTION 5
What does a “V-belt tension” gauge measure?
A) Belt temperature
B) Belt elongation under load
C) Deflection force per unit length
D) Belt slip percentage
CORRECT ANSWER: C
, 4|Page
EXPERT RATIONALE: Tension gauges measure the force needed to deflect a belt a given
distance, ensuring proper grip without overloading bearings.
QUESTION 6
In NYC, oil-burning equipment using #6 fuel oil must have what minimum flame
safeguard feature?
A) Manual reset low-water cutoff
B) Dual flame scanners
C) Primary safety control that shuts off fuel within 15 seconds of flame failure
D) Automatic stack damper
CORRECT ANSWER: C
EXPERT RATIONALE: NYC Mechanical Code requires automatic fuel shutoff within 15
seconds on flame failure for oil burners to prevent explosive buildup.
QUESTION 7
A mechanic reports a reciprocating air compressor short-cycles. As supervisor, your first
step is:
A) Replace the pressure switch
B) Check for air leaks downstream
C) Increase the differential setting
D) Drain the receiver tank
