1

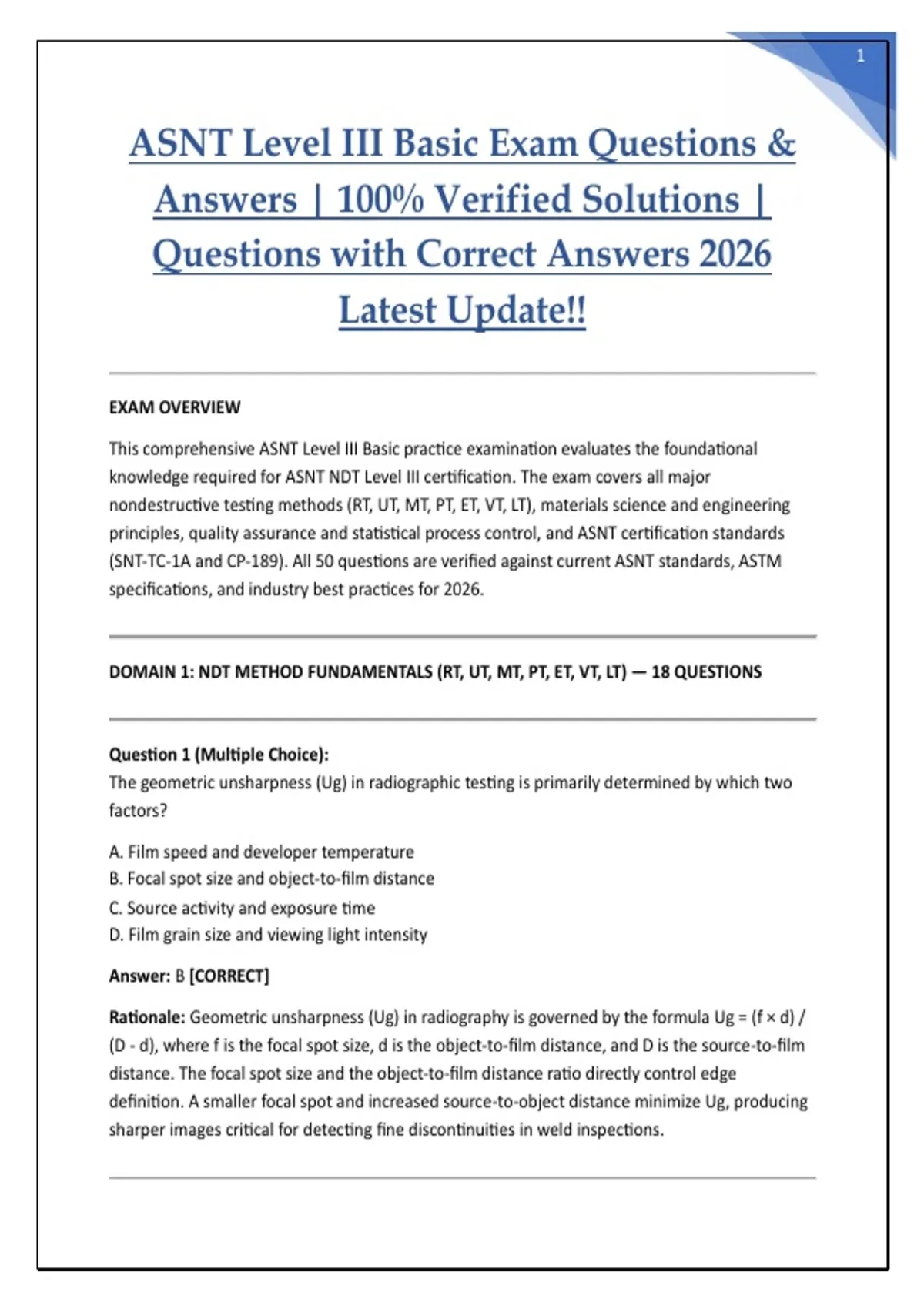

ASNT Level III Basic Exam Questions &
Answers | 100% Verified Solutions |
Questions with Correct Answers 2026
Latest Update!!
EXAM OVERVIEW
This comprehensive ASNT Level III Basic practice examination evaluates the foundational
knowledge required for ASNT NDT Level III certification. The exam covers all major
nondestructive testing methods (RT, UT, MT, PT, ET, VT, LT), materials science and engineering
principles, quality assurance and statistical process control, and ASNT certification standards
(SNT-TC-1A and CP-189). All 50 questions are verified against current ASNT standards, ASTM
specifications, and industry best practices for 2026.
DOMAIN 1: NDT METHOD FUNDAMENTALS (RT, UT, MT, PT, ET, VT, LT) — 18 QUESTIONS
Question 1 (Multiple Choice):
The geometric unsharpness (Ug) in radiographic testing is primarily determined by which two
factors?
A. Film speed and developer temperature
B. Focal spot size and object-to-film distance
C. Source activity and exposure time
D. Film grain size and viewing light intensity
Answer: B [CORRECT]
Rationale: Geometric unsharpness (Ug) in radiography is governed by the formula Ug = (f × d) /
(D - d), where f is the focal spot size, d is the object-to-film distance, and D is the source-to-film
distance. The focal spot size and the object-to-film distance ratio directly control edge
definition. A smaller focal spot and increased source-to-object distance minimize Ug, producing
sharper images critical for detecting fine discontinuities in weld inspections.
, 2
Question 2 (Calculation):
A radiographic exposure is made with a focal spot size of 3 mm, an object-to-film distance of 10
mm, and a source-to-film distance of 700 mm. Calculate the geometric unsharpness (Ug) in
millimeters.
A. 0.043 mm
B. 0.086 mm
C. 0.129 mm
D. 0.172 mm
Answer: A [CORRECT]
Rationale: Using the geometric unsharpness formula: Ug = (f × d) / (D - d) = (3 mm × 10 mm) /
(700 mm - 10 mm) = = 0.0435 mm ≈ 0.043 mm. ASNT standards recommend Ug not
exceed 0.51 mm (0.020 inch) for most applications, so this exposure produces excellent image
sharpness suitable for critical weld inspection.
Question 3 (Multiple Choice):
For radiographic inspection of a 1-inch thick steel weld in a field location where portability is
essential, which gamma-ray source is most appropriate?
A. Cobalt-60
B. Iridium-192
C. Cesium-137
D. Thulium-170
Answer: B [CORRECT]
Rationale: Iridium-192 is the optimal gamma-ray source for a 1-inch (25.4 mm) thick steel weld.
With a half-value layer in steel of approximately 12.5 mm and practical thickness range of 12-63
mm, Ir-192 provides adequate penetration with reasonable exposure times. Cobalt-60 (A) is
excessive for 1-inch steel and produces lower contrast. Cesium-137 (C) is rarely used for
industrial radiography. Thulium-170 (D) is suitable only for very thin materials (<12 mm).
Question 4 (Multiple Choice):
In ultrasonic testing, which relationship correctly describes how frequency affects the detection
of small subsurface discontinuities?
A. Higher frequency increases wavelength and improves detection of small discontinuities
B. Higher frequency decreases wavelength and improves detection of small discontinuities
, 3
C. Frequency has no effect on wavelength or discontinuity detection
D. Lower frequency decreases wavelength and improves detection of small discontinuities
Answer: B [CORRECT]
Rationale: The fundamental acoustic relationship λ = v/f governs ultrasonic inspection, where λ
is wavelength, v is acoustic velocity in the material, and f is frequency. Higher frequency
decreases wavelength, enabling detection of smaller discontinuities because a flaw must be
approximately one-half wavelength or larger to be reliably detected. However, higher frequency
also increases attenuation, limiting penetration depth—a critical trade-off in UT method
selection.
Question 5 (Multiple Choice):
What is the primary advantage of using a dual-crystal (dual-element) ultrasonic transducer for
inspecting near-surface regions?
A. It produces higher sound intensity than single-crystal transducers
B. The separate transmitter and receiver crystals eliminate initial pulse ringing and dead zone
effects
C. It operates at lower frequencies for deeper penetration
D. It requires no couplant between the transducer and test surface
Answer: B [CORRECT]
Rationale: A dual-crystal transducer uses separate piezoelectric elements for transmitting and
receiving, with an acoustic barrier (insulator) between them. This design eliminates the initial
pulse ringing and receiver saturation that creates a "dead zone" in single-crystal transducers.
The result is enhanced near-surface resolution, enabling reliable detection of discontinuities
located close to the entry surface—critical for detecting underbead cracks, root defects, and
near-surface laminations.
Question 6 (Calculation):
An ultrasonic shear wave inspection is conducted in steel (shear wave velocity = 3.23 mm/μs)
using a 5 MHz transducer. What is the wavelength of the shear wave in millimeters?
A. 0.323 mm
B. 0.646 mm
C. 1.615 mm
D. 3.230 mm
ASNT Level III Basic Exam Questions &
Answers | 100% Verified Solutions |
Questions with Correct Answers 2026
Latest Update!!
EXAM OVERVIEW
This comprehensive ASNT Level III Basic practice examination evaluates the foundational
knowledge required for ASNT NDT Level III certification. The exam covers all major
nondestructive testing methods (RT, UT, MT, PT, ET, VT, LT), materials science and engineering
principles, quality assurance and statistical process control, and ASNT certification standards
(SNT-TC-1A and CP-189). All 50 questions are verified against current ASNT standards, ASTM
specifications, and industry best practices for 2026.
DOMAIN 1: NDT METHOD FUNDAMENTALS (RT, UT, MT, PT, ET, VT, LT) — 18 QUESTIONS
Question 1 (Multiple Choice):
The geometric unsharpness (Ug) in radiographic testing is primarily determined by which two
factors?
A. Film speed and developer temperature
B. Focal spot size and object-to-film distance
C. Source activity and exposure time
D. Film grain size and viewing light intensity
Answer: B [CORRECT]
Rationale: Geometric unsharpness (Ug) in radiography is governed by the formula Ug = (f × d) /
(D - d), where f is the focal spot size, d is the object-to-film distance, and D is the source-to-film
distance. The focal spot size and the object-to-film distance ratio directly control edge
definition. A smaller focal spot and increased source-to-object distance minimize Ug, producing
sharper images critical for detecting fine discontinuities in weld inspections.
, 2
Question 2 (Calculation):
A radiographic exposure is made with a focal spot size of 3 mm, an object-to-film distance of 10
mm, and a source-to-film distance of 700 mm. Calculate the geometric unsharpness (Ug) in
millimeters.
A. 0.043 mm
B. 0.086 mm
C. 0.129 mm
D. 0.172 mm
Answer: A [CORRECT]
Rationale: Using the geometric unsharpness formula: Ug = (f × d) / (D - d) = (3 mm × 10 mm) /
(700 mm - 10 mm) = = 0.0435 mm ≈ 0.043 mm. ASNT standards recommend Ug not
exceed 0.51 mm (0.020 inch) for most applications, so this exposure produces excellent image
sharpness suitable for critical weld inspection.
Question 3 (Multiple Choice):
For radiographic inspection of a 1-inch thick steel weld in a field location where portability is
essential, which gamma-ray source is most appropriate?
A. Cobalt-60
B. Iridium-192
C. Cesium-137
D. Thulium-170
Answer: B [CORRECT]
Rationale: Iridium-192 is the optimal gamma-ray source for a 1-inch (25.4 mm) thick steel weld.
With a half-value layer in steel of approximately 12.5 mm and practical thickness range of 12-63
mm, Ir-192 provides adequate penetration with reasonable exposure times. Cobalt-60 (A) is
excessive for 1-inch steel and produces lower contrast. Cesium-137 (C) is rarely used for
industrial radiography. Thulium-170 (D) is suitable only for very thin materials (<12 mm).
Question 4 (Multiple Choice):
In ultrasonic testing, which relationship correctly describes how frequency affects the detection
of small subsurface discontinuities?
A. Higher frequency increases wavelength and improves detection of small discontinuities
B. Higher frequency decreases wavelength and improves detection of small discontinuities
, 3
C. Frequency has no effect on wavelength or discontinuity detection
D. Lower frequency decreases wavelength and improves detection of small discontinuities
Answer: B [CORRECT]
Rationale: The fundamental acoustic relationship λ = v/f governs ultrasonic inspection, where λ
is wavelength, v is acoustic velocity in the material, and f is frequency. Higher frequency
decreases wavelength, enabling detection of smaller discontinuities because a flaw must be
approximately one-half wavelength or larger to be reliably detected. However, higher frequency
also increases attenuation, limiting penetration depth—a critical trade-off in UT method
selection.
Question 5 (Multiple Choice):
What is the primary advantage of using a dual-crystal (dual-element) ultrasonic transducer for
inspecting near-surface regions?
A. It produces higher sound intensity than single-crystal transducers
B. The separate transmitter and receiver crystals eliminate initial pulse ringing and dead zone
effects
C. It operates at lower frequencies for deeper penetration
D. It requires no couplant between the transducer and test surface
Answer: B [CORRECT]
Rationale: A dual-crystal transducer uses separate piezoelectric elements for transmitting and
receiving, with an acoustic barrier (insulator) between them. This design eliminates the initial
pulse ringing and receiver saturation that creates a "dead zone" in single-crystal transducers.
The result is enhanced near-surface resolution, enabling reliable detection of discontinuities
located close to the entry surface—critical for detecting underbead cracks, root defects, and
near-surface laminations.
Question 6 (Calculation):
An ultrasonic shear wave inspection is conducted in steel (shear wave velocity = 3.23 mm/μs)
using a 5 MHz transducer. What is the wavelength of the shear wave in millimeters?
A. 0.323 mm
B. 0.646 mm
C. 1.615 mm
D. 3.230 mm
