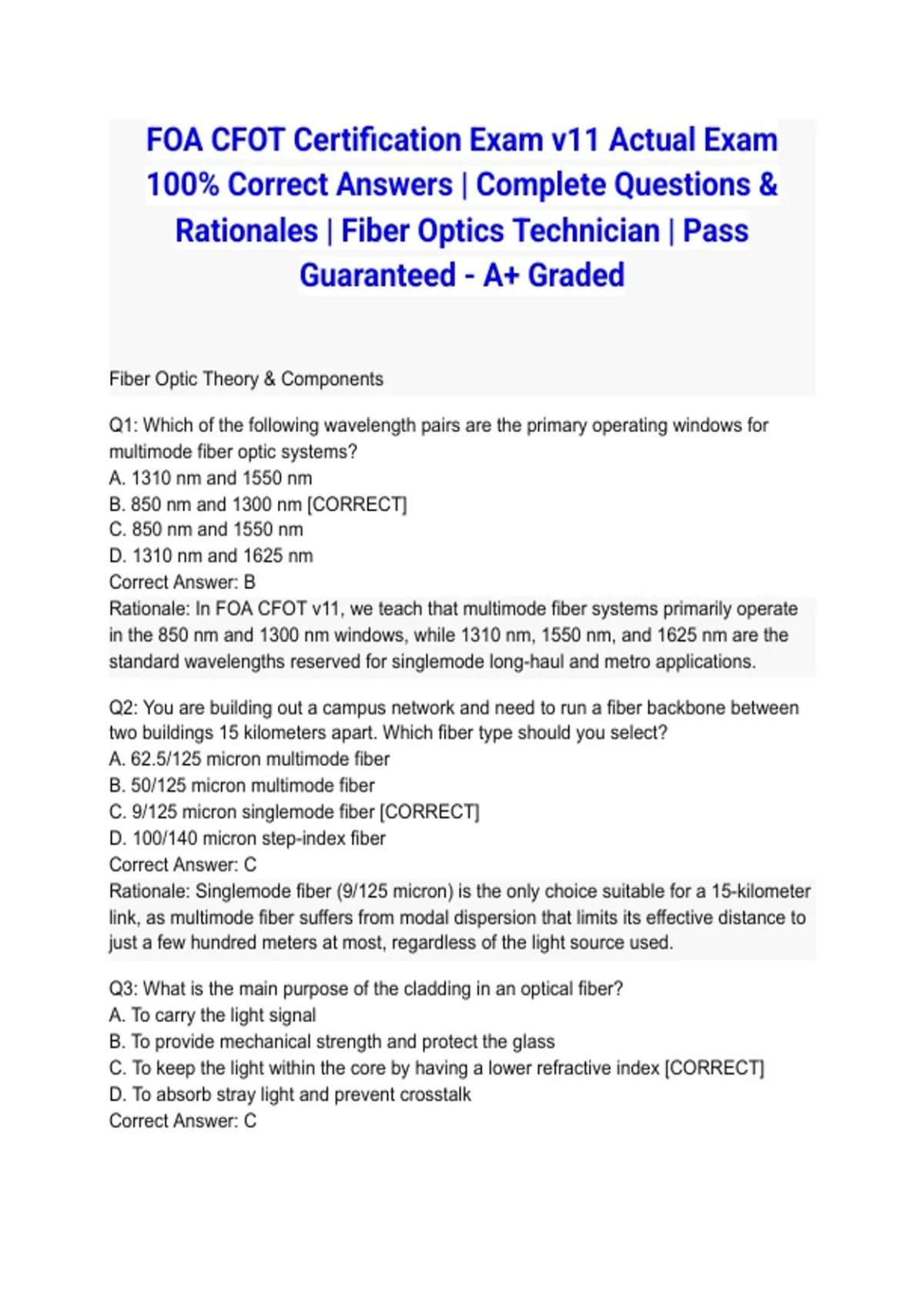

FOA CFOT Certification Exam v11 Actual Exam
100% Correct Answers | Complete Questions &
Rationales | Fiber Optics Technician | Pass
Guaranteed - A+ Graded
Fiber Optic Theory & Components
Q1: Which of the following wavelength pairs are the primary operating windows for
multimode fiber optic systems?
A. 1310 nm and 1550 nm
B. 850 nm and 1300 nm [CORRECT]
C. 850 nm and 1550 nm
D. 1310 nm and 1625 nm
Correct Answer: B
Rationale: In FOA CFOT v11, we teach that multimode fiber systems primarily operate
in the 850 nm and 1300 nm windows, while 1310 nm, 1550 nm, and 1625 nm are the
standard wavelengths reserved for singlemode long-haul and metro applications.
Q2: You are building out a campus network and need to run a fiber backbone between
two buildings 15 kilometers apart. Which fiber type should you select?
A. 62.5/125 micron multimode fiber
B. 50/125 micron multimode fiber
C. 9/125 micron singlemode fiber [CORRECT]
D. 100/140 micron step-index fiber
Correct Answer: C
Rationale: Singlemode fiber (9/125 micron) is the only choice suitable for a 15-kilometer
link, as multimode fiber suffers from modal dispersion that limits its effective distance to
just a few hundred meters at most, regardless of the light source used.
Q3: What is the main purpose of the cladding in an optical fiber?
A. To carry the light signal
B. To provide mechanical strength and protect the glass
C. To keep the light within the core by having a lower refractive index [CORRECT]
D. To absorb stray light and prevent crosstalk
Correct Answer: C
,Rationale: The cladding surrounds the core and has a slightly lower refractive index,
which creates the total internal reflection boundary necessary to keep the light guided
inside the core as it travels down the fiber.
Q4: A technician is preparing to terminate a cable in a plenum air-return space above a
drop ceiling. Which jacket rating is legally required for this environment?
A. OFNR
B. OFNG
C. LSZH
D. OFNP [CORRECT]
Correct Answer: D
Rationale: OFNP (Optical Fiber Nonconductive Plenum) is the required fire rating for
cables installed in plenum spaces because it produces very little smoke and does not
support flame spread in air-handling environments, whereas riser and general purpose
ratings do not meet plenum fire codes.
Q5: You are installing a passive optical network (PON) for an ISP where return loss is
absolutely critical to prevent reflections from interfering with the laser transmitters.
Which connector polish type should you use on the patch panels?
A. Flat polish
B. Super Physical Contact (SPC / UPC)
C. Angled Physical Contact (APC) [CORRECT]
D. Ultra Physical Contact (UPC) with green boots
Correct Answer: C
Rationale: APC connectors have an 8-degree angled end-face that directs any reflected
light into the cladding rather than straight back toward the source, providing a return
loss of 60 dB or better, which is exactly what PON systems demand since flat or UPC
polishes allow too much reflection.
Q6: When looking at a manufacturer's datasheet for a multimode fiber patch cable, you
see "NA: 0.275." What does Numerical Aperture (NA) tell you about the fiber?
A. The maximum distance the fiber can transmit a signal
B. The light-gathering ability and acceptance angle of the fiber [CORRECT]
C. The maximum tensile pulling strength during installation
D. The ratio of core diameter to cladding diameter
Correct Answer: B
Rationale: Numerical Aperture defines the light-gathering ability of the fiber, which
directly determines the acceptance cone angle; a higher NA means the fiber can accept
light from a wider range of angles, but it also means higher modal dispersion.
, Q7: A data center manager asks you to pull a new cable to a high-density switch. Space
is extremely tight, and they need the highest port density possible on the patch panel.
Which connector type is the best fit for this request?
A. ST
B. SC
C. LC [CORRECT]
D. FC
Correct Answer: C
Rationale: The LC (Lucent Connector) is a small form factor connector about half the
size of an SC, making it the standard choice for high-density data center environments
where maximizing patch panel port count is a priority over older, bulkier connectors.
Q8: Which of the following is the primary cause of Rayleigh scattering in optical fiber?
A. Microscopic imperfections and density fluctuations in the glass [CORRECT]
B. Hydroxyl ions (water molecules) trapped in the fiber
C. Sharp bends in the cable pathway
D. Poorly polished connector end-faces
Correct Answer: A
Rationale: Rayleigh scattering is the fundamental loss mechanism in glass fiber caused
by microscopic variations in the glass density and composition during the manufacturing
process, and it is the main reason fiber loss decreases at longer wavelengths.
Q9: You need to make a quick repair on a damaged 12-fiber aerial drop cable during a
storm restoration. You don't have access to a fusion splicer or a power source. Which
splicing method is your best option?
A. Fusion splicing
B. Mechanical splicing [CORRECT]
C. Pigtailing
D. Ribbon splicing
Correct Answer: B
Rationale: Mechanical splices are designed for exactly this kind of situation because
they align the fiber ends using a precision guide and index matching gel without needing
electricity, heat, or expensive equipment, making them ideal for fast field repairs.
Q10: What is the typical insertion loss target for a good quality fusion splice?
A. Less than 0.1 dB [CORRECT]
B. Less than 0.5 dB
C. Less than 0.75 dB
D. Less than 1.0 dB
Correct Answer: A
