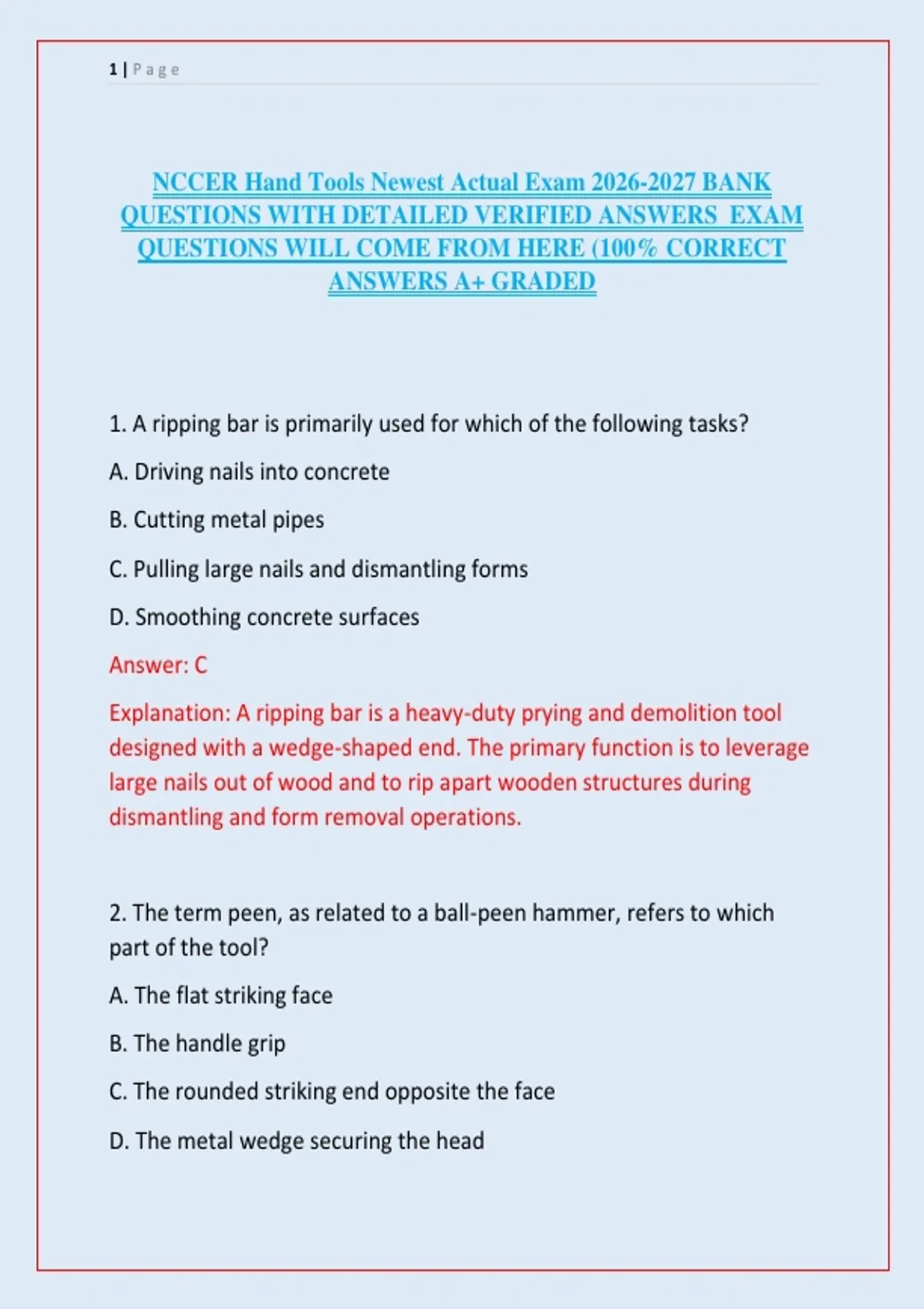

1|Page
NCCER Hand Tools Newest Actual Exam 2026-2027 BANK
QUESTIONS WITH DETAILED VERIFIED ANSWERS EXAM
QUESTIONS WILL COME FROM HERE (100% CORRECT
ANSWERS A+ GRADED
1. A ripping bar is primarily used for which of the following tasks?
A. Driving nails into concrete
B. Cutting metal pipes
C. Pulling large nails and dismantling forms
D. Smoothing concrete surfaces
Answer: C
Explanation: A ripping bar is a heavy-duty prying and demolition tool
designed with a wedge-shaped end. The primary function is to leverage
large nails out of wood and to rip apart wooden structures during
dismantling and form removal operations.
2. The term peen, as related to a ball-peen hammer, refers to which
part of the tool?
A. The flat striking face
B. The handle grip
C. The rounded striking end opposite the face
D. The metal wedge securing the head
,2|Page
Answer: C
Explanation: The peen is the end of a hammer head opposite the
striking face. In a ball-peen hammer, this end is rounded and is used for
metalworking tasks such as riveting, peening welds, and shaping metal,
rather than driving nails.
3. To avoid damaging a chisel head, what is the recommended
maximum mushrooming diameter before dressing?
A. 1/8 inch
B. 1/4 inch
C. 1/2 inch
D. It should be dressed as soon as mushrooming begins
Answer: D
Explanation: A mushroomed chisel head poses a significant safety
hazard as fragments can shear off during striking. Best practice dictates
that mushrooming should be dressed immediately with a file or grinder
upon appearance, rather than waiting for an arbitrary expansion
threshold, to maintain structural integrity and safety.
4. A mechanic notices a screw has a hexagonal recess in its head. Which
tool is specifically designed for this fastener?
A. Clutch driver
B. Phillips screwdriver
C. Allen wrench
D. Torx driver
,3|Page
Answer: C
Explanation: An Allen wrench, also known as a hex key, is a six-sided, L-
shaped tool designed to fit into the hexagonal socket of a
corresponding screw or bolt. This provides increased torque transfer
compared to standard slotted or Phillips heads.
5. Which type of pliers is specifically designed with a joint that allows
the jaws to be adjusted to varying widths, typically for gripping large
objects?
A. Needle-nose pliers
B. Lineman's pliers
C. Tongue-and-groove pliers
D. Diagonal cutting pliers
Answer: C
Explanation: Tongue-and-groove pliers, commonly known by the trade
name Channellocks, feature a pivot point that can be moved along a
channel of machined grooves. This allows the jaw opening to adjust to
multiple widths, providing a firm grip on objects of various sizes, such
as pipes and large nuts.
6. A pipe vise differs from a benchtop vise primarily in its ability to:
A. Apply greater clamping pressure
B. Hold cylindrical workpieces without damaging them
C. Rotate 360 degrees on its base
D. Cut soft metals
, 4|Page
Answer: B
Explanation: A pipe vise is equipped with V-shaped jaws or a chain
mechanism specifically contoured to securely hold cylindrical objects
like pipes without crushing or scoring the surface. A standard bench
vise with flat jaws would deform a pipe under sufficient clamping
pressure.
7. What is the primary purpose of crosscut teeth on a saw blade?
A. Cutting parallel to the wood grain
B. Cutting perpendicular to the wood grain
C. Cutting curves in wood
D. Cutting metal
Answer: B
Explanation: Crosscut saw teeth are filed to a knife-like edge on both
sides to slice through wood fibers cleanly when cutting across the grain.
This contrasts with ripsaw teeth, which are filed straight across like
chisels to remove material parallel to the grain.
8. When using a utility knife to make a straight cut in thick drywall,
what technique ensures the cleanest break?
A. Cutting completely through with one deep pass
B. Cutting a shallow score line, then snapping away from the cut
C. Cutting a shallow score line, then snapping toward the cut
D. Using a sawing motion with the blade fully extended
