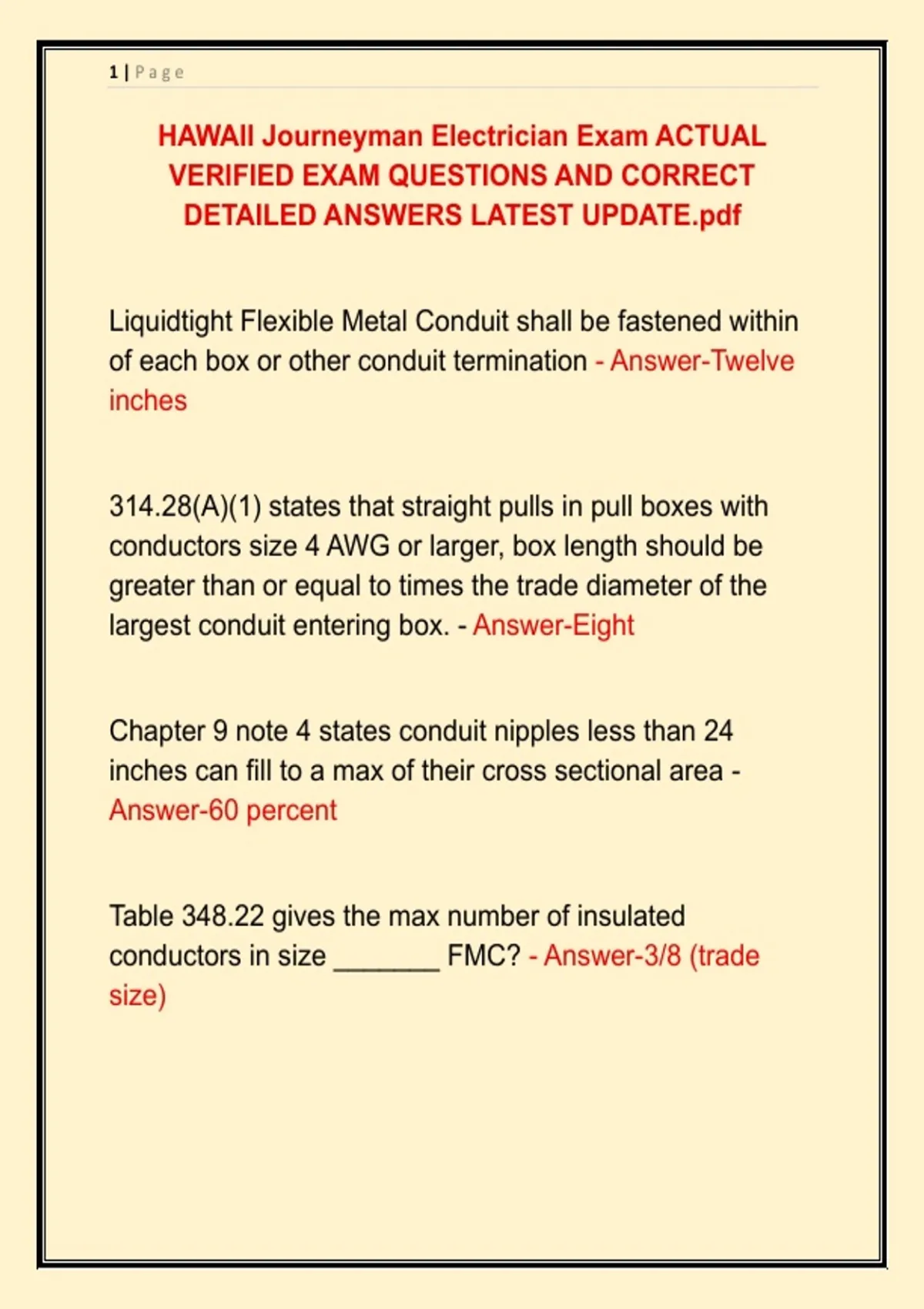

HAWAII Journeyman Electrician Exam ACTUAL
VERIFIED EXAM QUESTIONS AND CORRECT
DETAILED ANSWERS LATEST UPDATE.pdf
Liquidtight Flexible Metal Conduit shall be fastened within
of each box or other conduit termination - Answer-Twelve
inches
314.28(A)(1) states that straight pulls in pull boxes with
conductors size 4 AWG or larger, box length should be
greater than or equal to times the trade diameter of the
largest conduit entering box. - Answer-Eight
Chapter 9 note 4 states conduit nipples less than 24
inches can fill to a max of their cross sectional area -
Answer-60 percent
Table 348.22 gives the max number of insulated
conductors in size _______ FMC? - Answer-3/8 (trade
size)
,2|Page
Guest rooms of hotels, motels, & sleeping rooms in dorms
need a MIN or _____ general purpose receptacles
installed that are readily accessible? - Answer-Two
When branch-circuit conductors are contained inside a
ballast compartment and they are within 3 inches of the
ballast, the conductors shall have a temperature rating of
at LEAST _____.
a) 105 degrees C
b) 90 degrees C
c) 75 degrees C
d) 60 degrees C - Answer-B: 90 degrees C
Ref: 410.68
Class _____ locations are those that are hazardous
because of the presence of easily ignitible fibers or
materials producing combustible flyings.
a) I
b) II
c) III
, 3|Page
d) IV - Answer-C: III
Ref: 500.5(D)
Class _____ locations are those in which flammable
gases, flammable liquid produced vapors, or combustible
liquid produced vapors are present that are explodable. -
Answer-Class 1
Class ____ locations are those that are hazardous
because of combustible dust - Answer-Class II
What table sizes bonding jumpers for AC systems? -
Answer-250.102(C)(1)
The NEC defines continuous load to be a load where max
current on the circuit continues for at least how many
hours? - Answer-Three
To use the adjustment factors in table 310.15(B)(3)(A), you
must have greater than how many current carrying
conductors in a raceway? - Answer-Greater than three
