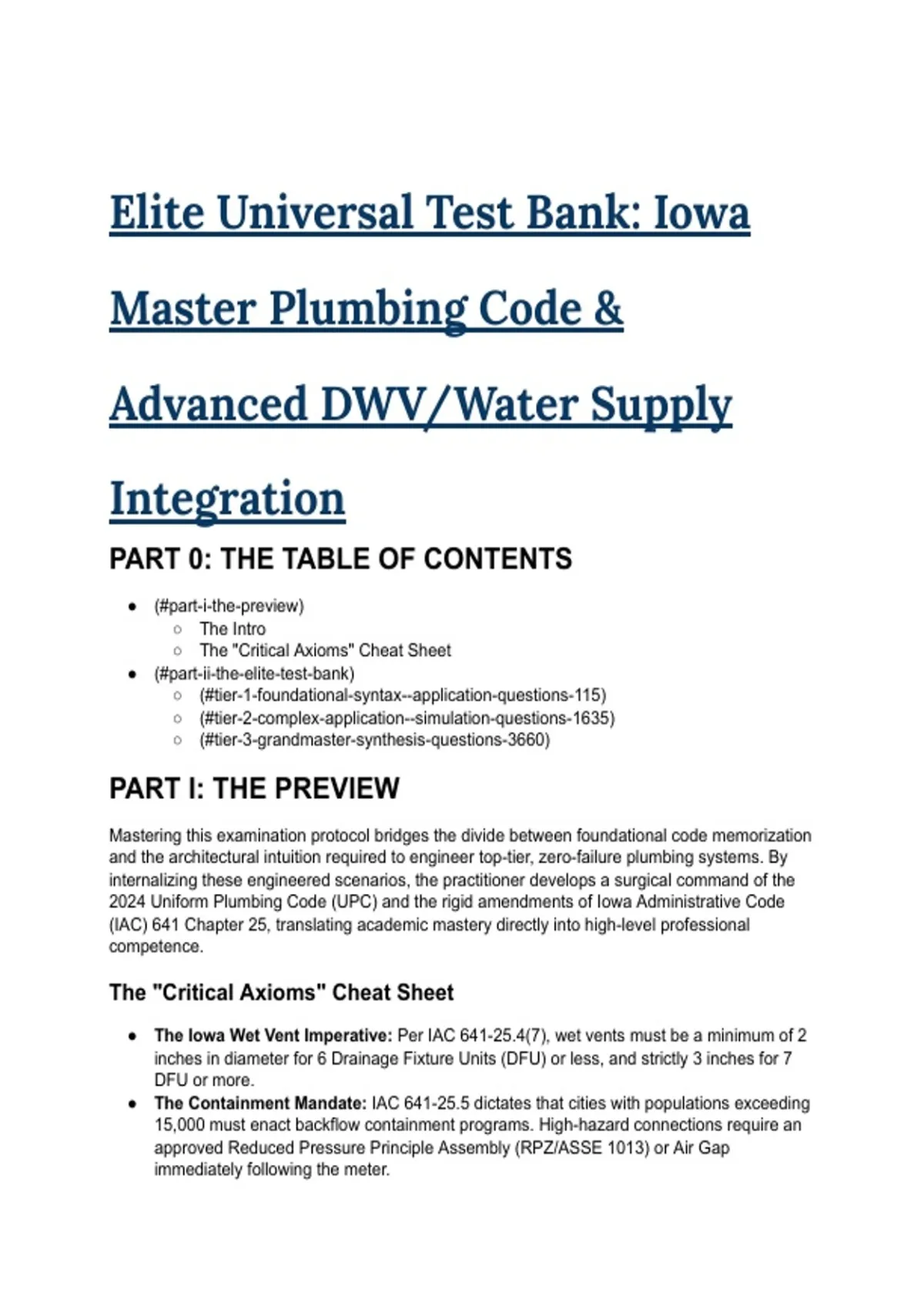

Elite Universal Test Bank: Iowa
Master Plumbing Code &
Advanced DWV/Water Supply
Integration
PART 0: THE TABLE OF CONTENTS
● (#part-i-the-preview)
○ The Intro
○ The "Critical Axioms" Cheat Sheet
● (#part-ii-the-elite-test-bank)
○ (#tier-1-foundational-syntax--application-questions-115)
○ (#tier-2-complex-application--simulation-questions-1635)
○ (#tier-3-grandmaster-synthesis-questions-3660)
PART I: THE PREVIEW
Mastering this examination protocol bridges the divide between foundational code memorization
and the architectural intuition required to engineer top-tier, zero-failure plumbing systems. By
internalizing these engineered scenarios, the practitioner develops a surgical command of the
2024 Uniform Plumbing Code (UPC) and the rigid amendments of Iowa Administrative Code
(IAC) 641 Chapter 25, translating academic mastery directly into high-level professional
competence.
The "Critical Axioms" Cheat Sheet
● The Iowa Wet Vent Imperative: Per IAC 641-25.4(7), wet vents must be a minimum of 2
inches in diameter for 6 Drainage Fixture Units (DFU) or less, and strictly 3 inches for 7
DFU or more.
● The Containment Mandate: IAC 641-25.5 dictates that cities with populations exceeding
15,000 must enact backflow containment programs. High-hazard connections require an
approved Reduced Pressure Principle Assembly (RPZ/ASSE 1013) or Air Gap
immediately following the meter.
, ● The Single-Stack Prohibition: Iowa explicitly prohibits the installation of engineered
single-stack drainage systems. Standard atmospheric venting formulas apply universally.
● The Appendix M Shift: The Water Demand Calculator (WDC) replaces legacy Hunter's
Curve estimates, requiring precise calculations to prevent the oversizing of systems
utilizing modern low-flow fixtures, thereby mitigating Legionella risk via reduced dwell
times.
● The Frost Closure Rule: All roof vent terminations in Iowa must be expanded to a
minimum of 3 inches to prevent frost closure, regardless of the stack base diameter.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application (Questions 1–15)
Q1: An installer in an Iowa jurisdiction with a population of 25,000 is running a new domestic
water service to a chemical processing plant. Based on the principles of IAC 641-25.5 Backflow
Prevention with Containment, which action is MOST ACCURATE? A) Install a Double Check
Valve Assembly (DCVA) at the property line to isolate the municipal main. B) Install an
atmospheric vacuum breaker on the main branch servicing the chemical vats. C) Install a
Reduced Pressure Principle Backflow Preventer (RPZ) immediately following the water meter.
D) Install a Pressure Vacuum Breaker (PVB) at the highest fixture elevation inside the plant.
● The Answer: C (Install a Reduced Pressure Principle Backflow Preventer (RPZ)
immediately following the water meter.)
● Distractor Analysis:
○ A is incorrect: A DCVA is strictly restricted to low-hazard containment. A chemical
plant represents a severe high hazard.
○ B is incorrect: Atmospheric vacuum breakers provide point-of-use isolation, not the
mandated premise containment required by code.
○ D is incorrect: A PVB does not protect against backpressure, which is a primary
containment risk in industrialized pump systems.
The Mentor's Analysis: High-hazard containment in municipalities over 15,000 population
requires aggressive perimeter defense. By deploying an ASSE 1013 RPZ directly at the meter,
the municipal supply is physically decoupled from premise-induced backpressure and
backsiphonage. Professional/Academic Intuition: High hazards demand RPZ or Air Gap at
the point of delivery; never compromise the municipal perimeter.
Q2: A horizontal wet vent is designed to serve a bathroom group totaling 7 Drainage Fixture
Units (DFU). According to Iowa amendments to the 2024 UPC, what is the MINIMUM allowable
diameter for this wet vent? A) 1-1/2 inches B) 2 inches C) 3 inches D) 4 inches
● The Answer: C (3 inches)
● Distractor Analysis:
○ A is incorrect: 1-1/2 inches is a legacy minimum for minor branches, wholly
inadequate for a primary wet vent.
○ B is incorrect: While 2 inches is permitted for up to 6 DFU, the exact threshold of 7
DFU triggers an immediate upsize under IAC 641-25.4(7).
○ D is incorrect: 4 inches is a gross oversizing error that reduces scouring action and
increases material costs unnecessarily.
The Mentor's Analysis: The cross-sectional area of a wet vent must simultaneously
accommodate hydraulic discharge and pneumatic displacement. Iowa's strict amendment
, mathematically draws the line at 7 DFU for a 3-inch pipe. Professional/Academic Intuition: 6
DFU equals 2 inches; 7 DFU demands 3 inches. Respect the volumetric threshold.
Q3: An architect specifies an engineered single-stack drainage system for a 6-story residential
building in Des Moines to save space in the mechanical chases. Based on Iowa 641 IAC 25.4,
which conclusion is the MOST ACCURATE? A) The design is compliant if a relief vent is
installed every 10 branch intervals. B) The design is compliant if pipe diameters are upsized by
one standard dimension. C) The design must be rejected because engineered single-stack
systems are strictly prohibited. D) The design is compliant only if aerator fittings are utilized at
every horizontal branch connection.
● The Answer: C (The design must be rejected because engineered single-stack systems
are strictly prohibited.)
● Distractor Analysis:
○ A is incorrect: This references traditional high-rise relief venting, not single-stack
allowances.
○ B is incorrect: Oversizing does not bypass the absolute prohibition of single-stack
systems.
○ D is incorrect: Aerator fittings are utilized in Sovent systems, which fall under the
prohibited single-stack umbrella in Iowa.
The Mentor's Analysis: Single-stack systems eliminate dedicated dry vents, relying on
specialized fittings to control pressure transients. Iowa code outright rejects this methodology in
favor of proven, atmospheric venting paradigms. Professional/Academic Intuition: If it lacks
a dedicated dry vent network, it is illegal in Iowa.
Q4: A journeyman is installing a 2-inch trap arm for a commercial floor drain. Per the amended
Table 1002.2 in Iowa, what is the MAXIMUM allowable horizontal distance from the trap weir to
the inner edge of the vent? A) 5 feet B) 6 feet C) 8 feet D) 12 feet
● The Answer: C (8 feet)
● Distractor Analysis:
○ A is incorrect: 5 feet is the maximum for a 1-1/4 inch trap arm.
○ B is incorrect: 6 feet is the maximum for a 1-1/2 inch trap arm.
○ D is incorrect: 12 feet is reserved for 3-inch and 4-inch trap arms.
The Mentor's Analysis: Exceeding the critical distance of a trap arm allows the hydraulic grade
line to fall below the trap weir, creating a self-siphoning vacuum. The 8-foot maximum for 2-inch
pipe preserves the atmospheric break. Professional/Academic Intuition: Distance limits
prevent self-siphoning; a 2-inch pipe loses its atmospheric seal past 8 horizontal feet.
Q5: A commercial pet grooming facility specifies three shampoo bowls. To prevent scalding, the
installing contractor must limit the maximum hot water temperature. According to Iowa code
amendments, what is the MOST APPROPRIATE maximum temperature and regulation
method? A) 110°F regulated by the primary building water heater aquastat. B) 120°F regulated
by an ASSE 1070 limiting device at the point of use. C) 130°F regulated by an ASSE 1017
master mixing valve at the source. D) 105°F regulated by manual throttling valves at the fixture.
● The Answer: B (120°F regulated by an ASSE 1070 limiting device at the point of use.)
● Distractor Analysis:
○ A is incorrect: Aquastats lack the rapid thermal response necessary to prevent
sudden scald spikes.
○ C is incorrect: ASSE 1017 valves are for source distribution, not point-of-use
protection, and 130°F exceeds the maximum allowed limit.
○ D is incorrect: Manual valves cannot react to sudden pressure drops in the cold
water line.
