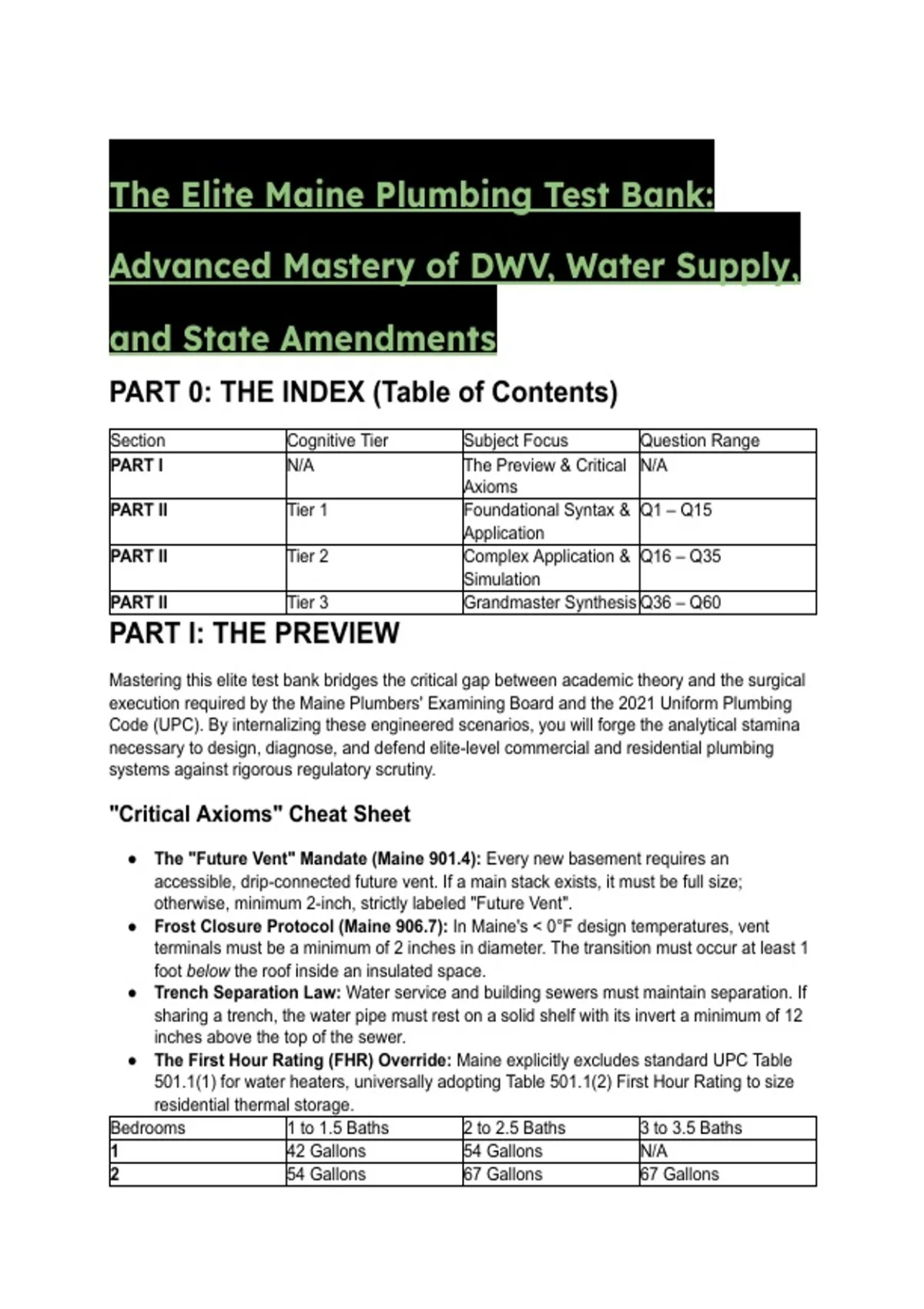

The Elite Maine Plumbing Test Bank:
Advanced Mastery of DWV, Water Supply,
and State Amendments
PART 0: THE INDEX (Table of Contents)
Section Cognitive Tier Subject Focus Question Range
PART I N/A The Preview & Critical N/A
Axioms
PART II Tier 1 Foundational Syntax & Q1 – Q15
Application
PART II Tier 2 Complex Application & Q16 – Q35
Simulation
PART II Tier 3 Grandmaster Synthesis Q36 – Q60
PART I: THE PREVIEW
Mastering this elite test bank bridges the critical gap between academic theory and the surgical
execution required by the Maine Plumbers' Examining Board and the 2021 Uniform Plumbing
Code (UPC). By internalizing these engineered scenarios, you will forge the analytical stamina
necessary to design, diagnose, and defend elite-level commercial and residential plumbing
systems against rigorous regulatory scrutiny.
"Critical Axioms" Cheat Sheet
● The "Future Vent" Mandate (Maine 901.4): Every new basement requires an
accessible, drip-connected future vent. If a main stack exists, it must be full size;
otherwise, minimum 2-inch, strictly labeled "Future Vent".
● Frost Closure Protocol (Maine 906.7): In Maine's < 0°F design temperatures, vent
terminals must be a minimum of 2 inches in diameter. The transition must occur at least 1
foot below the roof inside an insulated space.
● Trench Separation Law: Water service and building sewers must maintain separation. If
sharing a trench, the water pipe must rest on a solid shelf with its invert a minimum of 12
inches above the top of the sewer.
● The First Hour Rating (FHR) Override: Maine explicitly excludes standard UPC Table
501.1(1) for water heaters, universally adopting Table 501.1(2) First Hour Rating to size
residential thermal storage.
Bedrooms 1 to 1.5 Baths 2 to 2.5 Baths 3 to 3.5 Baths
1 42 Gallons 54 Gallons N/A
2 54 Gallons 67 Gallons 67 Gallons
,Bedrooms 1 to 1.5 Baths 2 to 2.5 Baths 3 to 3.5 Baths
3 67 Gallons 67 Gallons 80 Gallons
4 N/A 80 Gallons 80 Gallons
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A residential dwelling in Bangor, Maine, is constructed with a full basement and a required
main vent stack. Based on the principles of Maine UPC Amendments (Section 901.4), which
action is the MOST ACCURATE regarding future rough-in provisions? A) Install an Air
Admittance Valve (AAV) 6 inches above the floor joists. B) Install a 1.5-inch wet vent connection
capped at the foundation wall. C) Install a drip-connected future vent connection sized
equivalent to the main vent stack. D) Cap a 2-inch drain line at the slab level for a future ejector
pump connection.
● The Answer: C (Install a drip-connected future vent connection sized equivalent to the
main vent stack.)
● Distractor Analysis:
○ A is incorrect: Mechanical AAVs do not satisfy Maine's specific amendment for
hard-piped future basement vents.
○ B is incorrect: The amendment requires the future vent to match the size of the
main stack if one is required, not default to 1.5 inches.
○ D is incorrect: While capping drains is common practice, the code explicitly
mandates the vent connection, not just a drain line.
The Mentor's Analysis: Maine amendment 901.4 addresses the state's high frequency of
subterranean renovations. You must provide an accessible, drip-connected pipe labeled "Future
Vent" matching the main stack size to guarantee future atmospheric exhaust.
Professional/Academic Intuition: Design for the building's lifespan, not just the initial
blueprint; anticipate eventual subterranean fixture additions.
Q2: When routing a vent terminal through the roof in an area subject to extreme frost closure,
what is the MOST ACCURATE dimensional requirement under Maine code? A) The vent
diameter must double directly at the exterior flashing collar. B) The vent must be a minimum of 2
inches, with the diameter change made at least 1 foot below the roof inside an insulated space.
C) The vent must terminate exactly 6 inches above the roofline to minimize freezing. D) The
vent must be increased to 3 inches at the roof penetration.
● The Answer: B (The vent must be a minimum of 2 inches, with the diameter change
made at least 1 foot below the roof inside an insulated space.)
● Distractor Analysis:
○ A is incorrect: The transition must occur inside the insulated envelope to allow
warm air to prevent hoarfrost, not at the cold exterior flashing.
○ C is incorrect: Vent terminals must extend a minimum of 2 feet above the roof in
Maine (906.1), not 6 inches.
○ D is incorrect: 3 inches is a legacy standard in some regions; Maine explicitly
specifies a minimum of 2 inches.
The Mentor's Analysis: Frost closure restricts pneumatic equilibrium. By enlarging the pipe
before it enters the cold zone, warm sewer gases keep the terminal open and prevent ice
bridging. Professional/Academic Intuition: Thermal transition zones dictate terminal pipe
sizing; never step up a pipe diameter in the freezing zone.
, Q3: According to the 2021 UPC (Table 1002.2), what is the maximum developed length of a
horizontal trap arm for a 2-inch drain pipe serving a standard shower? A) 30 inches B) 42 inches
C) 60 inches D) 72 inches
● The Answer: C (60 inches)
● Distractor Analysis:
○ A is incorrect: 30 inches is the strict maximum length for a 1-1/4 inch pipe.
○ B is incorrect: 42 inches is the maximum length for a 1-1/2 inch pipe.
○ D is incorrect: 72 inches is the maximum allowable length for a 3-inch pipe.
The Mentor's Analysis: The trap arm length limits the horizontal distance water can travel
before its hydraulic momentum exceeds the venting capacity, risking trap seal siphonage.
Professional/Academic Intuition: Pipe diameter dictates pneumatic carrying capacity; a
2-inch arm maxes out at exactly 5 feet (60 inches).
Q4: A commercial property requires a new water service running parallel to the building sewer.
Ledge rock prevents the standard 10-foot horizontal separation. Based on the principles of
Maine Plumbing Rules (10-144 CMR 232), which installation method is the MOST ACCURATE?
A) Wrap the water main in 6-mil polyethylene sleeve and lay it beside the sewer. B) Encase both
pipes in a single 6-inch PVC sleeve for the duration of the trench. C) Install the water pipe 12
inches below the sewer to utilize the ledge as a thermal mass. D) Install the water pipe on a
solid shelf at one side of the trench with its invert at least 12 inches above the top of the sewer.
● The Answer: D (Install the water pipe on a solid shelf at one side of the trench with its
invert at least 12 inches above the top of the sewer.)
● Distractor Analysis:
○ A is incorrect: Poly-wrap protects against galvanic corrosion, not
cross-contamination from a ruptured gravity sewer.
○ B is incorrect: Sleeving both pipes together virtually guarantees
cross-contamination if a joint leak occurs.
○ C is incorrect: Potable water must never be located below a gravity sewer line due
to the risk of contaminated groundwater infiltration.
The Mentor's Analysis: Gravity dictates contamination flow. Elevating the pressurized water
main on an undisturbed solid shelf prevents sewage effluent from pooling around a potentially
depressurized potable line. Professional/Academic Intuition: Potable water always claims
the high ground; invert elevation is your primary defense against groundwater
contamination.
Q5: Based on Maine's explicit adoption of Table 501.1(2), how is the minimum capacity for a
residential storage water heater determined? A) By calculating the total Water Supply Fixture
Units (WSFU) of the building. B) By using the First Hour Rating (FHR) based exclusively on the
number of bathrooms and bedrooms. C) By matching the British Thermal Unit (BTU) input
directly to the building's total square footage. D) By defaulting to a minimum 50-gallon tank for
any dwelling exceeding one bathroom.
● The Answer: B (By using the First Hour Rating (FHR) based exclusively on the number
of bathrooms and bedrooms.)
● Distractor Analysis:
○ A is incorrect: WSFU (Table 610.3) sizes piping networks, not thermal storage
capacity.
○ C is incorrect: BTU input determines the recovery rate, but Maine mandates FHR
(capacity + recovery) cross-referenced strictly by bedrooms/bathrooms.
○ D is incorrect: 50 gallons is an arbitrary novice guess and violates the scaled nature
of Table 501.1(2).
