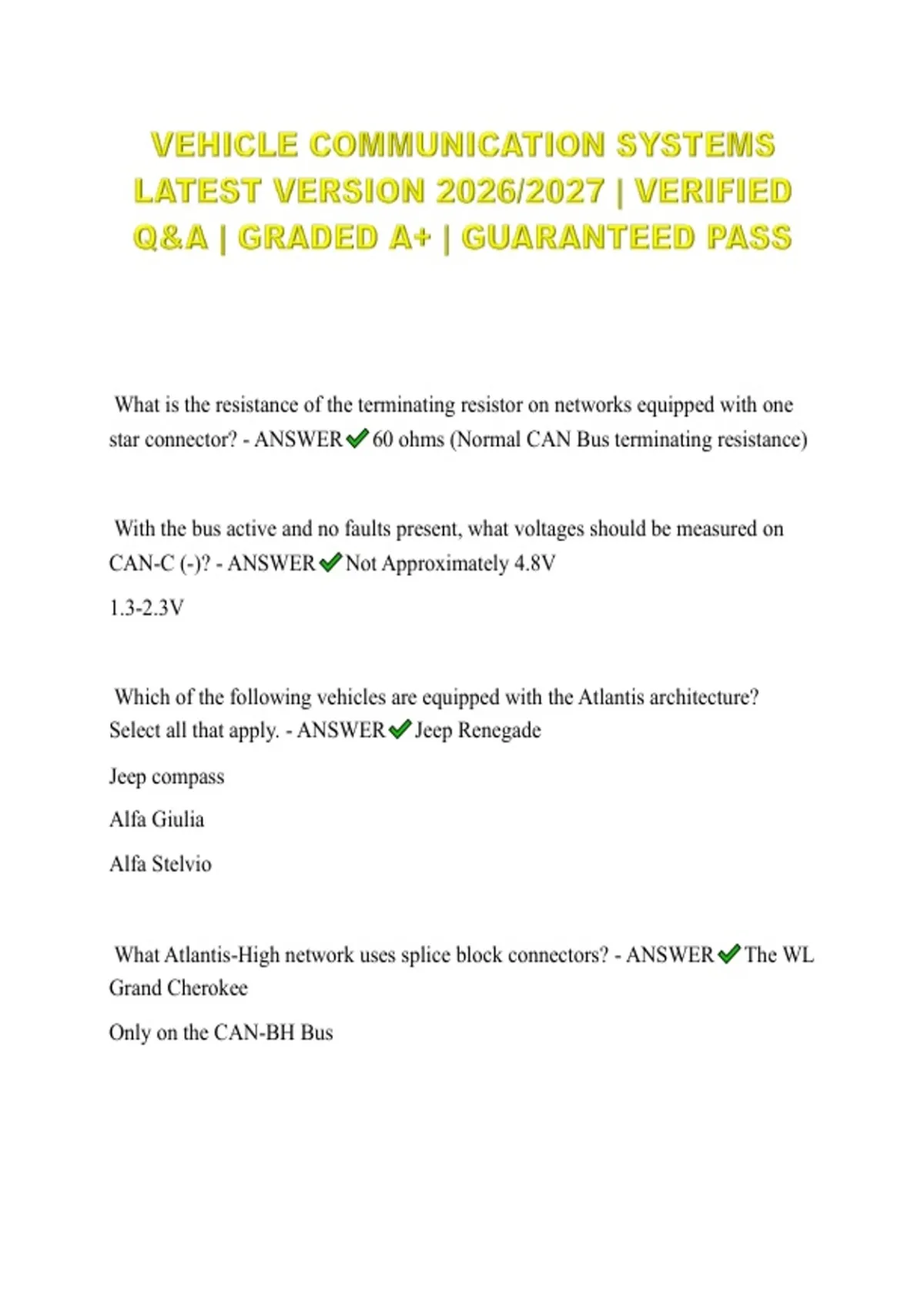

What is the resistance of the terminating resistor on networks equipped with one
star connector? - ANSWER 60 ohms (Normal CAN Bus terminating resistance)
With the bus active and no faults present, what voltages should be measured on
CAN-C (-)? - ANSWER Not Approximately 4.8V
1.3-2.3V
Which of the following vehicles are equipped with the Atlantis architecture?
Select all that apply. - ANSWER Jeep Renegade
Jeep compass
Alfa Giulia
Alfa Stelvio
What Atlantis-High network uses splice block connectors? - ANSWER The WL
Grand Cherokee
Only on the CAN-BH Bus
, Atlantis-High found on? - ANSWER 2021 Grand Cherokee (or WL)
(Automotive Ethernet standard 100BASE-TX) {1500 bytes up to 100 Mbps} <still
use a twisted pair like CAN>
Can't be spliced or repaired like CAN Wires
Ideal for screen mirroring and streaming connected services
2022 Wagoneer (or WS)
With the bus active and no faults present, what voltages should be measured on
CAN-B (+)? - ANSWER 0.39V-0.46V
Which diagnostic software and scan tool should be used to diagnose legacy
vehicle architectures? - ANSWER Hybrid of CAN with early versions of serial-
communication networks
Peripheral Component Interconnect
Serial Communication Interface
SAE's J1850, or K-Line, as the primary network
DRB-III or Star Scan
Enhanced DRB-III Emulator
With the bus active and no faults present, what voltages should be measured on
LIN? - ANSWER 0.2V - 0.5V
What vehicle architectures use an automatic process to transfer ECU
configuration? Select all that apply. - ANSWER Power-Net
TIPM
, What vehicle architectures use a manual process in the scan tool to program the
ECU PROXI configuration? Select all that apply. - ANSWER
CAN-C is being measured.
What should Meter B display based on the fault shown? - ANSWER
What modules are the vehicle configuration data typically saved in? Select all that
apply. - ANSWER BCM
TIPM
Which diagnostic strategy can be used while performing the Loss of Comm Test to
help isolate intermittent concerns? - ANSWER Do not pull the fuse to each
module
The Security Gateway (SGW) was introduced in which model year vehicles? -
ANSWER 2018
With the bus active and no faults present, what voltages should be measured on
CAN-C (+)? - ANSWER 2.6V-3.5V
True or False? A short to ground on CAN-B (+) will ALWAYS prevent
communication from occurring on the CAN-B bus. - ANSWER Not True
Which resource should be used first for troubleshooting DRB III Emulator
concerns? - ANSWER Not STAR Support Center
