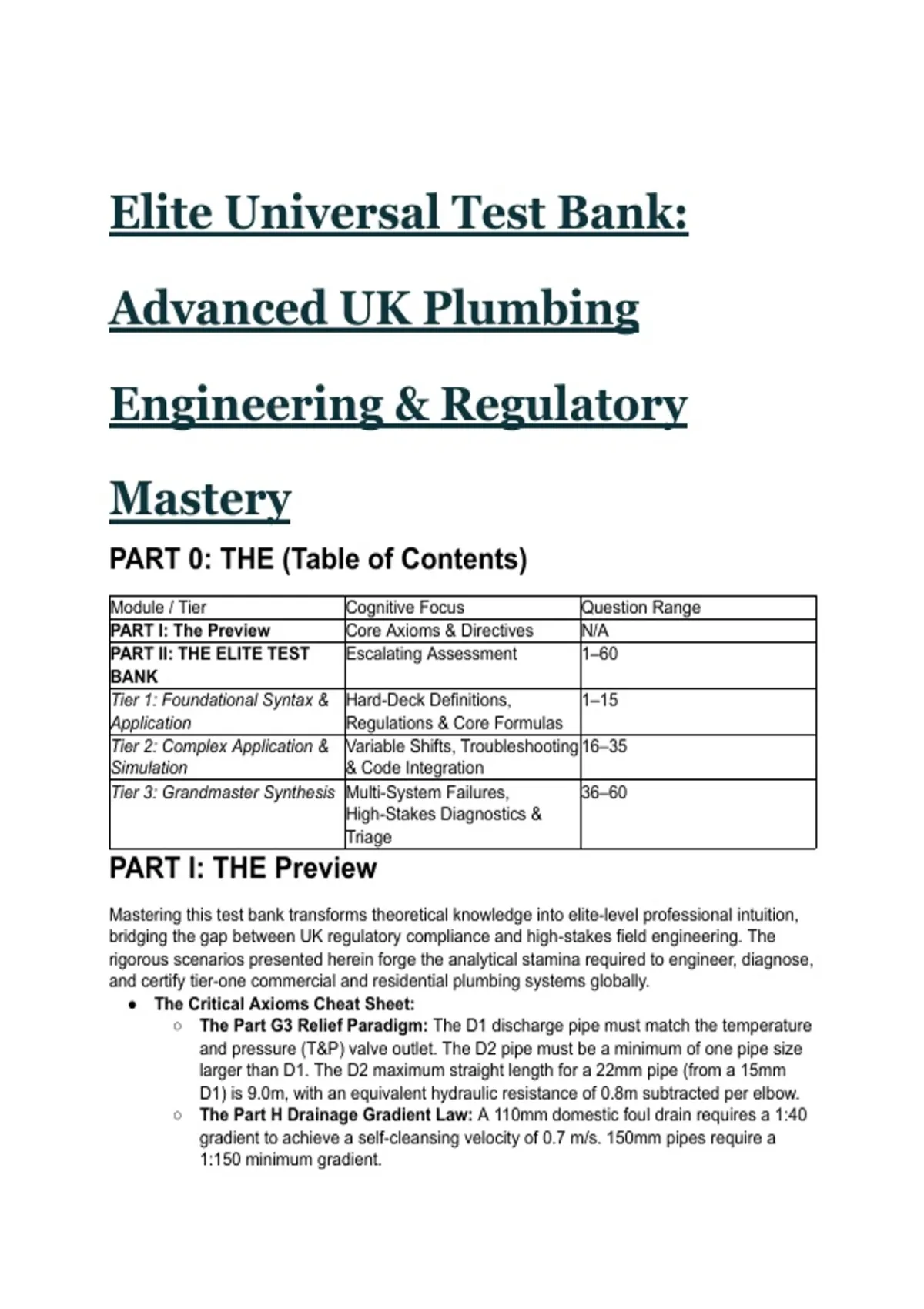

Elite Universal Test Bank:
Advanced UK Plumbing
Engineering & Regulatory
Mastery
PART 0: THE (Table of Contents)
Module / Tier Cognitive Focus Question Range
PART I: The Preview Core Axioms & Directives N/A
PART II: THE ELITE TEST Escalating Assessment 1–60
BANK
Tier 1: Foundational Syntax & Hard-Deck Definitions, 1–15
Application Regulations & Core Formulas
Tier 2: Complex Application & Variable Shifts, Troubleshooting 16–35
Simulation & Code Integration
Tier 3: Grandmaster Synthesis Multi-System Failures, 36–60
High-Stakes Diagnostics &
Triage
PART I: THE Preview
Mastering this test bank transforms theoretical knowledge into elite-level professional intuition,
bridging the gap between UK regulatory compliance and high-stakes field engineering. The
rigorous scenarios presented herein forge the analytical stamina required to engineer, diagnose,
and certify tier-one commercial and residential plumbing systems globally.
● The Critical Axioms Cheat Sheet:
○ The Part G3 Relief Paradigm: The D1 discharge pipe must match the temperature
and pressure (T&P) valve outlet. The D2 pipe must be a minimum of one pipe size
larger than D1. The D2 maximum straight length for a 22mm pipe (from a 15mm
D1) is 9.0m, with an equivalent hydraulic resistance of 0.8m subtracted per elbow.
○ The Part H Drainage Gradient Law: A 110mm domestic foul drain requires a 1:40
gradient to achieve a self-cleansing velocity of 0.7 m/s. 150mm pipes require a
1:150 minimum gradient.
, ○ BS EN 12056-2 System III (UK Standard): UK drainage utilizes a single discharge
stack system with full-bore branch discharge pipes designed for a filling degree of
1.0 (100%).
○ The BS 8558 Thermal Protocol: To avert Legionella pneumophila, cold water must
be stored and distributed below 20°C. Hot water must be stored at >60°C and
distributed to outlets at >50°C (55°C in healthcare facilities).
○ WRAS Fluid Category Defense: Fluid Category 4 (significant health hazard)
mandates a Reduced Pressure Zone (RPZ) valve. Fluid Category 5 (serious health
hazard/pathogens) strictly mandates a Type AB air gap with a weir overflow.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A practitioner is inspecting a newly roughed-in sanitary pipework system under Building
Regulations Part H. A 40mm branch discharge pipe serves a domestic kitchen sink. Based on
the principles of the Building Regulations Approved Document H, which action/conclusion is the
MOST ACCURATE regarding the required water seal? A) The trap must contain a minimum
water seal depth of 38mm. B) The trap must contain a minimum water seal depth of 50mm. C)
The trap must contain a minimum water seal depth of 75mm. D) The trap must contain a
minimum water seal depth of 100mm.
● The Answer: C (The trap must contain a minimum water seal depth of 75mm.)
● Distractor Analysis:
○ A is incorrect: A 38mm seal is only acceptable for appliances discharging directly
into an external gully, not into an internal soil stack.
○ B is incorrect: A 50mm seal is the required depth for baths, showers, and WCs, but
is hydraulically insufficient for sinks and basins.
○ D is incorrect: A 100mm seal exceeds standard UK regulatory requirements and
unnecessarily increases the risk of solid waste blockages without providing added
pneumatic benefit.
The Mentor's Analysis: Internal branch pipes are subject to severe positive and negative
pressure transients. When facing basin or sink installations, the immediate priority is providing
an adequate hydrostatic barrier against trap seal depletion caused by induced siphonage. By
utilizing a 75mm deep seal trap, you bypass the common trap of failing air tightness and odor
exclusion tests. Professional/Academic Intuition: Sinks and basins demand 75mm seals;
high-flow base appliances (baths/WCs) demand 50mm.
Appliance Minimum Trap Diameter (mm) Minimum Water Seal Depth
(mm)
Washbasin, Bidet 32 75
Bath, Shower 40 50
Sink, Washing Machine 40 75
WC outlet < 80mm 75 50
Q2: A commercial abattoir requires a new wash-down system connected to the mains water
supply. Based on the principles of the Water Supply (Water Fittings) Regulations 1999, which
action/conclusion is the MOST ACCURATE method of backflow prevention? A) Installing a
verifiable Double Check Valve (Type EC). B) Installing a Reduced Pressure Zone (RPZ) Valve
(Type BA). C) Installing a Type AB Air Gap with a Weir Overflow. D) Installing a Type DA
,Anti-Vacuum Breaker.
● The Answer: C (Installing a Type AB Air Gap with a Weir Overflow.)
● Distractor Analysis:
○ A is incorrect: Double check valves are only suitable up to Fluid Category 3 (slight
health hazard) and offer zero protection against pathogenic matter.
○ B is incorrect: RPZ valves provide Fluid Category 4 protection (significant hazard),
but abattoirs represent severe faecal and animal waste hazards, which exceed
Category 4 limits.
○ D is incorrect: A vacuum breaker protects solely against back-siphonage but
provides zero protection against backpressure in high-risk zones.
The Mentor's Analysis: Abattoirs present a severe risk of pathogenic contamination,
classifying them strictly as a Fluid Category 5 hazard. When facing Category 5 biological
hazards, the immediate priority is absolute physical separation of the fluid networks. By utilizing
a Type AB Air Gap, you bypass the common trap of over-relying on mechanical valves that can
fail under extreme biological or pressure risks. Professional/Academic Intuition: Category 5
hazards strictly require non-mechanical, physical air gaps.
Q3: During the commissioning of an unvented hot water storage cylinder governed by Part G3,
a technician inspects the factory-fitted Temperature & Pressure (T&P) relief valve. Based on the
principles of hot water safety standards (BS EN 1490), which action/conclusion is the MOST
ACCURATE regarding the thermal actuation setpoint? A) The valve must actuate between 60°C
and 65°C. B) The valve must actuate between 80°C and 85°C. C) The valve must actuate
between 90°C and 95°C. D) The valve must actuate between 100°C and 105°C.
● The Answer: C (The valve must actuate between 90°C and 95°C.)
● Distractor Analysis:
○ A is incorrect: 60°C is the required storage pasteurization temperature for
Legionella control, not an emergency fault state.
○ B is incorrect: 82°C is a typical boiler primary flow temperature, not an emergency
threshold.
○ D is incorrect: Allowing water to reach 100°C causes catastrophic flash-steam
expansion upon depressurization, violating G3 core principles.
The Mentor's Analysis: The T&P valve is the ultimate fail-safe against vessel rupture and
boiling liquid expanding vapor explosions (BLEVE). When facing runaway thermal input, the
immediate priority is discharging the kinetic energy before the phase change occurs. By utilizing
a 90-95°C setpoint, you bypass the common trap of allowing the vessel to reach the boiling
point under pressure. Professional/Academic Intuition: Unvented thermal relief must
actuate below 100°C to prevent catastrophic steam expansion.
Q4: A designer is sizing an underground foul drainage run serving a single domestic dwelling
with one WC. Based on the principles of Building Regulations Approved Document H, which
action/conclusion is the MOST ACCURATE regarding the minimum pipe gradient for a 110mm
pipe? A) The pipe must be laid at a 1:20 gradient. B) The pipe must be laid at a 1:40 gradient.
C) The pipe must be laid at a 1:80 gradient, regardless of design calculations. D) The pipe must
be laid at a 1:100 gradient.
● The Answer: B (The pipe must be laid at a 1:40 gradient.)
● Distractor Analysis:
○ A is incorrect: A 1:20 gradient is excessively steep; liquids will outpace solids,
leaving waste stranded in the invert.
○ C is incorrect: While 1:80 is the absolute minimum permitted under specific careful
design constraints for 110mm pipes, 1:40 is the standard minimum recommended
, gradient.
○ D is incorrect: A 1:100 gradient is only acceptable for larger pipe diameters (e.g.,
150mm) due to their increased hydraulic radius.
The Mentor's Analysis: Foul water relies on gravitational kinetic energy to transport solids
effectively. When facing domestic pipe sizing, the immediate priority is maintaining a minimum
0.7 m/s self-cleansing flow velocity. By utilizing a 1:40 gradient for 110mm drains, you bypass
the common trap of systemic blockages caused by shallow, sluggish falls.
Professional/Academic Intuition: 110mm drains require a 1:40 fall; 150mm drains require
a 1:150 minimum fall.
Q5: The UK employs "System III" for sanitary pipework design. Based on the principles of BS
EN 12056-2, which action/conclusion is the MOST ACCURATE defining characteristic
separating System III from other European configurations? A) It requires separate black water
and grey water discharge stacks. B) It utilizes branch discharge pipes operating at a filling
degree of 0.5 (50%). C) It employs a single discharge stack with full-bore branch pipes at a 1.0
(100%) filling degree. D) It mandates secondary ventilation for every horizontal branch.
● The Answer: C (It employs a single discharge stack with full-bore branch pipes at a 1.0
(100%) filling degree.)
● Distractor Analysis:
○ A is incorrect: Separate stacks for black and grey water characterize System IV
(French practice).
○ B is incorrect: A 50% filling degree (0.5) characterizes System I (German/Swiss
practice).
○ D is incorrect: Secondary venting is only required if maximum unventilated limits are
exceeded, not as a universal mandate.
The Mentor's Analysis: The UK drainage system relies on specific flow dynamics to clear
waste rapidly using minimal pipe diameters. When facing sanitary layout design, the immediate
priority is understanding regional hydraulics. By utilizing System III (100% filling degree), you
bypass the common trap of applying foreign pneumatic rules to UK installations.
Professional/Academic Intuition: UK System III equals single stacks with full-bore (1.0
filling degree) unventilated branches.
Q6: Under the Water Supply (Water Fittings) Regulations 1999, an installer is preparing to
undertake several works. Based on the principles of Regulation 5, which action/conclusion is the
MOST ACCURATE operation requiring immediate notification to the water undertaker? A)
Replacing a direct domestic hot water cylinder with an identical unit. B) Installing a new garden
watering system operated solely by hand. C) Extending the existing pipework within a
residential dwelling to add an en-suite. D) Installing a Reduced Pressure Zone (RPZ) valve
assembly.
● The Answer: D (Installing a Reduced Pressure Zone (RPZ) valve assembly.)
● Distractor Analysis:
○ A is incorrect: Like-for-like domestic replacements do not require prior notification.
○ B is incorrect: Hand-operated garden watering systems are explicitly exempt from
notification under Schedule 2.
○ C is incorrect: Alterations within a domestic house are generally exempt; only
non-domestic extensions require formal notice.
The Mentor's Analysis: Water undertakers must rigorously track high-hazard
cross-connections to protect the municipal grid. When facing high-risk fluid categories, the
immediate priority is regulatory oversight. By utilizing the Regulation 5 notification protocol for
RPZ valves, you bypass the common trap of executing unauthorized, non-compliant Category 4
Advanced UK Plumbing
Engineering & Regulatory
Mastery
PART 0: THE (Table of Contents)
Module / Tier Cognitive Focus Question Range
PART I: The Preview Core Axioms & Directives N/A
PART II: THE ELITE TEST Escalating Assessment 1–60
BANK
Tier 1: Foundational Syntax & Hard-Deck Definitions, 1–15
Application Regulations & Core Formulas
Tier 2: Complex Application & Variable Shifts, Troubleshooting 16–35
Simulation & Code Integration
Tier 3: Grandmaster Synthesis Multi-System Failures, 36–60
High-Stakes Diagnostics &
Triage
PART I: THE Preview
Mastering this test bank transforms theoretical knowledge into elite-level professional intuition,
bridging the gap between UK regulatory compliance and high-stakes field engineering. The
rigorous scenarios presented herein forge the analytical stamina required to engineer, diagnose,
and certify tier-one commercial and residential plumbing systems globally.
● The Critical Axioms Cheat Sheet:
○ The Part G3 Relief Paradigm: The D1 discharge pipe must match the temperature
and pressure (T&P) valve outlet. The D2 pipe must be a minimum of one pipe size
larger than D1. The D2 maximum straight length for a 22mm pipe (from a 15mm
D1) is 9.0m, with an equivalent hydraulic resistance of 0.8m subtracted per elbow.
○ The Part H Drainage Gradient Law: A 110mm domestic foul drain requires a 1:40
gradient to achieve a self-cleansing velocity of 0.7 m/s. 150mm pipes require a
1:150 minimum gradient.
, ○ BS EN 12056-2 System III (UK Standard): UK drainage utilizes a single discharge
stack system with full-bore branch discharge pipes designed for a filling degree of
1.0 (100%).
○ The BS 8558 Thermal Protocol: To avert Legionella pneumophila, cold water must
be stored and distributed below 20°C. Hot water must be stored at >60°C and
distributed to outlets at >50°C (55°C in healthcare facilities).
○ WRAS Fluid Category Defense: Fluid Category 4 (significant health hazard)
mandates a Reduced Pressure Zone (RPZ) valve. Fluid Category 5 (serious health
hazard/pathogens) strictly mandates a Type AB air gap with a weir overflow.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A practitioner is inspecting a newly roughed-in sanitary pipework system under Building
Regulations Part H. A 40mm branch discharge pipe serves a domestic kitchen sink. Based on
the principles of the Building Regulations Approved Document H, which action/conclusion is the
MOST ACCURATE regarding the required water seal? A) The trap must contain a minimum
water seal depth of 38mm. B) The trap must contain a minimum water seal depth of 50mm. C)
The trap must contain a minimum water seal depth of 75mm. D) The trap must contain a
minimum water seal depth of 100mm.
● The Answer: C (The trap must contain a minimum water seal depth of 75mm.)
● Distractor Analysis:
○ A is incorrect: A 38mm seal is only acceptable for appliances discharging directly
into an external gully, not into an internal soil stack.
○ B is incorrect: A 50mm seal is the required depth for baths, showers, and WCs, but
is hydraulically insufficient for sinks and basins.
○ D is incorrect: A 100mm seal exceeds standard UK regulatory requirements and
unnecessarily increases the risk of solid waste blockages without providing added
pneumatic benefit.
The Mentor's Analysis: Internal branch pipes are subject to severe positive and negative
pressure transients. When facing basin or sink installations, the immediate priority is providing
an adequate hydrostatic barrier against trap seal depletion caused by induced siphonage. By
utilizing a 75mm deep seal trap, you bypass the common trap of failing air tightness and odor
exclusion tests. Professional/Academic Intuition: Sinks and basins demand 75mm seals;
high-flow base appliances (baths/WCs) demand 50mm.
Appliance Minimum Trap Diameter (mm) Minimum Water Seal Depth
(mm)
Washbasin, Bidet 32 75
Bath, Shower 40 50
Sink, Washing Machine 40 75
WC outlet < 80mm 75 50
Q2: A commercial abattoir requires a new wash-down system connected to the mains water
supply. Based on the principles of the Water Supply (Water Fittings) Regulations 1999, which
action/conclusion is the MOST ACCURATE method of backflow prevention? A) Installing a
verifiable Double Check Valve (Type EC). B) Installing a Reduced Pressure Zone (RPZ) Valve
(Type BA). C) Installing a Type AB Air Gap with a Weir Overflow. D) Installing a Type DA
,Anti-Vacuum Breaker.
● The Answer: C (Installing a Type AB Air Gap with a Weir Overflow.)
● Distractor Analysis:
○ A is incorrect: Double check valves are only suitable up to Fluid Category 3 (slight
health hazard) and offer zero protection against pathogenic matter.
○ B is incorrect: RPZ valves provide Fluid Category 4 protection (significant hazard),
but abattoirs represent severe faecal and animal waste hazards, which exceed
Category 4 limits.
○ D is incorrect: A vacuum breaker protects solely against back-siphonage but
provides zero protection against backpressure in high-risk zones.
The Mentor's Analysis: Abattoirs present a severe risk of pathogenic contamination,
classifying them strictly as a Fluid Category 5 hazard. When facing Category 5 biological
hazards, the immediate priority is absolute physical separation of the fluid networks. By utilizing
a Type AB Air Gap, you bypass the common trap of over-relying on mechanical valves that can
fail under extreme biological or pressure risks. Professional/Academic Intuition: Category 5
hazards strictly require non-mechanical, physical air gaps.
Q3: During the commissioning of an unvented hot water storage cylinder governed by Part G3,
a technician inspects the factory-fitted Temperature & Pressure (T&P) relief valve. Based on the
principles of hot water safety standards (BS EN 1490), which action/conclusion is the MOST
ACCURATE regarding the thermal actuation setpoint? A) The valve must actuate between 60°C
and 65°C. B) The valve must actuate between 80°C and 85°C. C) The valve must actuate
between 90°C and 95°C. D) The valve must actuate between 100°C and 105°C.
● The Answer: C (The valve must actuate between 90°C and 95°C.)
● Distractor Analysis:
○ A is incorrect: 60°C is the required storage pasteurization temperature for
Legionella control, not an emergency fault state.
○ B is incorrect: 82°C is a typical boiler primary flow temperature, not an emergency
threshold.
○ D is incorrect: Allowing water to reach 100°C causes catastrophic flash-steam
expansion upon depressurization, violating G3 core principles.
The Mentor's Analysis: The T&P valve is the ultimate fail-safe against vessel rupture and
boiling liquid expanding vapor explosions (BLEVE). When facing runaway thermal input, the
immediate priority is discharging the kinetic energy before the phase change occurs. By utilizing
a 90-95°C setpoint, you bypass the common trap of allowing the vessel to reach the boiling
point under pressure. Professional/Academic Intuition: Unvented thermal relief must
actuate below 100°C to prevent catastrophic steam expansion.
Q4: A designer is sizing an underground foul drainage run serving a single domestic dwelling
with one WC. Based on the principles of Building Regulations Approved Document H, which
action/conclusion is the MOST ACCURATE regarding the minimum pipe gradient for a 110mm
pipe? A) The pipe must be laid at a 1:20 gradient. B) The pipe must be laid at a 1:40 gradient.
C) The pipe must be laid at a 1:80 gradient, regardless of design calculations. D) The pipe must
be laid at a 1:100 gradient.
● The Answer: B (The pipe must be laid at a 1:40 gradient.)
● Distractor Analysis:
○ A is incorrect: A 1:20 gradient is excessively steep; liquids will outpace solids,
leaving waste stranded in the invert.
○ C is incorrect: While 1:80 is the absolute minimum permitted under specific careful
design constraints for 110mm pipes, 1:40 is the standard minimum recommended
, gradient.
○ D is incorrect: A 1:100 gradient is only acceptable for larger pipe diameters (e.g.,
150mm) due to their increased hydraulic radius.
The Mentor's Analysis: Foul water relies on gravitational kinetic energy to transport solids
effectively. When facing domestic pipe sizing, the immediate priority is maintaining a minimum
0.7 m/s self-cleansing flow velocity. By utilizing a 1:40 gradient for 110mm drains, you bypass
the common trap of systemic blockages caused by shallow, sluggish falls.
Professional/Academic Intuition: 110mm drains require a 1:40 fall; 150mm drains require
a 1:150 minimum fall.
Q5: The UK employs "System III" for sanitary pipework design. Based on the principles of BS
EN 12056-2, which action/conclusion is the MOST ACCURATE defining characteristic
separating System III from other European configurations? A) It requires separate black water
and grey water discharge stacks. B) It utilizes branch discharge pipes operating at a filling
degree of 0.5 (50%). C) It employs a single discharge stack with full-bore branch pipes at a 1.0
(100%) filling degree. D) It mandates secondary ventilation for every horizontal branch.
● The Answer: C (It employs a single discharge stack with full-bore branch pipes at a 1.0
(100%) filling degree.)
● Distractor Analysis:
○ A is incorrect: Separate stacks for black and grey water characterize System IV
(French practice).
○ B is incorrect: A 50% filling degree (0.5) characterizes System I (German/Swiss
practice).
○ D is incorrect: Secondary venting is only required if maximum unventilated limits are
exceeded, not as a universal mandate.
The Mentor's Analysis: The UK drainage system relies on specific flow dynamics to clear
waste rapidly using minimal pipe diameters. When facing sanitary layout design, the immediate
priority is understanding regional hydraulics. By utilizing System III (100% filling degree), you
bypass the common trap of applying foreign pneumatic rules to UK installations.
Professional/Academic Intuition: UK System III equals single stacks with full-bore (1.0
filling degree) unventilated branches.
Q6: Under the Water Supply (Water Fittings) Regulations 1999, an installer is preparing to
undertake several works. Based on the principles of Regulation 5, which action/conclusion is the
MOST ACCURATE operation requiring immediate notification to the water undertaker? A)
Replacing a direct domestic hot water cylinder with an identical unit. B) Installing a new garden
watering system operated solely by hand. C) Extending the existing pipework within a
residential dwelling to add an en-suite. D) Installing a Reduced Pressure Zone (RPZ) valve
assembly.
● The Answer: D (Installing a Reduced Pressure Zone (RPZ) valve assembly.)
● Distractor Analysis:
○ A is incorrect: Like-for-like domestic replacements do not require prior notification.
○ B is incorrect: Hand-operated garden watering systems are explicitly exempt from
notification under Schedule 2.
○ C is incorrect: Alterations within a domestic house are generally exempt; only
non-domestic extensions require formal notice.
The Mentor's Analysis: Water undertakers must rigorously track high-hazard
cross-connections to protect the municipal grid. When facing high-risk fluid categories, the
immediate priority is regulatory oversight. By utilizing the Regulation 5 notification protocol for
RPZ valves, you bypass the common trap of executing unauthorized, non-compliant Category 4
