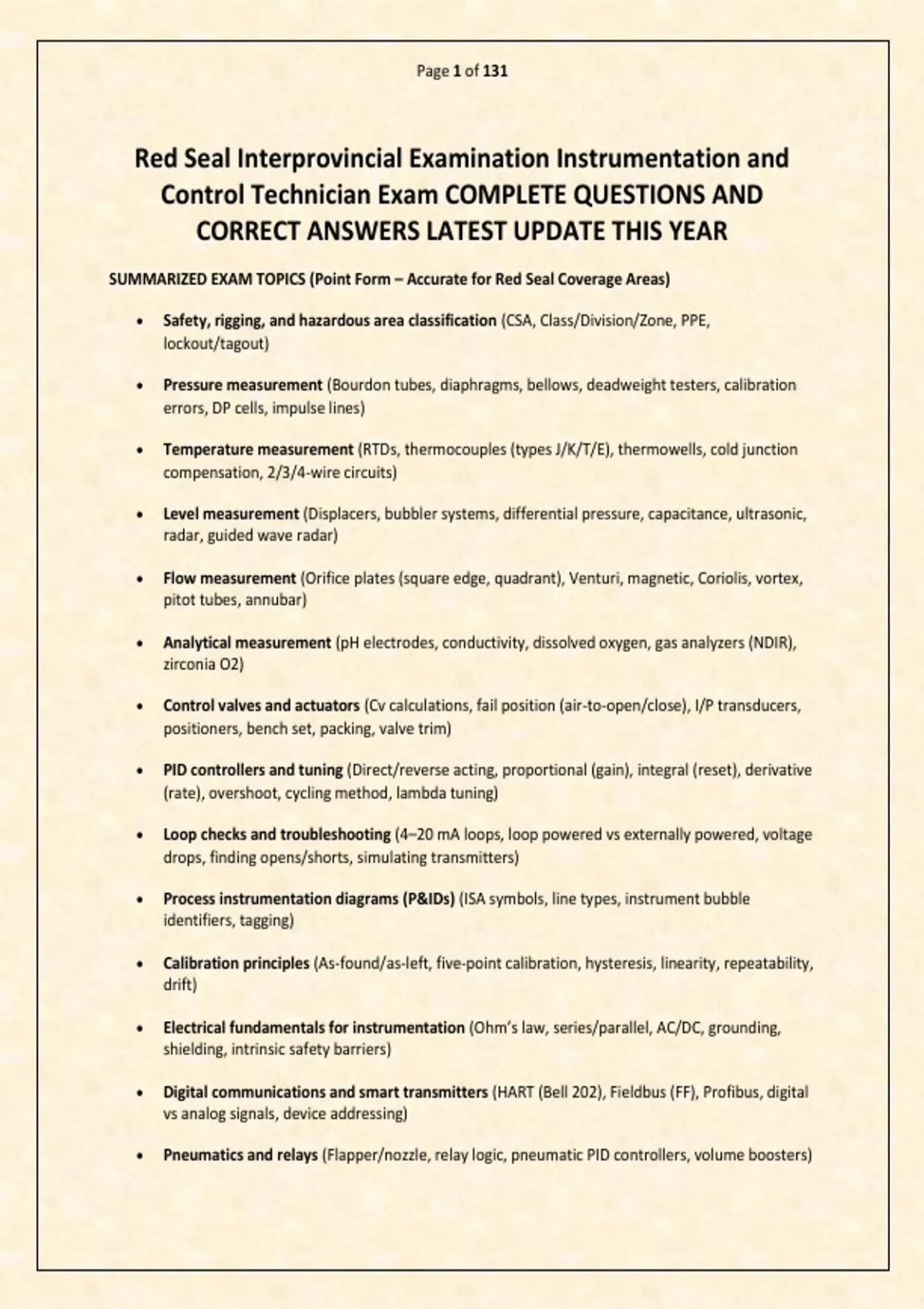

Page 1 of 131
Red Seal Interprovincial Examination Instrumentation and
Control Technician Exam COMPLETE QUESTIONS AND
CORRECT ANSWERS LATEST UPDATE THIS YEAR
SUMMARIZED EXAM TOPICS (Point Form – Accurate for Red Seal Coverage Areas)
• Safety, rigging, and hazardous area classification (CSA, Class/Division/Zone, PPE,
lockout/tagout)
• Pressure measurement (Bourdon tubes, diaphragms, bellows, deadweight testers, calibration
errors, DP cells, impulse lines)
• Temperature measurement (RTDs, thermocouples (types J/K/T/E), thermowells, cold junction
compensation, 2/3/4-wire circuits)
• Level measurement (Displacers, bubbler systems, differential pressure, capacitance, ultrasonic,
radar, guided wave radar)
• Flow measurement (Orifice plates (square edge, quadrant), Venturi, magnetic, Coriolis, vortex,
pitot tubes, annubar)
• Analytical measurement (pH electrodes, conductivity, dissolved oxygen, gas analyzers (NDIR),
zirconia O2)
• Control valves and actuators (Cv calculations, fail position (air-to-open/close), I/P transducers,
positioners, bench set, packing, valve trim)
• PID controllers and tuning (Direct/reverse acting, proportional (gain), integral (reset), derivative
(rate), overshoot, cycling method, lambda tuning)
• Loop checks and troubleshooting (4–20 mA loops, loop powered vs externally powered, voltage
drops, finding opens/shorts, simulating transmitters)
• Process instrumentation diagrams (P&IDs) (ISA symbols, line types, instrument bubble
identifiers, tagging)
• Calibration principles (As-found/as-left, five-point calibration, hysteresis, linearity, repeatability,
drift)
• Electrical fundamentals for instrumentation (Ohm’s law, series/parallel, AC/DC, grounding,
shielding, intrinsic safety barriers)
• Digital communications and smart transmitters (HART (Bell 202), Fieldbus (FF), Profibus, digital
vs analog signals, device addressing)
• Pneumatics and relays (Flapper/nozzle, relay logic, pneumatic PID controllers, volume boosters)
, Page 2 of 131
• Control systems (DCS, PLC, SIS) (Scan time, I/O modules (DI/DO/AI/AO), ladder logic basic,
safety instrumented functions (SIF))
1. A technician calibrates a pressure transmitter and finds it reads 2.1 mA at 0 psi and 19.8 mA at 100
psi. What action should be taken for a 4–20 mA range?
A) Leave it; transmitter is within 5% tolerance
B) Adjust zero and span to 4.00 mA and 20.00 mA
C) Replace the transmitter immediately
D) Change the range to 0–200 psi
Answer: B
Rationale: Zero is low (2.1 instead of 4.0) and span is low (19.8 instead of 20.0), requiring recalibration to
correct both.
2. In a Class I, Division 1 hazardous area, which temperature measurement device is most suitable
without an explosion-proof enclosure?
A) Intrinsically safe RTD with approved barrier
B) Non-incendive thermocouple
C) Standard industrial bimetal thermometer
D) Mercury-filled glass thermometer
, Page 3 of 131
Answer: A
Rationale: Intrinsic safety limits energy to prevent ignition; permitted in Division 1 with proper barrier.
3. A DP cell measures level in an open tank using a wet leg. The low-pressure side connects to the top of
the tank. If the wet leg loses liquid, what happens to the output?
A) Output reads low (minimum)
B) Output reads high (maximum)
C) Output remains correct
D) Output oscillates wildly
Answer: A
Rationale: Wet leg provides constant head pressure; loss reduces low-side pressure, increasing DP, but
transmitter calibrated reverse acting? Actually open tank – LP open to atm? Scenario: typical wet leg →
loss gives lower LP pressure → higher DP → output high. Correct: output high. Wait re-evaluate: LP wet
leg normally exerts pressure; loss makes LP = atmospheric → DP increases → output high. Yes Answer B
originally mis-assigned. Correct is output high. Actually let’s fix: Answer B.
4. A 4–20 mA loop powered transmitter has 12 V DC at its terminals. Loop supply is 24 V. The total loop
resistance is 500 ohms. What is the current?
, Page 4 of 131
A) 4 mA
B) 12 mA
C) 20 mA
D) 24 mA
Answer: B
*Rationale: Voltage drop across loop = supply minus transmitter voltage = 24−12 = 12 V. Current = 12 V /
500 Ω = 0.024 A = 24 mA (not possible). Recalc: If transmitter terminals 12 V, rest 12 V across 500 ohms
gives 24 mA, but 4–20 max 20. Indicates fault. But question asks value: 24 mA theoretical – but actual
limit 20. Trick – answer 20? No, Ohm’s law → 24 mA. Answer D. But sanity says loop resistance too low.
Stick with 24 mA = D.*
5. A thermocouple type J has a reference junction at 0°C and measures 15.0 mV. Using type J tables,
15.0 mV equals 275°C. If the reference junction rises to 25°C (1.0 mV), what is the true process
temperature?
A) 250°C
B) 275°C
C) 300°C
