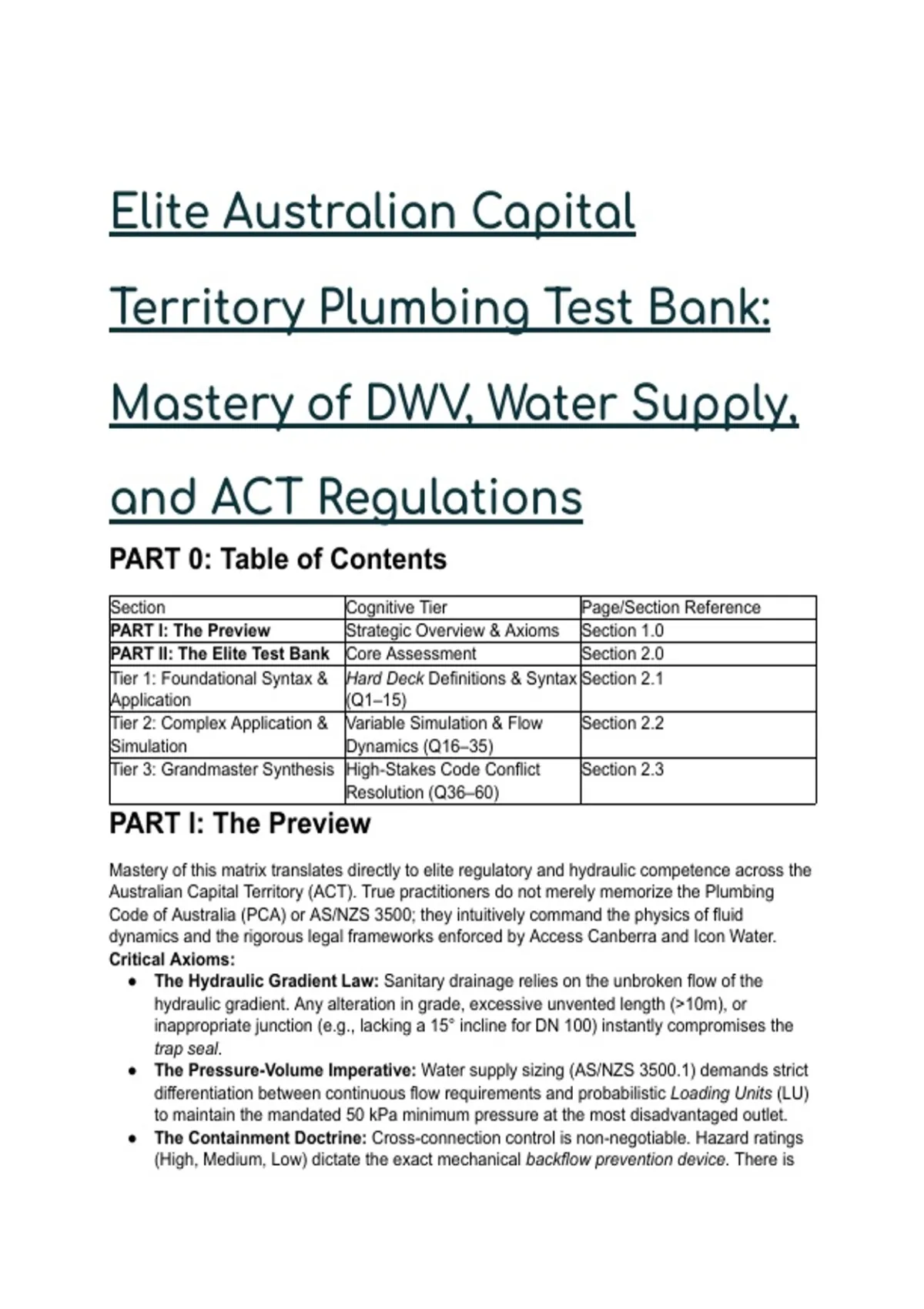

Elite Australian Capital
Territory Plumbing Test Bank:
Mastery of DWV, Water Supply,
and ACT Regulations
PART 0: Table of Contents
Section Cognitive Tier Page/Section Reference
PART I: The Preview Strategic Overview & Axioms Section 1.0
PART II: The Elite Test Bank Core Assessment Section 2.0
Tier 1: Foundational Syntax & Hard Deck Definitions & Syntax Section 2.1
Application (Q1–15)
Tier 2: Complex Application & Variable Simulation & Flow Section 2.2
Simulation Dynamics (Q16–35)
Tier 3: Grandmaster Synthesis High-Stakes Code Conflict Section 2.3
Resolution (Q36–60)
PART I: The Preview
Mastery of this matrix translates directly to elite regulatory and hydraulic competence across the
Australian Capital Territory (ACT). True practitioners do not merely memorize the Plumbing
Code of Australia (PCA) or AS/NZS 3500; they intuitively command the physics of fluid
dynamics and the rigorous legal frameworks enforced by Access Canberra and Icon Water.
Critical Axioms:
● The Hydraulic Gradient Law: Sanitary drainage relies on the unbroken flow of the
hydraulic gradient. Any alteration in grade, excessive unvented length (>10m), or
inappropriate junction (e.g., lacking a 15° incline for DN 100) instantly compromises the
trap seal.
● The Pressure-Volume Imperative: Water supply sizing (AS/NZS 3500.1) demands strict
differentiation between continuous flow requirements and probabilistic Loading Units (LU)
to maintain the mandated 50 kPa minimum pressure at the most disadvantaged outlet.
● The Containment Doctrine: Cross-connection control is non-negotiable. Hazard ratings
(High, Medium, Low) dictate the exact mechanical backflow prevention device. There is
, zero tolerance for unprotected atmospheric exposure.
● The ACT Compliance Mandate: Technical perfection is void without regulatory
adherence. The Water and Sewerage Act 2000 and Access Canberra directives override
generalized assumptions.
PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: A practitioner is installing a DN 100 sanitary branch drain on grade in a commercial facility.
Based on the AS/NZS 3500.2 updates, what is the LEGALLY REQUIRED configuration when
connecting this DN 100 branch to another DN 100 drain on grade? A) The connection must be
made utilizing an 88° sweep junction to maintain velocity. B) The connection may be made
horizontally provided the total fixture unit loading does not exceed 165 FU. C) The entry level of
the branch drain/pipe must be elevated at an incline of not less than 15° above the horizontal.
D) The connection must feature an upstream relief vent within 1.5 meters of the junction.
● The Answer: C (The entry level of the branch drain/pipe must be elevated at an incline of
not less than 15° above the horizontal.)
● Distractor Analysis:
○ A is incorrect: 88° sweep junctions are strictly prohibited for connecting graded
drains due to backwash risks.
○ B is incorrect: While 165 FU is a valid loading metric for DN 100, horizontal entries
for DN 100 x DN 100 on grade are no longer permitted due to stranding risks.
○ D is incorrect: Upstream venting is governed by trap arm lengths and boundary
traps, not mandated solely by the presence of a junction.
The Mentor's Analysis: Modern water-efficient fixtures produce lower discharge volumes,
increasing the risk of solid stranding. Elevating the junction branch by 15° eliminates the partial
backwash of wastewater up the branch pipe. Professional/Academic Intuition: Low flows
demand high precision; always elevate DN 100 junctions by 15° to defend against solid
stranding.
Q2: According to the PCA and AS/NZS 3500.1, what is the primary metric used to size branch
pipework serving multiple intermittent fixtures within an individual dwelling? A) Continuous flow
addition calculated in Liters per Second (L/s). B) The accumulation of Loading Units (LU)
converted into a Probable Simultaneous Flow Rate (PSFR). C) The accumulation of Fixture
Units (FU) divided by the hydraulic gradient. D) The static pressure rating of the municipal main
minus friction loss.
● The Answer: B (The accumulation of Loading Units (LU) converted into a Probable
Simultaneous Flow Rate (PSFR).)
● Distractor Analysis:
○ A is incorrect: Continuous flow addition is reserved for constant-draw items (e.g.,
irrigation), not intermittent domestic fixtures.
○ C is incorrect: Fixture Units (FU) dictate sanitary drainage sizing (AS/NZS 3500.2),
not potable water supply.
○ D is incorrect: Static pressure and friction loss are factors in pipe selection, but the
primary metric for sizing the actual flow demand of branches is the PSFR derived
from LU.
The Mentor's Analysis: > Water supply sizing relies on probability curves. Because users
, rarely operate all fixtures simultaneously, engineers calculate probability (LU) rather than raw
maximum output. Professional/Academic Intuition: Use Fixture Units (FU) to size waste;
use Loading Units (LU) to size water.
Q3: Under the ACT Water and Sewerage Regulation 2001, failing to construct a sanitary
drainage system in accordance with the plan approved by the certifier yields which MAXIMUM
statutory penalty? A) Immediate revocation of the plumbing license. B) A fine equivalent to the
total cost of the plumbing installation. C) 10 penalty units. D) Mandatory installation of a
performance solution at the contractor's expense.
● The Answer: C (10 penalty units.)
● Distractor Analysis:
○ A is incorrect: License revocation requires disciplinary proceedings, not an
automatic statutory penalty for a single plan deviation.
○ B is incorrect: Penalties are quantified in predefined penalty units, not civil cost
equivalents.
○ D is incorrect: Performance solutions are alternative compliance pathways, not
punitive measures.
The Mentor's Analysis: The ACT enforces a strict regulatory framework. Plan deviations
without subsequent amendment approvals violate Section 8 of the Act, triggering specific,
quantified penalty units. Professional/Academic Intuition: Technical mastery is irrelevant if
statutory compliance fails. Follow the certified plan or formally amend it.
Q4: A plumber is designing a DWV system and plans to use a Single Stack System. What is the
defining characteristic of this venting methodology compared to a fully vented modified system?
A) It requires an Air Admittance Valve on every fixture trap. B) It relies entirely on oversized
vertical pipes to limit internal air pressure fluctuations, eliminating the need for separate
individual fixture vents. C) It restricts the maximum grade of horizontal branches to 1.00%
regardless of pipe diameter. D) It mandates the use of running traps on the main building drain.
● The Answer: B (It relies entirely on oversized vertical pipes to limit internal air pressure
fluctuations, eliminating the need for separate individual fixture vents.)
● Distractor Analysis:
○ A is incorrect: AAVs are an alternative venting method for specific isolated fixtures,
not the foundational mechanism of a single stack system.
○ C is incorrect: Horizontal branch grades are dictated by nominal diameter, not the
stack venting method.
○ D is incorrect: Running traps on main drains are generally prohibited as they
obstruct air circulation.
The Mentor's Analysis: Single stack systems utilize fluid mechanics. By oversizing the vertical
drop, the wastewater slug never fully occludes the pipe, ensuring a continuous core of air
prevents siphonic trap failure. Professional/Academic Intuition: Air must move freely; if you
remove the individual vents, you must upsize the stack to provide the necessary
atmospheric volume.
Q5: An engineer is selecting a backflow prevention device for a commercial abattoir in
Canberra. According to AS/NZS 3500.1 Table 4.1, which classification and device are MOST
APPROPRIATE for this containment hazard? A) Low Hazard; Dual Check Valve (DUAL CV). B)
Medium Hazard; Double Check Valve Assembly (DCV). C) High Hazard; Reduced Pressure
Zone Device (RPZD). D) High Hazard; Non-testable Atmospheric Vacuum Breaker (AVB).
● The Answer: C (High Hazard; Reduced Pressure Zone Device (RPZD).)
● Distractor Analysis:
○ A is incorrect: Abattoirs involve biological toxins and pathogens, classifying them
