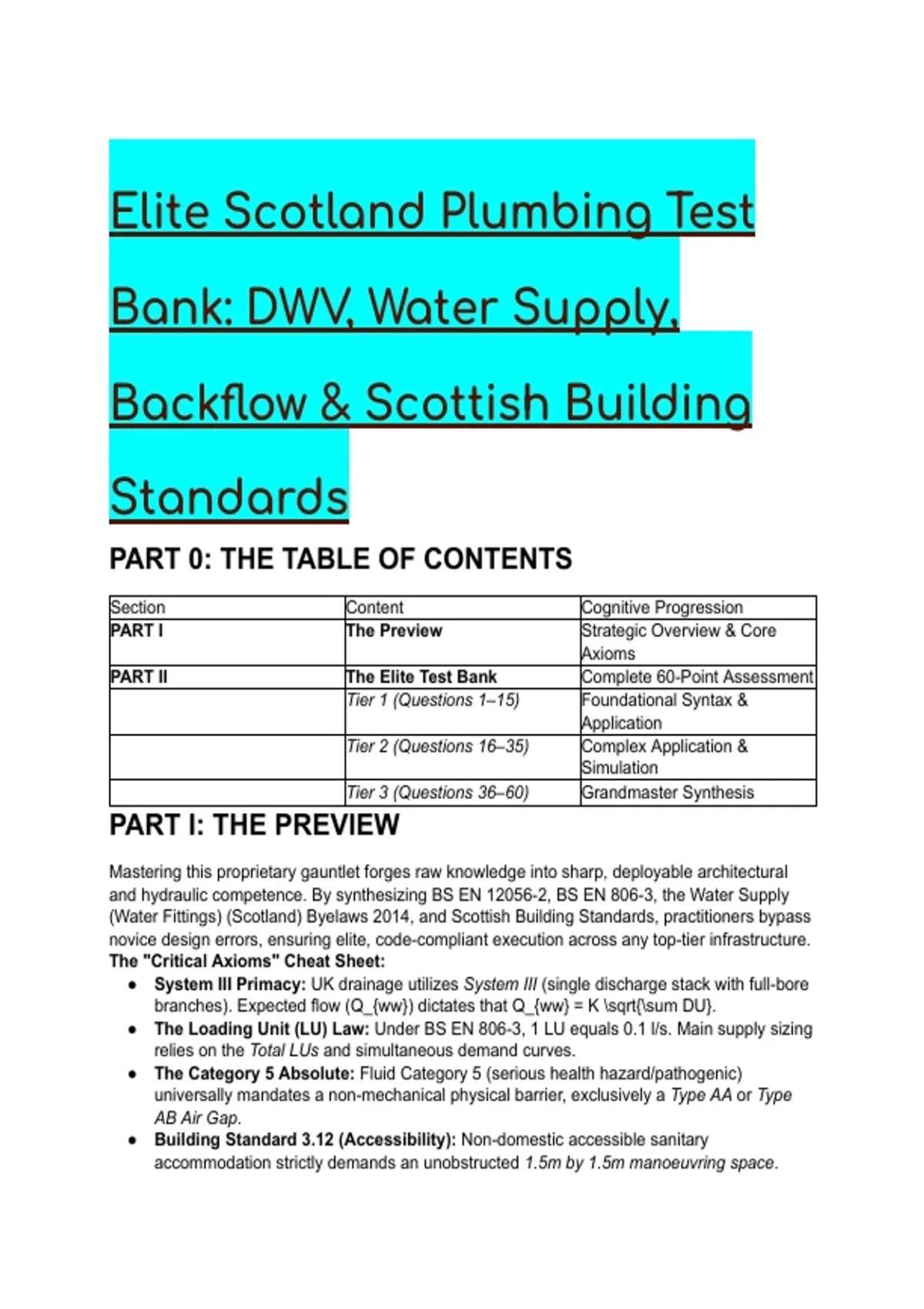

Elite Scotland Plumbing Test
Bank: DWV, Water Supply,
Backflow & Scottish Building
Standards
PART 0: THE TABLE OF CONTENTS
Section Content Cognitive Progression
PART I The Preview Strategic Overview & Core
Axioms
PART II The Elite Test Bank Complete 60-Point Assessment
Tier 1 (Questions 1–15) Foundational Syntax &
Application
Tier 2 (Questions 16–35) Complex Application &
Simulation
Tier 3 (Questions 36–60) Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this proprietary gauntlet forges raw knowledge into sharp, deployable architectural
and hydraulic competence. By synthesizing BS EN 12056-2, BS EN 806-3, the Water Supply
(Water Fittings) (Scotland) Byelaws 2014, and Scottish Building Standards, practitioners bypass
novice design errors, ensuring elite, code-compliant execution across any top-tier infrastructure.
The "Critical Axioms" Cheat Sheet:
● System III Primacy: UK drainage utilizes System III (single discharge stack with full-bore
branches). Expected flow (Q_{ww}) dictates that Q_{ww} = K \sqrt{\sum DU}.
● The Loading Unit (LU) Law: Under BS EN 806-3, 1 LU equals 0.1 l/s. Main supply sizing
relies on the Total LUs and simultaneous demand curves.
● The Category 5 Absolute: Fluid Category 5 (serious health hazard/pathogenic)
universally mandates a non-mechanical physical barrier, exclusively a Type AA or Type
AB Air Gap.
● Building Standard 3.12 (Accessibility): Non-domestic accessible sanitary
accommodation strictly demands an unobstructed 1.5m by 1.5m manoeuvring space.
,Fluid Category Risk Profile Minimum Required Backflow
Protection
Category 1 Wholesome drinking water None required
Category 2 Aesthetic impairment Single Check Valve
(temperature/taste)
Category 3 Slight health hazard (low Double Check Valve
toxicity)
Category 4 Significant health hazard (toxic Reduced Pressure Zone (RPZ)
chemicals) Valve
Category 5 Serious health hazard Type AA or AB Air Gap
(pathogenic/lethal)
Building Use Frequency Factor (K) for DWV Sizing
Intermittent (Dwellings, Offices) 0.5
Frequent (Hospitals, Hotels, Schools) 0.7
Congested (Public Toilets, Stadiums) 1.0
Special (Laboratories) 1.2
PART II: THE ELITE TEST BANK
Tier 1 (Questions 1–15) - Foundational Syntax & Application
Q1: Under the principles of BS EN 806-3 for potable water sizing, how is a single Loading Unit
(LU) mathematically defined regarding draw-off flow rate? A) 0.5 l/s to account for thermal
expansion B) 1.0 l/s based on peak dynamic pressure C) 0.1 l/s D) 0.05 l/s designed exclusively
for low-flow fixtures
● The Answer: C (0.1 l/s)
● Distractor Analysis:
○ A is incorrect: This overestimates base flow, leading to oversized pipework and
stagnation.
○ B is incorrect: 1.0 l/s is an arbitrary whole number utilized in outdated models.
○ D is incorrect: 0.05 l/s vastly underestimates baseline fixture demand.
The Mentor's Analysis: The entire BS EN 806-3 pipe sizing method pivots on this standard
unit. When calculating hydraulic load, the immediate priority is establishing an accurate
baseline. By utilizing 0.1 l/s per LU, you bypass the trap of grossly miscalculating flow velocities.
Professional/Academic Intuition: 1 LU is universally equal to 0.1 l/s; this is the
unbreakable foundation of modern pipe sizing.
Q2: A contractor plans to install a new pump drawing 15 litres per minute on a commercial
property. According to the Water Supply (Water Fittings) (Scotland) Byelaws 2014, what is the
IMMEDIATELY required action? A) Install a Reduced Pressure Zone (RPZ) valve B) Submit
advance notification to Scottish Water for consent C) Upgrade the main service pipe to 28mm
copper D) Ensure the pump is exclusively fed by a Type AB Air Gap
● The Answer: B (Submit advance notification to Scottish Water for consent)
● Distractor Analysis:
○ A is incorrect: RPZ valves manage backflow; they are not the primary administrative
requirement for a booster pump.
○ C is incorrect: Pipe sizing is determined by load, not a static rule for all pumps.
, ○ D is incorrect: Air gaps are for fluid category hazards, not standard booster pumps.
The Mentor's Analysis: Byelaw 5 strictly regulates modifications to public water infrastructure.
When installing pumps drawing more than 12 litres per minute, the immediate priority is legal
compliance. By utilizing advance notification, you bypass the trap of unauthorized network
alterations. Professional/Academic Intuition: Any pump drawing > 12 l/m legally triggers
mandatory advance notification to Scottish Water.
Q3: A facility handles fluids containing highly toxic, pathogenic organisms. Under the Scottish
Water Byelaws, which Fluid Category does this represent, and what is the required protection?
A) Category 3; Double Check Valve B) Category 4; Reduced Pressure Zone (RPZ) Valve C)
Category 5; Type AA or AB Air Gap D) Category 5; Single Check Valve
● The Answer: C (Category 5; Type AA or AB Air Gap)
● Distractor Analysis:
○ A is incorrect: Category 3 covers slight health hazards (e.g., low toxicity). * B is
incorrect: Category 4 covers significant hazards, but not severe pathogens. * D is
incorrect: Mechanical valves are strictly prohibited for Category 5 lethal hazards.
The Mentor's Analysis: Pathogens present a lethal cross-connection hazard. When facing
severe biological threats, the immediate priority is absolute grid isolation. By utilizing a physical
Type AA/AB Air Gap, you bypass the common trap of relying on mechanical valves.
Professional/Academic Intuition: Category 5 fluids (pathogenic/lethal) universally
demand a non-mechanical Air Gap; mechanical valves are forbidden.
Q4: When designing a sanitary drainage system under BS EN 12056-2 utilizing UK best
practices, which system configuration is MOST ACCURATE? A) System I with a 0.5 filling
degree B) System II with small bore branches C) System III with full bore branches and a 1.0
filling degree D) System IV with separate greywater stacks
● The Answer: C (System III with full bore branches and a 1.0 filling degree)
● Distractor Analysis:
○ A is incorrect: System I is the primary continental European standard, not the UK
standard.
○ B is incorrect: System II is Scandinavian practice.
○ D is incorrect: System IV is primarily French practice.
The Mentor's Analysis: UK drainage physics relies on specific branch capacities. When
designing soil stacks, the immediate priority is matching regional standards. By utilizing System
III, you bypass the trap of undersizing horizontal branches. Professional/Academic Intuition:
UK sanitary drainage is defined by System III: a single discharge stack with full-bore (1.0
filling degree) branch pipes.
Q5: Based on Scottish Building Standards Mandatory Standard 3.7 (Wastewater), what is the
minimum required water seal depth for a standard sanitary trap? A) 25 mm B) 40 mm C) 50 mm
D) 75 mm
● The Answer: C (50 mm)
● Distractor Analysis:
○ A is incorrect: 25mm is inadequate and easily lost to evaporation.
○ B is incorrect: 40mm does not meet the legal Scottish minimum.
○ D is incorrect: While 75mm is required for ground-floor or specific deep-seal
scenarios , 50mm is the baseline minimum standard.
The Mentor's Analysis: Trap seals form the primary barrier against toxic sewer gases. When
installing sanitary pipework, the immediate priority is maintaining this hydraulic lock. By utilizing
a 50 mm seal, you bypass the trap of hazardous atmospheric contamination.
Professional/Academic Intuition: The absolute minimum acceptable trap seal depth
