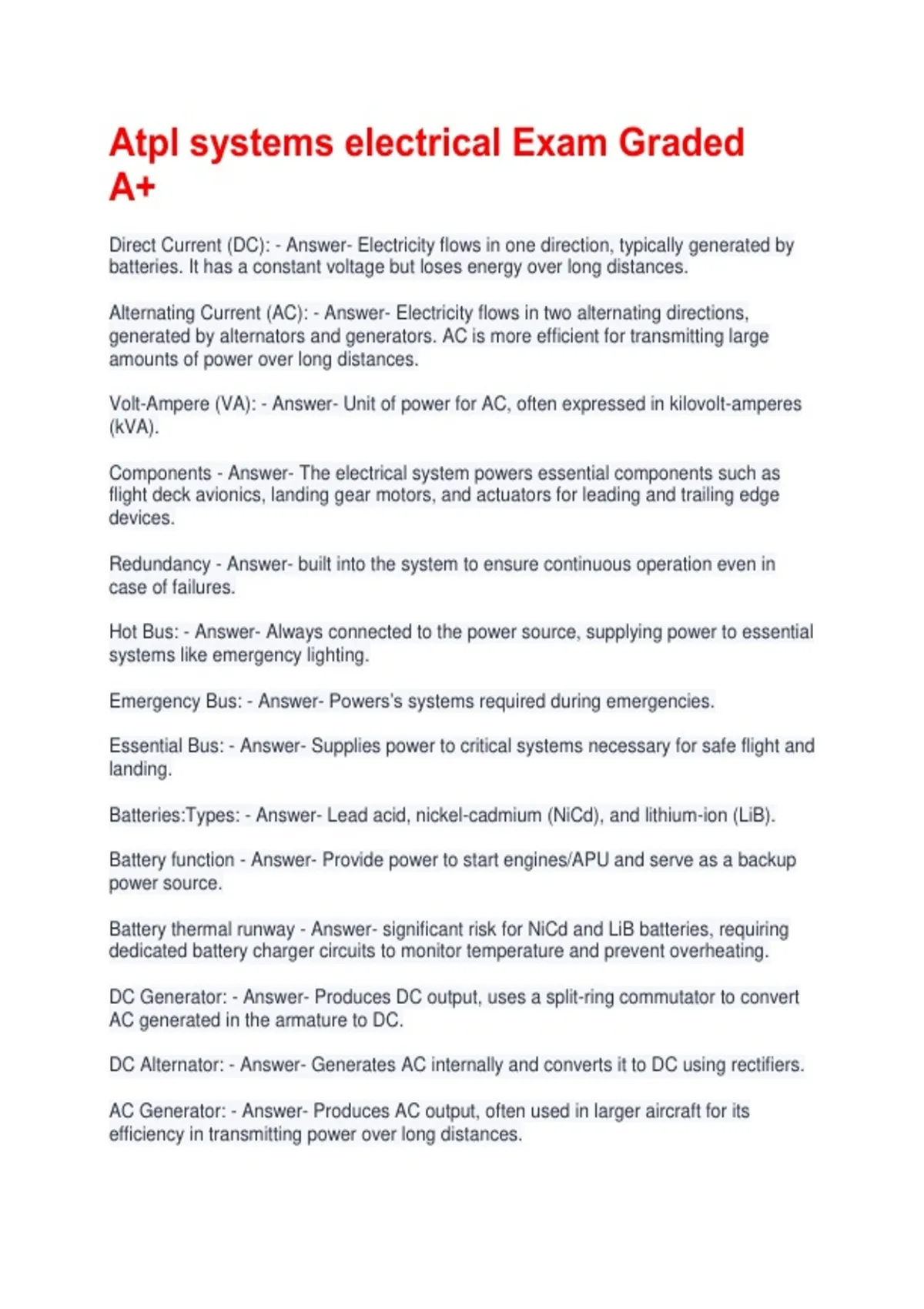

Atpl systems electrical Exam Graded
A+
Direct Current (DC): - Answer- Electricity flows in one direction, typically generated by
batteries. It has a constant voltage but loses energy over long distances.
Alternating Current (AC): - Answer- Electricity flows in two alternating directions,
generated by alternators and generators. AC is more efficient for transmitting large
amounts of power over long distances.
Volt-Ampere (VA): - Answer- Unit of power for AC, often expressed in kilovolt-amperes
(kVA).
Components - Answer- The electrical system powers essential components such as
flight deck avionics, landing gear motors, and actuators for leading and trailing edge
devices.
Redundancy - Answer- built into the system to ensure continuous operation even in
case of failures.
Hot Bus: - Answer- Always connected to the power source, supplying power to essential
systems like emergency lighting.
Emergency Bus: - Answer- Powers’s systems required during emergencies.
Essential Bus: - Answer- Supplies power to critical systems necessary for safe flight and
landing.
Batteries:Types: - Answer- Lead acid, nickel-cadmium (NiCd), and lithium-ion (LiB).
Battery function - Answer- Provide power to start engines/APU and serve as a backup
power source.
Battery thermal runway - Answer- significant risk for NiCd and LiB batteries, requiring
dedicated battery charger circuits to monitor temperature and prevent overheating.
DC Generator: - Answer- Produces DC output, uses a split-ring commutator to convert
AC generated in the armature to DC.
DC Alternator: - Answer- Generates AC internally and converts it to DC using rectifiers.
AC Generator: - Answer- Produces AC output, often used in larger aircraft for its
efficiency in transmitting power over long distances.
