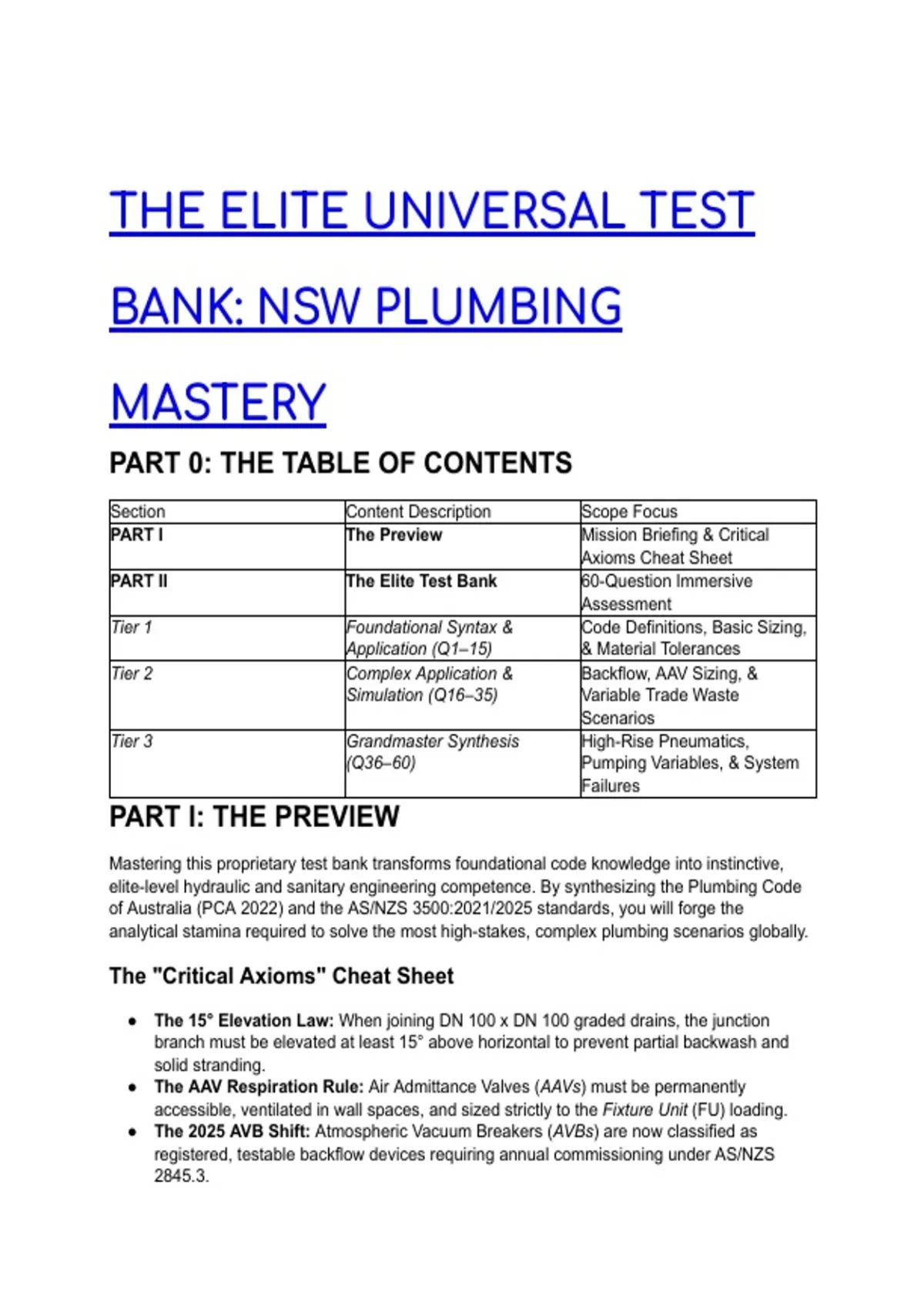

THE ELITE UNIVERSAL TEST
BANK: NSW PLUMBING
MASTERY
PART 0: THE TABLE OF CONTENTS
Section Content Description Scope Focus
PART I The Preview Mission Briefing & Critical
Axioms Cheat Sheet
PART II The Elite Test Bank 60-Question Immersive
Assessment
Tier 1 Foundational Syntax & Code Definitions, Basic Sizing,
Application (Q1–15) & Material Tolerances
Tier 2 Complex Application & Backflow, AAV Sizing, &
Simulation (Q16–35) Variable Trade Waste
Scenarios
Tier 3 Grandmaster Synthesis High-Rise Pneumatics,
(Q36–60) Pumping Variables, & System
Failures
PART I: THE PREVIEW
Mastering this proprietary test bank transforms foundational code knowledge into instinctive,
elite-level hydraulic and sanitary engineering competence. By synthesizing the Plumbing Code
of Australia (PCA 2022) and the AS/NZS 3500:2021/2025 standards, you will forge the
analytical stamina required to solve the most high-stakes, complex plumbing scenarios globally.
The "Critical Axioms" Cheat Sheet
● The 15° Elevation Law: When joining DN 100 x DN 100 graded drains, the junction
branch must be elevated at least 15° above horizontal to prevent partial backwash and
solid stranding.
● The AAV Respiration Rule: Air Admittance Valves (AAVs) must be permanently
accessible, ventilated in wall spaces, and sized strictly to the Fixture Unit (FU) loading.
● The 2025 AVB Shift: Atmospheric Vacuum Breakers (AVBs) are now classified as
registered, testable backflow devices requiring annual commissioning under AS/NZS
2845.3.
, ● The Sydney Water Load Formula: For pumped flows into a receiving gravity sewer,
100% of the pump discharge rate contributes to the Design Flow (DF), while exactly 50%
contributes to the Peak Dry Weather Flow (PDWF).
● The Waterless Urinal Mandate: To mitigate struvite crystallization, waterless urinals
must connect directly to a stack or drain, with a maximum graded section of 300mm
before a vertical dropper inclined no more than 45°.
Hose Class (AS/NZS Permitted Application Example Use Case
3500.1:2025)
Class 1 Dynamic Pressure Only (Open Pull-out kitchen sprayers
End)
Class 2 & 3 Static Pressure (Fixed Points) Undersink mixer connections
Class 4 Static Pressure (Integral Stop End-of-line washdown hoses
Valve)
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application (Q1–15)
Q1: A plumbing contractor is installing a new underground sanitary drainage system using DN
100 PVC. They must connect a DN 100 branch drain to the DN 100 main drain on grade. Based
on the principles of AS/NZS 3500.2 standards, which action is the MOST ACCURATE? A)
Install a 45° junction flush with the horizontal plane to maximize flow velocity. B) Install a DN 100
x DN 100 junction with the branch elevated at an incline of no less than 15° above the
horizontal. C) Reduce the branch drain to DN 80 immediately before the junction to increase
pressure. D) Install a 90° sweep junction on the horizontal plane to prevent backwash.
● The Answer: B (Install a DN 100 x DN 100 junction with the branch elevated at an incline
of no less than 15° above the horizontal.)
● Distractor Analysis:
○ A is incorrect: Flat horizontal connections cause a partial backwash effect into the
branch, leading to the stranding of solids and subsequent blockages.
○ C is incorrect: Sanitary drains must never diminish in size in the direction of flow.
○ D is incorrect: 90° junctions are strictly prohibited on grade for sanitary drainage
due to extreme turbulence and flow interruption.
The Mentor's Analysis: Backwash at horizontal junctions is a primary catalyst for subterranean
blockages. Elevating the branch bypasses the turbulent backwash zone entirely.
Professional/Academic Intuition: Always elevate DN 100 x 100 on-grade junctions by 15°
to maintain laminar self-cleansing dynamics.
Q2: During a commercial fit-out, an apprentice routes an Air Admittance Valve (AAV) for a group
vent inside a sealed, fire-rated, and waterproofed wall cavity. Based on the principles of sanitary
venting and AS/NZS 3500.2, which conclusion is the MOST ACCURATE? A) The installation is
compliant because AAVs are designed to operate in negative-pressure wall cavities. B) The
installation is compliant provided the AAV is located 150mm above the flood level rim of the
highest fixture. C) The installation is a critical violation because the AAV is not permanently
accessible and lacks required ventilation openings. D) The installation is a critical violation
because AAVs are strictly prohibited in commercial fit-outs.
● The Answer: C (The installation is a critical violation because the AAV is not permanently
accessible and lacks required ventilation openings.)
● Distractor Analysis:
, ○ A is incorrect: AAVs require ambient air to break trap siphons; sealed cavities
create pneumatic locks.
○ B is incorrect: While the height rule is technically true, it ignores the foundational
accessibility and ventilation mandates.
○ D is incorrect: AAVs are permitted in commercial settings provided they meet strict
sizing and location rules.
The Mentor's Analysis: An AAV is a mechanical breather valve. If it cannot "breathe" ambient
air or be reached for maintenance without destroying a building element, it fails its foundational
purpose. Professional/Academic Intuition: If you have to break plaster or tile to touch a
mechanical valve, it is an illegal installation.
Q3: A residential property requires a backflow containment device at the boundary meter. The
property utilizes an above-ground rainwater tank connected to internal plumbing. Based on the
principles of PCA 2022 Specification 41 and Sydney Water regulations, which action is the
MOST ACCURATE? A) Install a Dual Check Valve (DuC) because the site is rated as a Low
Hazard. B) Install a Double Check Valve Assembly (DCVA) because the site is rated as a
Medium Hazard. C) Install a Reduced Pressure Zone Device (RPZD) because the site is rated
as a High Hazard. D) Install an Atmospheric Vacuum Breaker (AVB) because the site is rated as
a Low Hazard.
● The Answer: A (Install a Dual Check Valve (DuC) because the site is rated as a Low
Hazard.)
● Distractor Analysis:
○ B is incorrect: Above-ground domestic rainwater tanks without chemical injection
are classified as Low Hazard, not Medium.
○ C is incorrect: RPZDs are reserved for High Hazard scenarios (e.g., chemical
injection, alternative non-potable supplies like greywater).
○ D is incorrect: AVBs provide individual/zone protection against backsiphonage only,
and are never used for boundary containment.
The Mentor's Analysis: Understanding hazard ratings prevents extreme over-engineering and
compliance failures. Standard above-ground rainwater poses a nuisance risk, not a toxic threat.
Professional/Academic Intuition: Residential above-ground rainwater is a Low Hazard at
the boundary; contain it with a simple DuC.
Q4: A plumber is sizing the water supply for a single dwelling using AS/NZS 3500.1. Based on
hydraulic flow principles, which metric is the FIRST data point they must identify to utilize the
pressure drop tables in Appendix C? A) The Probable Simultaneous Flow Rate (PSFR). B) The
Loading Units (LU) of the kitchen sink. C) The Index Length (distance from the water meter to
the furthest outlet). D) The Available Pressure from the water authority.
● The Answer: C (The Index Length (distance from the water meter to the furthest outlet).)
● Distractor Analysis:
○ A is incorrect: PSFR is determined after mapping the fixtures, but Index Length
dictates the specific friction loss column used in sizing tables.
○ B is incorrect: Individual fixture units are a component of the total calculation, not
the primary framing metric.
○ D is incorrect: Available pressure is critical, but the calculation grid relies heavily on
identifying the longest physical run (Index Length) first to calculate required head.
The Mentor's Analysis: Water supply sizing is a physics problem regarding friction over
distance. The longest run of pipe dictates the maximum friction loss the entire system will
experience. Professional/Academic Intuition: The Index Length is the absolute baseline of
all hydraulic pressure-drop calculations.
