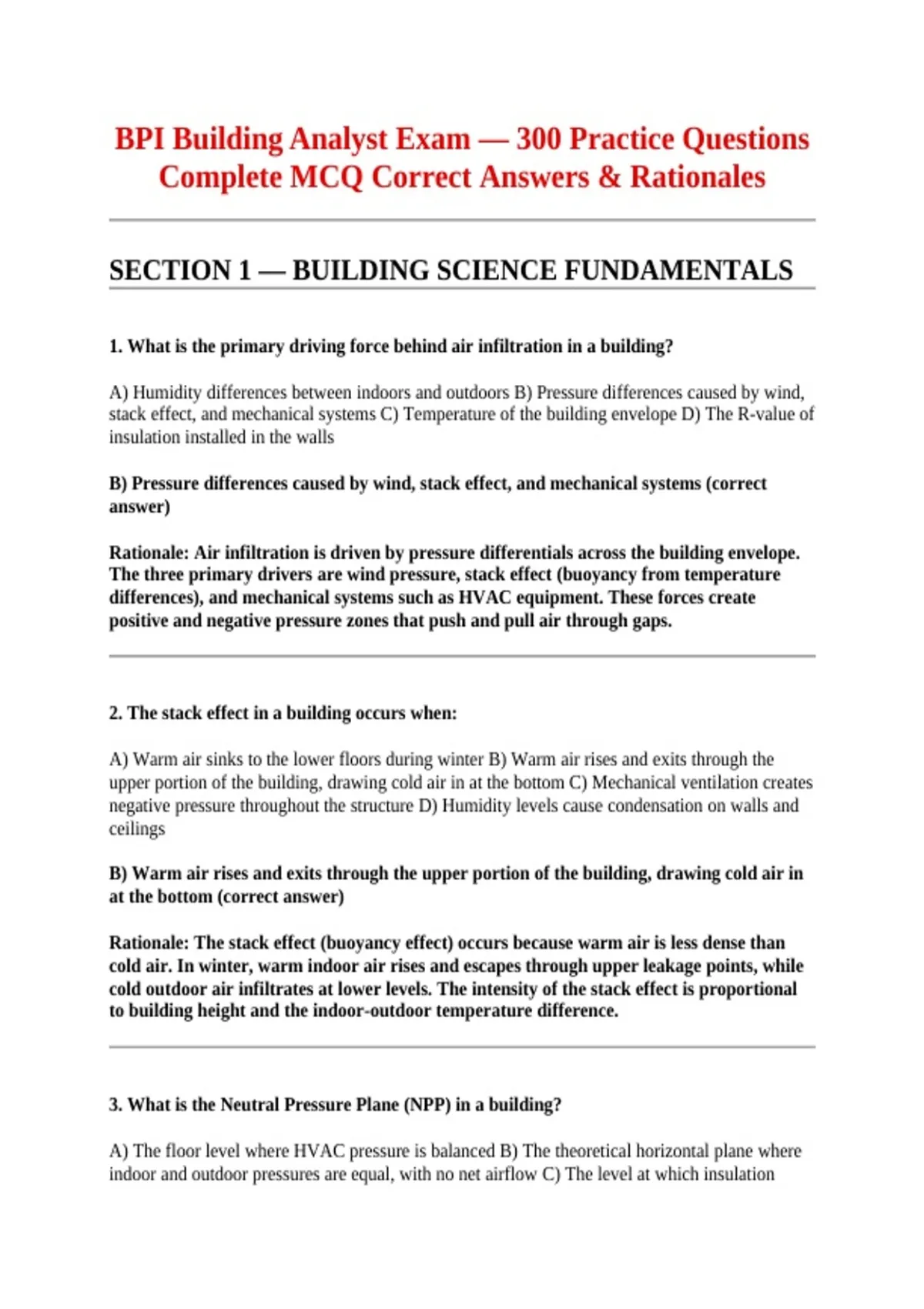

BPI Building Analyst Exam — 300 Practice Questions
Complete MCQ Correct Answers & Rationales
QUICK REFERENCE SUMMARY
Section Topics Covered Questions
1 Building Science Fundamentals 1–15
2 Blower Door Testing 16–28
3 Combustion Safety 29–40
4 Duct System Testing 41–50
5 Insulation & Thermal Envelope 51–60
6 Moisture & Indoor Air Quality 61–70
7 Heating & Cooling Systems 71–80
8 Lighting & Appliances 81–85
9 Energy Auditing Procedures 86–100
10 Foundations & Crawlspaces 101–105
11 Weatherization & Retrofit 106–115
12 Advanced Diagnostics 116–125
13 Codes, Standards & Programs 126–135
14 Mechanical Ventilation 136–140
15 Comprehensive Review 141–300
SECTION 1 — BUILDING SCIENCE FUNDAMENTALS
1. What is the primary driving force behind air infiltration in a building?
A) Humidity differences between indoors and outdoors B) Pressure differences caused by wind,
stack effect, and mechanical systems C) Temperature of the building envelope D) The R-value of
insulation installed in the walls
B) Pressure differences caused by wind, stack effect, and mechanical systems (correct
answer)
Rationale: Air infiltration is driven by pressure differentials across the building envelope.
The three primary drivers are wind pressure, stack effect (buoyancy from temperature
,differences), and mechanical systems such as HVAC equipment. These forces create
positive and negative pressure zones that push and pull air through gaps.
2. The stack effect in a building occurs when:
A) Warm air sinks to the lower floors during winter B) Warm air rises and exits through the
upper portion of the building, drawing cold air in at the bottom C) Mechanical ventilation creates
negative pressure throughout the structure D) Humidity levels cause condensation on walls and
ceilings
B) Warm air rises and exits through the upper portion of the building, drawing cold air in
at the bottom (correct answer)
Rationale: The stack effect (buoyancy effect) occurs because warm air is less dense than
cold air. In winter, warm indoor air rises and escapes through upper leakage points, while
cold outdoor air infiltrates at lower levels. The intensity of the stack effect is proportional
to building height and the indoor-outdoor temperature difference.
3. What is the Neutral Pressure Plane (NPP) in a building?
A) The floor level where HVAC pressure is balanced B) The theoretical horizontal plane where
indoor and outdoor pressures are equal, with no net airflow C) The level at which insulation
transitions from wall to ceiling D) The point where supply and return air are equal in the duct
system
B) The theoretical horizontal plane where indoor and outdoor pressures are equal, with no
net airflow (correct answer)
Rationale: The Neutral Pressure Plane is the height in a building where the indoor and
outdoor pressures are exactly equal. Above the NPP, the building is positive relative to
outside, pushing air out. Below the NPP, the building is negative, drawing air in. The NPP
location is influenced by the distribution of leakage area in the building envelope.
4. Which heat transfer mechanism involves the movement of heat through a solid material?
A) Convection B) Radiation C) Conduction D) Infiltration
C) Conduction (correct answer)
,Rationale: Conduction is the transfer of heat through direct molecular contact within or
between solid materials. It moves heat from warmer to cooler areas. Insulation materials
resist conductive heat flow. Convection involves fluid movement (air or liquid), and
radiation involves electromagnetic energy transfer without a medium.
5. R-value is a measurement of:
A) Air permeability of a material B) Thermal resistance — the material's ability to resist heat
flow C) Reflectivity of a surface D) Relative humidity capacity of a material
B) Thermal resistance — the material's ability to resist heat flow (correct answer)
Rationale: R-value (thermal resistance) measures a material's resistance to conductive heat
flow. Higher R-values indicate better insulating performance. R-value is the reciprocal of
U-factor (U = 1/R). In a multi-layer assembly, individual R-values are added together.
Total assembly R-value accounts for all components including air films.
6. U-factor (U-value) is defined as:
A) The rate of heat loss through a material per unit area per degree of temperature difference B)
The reflectivity of a material's surface C) The air leakage rate per square foot of surface area D)
The moisture permeability of an assembly
A) The rate of heat loss through a material per unit area per degree of temperature
difference (correct answer)
Rationale: U-factor is the overall coefficient of heat transmission — the rate of heat flow
(BTU/hr) through one square foot of an assembly per 1°F temperature difference. U-factor
= 1/R-total. A lower U-factor means better thermal performance. U-factor is used for
windows and complete assemblies; R-value is used for individual materials.
7. A wall assembly has the following layers: exterior air film (R-0.17), OSB sheathing (R-
0.63), fiberglass batt insulation (R-13), drywall (R-0.45), interior air film (R-0.68). What is
the total assembly R-value?
A) R-13 B) R-14.93 C) R-15.86 D) R-12.50
B) R-14.93 (correct answer)
, Rationale: Total R-value = sum of all component R-values: 0.17 + 0.63 + 13 + 0.45 + 0.68 =
14.93. This calculation demonstrates that insulation is the dominant component but air
films and other materials contribute meaningfully. The actual whole-wall R-value is
typically lower due to thermal bridging through studs.
8. What is thermal bridging?
A) The transfer of heat through convective air currents in a wall cavity B) A path of relatively
high thermal conductivity that bypasses the insulation layer C) The movement of moisture
through a wall assembly D) The reflection of radiant heat from a surface
B) A path of relatively high thermal conductivity that bypasses the insulation layer (correct
answer)
Rationale: Thermal bridging occurs when a conductive material (typically wood studs or
metal framing) bypasses the insulation layer, creating a low-resistance heat transfer path.
In wood-framed walls, studs typically conduct 5–7× more heat than the adjacent insulation,
reducing the effective whole-wall R-value significantly below the nominal cavity insulation
R-value.
9. Solar Heat Gain Coefficient (SHGC) for windows describes:
A) The window's resistance to conductive heat loss B) The fraction of incident solar radiation
that enters the building through the window C) The visible light transmittance of the glazing D)
The air leakage rate through the window frame
B) The fraction of incident solar radiation that enters the building through the window
(correct answer)
Rationale: SHGC ranges from 0 to 1. A lower SHGC means less solar heat gain —
desirable in cooling-dominated climates. A higher SHGC allows more solar heat gain —
beneficial for passive solar heating in heating-dominated climates. SHGC is separate from
U-factor (which measures conductive/convective heat loss) and visible transmittance.
10. What is the dew point temperature?
A) The temperature at which air becomes saturated and condensation begins to form B) The
temperature differential across a wall assembly C) The outdoor temperature below which heating
is required D) The surface temperature of a material under steady-state conditions
Complete MCQ Correct Answers & Rationales
QUICK REFERENCE SUMMARY
Section Topics Covered Questions
1 Building Science Fundamentals 1–15
2 Blower Door Testing 16–28
3 Combustion Safety 29–40
4 Duct System Testing 41–50
5 Insulation & Thermal Envelope 51–60
6 Moisture & Indoor Air Quality 61–70
7 Heating & Cooling Systems 71–80
8 Lighting & Appliances 81–85
9 Energy Auditing Procedures 86–100
10 Foundations & Crawlspaces 101–105
11 Weatherization & Retrofit 106–115
12 Advanced Diagnostics 116–125
13 Codes, Standards & Programs 126–135
14 Mechanical Ventilation 136–140
15 Comprehensive Review 141–300
SECTION 1 — BUILDING SCIENCE FUNDAMENTALS
1. What is the primary driving force behind air infiltration in a building?
A) Humidity differences between indoors and outdoors B) Pressure differences caused by wind,
stack effect, and mechanical systems C) Temperature of the building envelope D) The R-value of
insulation installed in the walls
B) Pressure differences caused by wind, stack effect, and mechanical systems (correct
answer)
Rationale: Air infiltration is driven by pressure differentials across the building envelope.
The three primary drivers are wind pressure, stack effect (buoyancy from temperature
,differences), and mechanical systems such as HVAC equipment. These forces create
positive and negative pressure zones that push and pull air through gaps.
2. The stack effect in a building occurs when:
A) Warm air sinks to the lower floors during winter B) Warm air rises and exits through the
upper portion of the building, drawing cold air in at the bottom C) Mechanical ventilation creates
negative pressure throughout the structure D) Humidity levels cause condensation on walls and
ceilings
B) Warm air rises and exits through the upper portion of the building, drawing cold air in
at the bottom (correct answer)
Rationale: The stack effect (buoyancy effect) occurs because warm air is less dense than
cold air. In winter, warm indoor air rises and escapes through upper leakage points, while
cold outdoor air infiltrates at lower levels. The intensity of the stack effect is proportional
to building height and the indoor-outdoor temperature difference.
3. What is the Neutral Pressure Plane (NPP) in a building?
A) The floor level where HVAC pressure is balanced B) The theoretical horizontal plane where
indoor and outdoor pressures are equal, with no net airflow C) The level at which insulation
transitions from wall to ceiling D) The point where supply and return air are equal in the duct
system
B) The theoretical horizontal plane where indoor and outdoor pressures are equal, with no
net airflow (correct answer)
Rationale: The Neutral Pressure Plane is the height in a building where the indoor and
outdoor pressures are exactly equal. Above the NPP, the building is positive relative to
outside, pushing air out. Below the NPP, the building is negative, drawing air in. The NPP
location is influenced by the distribution of leakage area in the building envelope.
4. Which heat transfer mechanism involves the movement of heat through a solid material?
A) Convection B) Radiation C) Conduction D) Infiltration
C) Conduction (correct answer)
,Rationale: Conduction is the transfer of heat through direct molecular contact within or
between solid materials. It moves heat from warmer to cooler areas. Insulation materials
resist conductive heat flow. Convection involves fluid movement (air or liquid), and
radiation involves electromagnetic energy transfer without a medium.
5. R-value is a measurement of:
A) Air permeability of a material B) Thermal resistance — the material's ability to resist heat
flow C) Reflectivity of a surface D) Relative humidity capacity of a material
B) Thermal resistance — the material's ability to resist heat flow (correct answer)
Rationale: R-value (thermal resistance) measures a material's resistance to conductive heat
flow. Higher R-values indicate better insulating performance. R-value is the reciprocal of
U-factor (U = 1/R). In a multi-layer assembly, individual R-values are added together.
Total assembly R-value accounts for all components including air films.
6. U-factor (U-value) is defined as:
A) The rate of heat loss through a material per unit area per degree of temperature difference B)
The reflectivity of a material's surface C) The air leakage rate per square foot of surface area D)
The moisture permeability of an assembly
A) The rate of heat loss through a material per unit area per degree of temperature
difference (correct answer)
Rationale: U-factor is the overall coefficient of heat transmission — the rate of heat flow
(BTU/hr) through one square foot of an assembly per 1°F temperature difference. U-factor
= 1/R-total. A lower U-factor means better thermal performance. U-factor is used for
windows and complete assemblies; R-value is used for individual materials.
7. A wall assembly has the following layers: exterior air film (R-0.17), OSB sheathing (R-
0.63), fiberglass batt insulation (R-13), drywall (R-0.45), interior air film (R-0.68). What is
the total assembly R-value?
A) R-13 B) R-14.93 C) R-15.86 D) R-12.50
B) R-14.93 (correct answer)
, Rationale: Total R-value = sum of all component R-values: 0.17 + 0.63 + 13 + 0.45 + 0.68 =
14.93. This calculation demonstrates that insulation is the dominant component but air
films and other materials contribute meaningfully. The actual whole-wall R-value is
typically lower due to thermal bridging through studs.
8. What is thermal bridging?
A) The transfer of heat through convective air currents in a wall cavity B) A path of relatively
high thermal conductivity that bypasses the insulation layer C) The movement of moisture
through a wall assembly D) The reflection of radiant heat from a surface
B) A path of relatively high thermal conductivity that bypasses the insulation layer (correct
answer)
Rationale: Thermal bridging occurs when a conductive material (typically wood studs or
metal framing) bypasses the insulation layer, creating a low-resistance heat transfer path.
In wood-framed walls, studs typically conduct 5–7× more heat than the adjacent insulation,
reducing the effective whole-wall R-value significantly below the nominal cavity insulation
R-value.
9. Solar Heat Gain Coefficient (SHGC) for windows describes:
A) The window's resistance to conductive heat loss B) The fraction of incident solar radiation
that enters the building through the window C) The visible light transmittance of the glazing D)
The air leakage rate through the window frame
B) The fraction of incident solar radiation that enters the building through the window
(correct answer)
Rationale: SHGC ranges from 0 to 1. A lower SHGC means less solar heat gain —
desirable in cooling-dominated climates. A higher SHGC allows more solar heat gain —
beneficial for passive solar heating in heating-dominated climates. SHGC is separate from
U-factor (which measures conductive/convective heat loss) and visible transmittance.
10. What is the dew point temperature?
A) The temperature at which air becomes saturated and condensation begins to form B) The
temperature differential across a wall assembly C) The outdoor temperature below which heating
is required D) The surface temperature of a material under steady-state conditions
