Vehicle Communication Systems Exam 2026/2027 | ASE/SAE-Aligned Automotive Electronics | Verified Questions & Answers | 100% Correct

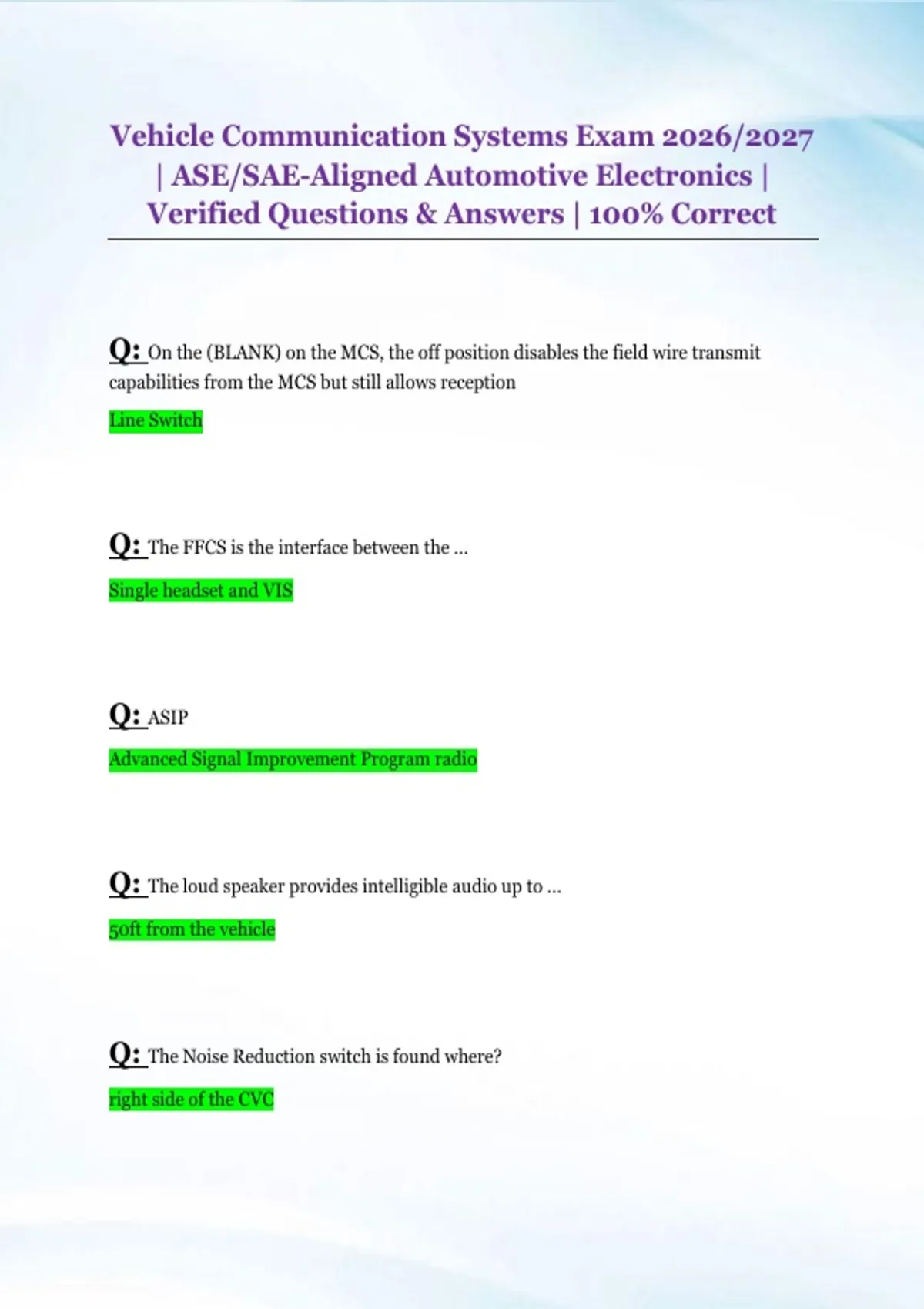

Vehicle Communication Systems Exam 2026/2027 | ASE/SAE-Aligned Automotive Electronics | Verified Questions & Answers | 100% Correct Q: On the (BLANK) on the MCS, the off position disables the field wire transmit capabilities from the MCS but still allows reception Line Switch Q: The FFCS is the interface between the ... Single headset and VIS Q: ASIP Advanced Signal Improvement Program radio Q: The loud speaker provides intelligible audio up to ... 50ft from the vehicle Q: The Noise Reduction switch is found where? right side of the CVC Q: the intercom vehicle PTT switch on the FFCS has the following selections O/R Vox Live PTT Q: volume levels 85db to 110dbs Q: What setting on the FFCS allows for communication over selected radio? work Q: The (BLANK) setting on the FFCS allow for monitoring of selected radio. Monitor Q: Position on CVC helmet which allows the operator to listen only on radios and intercom: center Q: The system switch (on the MCS) has (BLANK) operating modes 5 Q: on the intercom switch, what position allows the crewmember to communicate over the intercom hands-free? Live Q: What setting on the FFCS should not be used for an extended period of time due to loss of hearing damage? red zone Q: what connects the headset to the FFCS? ballout cable assembly Q: If an operator tries to select a radio that has not been programmed for that particular intercommunication control set, a (BLANK) is heard through the headset warning tone Q: The on position of the (BLANK) on the MCS reduces volume of the radio signals by 20db and vehicle alarms by 6 dbs. Accent line Q: Each system contains one programmable MCS, the (BLANK) of the VIS that connects to the vehicle prime power through the radio mount. central node Q: In the NBCRV, the VIS is comprised of (BLANK), up to (BLANK) full function crew stations, CIU and (BLANK) 1 MCS 6 Full function crew stations CIU Loudspeaker Q: The LS receive only (BLANK) and enables crewmembers, without headsets, to (BLANK) intercom and/or radio traffic. Analog Monitor Q: What vehicle architectures use an automatic process to transfer ECU configuration? Select all that apply. PowerNet TIPM Q: What vehicle architectures use a manual process in the scan tool to program ECU PROXI configuration? Select all that apply. Q: What is the resistance of the terminating resistor on networks equipped with one star connector? 60 ohms (Normal CAN Bus terminating resistance) Q: With the bus active and no faults present, what voltages should be measured on CAN-C (-)? Not Approximately 4.8V 1.3-2.3V Q: Which of the following vehicles are equipped with the Atlantis architecture? Select all that apply. Jeep renegade Jeep compass Alfa Giulia Alfa Stelvio Q: What Atlantis-High network uses splice block connectors? The WL Grand Cherokee Only on the CAN-BH Bus Q: Atlantis-High found on? 2021 Grand Cherokee(or WL) (Automotive Ethernet standard 100BASE-TX){1500 bytes up to 100 mbps}still use a twisted pair like CAN Can't be spliced or repaired like CAN Wires Ideal for screen mirroring and streaming connected services 2022 Wagoneer(or WS) Q: With the bus active and no faults present, what voltages should be measured on CAN-B (+)? 0.39V-0.46V Q: Which diagnostic software and scan tool should be used to diagnose legacy vehicle architectures? Hybrid of CAN with early versions of serial-communication networks Peripheral Component Interconnect Serial Communication Interface SAE's J1850, or K-Line as primary network DRB-III or Star Scan Enhanced DRB-III Emulatora Q: With the bus active and no faults present, what voltages should be measured on LIN? 0.2V - 0.5V Q: CAN-C is being measured. What should Meter B display based on the fault shown? Q: What modules is the vehicle configuration data typically saved in? Select all that apply. BCM TIPM Q: Which diagnostic strategy can be used while performing the Loss of Comm Test to help isolate intermittent concerns? Not Pull the fuse to each module Q: The Security Gateway (SGW) was introduced in what model year vehicles? 2018 Q: With the bus active and no faults present, what voltages should be measured on CAN-C (+)? 2.6V-3.5V Q: True or False? A short to ground on CAN-B (+) will ALWAYS prevent communication from occuring on the CAN-B bus. Not True Which resource should be used first for troubleshooting DRB III Emulator concerns? Not STAR Support Center Not Service Library WiTech Knowledge Base Which of the following communication networks is a single-wire network? Not Automotive Ethernet Legacy Networks (ALDL Networks) CAN-C is being measured. What should Meter A display based on the fault shown? 0.0V What type of fault could be indicated when all modules on a SINGLE bus appear as unresponsive on the wiTECH topology? Select all that apply. Faulty Gateway Module What are the key differences between CAN-FD and CAN-C? Select all that apply. Similar bias voltage Same termination resistance CAN-FD modules can send larger messages at a faster transmission speed CAN-FD Modules can send up to 64 bytes between 500 kbps or 2 mbps (FD- Flexible Data) With the bus active and no faults present, what voltages should be measured on CAN-B (-)? 4.65V-4.98V CUSW found on? 2013 Dodge Dart 2014 Jeep Cherokee 2015 Chrysler 200 Now only on the KL Cherokee TIPM Found on? 2020 RT Grand Caravan and Town and Country 2018 JK Jeep Wrangler 2017 MK Jeep Compas TIPM is combined BCM and PDC CAN-C and IHS(older models use CAN-B instead of CAN-IHS similar to FIAT7209 LIN (Local Interconnect Network) Bus Lower priority modules Smart Sensors Actuators Single Wire that provides less bandwidth than CAN 8 bytes at up to 19.2 kbps(25 times weaker than CAN-C DMM averages voltage readings to 7-10 VDC while communicating Diagnosis A single module unresponsive can mean no power, poor ground, or open on the CAN Bus stub All modules on one bus unresponsive caused by a CAN Bus short to ground, power, or together;disabling the whole bus. All modules on every bus appearing red could mean a problem with the CAN Circuits at the DLC. This could mean an SGW Issue like a blown fuse or lost ground. Use a DLC BOB to check for DLC Voltage and perform all necessary tests before replacing an SGW A variety of modules unresponsive across the bus could mean a fault with a common power or ground circuit A group of unresponsive modules that share a communication bus might mean an open circuit What is the total termination resistance used on a CAN-B bus? Not 120 Ohms what is the resistance of the terminating resistor on networks equipped with one start connector? 60 ohms with the bus active and no faults present, what voltages should be measured on CAN C(+)? approximately 3.2v what Atlantis-high network uses splice block connectors? CAN-BH with the bus active and no faults present, what voltages should be measured on CAN-B( )? approximately 0.4v which resource should be used first for troubleshooting DRB III Emulator concerns? wiTECH knowledge base with the bus active and no faults present, what voltages should be measured on LIN? 7.0v-10.0v what electrical architecture requires the use of the mopar diagnostic pod (MPD) for diagnostics? Atlantis-high which of the following scan tool functions ate prevented if a security gateway (SGW) becomes locked? select all that apply. start an actuator run a system test flash program a module with the bus active and no faults present, what voltages should be measured on CAN-C( )? approximately 1.8v what Atlantis vehicles uses splice block connectors on their CAN buses? select all that apply. ga alfa glulia mp jeep compass what are the key differences between CAN-FD and CAN-C? select all that apply. flexible bit rates larger bias voltage true or false? a short tot ground on CAN-B(+) will ALWAYS prevent communication from occurring on the CAN-B bus. false true or false? wiTECH 2.0 is compatible with legacy architectures and should be used for diagnosing their networks. false what is the normal operation speed of most Automotive Ethernet networks? 100 Mbps with the bus active and no faults present, what Voltages should be measured on CAN B(+)? approximately 4.8v the security gateway (SGW) was introduced in what model year vehicles? 2018 which of the following communication networks is a single-wire network? LIN which diagnostic software and scan tool should be used to diagnose legacy vehicle architectures? wiTECH 1.0 with the enhanced DRB emulator software what wiTECH function is best suited for testing intermittent communication faults? loss of comm test which diagnostic strategy can be used while performing the loss of comm test to help isolate intermittent concerns? perform a wiggle test on the harness and connectors what type of fault could be indicated when all modules on a SINGLE bus appear as unresponsive on the wiTECH topology? select all that apply. select all which of the following faults could cause ALL of the modules to appear as unresponsive on the wiTECH topology? failed SGW shorted diagnostic CAN circuits
