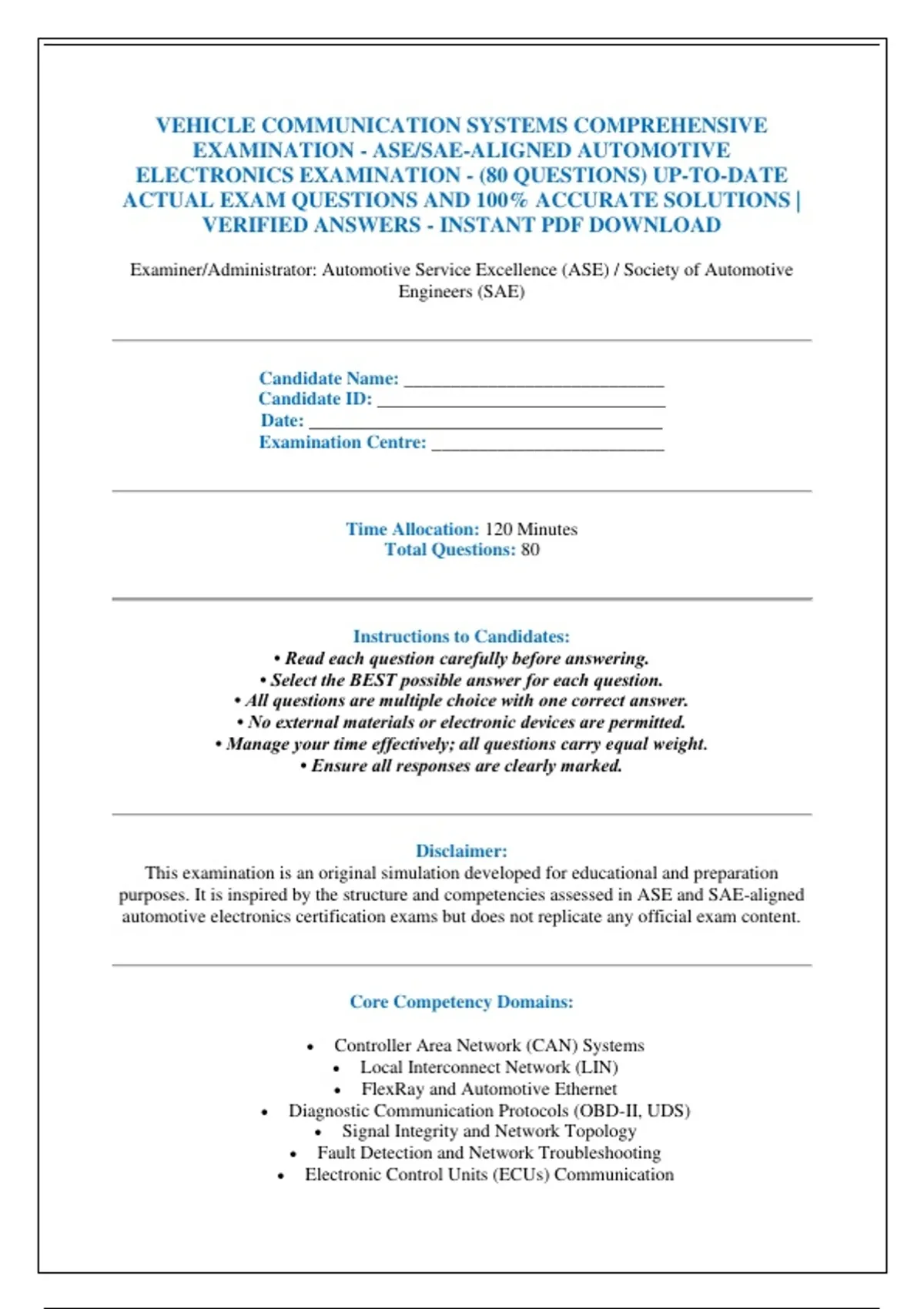

VEHICLE COMMUNICATION SYSTEMS COMPREHENSIVE
EXAMINATION - ASE/SAE-ALIGNED AUTOMOTIVE
ELECTRONICS EXAMINATION - (80 QUESTIONS) UP-TO-DATE
ACTUAL EXAM QUESTIONS AND 100% ACCURATE SOLUTIONS |
VERIFIED ANSWERS - INSTANT PDF DOWNLOAD
Examiner/Administrator: Automotive Service Excellence (ASE) / Society of Automotive
Engineers (SAE)
Candidate Name: ____________________________
Candidate ID: _______________________________
Date: ______________________________________
Examination Centre: _________________________
Time Allocation: 120 Minutes
Total Questions: 80
Instructions to Candidates:
• Read each question carefully before answering.
• Select the BEST possible answer for each question.
• All questions are multiple choice with one correct answer.
• No external materials or electronic devices are permitted.
• Manage your time effectively; all questions carry equal weight.
• Ensure all responses are clearly marked.
Disclaimer:
This examination is an original simulation developed for educational and preparation
purposes. It is inspired by the structure and competencies assessed in ASE and SAE-aligned
automotive electronics certification exams but does not replicate any official exam content.
Core Competency Domains:
•Controller Area Network (CAN) Systems
•Local Interconnect Network (LIN)
•FlexRay and Automotive Ethernet
• Diagnostic Communication Protocols (OBD-II, UDS)
• Signal Integrity and Network Topology
• Fault Detection and Network Troubleshooting
• Electronic Control Units (ECUs) Communication
, • Data Bus Architecture and Message Arbitration
This comprehensive assessment evaluates advanced knowledge and diagnostic skills in
modern vehicle communication systems. Candidates are expected to demonstrate
proficiency in interpreting network behavior, diagnosing faults across multiple
communication protocols, and understanding the integration of electronic control modules
within complex automotive architectures. The examination reflects real-world service
scenarios and emphasizes analytical thinking aligned with current industry standards.
Q1. A technician observes intermittent loss of communication on a high-speed
CAN bus during engine load conditions. Which is the MOST likely cause?
A. Faulty LIN slave module
B. Increased bus capacitance due to damaged wiring insulation
C. Incorrect CAN ID priority
D. Excessive ECU flash memory usage
Correct Answer: B. Increased bus capacitance due to damaged wiring
insulation
Explanation: High-speed CAN relies on precise signal timing. Damaged
insulation can increase capacitance, distorting signals under load. LIN (A) is
unrelated. CAN ID priority (C) affects arbitration, not signal loss. ECU memory
(D) does not impact physical layer communication.
Q2. During CAN arbitration, what determines which ECU transmits first?
A. Message length
B. Bus voltage level
C. Identifier (ID) priority
D. ECU processing speed
Correct Answer: C. Identifier (ID) priority
Explanation: Lower numerical CAN IDs have higher priority and win
arbitration. Message length (A) is irrelevant. Voltage (B) is constant. ECU
speed (D) does not influence arbitration.
,Q3. A LIN network typically uses which communication structure?
A. Peer-to-peer
B. Master-slave
C. Ring topology
D. Star topology
Correct Answer: B. Master-slave
Explanation: LIN uses a single master controlling multiple slaves. Peer-to-
peer (A) applies to CAN. Ring (C) and star (D) are not LIN standards.
Q4. A FlexRay system is MOST advantageous in which application?
A. Interior lighting control
B. Infotainment audio streaming
C. Drive-by-wire systems
D. Basic sensor communication
Correct Answer: C. Drive-by-wire systems
Explanation: FlexRay offers deterministic timing and redundancy, critical
for safety systems. Lighting (A), infotainment (B), and basic sensors (D) do not
require such precision.
Q5. A technician measures 60 ohms across CAN High and CAN Low with
ignition OFF. What does this indicate?
A. Open circuit
B. Proper termination
C. Short to ground
D. Excessive resistance
Correct Answer: B. Proper termination
Explanation: Two 120-ohm resistors in parallel equal 60 ohms, indicating
correct termination. Open (A) would show infinite resistance. Short (C) would
show near zero.
, Q6. What is the primary purpose of CAN bus termination resistors?
A. Increase voltage
B. Prevent signal reflection
C. Improve ECU processing
D. Reduce current draw
Correct Answer: B. Prevent signal reflection
Explanation: Termination resistors stabilize signal integrity. Voltage
increase (A) and ECU processing (C) are unrelated. Current draw (D) is not
the main purpose.
Q7. Which protocol is MOST commonly used for diagnostics over CAN?
A. LIN
B. UDS
C. MOST
D. SPI
Correct Answer: B. UDS
Explanation: Unified Diagnostic Services (UDS) is standard for CAN
diagnostics. LIN (A) is low-speed. MOST (C) is multimedia. SPI (D) is not
automotive network standard.
Q8. A short between CAN High and CAN Low will MOST likely result in:
A. Increased voltage difference
B. Complete communication failure
C. Faster data transmission
D. Reduced bus load
Correct Answer: B. Complete communication failure
Explanation: Shorting eliminates differential signaling. Voltage difference
(A) disappears. Speed (C) and load (D) are irrelevant.
