AFAB 110 FINAL TEST PAPER 2026 COMPLETE QUESTIONS AND CORRECT ANSWERS GRADED A+

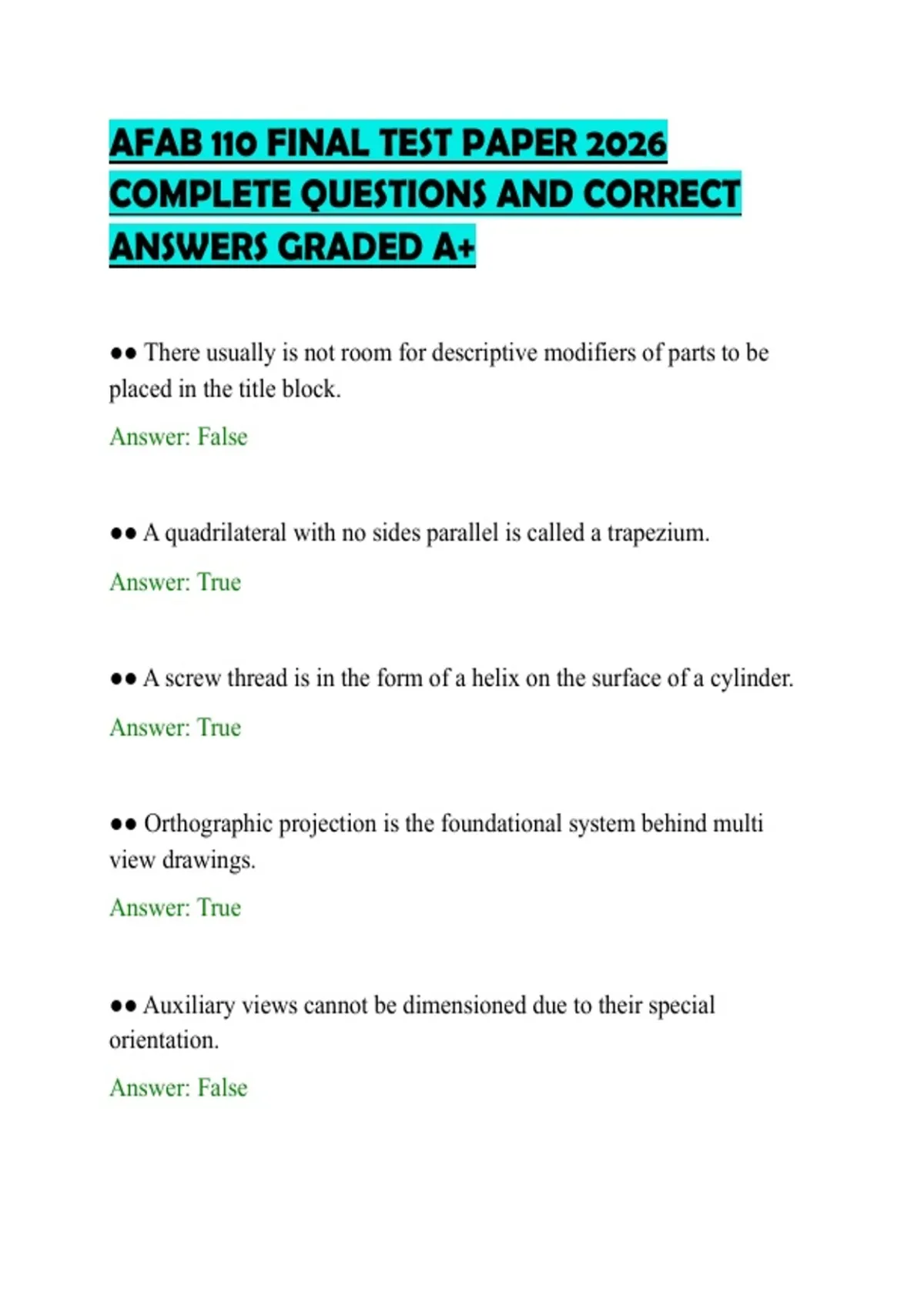

AFAB 110 FINAL TEST PAPER 2026
COMPLETE QUESTIONS AND CORRECT
ANSWERS GRADED A+

●● There usually is not room for descriptive modifiers of parts to be
placed in the title block.
Answer: False


●● A quadrilateral with no sides parallel is called a trapezium.
Answer: True


●● A screw thread is in the form of a helix on the surface of a cylinder.
Answer: True


●● Orthographic projection is the foundational system behind multi
view drawings.
Answer: True


●● Auxiliary views cannot be dimensioned due to their special
orientation.
Answer: False

, ●● All American thread forms are standardized in one ASME document.
Answer: False


●● The lead of a triple thread is 1.5 times the pitch.
Answer: False


●● Common way of creating copies involved a light process and a
special print paper coated with blank..compound.
Answer: Diazo


●● Electronic print or drawings that is basically composed of tiny pixels
or dots not vectors is considered a.
Answer: Easter image


●● Voluntary guideline that establishes the method of representation for
prints as well as other engineering practices is a.
Answer: Standard


●● Identify the line below that is to be drawn thick.
Answer: Cutting plane line


●● Most important line in an industrial print.
Answer: Visible line
