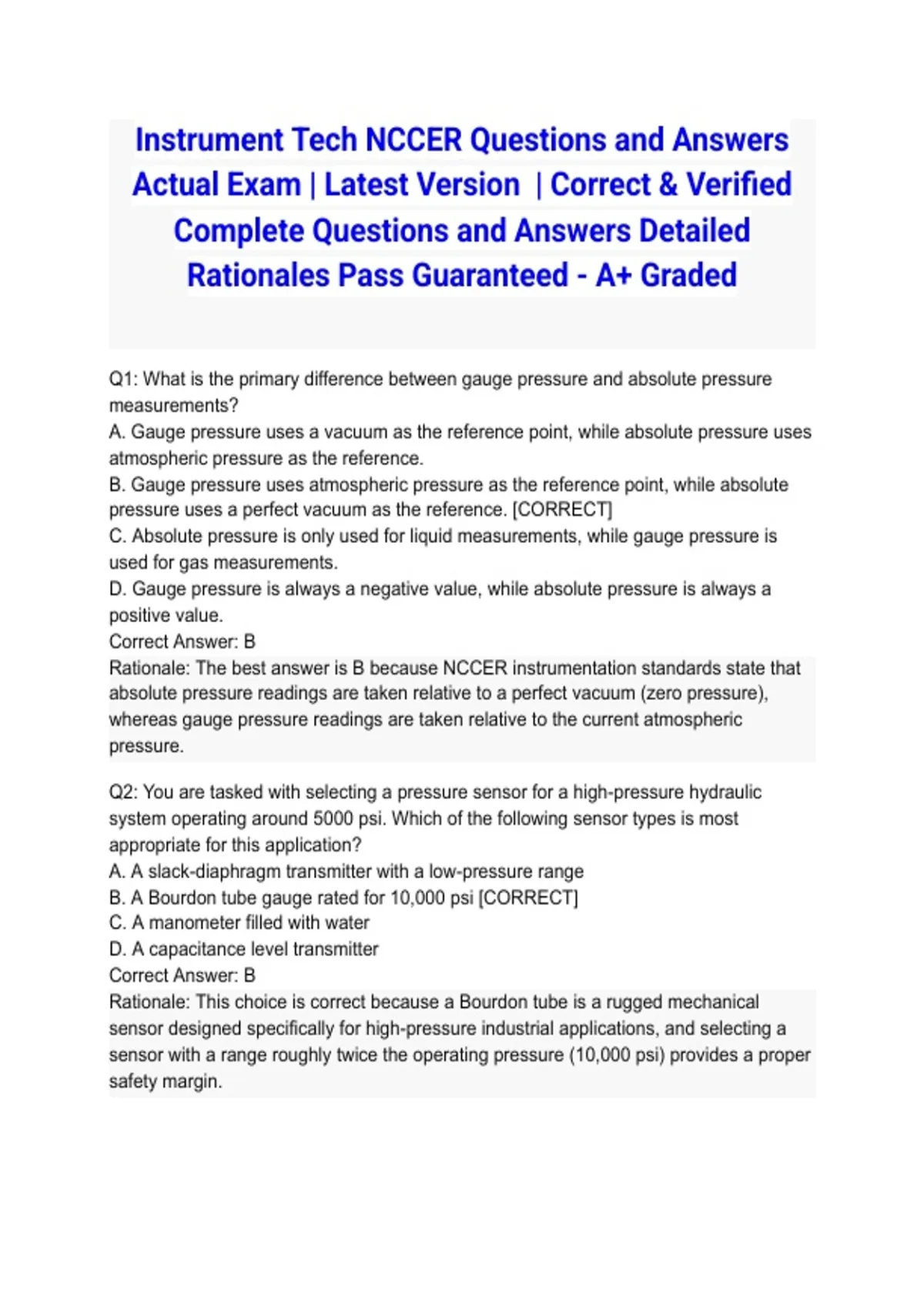

Instrument Tech NCCER Questions and Answers
Actual Exam | Latest Version | Correct & Verified
Complete Questions and Answers Detailed
Rationales Pass Guaranteed - A+ Graded
Q1: What is the primary difference between gauge pressure and absolute pressure
measurements?
A. Gauge pressure uses a vacuum as the reference point, while absolute pressure uses
atmospheric pressure as the reference.
B. Gauge pressure uses atmospheric pressure as the reference point, while absolute
pressure uses a perfect vacuum as the reference. [CORRECT]
C. Absolute pressure is only used for liquid measurements, while gauge pressure is
used for gas measurements.
D. Gauge pressure is always a negative value, while absolute pressure is always a
positive value.
Correct Answer: B
Rationale: The best answer is B because NCCER instrumentation standards state that
absolute pressure readings are taken relative to a perfect vacuum (zero pressure),
whereas gauge pressure readings are taken relative to the current atmospheric
pressure.
Q2: You are tasked with selecting a pressure sensor for a high-pressure hydraulic
system operating around 5000 psi. Which of the following sensor types is most
appropriate for this application?
A. A slack-diaphragm transmitter with a low-pressure range
B. A Bourdon tube gauge rated for 10,000 psi [CORRECT]
C. A manometer filled with water
D. A capacitance level transmitter
Correct Answer: B
Rationale: This choice is correct because a Bourdon tube is a rugged mechanical
sensor designed specifically for high-pressure industrial applications, and selecting a
sensor with a range roughly twice the operating pressure (10,000 psi) provides a proper
safety margin.
,Q3: A technician is reading an inclined manometer to measure low differential pressure.
If the manometer fluid is displaced 5 inches along the inclined tube, and the tube has a
10:1 inclination ratio, what is the actual vertical pressure head?
A. 0.5 inches [CORRECT]
B. 5 inches
C. 10 inches
D. 50 inches
Correct Answer: A
Rationale: This matches the principles of process measurement where you always
verify the actual vertical fluid column by dividing the inclined displacement by the
inclination ratio, which in this case is 5 inches divided by 10.
Q4: Which thermocouple type is most commonly used in industrial applications for
temperatures up to 2300°F and is known for its robustness in oxidizing atmospheres?
A. Type J
B. Type K
C. Type S [CORRECT]
D. Type T
Correct Answer: C
Rationale: The best answer is Type S, as this platinum-rhodium thermocouple is the
standard choice for extremely high-temperature industrial environments up to 2300°F,
whereas Type J or K would melt or degrade at those temperatures.
Q5: You are wiring a 3-wire RTD to a transmitter located 50 feet away in a
high-electrical-noise plant environment. What is the main purpose of the third wire?
A. To provide extra power to the RTD element so it heats up faster
B. To act as a ground wire to prevent electrical shocks
C. To allow the transmitter to measure and compensate for the resistance of the lead
wires [CORRECT]
D. To send a digital HART signal back to the control room
Correct Answer: C
Rationale: This choice is correct because running a third wire to the RTD provides a
separate path for the transmitter to measure the lead wire resistance and automatically
subtract it from the total circuit resistance, ensuring an accurate temperature reading.
Q6: A process engineer asks you to install a temperature sensor in a high-velocity
steam pipe where rapid response to temperature changes is critical. Which thermowell
design characteristic should you recommend?
A. A thick-walled, tapered thermowell for maximum structural strength
B. A thin-walled, straight or reduced-tip thermowell [CORRECT]
C. A thermowell with a built-in isolation valve
, D. A thermowell made of high-density PVC plastic
Correct Answer: B
Rationale: The best answer is a thin-walled, reduced-tip thermowell because this design
minimizes the thermal mass and increases the surface area, allowing the sensor to
respond much faster to rapid process temperature changes.
Q7: How does a displacer level transmitter measure the level of a liquid in a tank?
A. By measuring the time it takes for a sound wave to bounce off the liquid surface
B. By detecting the change in buoyant force acting on the displacer as the liquid level
changes [CORRECT]
C. By measuring the capacitance between two probes immersed in the liquid
D. By calculating the hydrostatic pressure at the bottom of the tank
Correct Answer: B
Rationale: This aligns with the fundamental principle of displacer-level measurement,
where the upward buoyant force on a fixed-volume displacer changes directly with the
specific gravity and height of the liquid covering it.
Q8: You are commissioning a DP level transmitter on a closed pressurized tank. The
low-pressure side of the transmitter is connected to the top of the tank via a impulse
line. What is the primary purpose of this top connection?
A. To vent excess pressure to atmosphere so the tank doesn't explode
B. To allow you to drain the tank for maintenance
C. To reference the vapor space pressure so the transmitter measures only the
hydrostatic head of the liquid [CORRECT]
D. To provide a path to fill the tank with calibration fluid
Correct Answer: C
Rationale: This choice is correct because connecting the low-pressure side to the vapor
space cancels out the tank's static pressure, allowing the differential pressure across
the transmitter to be purely a result of the liquid's hydrostatic head.
Q9: A non-contact level transmitter is needed for a tank containing a highly corrosive,
sticky slurry that constantly coats everything it touches. Which technology is the best fit?
A. Ultrasonic level transmitter
B. Capacitance level probe
C. Guided wave radar transmitter [CORRECT]
D. Float and tape level indicator
Correct Answer: C
Rationale: The best answer is guided wave radar because it has no moving parts, is
unaffected by sticky coatings building up on the probe, and ignores corrosive vapors,
unlike ultrasonic sensors which can be blinded by heavy foam or coating.
