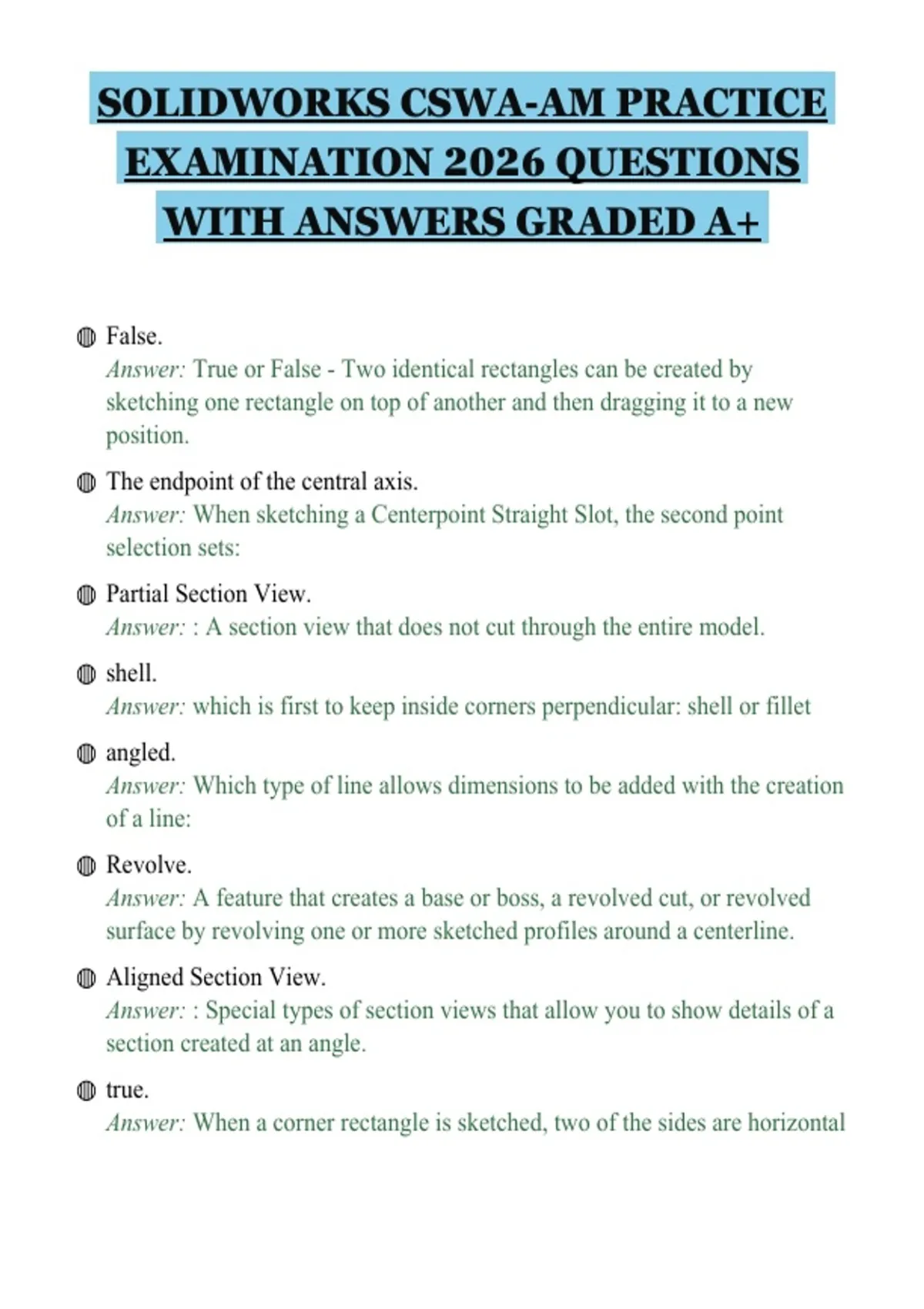

SOLIDWORKS CSWA-AM PRACTICE
EXAMINATION 2026 QUESTIONS
WITH ANSWERS GRADED A+
◍ False.
Answer: True or False - Two identical rectangles can be created by
sketching one rectangle on top of another and then dragging it to a new
position.
◍ The endpoint of the central axis.
Answer: When sketching a Centerpoint Straight Slot, the second point
selection sets:
◍ Partial Section View.
Answer: : A section view that does not cut through the entire model.
◍ shell.
Answer: which is first to keep inside corners perpendicular: shell or fillet
◍ angled.
Answer: Which type of line allows dimensions to be added with the creation
of a line:
◍ Revolve.
Answer: A feature that creates a base or boss, a revolved cut, or revolved
surface by revolving one or more sketched profiles around a centerline.
◍ Aligned Section View.
Answer: : Special types of section views that allow you to show details of a
section created at an angle.
◍ true.
Answer: When a corner rectangle is sketched, two of the sides are horizontal
, and two are vertical:
◍ Chamfer.
Answer: Bevels a selected edge or vertex. Can be applied to both sketches
and features.
◍ True.
Answer: True or False - When a corner rectangle is sketched, two of the
sides are automatically set to horizontal and the other two are automatically
set to vertical.
◍ CSWA certification.
Answer: An entry level certification designed to measure the
SOLIDWORKS skills of pre-professional users.
◍ relations.
Answer: which should come first: geometric relations or dimensions
◍ False.
Answer: True or False - The second axis set for an ellipse is the minor axis
which must be smaller than the major axis set beforehand.
◍ True.
Answer: It is possible to have multiple Alternate Position Views in a single
drawing. True or false?:
◍ true.
Answer: When dimensioning to centerlines, SOLIDWORKS provides the
ability to change from linear to diameter dimensions:
◍ Counter Sink.
Answer: A conical-shaped recess around a hole, often used to receive a
tapered screw.
◍ Center Rectangle.
Answer: What type of rectangle tool adds centerlines when the sketch entity
is drawn?
◍ alternate position view.
