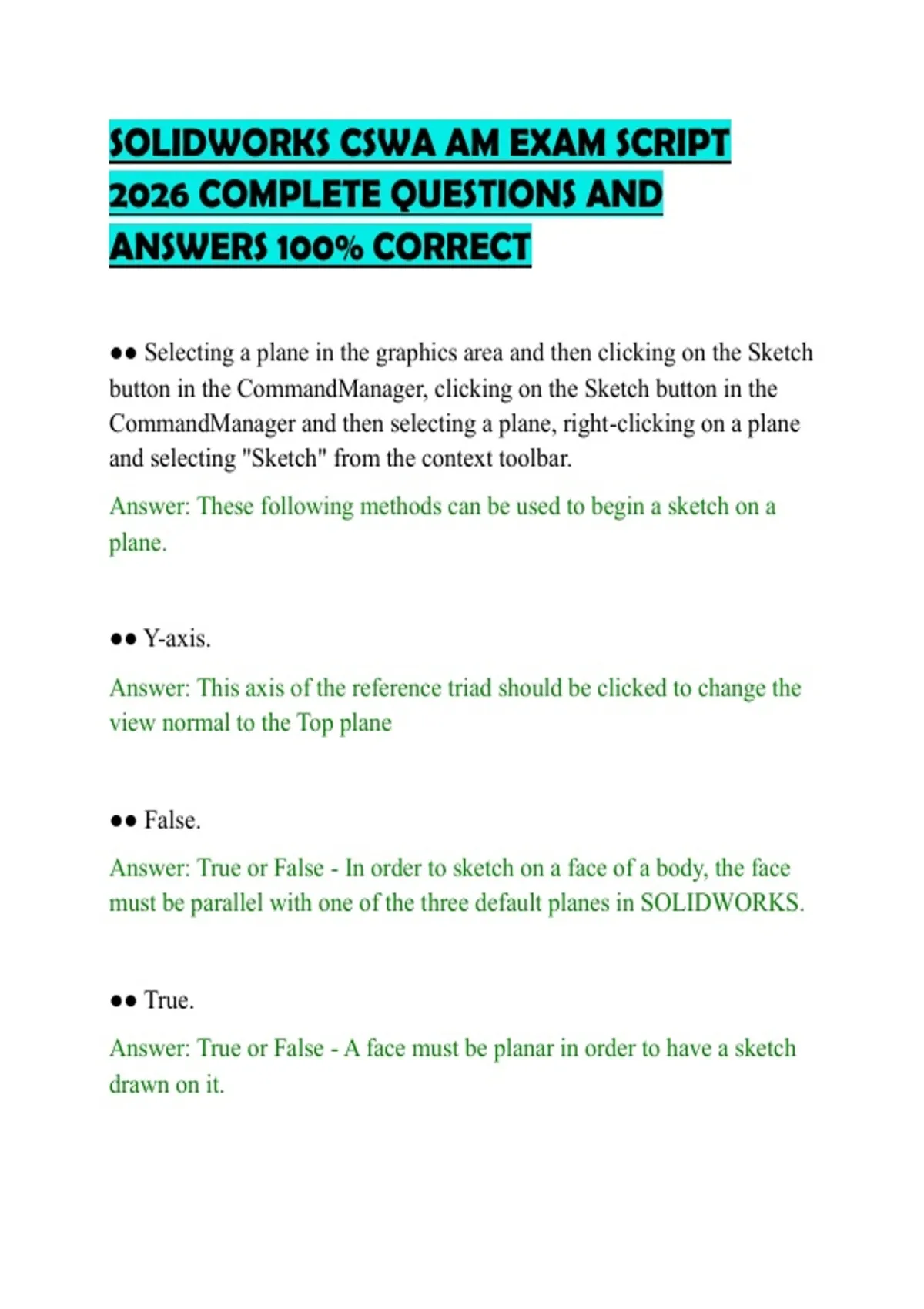

SOLIDWORKS CSWA AM EXAM SCRIPT
2026 COMPLETE QUESTIONS AND
ANSWERS 100% CORRECT
●● Selecting a plane in the graphics area and then clicking on the Sketch
button in the CommandManager, clicking on the Sketch button in the
CommandManager and then selecting a plane, right-clicking on a plane
and selecting "Sketch" from the context toolbar.
Answer: These following methods can be used to begin a sketch on a
plane.
●● Y-axis.
Answer: This axis of the reference triad should be clicked to change the
view normal to the Top plane
●● False.
Answer: True or False - In order to sketch on a face of a body, the face
must be parallel with one of the three default planes in SOLIDWORKS.
●● True.
Answer: True or False - A face must be planar in order to have a sketch
drawn on it.
,●● The geometry you select.
Answer: The Smart Dimension tool determines what type of dimension
to add by
●● Launching the Shortcut Toolbar by pressing "S" on the keyboard and
click "Smart Dimension", using mouse-gestures by right-clicking and
dragging up in the graphics area, clicking the "Smart Dimension" icon
from the Sketch tab of the CommandManager.
Answer: You access the "Smart Dimension" tool by
●● Radial.
Answer: The Smart Dimension tool automatically adds what type of
dimension when you select an arc?
●● Using the spinbox to increase or decrease the value, using the arrows
to increase or decrease the value, clicking in the window and type in a
new value.
Answer: How can you edit the value of a dimension by using the Modify
Dialog box?
●● True.
Answer: True or False - When dimensioning to centerlines,
SOLIDWORKS provides the ability to change from linear to diameter
dimensions.
, ●● snap to axes.
Answer: Which is not an available option for a line?
●● Angle.
Answer: Which line type allows dimensions to be added with the
creation of the line?
●● Selecting a line, clicking "Centerline" button in the
CommandManager.
Answer: What method will not convert a line to a construction line?
●● True.
Answer: True or False - When a corner rectangle is sketched, two of the
sides are automatically set to horizontal and the other two are
automatically set to vertical.
●● Center Rectangle.
Answer: What type of rectangle tool adds centerlines when the sketch
entity is drawn?
●● Parallelogram.
Answer: What rectangle tool requires more than two points to be
selected in order to draw the sketch entity?
