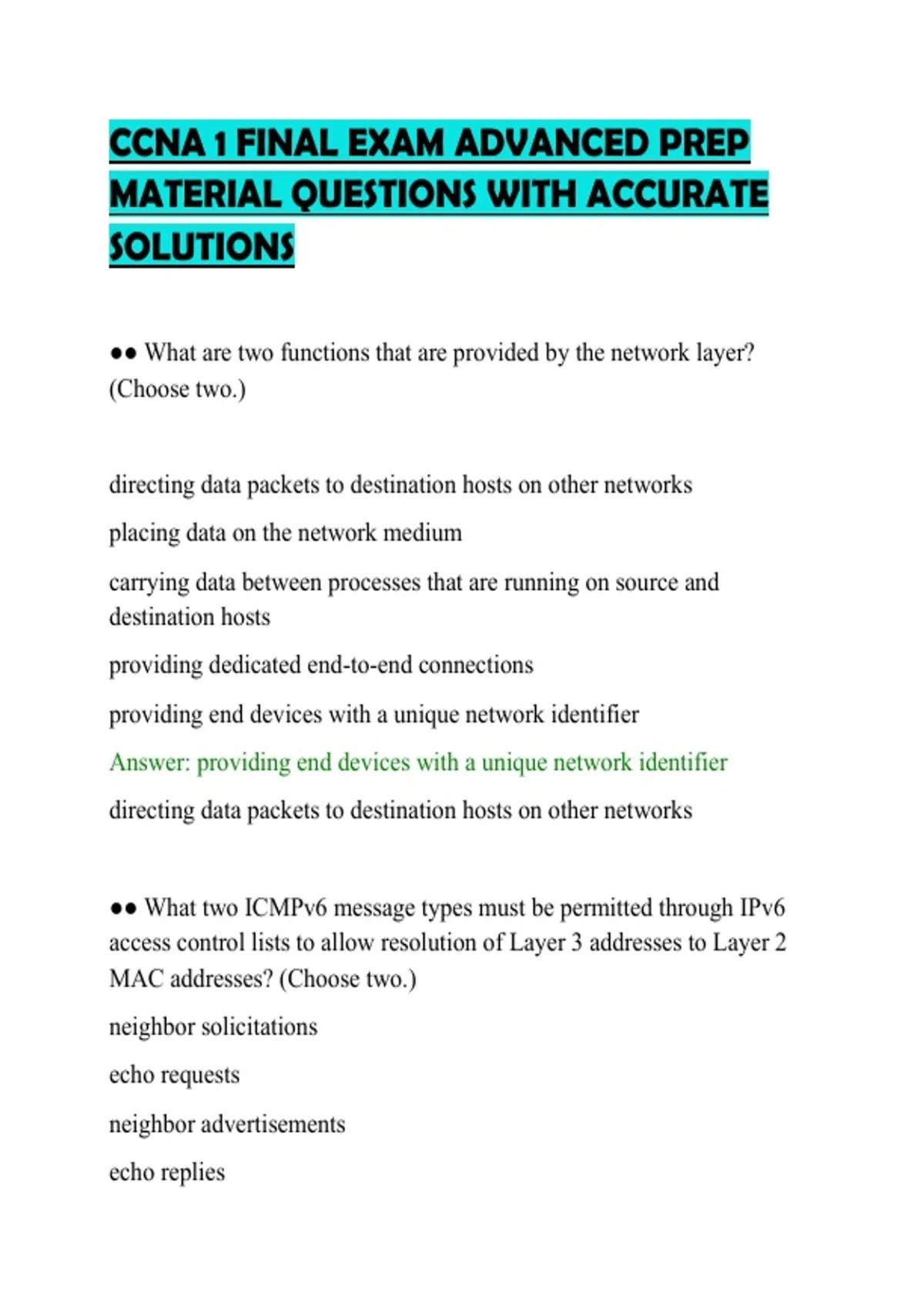

CCNA 1 FINAL EXAM ADVANCED PREP
MATERIAL QUESTIONS WITH ACCURATE
SOLUTIONS
●● What are two functions that are provided by the network layer?
(Choose two.)
directing data packets to destination hosts on other networks
placing data on the network medium
carrying data between processes that are running on source and
destination hosts
providing dedicated end-to-end connections
providing end devices with a unique network identifier
Answer: providing end devices with a unique network identifier
directing data packets to destination hosts on other networks
●● What two ICMPv6 message types must be permitted through IPv6
access control lists to allow resolution of Layer 3 addresses to Layer 2
MAC addresses? (Choose two.)
neighbor solicitations
echo requests
neighbor advertisements
echo replies
,router solicitations
router advertisements
Answer: neighbor solicitations
neighbor advertisements
●● Which range of link-local addresses can be assigned to an IPv6-
enabled interface?
FEC0::/10
FDEE::/7
FE80::/10
FF00::/8
Answer: FE80::/10
●● What would be the interface ID of an IPv6 enabled interface with a
MAC address of 1C-6F-65-C2-BD-F8 when the interface ID is
generated by using the EUI-64 process?
0C6F:65FF:FEC2:BDF8
1E6F:65FF:FEC2:BDF8
C16F:65FF:FEC2:BDF8
106F:65FF:FEC2:BDF8
Answer: 1E6F:65FF:FEC2:BDF8
,●● An organization is assigned an IPv6 address block of
2001:db8:0:ca00::/56. How many subnets can be created without using
bits in the interface ID space?
256
512
1024
4096
Answer: 256
●● Refer to the exhibit. If host A sends an IP packet to host B, what will
the destination address be in the frame when it leaves host A?
DD:DD:DD:DD:DD:DD
172.168.10.99
CC:CC:CC:CC:CC:CC
172.168.10.65
BB:BB:BB:BB:BB:BB
AA:AA:AA:AA:AA:AA
Answer: BB:BB:BB:BB:BB:BB
●● When a switch configuration includes a user-defined error threshold
on a per-port basis, to which switching method will the switch revert
when the error threshold is reached?
, cut-through
store-and-forward
fast-forward
fragment-free
Answer: store-and-forward
●● Which two statements are correct about MAC and IP addresses
during data transmission if NAT is not involved? (Choose two.)
Destination IP addresses in a packet header remain constant along the
entire path to a target host.
Destination MAC addresses will never change in a frame that goes
across seven routers.
Every time a frame is encapsulated with a new destination MAC
address, a new destination IP address is needed.
Destination and source MAC addresses have local significance and
change every time a frame goes from one LAN to another.
A packet that has crossed four routers has changed the destination IP
address four times.
Answer: Destination IP addresses in a packet header remain constant
along the entire path to a target host.
Destination and source MAC addresses have local significance and
change every time a frame goes from one LAN to another.
●● What is one main characteristic of the data link layer?
MATERIAL QUESTIONS WITH ACCURATE
SOLUTIONS
●● What are two functions that are provided by the network layer?
(Choose two.)
directing data packets to destination hosts on other networks
placing data on the network medium
carrying data between processes that are running on source and
destination hosts
providing dedicated end-to-end connections
providing end devices with a unique network identifier
Answer: providing end devices with a unique network identifier
directing data packets to destination hosts on other networks
●● What two ICMPv6 message types must be permitted through IPv6
access control lists to allow resolution of Layer 3 addresses to Layer 2
MAC addresses? (Choose two.)
neighbor solicitations
echo requests
neighbor advertisements
echo replies
,router solicitations
router advertisements
Answer: neighbor solicitations
neighbor advertisements
●● Which range of link-local addresses can be assigned to an IPv6-
enabled interface?
FEC0::/10
FDEE::/7
FE80::/10
FF00::/8
Answer: FE80::/10
●● What would be the interface ID of an IPv6 enabled interface with a
MAC address of 1C-6F-65-C2-BD-F8 when the interface ID is
generated by using the EUI-64 process?
0C6F:65FF:FEC2:BDF8
1E6F:65FF:FEC2:BDF8
C16F:65FF:FEC2:BDF8
106F:65FF:FEC2:BDF8
Answer: 1E6F:65FF:FEC2:BDF8
,●● An organization is assigned an IPv6 address block of
2001:db8:0:ca00::/56. How many subnets can be created without using
bits in the interface ID space?
256
512
1024
4096
Answer: 256
●● Refer to the exhibit. If host A sends an IP packet to host B, what will
the destination address be in the frame when it leaves host A?
DD:DD:DD:DD:DD:DD
172.168.10.99
CC:CC:CC:CC:CC:CC
172.168.10.65
BB:BB:BB:BB:BB:BB
AA:AA:AA:AA:AA:AA
Answer: BB:BB:BB:BB:BB:BB
●● When a switch configuration includes a user-defined error threshold
on a per-port basis, to which switching method will the switch revert
when the error threshold is reached?
, cut-through
store-and-forward
fast-forward
fragment-free
Answer: store-and-forward
●● Which two statements are correct about MAC and IP addresses
during data transmission if NAT is not involved? (Choose two.)
Destination IP addresses in a packet header remain constant along the
entire path to a target host.
Destination MAC addresses will never change in a frame that goes
across seven routers.
Every time a frame is encapsulated with a new destination MAC
address, a new destination IP address is needed.
Destination and source MAC addresses have local significance and
change every time a frame goes from one LAN to another.
A packet that has crossed four routers has changed the destination IP
address four times.
Answer: Destination IP addresses in a packet header remain constant
along the entire path to a target host.
Destination and source MAC addresses have local significance and
change every time a frame goes from one LAN to another.
●● What is one main characteristic of the data link layer?
