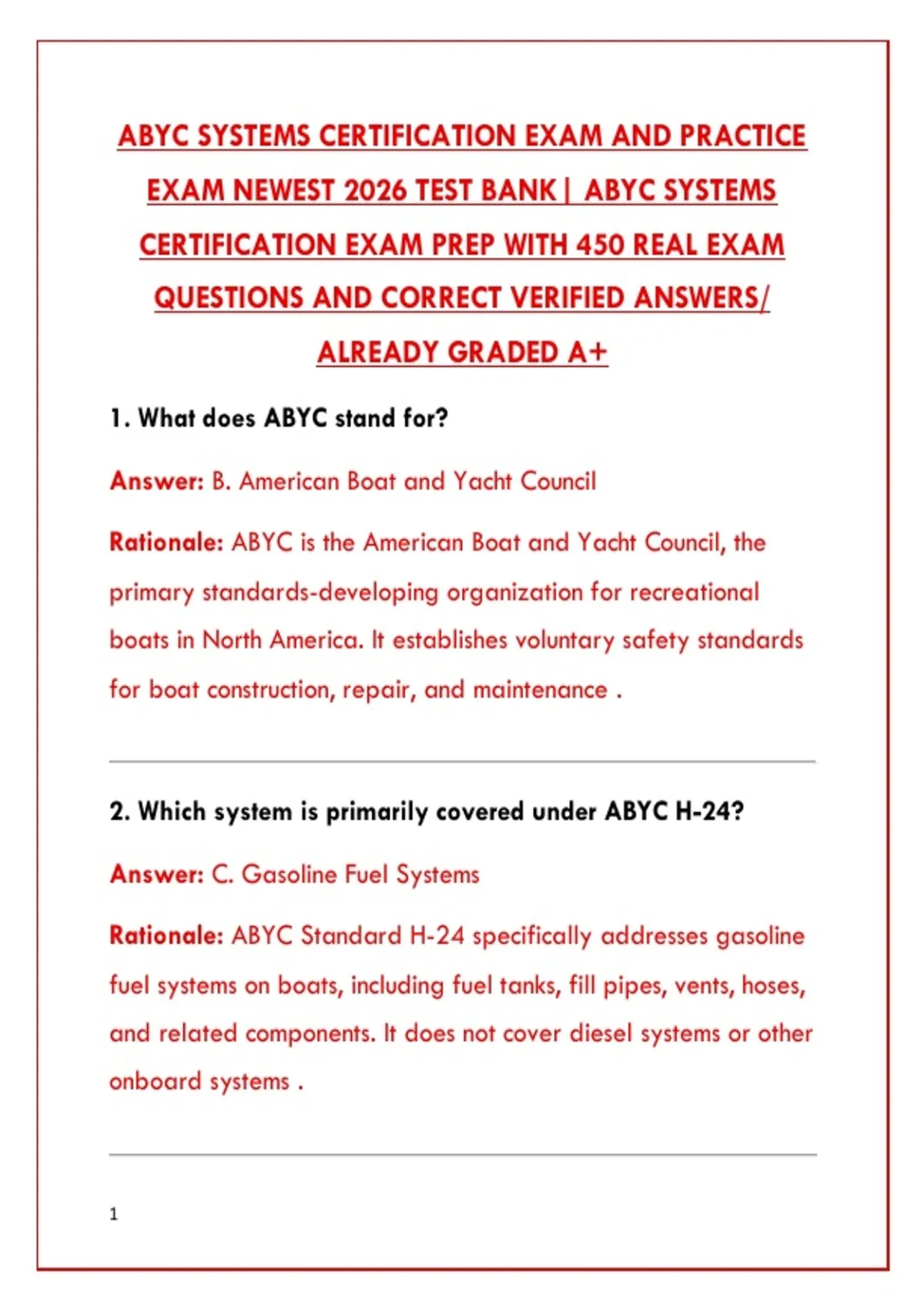

ABYC SYSTEMS CERTIFICATION EXAM AND PRACTICE
EXAM NEWEST 2026 TEST BANK| ABYC SYSTEMS
CERTIFICATION EXAM PREP WITH 450 REAL EXAM
QUESTIONS AND CORRECT VERIFIED ANSWERS/
ALREADY GRADED A+
1. What does ABYC stand for?
Answer: B. American Boat and Yacht Council
Rationale: ABYC is the American Boat and Yacht Council, the
primary standards-developing organization for recreational
boats in North America. It establishes voluntary safety standards
for boat construction, repair, and maintenance .
2. Which system is primarily covered under ABYC H-24?
Answer: C. Gasoline Fuel Systems
Rationale: ABYC Standard H-24 specifically addresses gasoline
fuel systems on boats, including fuel tanks, fill pipes, vents, hoses,
and related components. It does not cover diesel systems or other
onboard systems .
1
,3. What is the primary purpose of bonding systems on boats?
Answer: B. Prevent galvanic corrosion
Rationale: Bonding systems equalize the electrical potential
between different metal components on a boat. This prevents
galvanic corrosion by ensuring all underwater metals share the
same electrical potential, reducing the flow of corrosive currents .
4. Which color is typically used for DC negative conductors
according to ABYC?
Answer: C. Black or Yellow
Rationale: ABYC standards allow either black or yellow for DC
negative conductors. Yellow is often preferred to distinguish
marine systems from automotive wiring, but both colors are
acceptable for DC grounding/negative circuits .
5. What is the minimal allowable distance above a flat
horizontal surface for a fuel tank to be mounted?
Answer: 1/4 inch
2
,Rationale: ABYC standards require a minimum of 1/4 inch
clearance between a fuel tank and any flat horizontal mounting
surface. This allows for air circulation and prevents moisture
accumulation that could lead to corrosion under the tank .
6. What is the minimum schedule for plastic and metal fuel fill
pipe?
Answer: Schedule 40
Rationale: ABYC requires fuel fill pipes to be Schedule 40 or
heavier. Schedule 40 provides adequate wall thickness and
strength to withstand marine operating conditions and potential
impacts .
7. True or False: Impeller pumps are typically self-priming.
Answer: True
Rationale: Flexible impeller pumps are positive displacement
pumps capable of self-priming. They can draw a vacuum and lift
water from a lower level without requiring the pump to be
positioned below the water source .
3
, 8. Although only 4 electrical terminal connections are allowed
per stud, it is permissible to have more than one wire per
terminal connector.
Answer: True
Rationale: While ABYC limits the number of terminal connections
per stud to four maximum, having multiple wires under a single
terminal connector is permitted provided there is no damage to
the conductor and it meets the pull-test requirements .
9. If electrical resistance heating elements are installed in air
handling systems, they must have both primary and backup
over-temperature protection devices.
Answer: True
Rationale: Heating elements in air handling systems require
redundant over-temperature protection. Both primary and
backup devices must interrupt current to the heating element to
prevent fire hazards from overheating .
4
