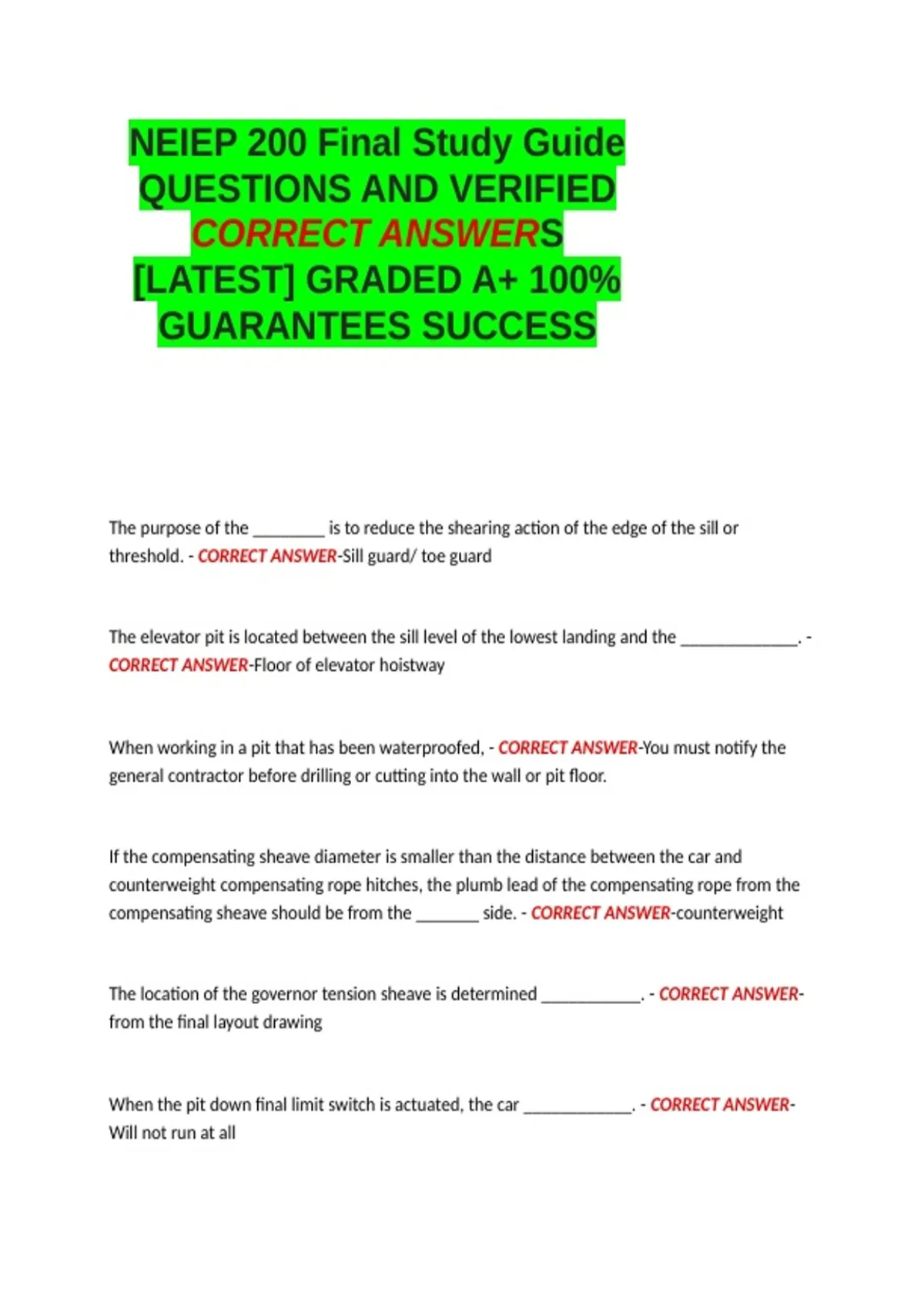

NEIEP 200 Final Study Guide
QUESTIONS AND VERIFIED
CORRECT ANSWERS
[LATEST] GRADED A+ 100%
GUARANTEES SUCCESS
The purpose of the ________ is to reduce the shearing action of the edge of the sill or
threshold. - CORRECT ANSWER-Sill guard/ toe guard
The elevator pit is located between the sill level of the lowest landing and the _____________. -
CORRECT ANSWER-Floor of elevator hoistway
When working in a pit that has been waterproofed, - CORRECT ANSWER-You must notify the
general contractor before drilling or cutting into the wall or pit floor.
If the compensating sheave diameter is smaller than the distance between the car and
counterweight compensating rope hitches, the plumb lead of the compensating rope from the
compensating sheave should be from the _______ side. - CORRECT ANSWER-counterweight
The location of the governor tension sheave is determined ___________. - CORRECT ANSWER-
from the final layout drawing
When the pit down final limit switch is actuated, the car ____________. - CORRECT ANSWER-
Will not run at all
, The ________ of a spring buffer is the distance the contact (top) end of the spring should be
compressed so that all coils of the spring come in contact with each other. - CORRECT ANSWER-
stroke
On an elevator installation ________, the counterweight also has a governor and tension sheave
system. - CORRECT ANSWER-Where the pit is over occupied space
When the pit directional limit switch is actuated, the normal circuits will allow the car to run -
CORRECT ANSWER-Up
The operation of the down final limit switch will prevent movement of the car by normal
operating devices in _____________. - CORRECT ANSWER-both directions of travel
How are the ends of the rails made so they may be joined together? - CORRECT ANSWER-The
ends have a tongue and groove
On a T-rail, what is the machined and planned part of the blade called? - CORRECT ANSWER-
Face
What type of bracket can support one main rail and two counterweight rails? - CORRECT
ANSWER-A combination main and counterweight bracket.
Where are spreaders used? - CORRECT ANSWER-Between brackets on counterweight rails
What is used to hold two sections of rail together? - CORRECT ANSWER-Fishplate
What is the most common type of rail used in the elevator industry? - CORRECT ANSWER-T-rail
