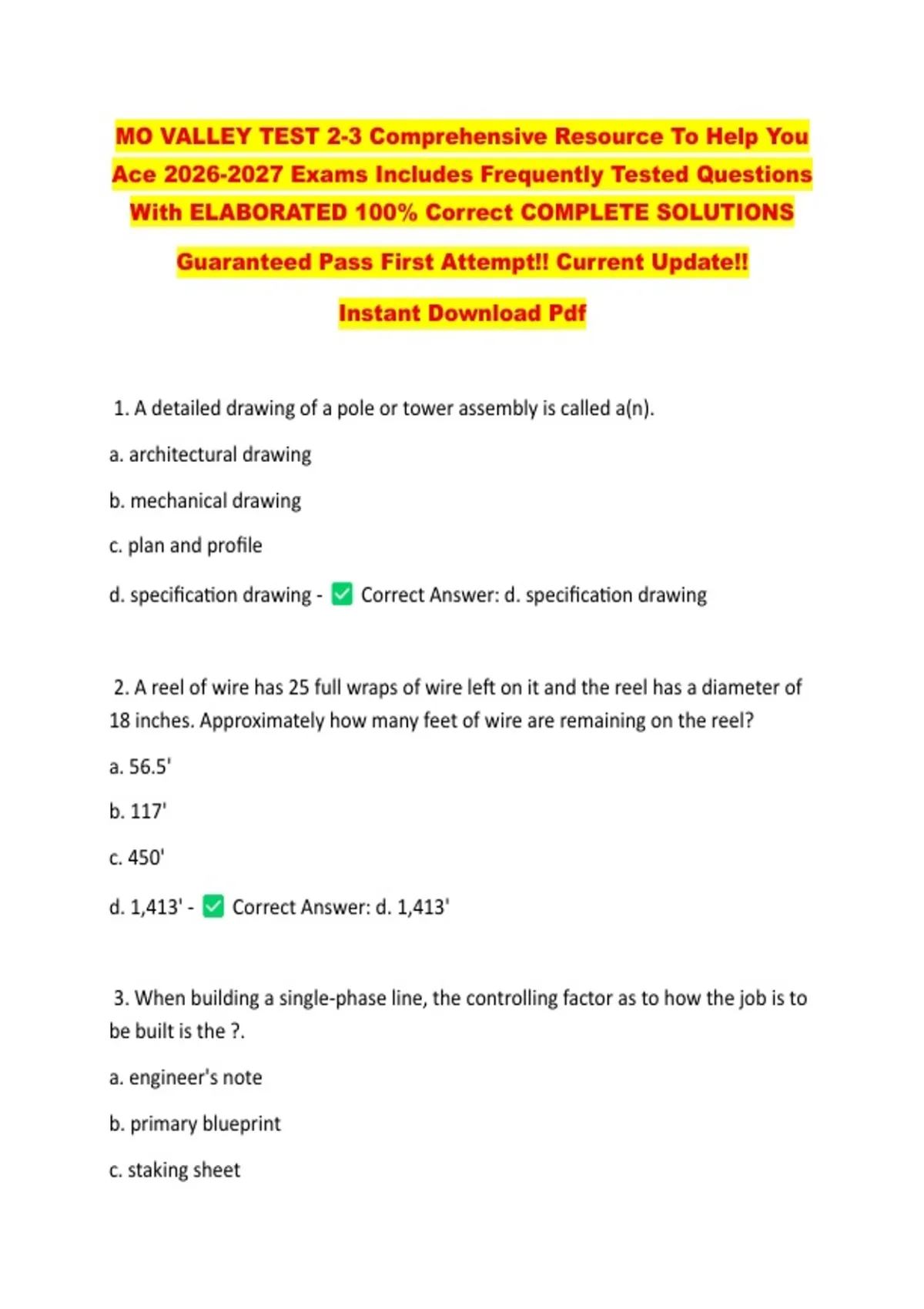

MO VALLEY TEST 2-3 Comprehensive Resource To Help You
Ace 2026-2027 Exams Includes Frequently Tested Questions
With ELABORATED 100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
Instant Download Pdf
1. A detailed drawing of a pole or tower assembly is called a(n).
a. architectural drawing
b. mechanical drawing
c. plan and profile
d. specification drawing - Correct Answer: d. specification drawing
2. A reel of wire has 25 full wraps of wire left on it and the reel has a diameter of
18 inches. Approximately how many feet of wire are remaining on the reel?
a. 56.5'
b. 117'
c. 450'
d. 1,413' - Correct Answer: d. 1,413'
3. When building a single-phase line, the controlling factor as to how the job is to
be built is the ?.
a. engineer's note
b. primary blueprint
c. staking sheet
,d. survey company - Correct Answer: c. staking sheet
4. To find the set of rules that should be followed on a project, or exact directions,
or step-by-step procedures that must be adhered to, you would refer to the ?.
a. architectural drawings
b. detail drawings
c. job contact
d. specifications - Correct Answer: d. specifications
5. A(n) ? might include specification sheets as needed to clarify an entire job or
part of a job.
a. architect
b. civil engineer
c. project designer
d. utility - Correct Answer: b. civil engineer
6. Angle A measures 30 degrees. If angles A and B are complementary angles, the
measurement of angle B is ?.
a. 30
b. 60
c. 150
d. 330 - Correct Answer: b. 60
, 7. Thick lines with two short dashes between long dashes with arrows at each
end indicate viewing direction and visually carve an internal section out of a
drawing are called ?.
a. cutting plane lines
b. horizontal lines
c. object lines
d. section lines - Correct Answer: a. cutting plane lines
8. A triangle with three congruent sides is a(n) ?.
a. equilateral
b. isosceles
d. right
d. scalene - Correct Answer: a. equilateral
9. Official survey lines and points are usually established by ?.
a. government agencies
b. land owners
c. surveying companies
d. utility companies - Correct Answer: a. government agencies
10. A(n) ? drawing will show the concrete pad for a substation transformer.
a. architectural
b. contractor specifications
c. plan and profile
