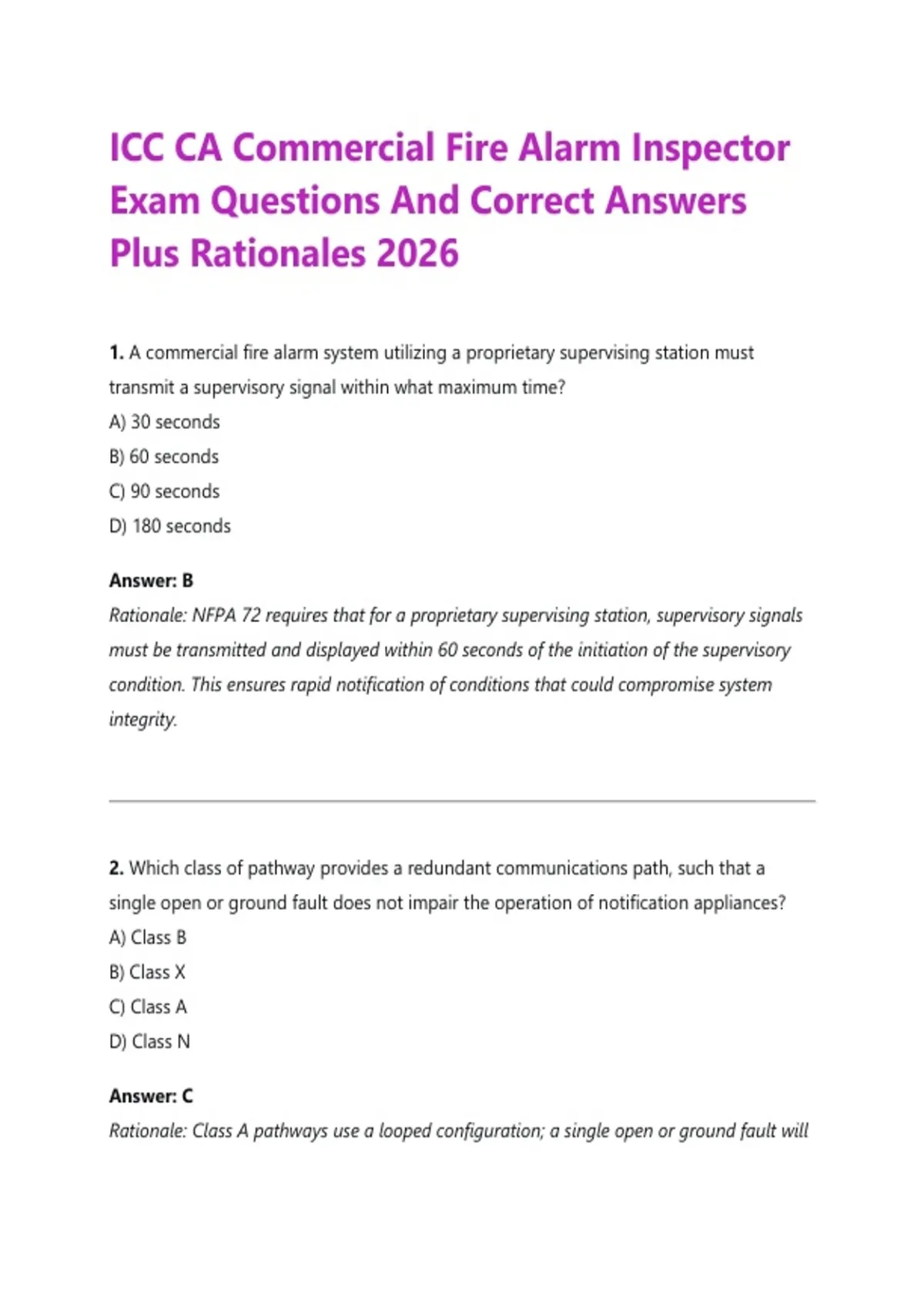

ICC CA Commercial Fire Alarm Inspector
Exam Questions And Correct Answers
Plus Rationales 2026
1. A commercial fire alarm system utilizing a proprietary supervising station must
transmit a supervisory signal within what maximum time?
A) 30 seconds
B) 60 seconds
C) 90 seconds
D) 180 seconds
Answer: B
Rationale: NFPA 72 requires that for a proprietary supervising station, supervisory signals
must be transmitted and displayed within 60 seconds of the initiation of the supervisory
condition. This ensures rapid notification of conditions that could compromise system
integrity.
2. Which class of pathway provides a redundant communications path, such that a
single open or ground fault does not impair the operation of notification appliances?
A) Class B
B) Class X
C) Class A
D) Class N
Answer: C
Rationale: Class A pathways use a looped configuration; a single open or ground fault will
,not disable any device because the signal can reach devices from the opposite direction.
Class X is a subset of Class A with additional isolators for the same fault tolerance.
3. According to NFPA 72, the maximum permitted spacing for spot-type smoke
detectors on a smooth ceiling is:
A) 15 feet (4.6 m)
B) 21 feet (6.4 m)
C) 30 feet (9.1 m)
D) 40 feet (12.2 m)
Answer: C
*Rationale: NFPA 72 allows a nominal spacing of 30 ft (9.1 m) for spot-type smoke
detectors on a smooth ceiling, provided no environmental or structural factors reduce
detection effectiveness.*
4. What is the minimum required sound pressure level for public mode audible
notification appliances in a commercial building?
A) 10 dBA above average ambient sound, or 65 dBA, whichever is greater
B) 15 dBA above average ambient sound, or 70 dBA, whichever is greater
C) 15 dBA above average ambient sound, or 75 dBA, whichever is greater
D) 20 dBA above average ambient sound, or 80 dBA, whichever is greater
Answer: C
Rationale: NFPA 72 requires that public mode emergency signals be at least 15 dBA above
the average ambient sound level, with a minimum absolute level of 75 dBA, measured at 5
ft (1.5 m) above the floor.
,5. For a manual fire alarm box installed in a commercial occupancy, the maximum height
of the pull handle above the finished floor shall be:
A) 3.5 ft (1.07 m)
B) 4.0 ft (1.22 m)
C) 4.5 ft (1.37 m)
D) 5.0 ft (1.52 m)
Answer: B
Rationale: NFPA 72 limits manual fire alarm box pull handles to a maximum of 4.0 ft
(1.22 m) above the finished floor, with a minimum of 3.5 ft (1.07 m), ensuring accessibility
for people with disabilities.
6. An initiating device circuit (IDC) that requires an end-of-line resistor is most typically
a:
A) Class A circuit
B) Class X circuit
C) Class B circuit
D) Class N circuit
Answer: C
Rationale: Class B initiating device circuits end at the last device with an end-of-line
resistor to supervise the wiring for opens. Class A and X circuits do not require EOL
resistors due to their return path.
, 7. Which type of heat detector is designed to activate when the rate of temperature rise
exceeds a specified value, typically 15°F (8.3°C) per minute?
A) Fixed-temperature
B) Rate-of-rise
C) Rate-compensated
D) Fusible link
Answer: B
Rationale: Rate-of-rise heat detectors respond quickly to sudden temperature increases,
ignoring slow, normal environmental changes. Fixed-temperature detectors only activate
at a set temperature.
8. What is the maximum number of smoke detectors allowed per initiating device circuit
on a legacy conventional panel before a trouble condition is required to be
annunciated?
A) 10
B) 20
C) 30
D) Not specified; depends on panel current limits
Answer: D
Rationale: NFPA 72 does not specify a fixed maximum number of detectors per circuit;
instead, it requires that the panel’s standby and alarm current limitations not be exceeded,
and that detector sensitivity be maintained.
9. The primary power supply for a commercial fire alarm system must be capable of
operating the system for a minimum of:
