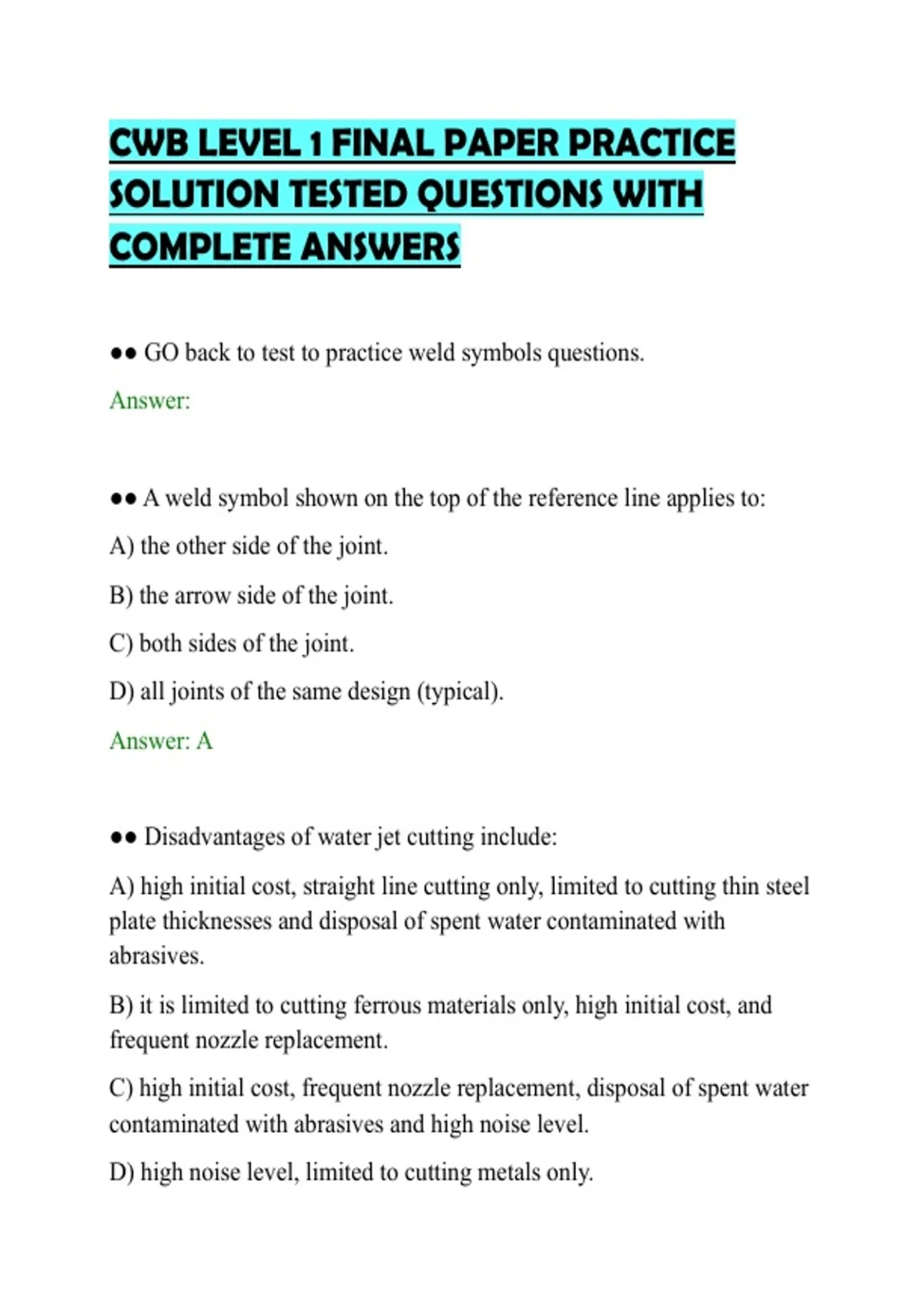

SOLUTION TESTED QUESTIONS WITH
COMPLETE ANSWERS
●● GO back to test to practice weld symbols questions.
Answer:
●● A weld symbol shown on the top of the reference line applies to:
A) the other side of the joint.
B) the arrow side of the joint.
C) both sides of the joint.
D) all joints of the same design (typical).
Answer: A
●● Disadvantages of water jet cutting include:
A) high initial cost, straight line cutting only, limited to cutting thin steel
plate thicknesses and disposal of spent water contaminated with
abrasives.
B) it is limited to cutting ferrous materials only, high initial cost, and
frequent nozzle replacement.
C) high initial cost, frequent nozzle replacement, disposal of spent water
contaminated with abrasives and high noise level.
D) high noise level, limited to cutting metals only.
, Answer: C
●● Dimension lines are generally placed so that the drawing may be
read from the: A) bottom and left-hand edge of the sheet.
B) bottom and right-hand edge of the sheet.
C) left and right-hand edge of the sheet.
D) top and right-hand edge of the sheet.
Answer: B
●● What is the maximum number of principal views in an orthographic
projection?
A) Three B) Five C) Six D) Seven
Answer: C
●● The designation 3G refers to:
A) the horizontal position groove weld.
B) the vertical position groove weld.
C) the flat position groove weld.
D) the overhead position groove weld.
Answer: B
●● Fillet welds are used to make:
A) butt, corner, and edge joints.
