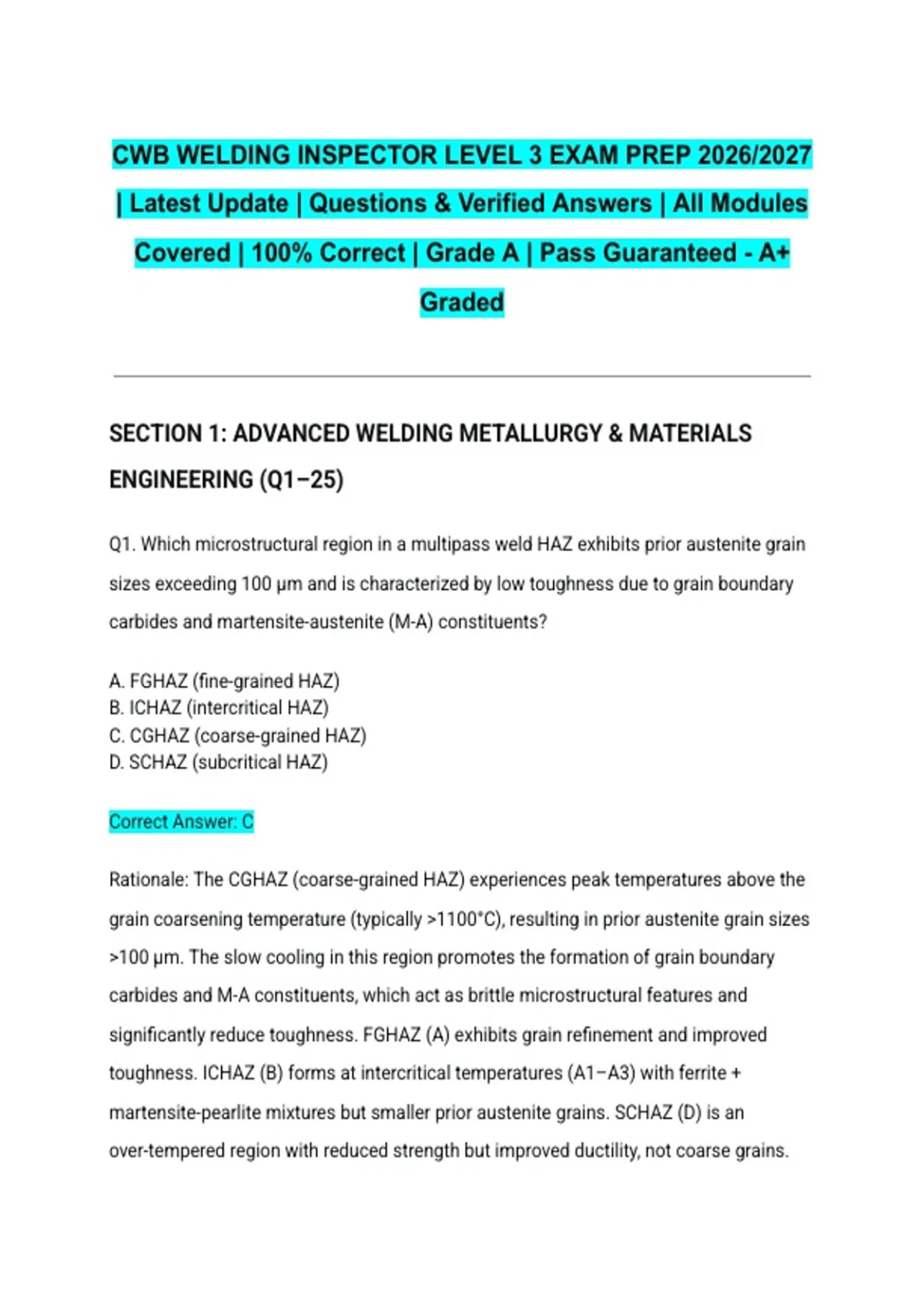

CWB WELDING INSPECTOR LEVEL 3 EXAM PREP 2026/2027
| Latest Update | Questions & Verified Answers | All Modules
Covered | 100% Correct | Grade A | Pass Guaranteed - A+
Graded
SECTION 1: ADVANCED WELDING METALLURGY & MATERIALS
ENGINEERING (Q1–25)
Q1. Which microstructural region in a multipass weld HAZ exhibits prior austenite grain
sizes exceeding 100 µm and is characterized by low toughness due to grain boundary
carbides and martensite-austenite (M-A) constituents?
A. FGHAZ (fine-grained HAZ)
B. ICHAZ (intercritical HAZ)
C. CGHAZ (coarse-grained HAZ)
D. SCHAZ (subcritical HAZ)
Correct Answer: C
Rationale: The CGHAZ (coarse-grained HAZ) experiences peak temperatures above the
grain coarsening temperature (typically >1100°C), resulting in prior austenite grain sizes
>100 µm. The slow cooling in this region promotes the formation of grain boundary
carbides and M-A constituents, which act as brittle microstructural features and
significantly reduce toughness. FGHAZ (A) exhibits grain refinement and improved
toughness. ICHAZ (B) forms at intercritical temperatures (A1–A3) with ferrite +
martensite-pearlite mixtures but smaller prior austenite grains. SCHAZ (D) is an
over-tempered region with reduced strength but improved ductility, not coarse grains.
,Reference: CSA W59-23, Clause 5.2; advanced welding metallurgy principles for HSLA
steels.
Q2. In HSLA steel multipass welding, which HAZ region undergoes grain refinement by
recrystallization and demonstrates the highest toughness among the four HAZ
microstructural zones?
A. CGHAZ
B. FGHAZ
C. ICHAZ
D. SCHAZ
Correct Answer: B
Rationale: The FGHAZ (fine-grained HAZ) is heated into the normalizing temperature
range (approximately 900–1100°C), where complete austenite formation occurs
followed by rapid grain refinement upon cooling. This recrystallization process produces
fine ferrite grains and dispersed carbides, yielding the highest toughness of all HAZ
regions. CGHAZ (A) suffers from grain coarsening. ICHAZ (C) contains untempered
martensite and M-A constituents in a ferrite matrix, resulting in locally poor toughness.
SCHAZ (D) is over-tempered with reduced strength but not the highest toughness.
Reference: CSA W59-23; fracture mechanics of welded joints.
Q3. During the welding of high-strength low-alloy (HSLA) steels, the intercritical HAZ
(ICHAZ) is characterized by which of the following microstructural features?
A. Fully martensitic structure with lath morphology
B. Ferrite + martensite-pearlite + M-A constituents
C. Tempered bainite with spheroidized carbides
D. Recrystallized equiaxed ferrite grains
,Correct Answer: B
Rationale: The ICHAZ is heated between the A1 and A3 temperatures (intercritical
range), causing only partial austenitization of the ferrite-pearlite base metal. Upon
cooling, the austenitized regions transform to martensite or pearlite depending on
hardenability, while untransformed ferrite remains. M-A constituents form at
austenite-ferrite interfaces due to carbon partitioning. This heterogeneous
microstructure results in locally reduced toughness. Fully martensitic structures (A)
describe CGHAZ. Tempered bainite (C) describes SCHAZ in previously quenched and
tempered steels. Recrystallized ferrite (D) describes FGHAZ. Reference: Advanced
welding metallurgy, HSLA steel HAZ characterization.
Q4. The subcritical HAZ (SCHAZ) in a quenched and tempered steel weldment is best
described as:
A. A region of grain coarsening with reduced ductility
B. An over-tempered region with reduced strength but improved ductility
C. A partially austenitized zone with martensite islands
D. A recrystallized zone with maximum hardness
Correct Answer: B
Rationale: The SCHAZ is heated below the A1 temperature (subcritical range), meaning
no phase transformation occurs. However, tempering reactions continue in previously
quenched and tempered base metals, causing carbide coarsening and martensite
decomposition. This over-tempering reduces strength and hardness but improves
ductility and toughness compared to the unaffected base metal. Grain coarsening (A)
describes CGHAZ. Partial austenitization (C) describes ICHAZ. Maximum hardness (D)
is not a feature of SCHAZ. Reference: CSA W59-23; metallurgical principles of tempered
steels.
, Q5. In sour service pipeline steel (NACE MR0175/ISO 15156), stepwise cracking (SWC)
is primarily caused by:
A. Chloride stress corrosion cracking at surface defects
B. Hydrogen pressure buildup at MnS inclusions leading to blistering and interlinking
cracks
C. Sulfide precipitation at grain boundaries during PWHT
D. Carbonate stress corrosion in high-pH environments
Correct Answer: B
Rationale: Stepwise cracking (SWC) in sour service (H2S-containing) environments
occurs when atomic hydrogen diffuses into the steel and recombines to molecular
hydrogen at internal discontinuities, particularly MnS inclusions. The pressure buildup
causes blistering; when multiple blisters interlink along inclusion stringers, stepwise
cracking results. Chloride SCC (A) affects austenitic stainless steels, not sour service
carbon steels. Sulfide precipitation (C) is not the primary SWC mechanism. Carbonate
SCC (D) is a separate phenomenon in high-pH environments. Reference: NACE
MR0175/ISO 15156-2; CSA W59 sour service requirements.
Q6. Which of the following prevention strategies is MOST effective for controlling
hydrogen-induced cracking (HIC) in sour service pipeline steels?
A. Increasing sulfur content to 0.015% to improve machinability
B. Inclusion shape control via calcium treatment and maintaining sulfur <0.002%
C. Applying post-weld heat treatment at 950°C for 4 hours
D. Using high-carbon equivalent (CE >0.50%) steels for improved hardenability
Correct Answer: B
| Latest Update | Questions & Verified Answers | All Modules
Covered | 100% Correct | Grade A | Pass Guaranteed - A+
Graded
SECTION 1: ADVANCED WELDING METALLURGY & MATERIALS
ENGINEERING (Q1–25)
Q1. Which microstructural region in a multipass weld HAZ exhibits prior austenite grain
sizes exceeding 100 µm and is characterized by low toughness due to grain boundary
carbides and martensite-austenite (M-A) constituents?
A. FGHAZ (fine-grained HAZ)
B. ICHAZ (intercritical HAZ)
C. CGHAZ (coarse-grained HAZ)
D. SCHAZ (subcritical HAZ)
Correct Answer: C
Rationale: The CGHAZ (coarse-grained HAZ) experiences peak temperatures above the
grain coarsening temperature (typically >1100°C), resulting in prior austenite grain sizes
>100 µm. The slow cooling in this region promotes the formation of grain boundary
carbides and M-A constituents, which act as brittle microstructural features and
significantly reduce toughness. FGHAZ (A) exhibits grain refinement and improved
toughness. ICHAZ (B) forms at intercritical temperatures (A1–A3) with ferrite +
martensite-pearlite mixtures but smaller prior austenite grains. SCHAZ (D) is an
over-tempered region with reduced strength but improved ductility, not coarse grains.
,Reference: CSA W59-23, Clause 5.2; advanced welding metallurgy principles for HSLA
steels.
Q2. In HSLA steel multipass welding, which HAZ region undergoes grain refinement by
recrystallization and demonstrates the highest toughness among the four HAZ
microstructural zones?
A. CGHAZ
B. FGHAZ
C. ICHAZ
D. SCHAZ
Correct Answer: B
Rationale: The FGHAZ (fine-grained HAZ) is heated into the normalizing temperature
range (approximately 900–1100°C), where complete austenite formation occurs
followed by rapid grain refinement upon cooling. This recrystallization process produces
fine ferrite grains and dispersed carbides, yielding the highest toughness of all HAZ
regions. CGHAZ (A) suffers from grain coarsening. ICHAZ (C) contains untempered
martensite and M-A constituents in a ferrite matrix, resulting in locally poor toughness.
SCHAZ (D) is over-tempered with reduced strength but not the highest toughness.
Reference: CSA W59-23; fracture mechanics of welded joints.
Q3. During the welding of high-strength low-alloy (HSLA) steels, the intercritical HAZ
(ICHAZ) is characterized by which of the following microstructural features?
A. Fully martensitic structure with lath morphology
B. Ferrite + martensite-pearlite + M-A constituents
C. Tempered bainite with spheroidized carbides
D. Recrystallized equiaxed ferrite grains
,Correct Answer: B
Rationale: The ICHAZ is heated between the A1 and A3 temperatures (intercritical
range), causing only partial austenitization of the ferrite-pearlite base metal. Upon
cooling, the austenitized regions transform to martensite or pearlite depending on
hardenability, while untransformed ferrite remains. M-A constituents form at
austenite-ferrite interfaces due to carbon partitioning. This heterogeneous
microstructure results in locally reduced toughness. Fully martensitic structures (A)
describe CGHAZ. Tempered bainite (C) describes SCHAZ in previously quenched and
tempered steels. Recrystallized ferrite (D) describes FGHAZ. Reference: Advanced
welding metallurgy, HSLA steel HAZ characterization.
Q4. The subcritical HAZ (SCHAZ) in a quenched and tempered steel weldment is best
described as:
A. A region of grain coarsening with reduced ductility
B. An over-tempered region with reduced strength but improved ductility
C. A partially austenitized zone with martensite islands
D. A recrystallized zone with maximum hardness
Correct Answer: B
Rationale: The SCHAZ is heated below the A1 temperature (subcritical range), meaning
no phase transformation occurs. However, tempering reactions continue in previously
quenched and tempered base metals, causing carbide coarsening and martensite
decomposition. This over-tempering reduces strength and hardness but improves
ductility and toughness compared to the unaffected base metal. Grain coarsening (A)
describes CGHAZ. Partial austenitization (C) describes ICHAZ. Maximum hardness (D)
is not a feature of SCHAZ. Reference: CSA W59-23; metallurgical principles of tempered
steels.
, Q5. In sour service pipeline steel (NACE MR0175/ISO 15156), stepwise cracking (SWC)
is primarily caused by:
A. Chloride stress corrosion cracking at surface defects
B. Hydrogen pressure buildup at MnS inclusions leading to blistering and interlinking
cracks
C. Sulfide precipitation at grain boundaries during PWHT
D. Carbonate stress corrosion in high-pH environments
Correct Answer: B
Rationale: Stepwise cracking (SWC) in sour service (H2S-containing) environments
occurs when atomic hydrogen diffuses into the steel and recombines to molecular
hydrogen at internal discontinuities, particularly MnS inclusions. The pressure buildup
causes blistering; when multiple blisters interlink along inclusion stringers, stepwise
cracking results. Chloride SCC (A) affects austenitic stainless steels, not sour service
carbon steels. Sulfide precipitation (C) is not the primary SWC mechanism. Carbonate
SCC (D) is a separate phenomenon in high-pH environments. Reference: NACE
MR0175/ISO 15156-2; CSA W59 sour service requirements.
Q6. Which of the following prevention strategies is MOST effective for controlling
hydrogen-induced cracking (HIC) in sour service pipeline steels?
A. Increasing sulfur content to 0.015% to improve machinability
B. Inclusion shape control via calcium treatment and maintaining sulfur <0.002%
C. Applying post-weld heat treatment at 950°C for 4 hours
D. Using high-carbon equivalent (CE >0.50%) steels for improved hardenability
Correct Answer: B
