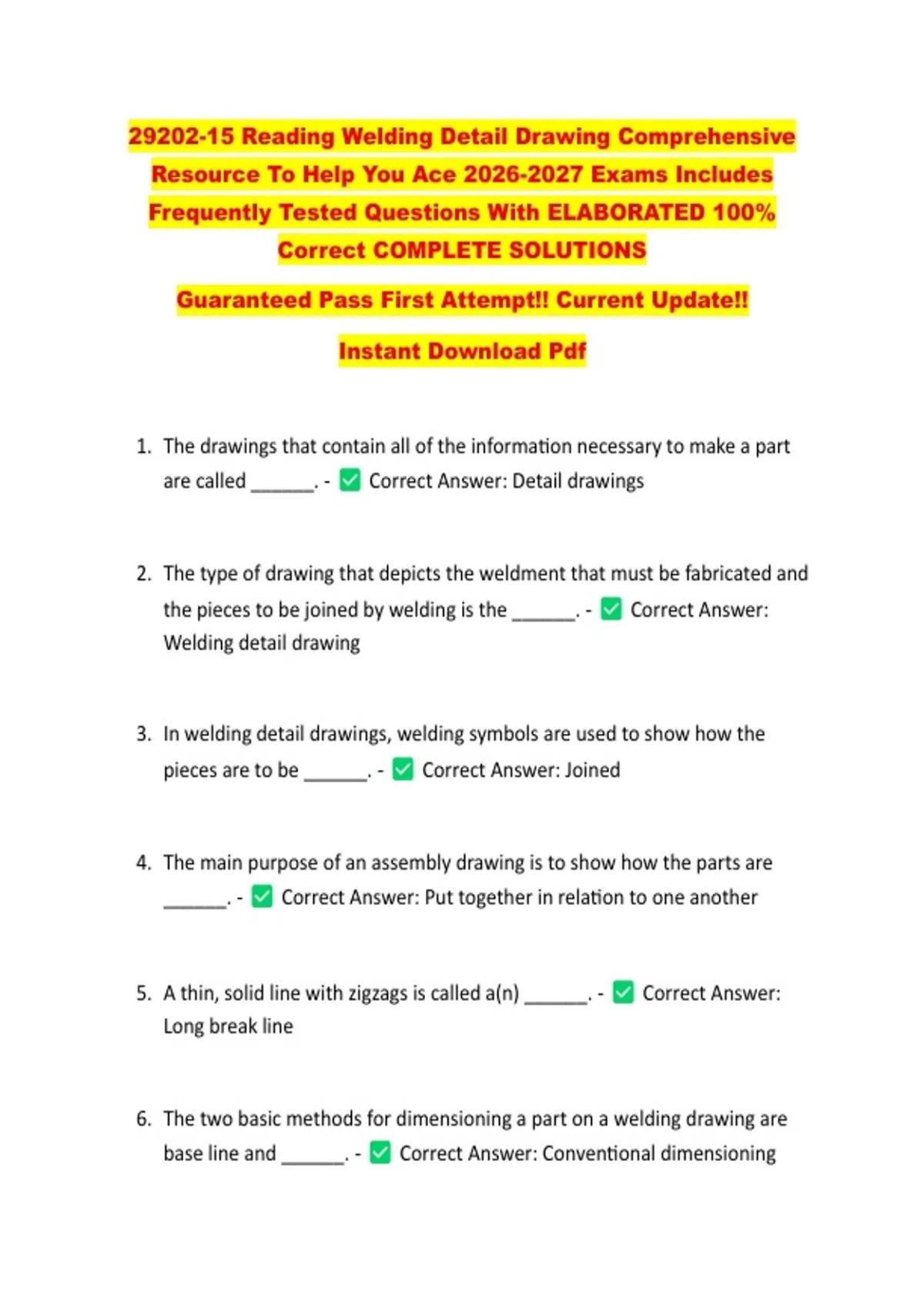

29202-15 Reading Welding Detail Drawing Comprehensive
Resource To Help You Ace 2026-2027 Exams Includes
Frequently Tested Questions With ELABORATED 100%
Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
Instant Download Pdf
1. The drawings that contain all of the information necessary to make a part
are called ______. - Correct Answer: Detail drawings
2. The type of drawing that depicts the weldment that must be fabricated and
the pieces to be joined by welding is the ______. - Correct Answer:
Welding detail drawing
3. In welding detail drawings, welding symbols are used to show how the
pieces are to be ______. - Correct Answer: Joined
4. The main purpose of an assembly drawing is to show how the parts are
______. - Correct Answer: Put together in relation to one another
5. A thin, solid line with zigzags is called a(n) ______. - Correct Answer:
Long break line
6. The two basic methods for dimensioning a part on a welding drawing are
base line and ______. - Correct Answer: Conventional dimensioning
,7. In a print, a list of all the parts required to fabricate an object would be
found in the ______. - Correct Answer: Bill of materials
8. A dimension obtained by adding or subtracting other dimensions found on
a welding drawing is known as a ______. - Correct Answer: Reference
dimension
9. When the ends, sides, or corners of an object are to be rounded, what is
shown and dimensioned? - Correct Answer: A radius
10.A note that provides a detailed description of requirements for the type and
size of parts or material required is known as a ______. - Correct
Answer: Specification
11.The type of drawing that shows internal details not normally visible is the
______. - Correct Answer: Full section
12.An isometric view is also known as a(n) ______. - Correct Answer:
Pictorial view
13.A thin, horizontal line that has an angled arrowhead at one end and is used
with a note or dimension is called a(n) ___. - Correct Answer: Leader
line
14.A bill of materials is also known as a ______. - Correct Answer: Parts list
, 15.Items such as drilled hole size, special treatments, and thread fastener size
are given in ______. - Correct Answer: Local notes
16.Items such as identification of work responsibility and special assembly
requirements are giving in ______. - Correct Answer: General notes
17.The variance in size that is allowable in a part is known as ______. -
Correct Answer: Tolerance
18.A hole that will only be drilled part of the way through an object is called a
______. - Correct Answer: Blind hole
19.A medium, broken line that is made up of evenly spaced dashes and used to
show edges that are not actually visible is called a(n) ______. - Correct
Answer: Hidden line
20.Drawings used for fabricated an object must show ______. - Correct
Answer: Dimensions
21.A drawing showing a three-dimensional view is called ______. - Correct
Answer: Isometric
22.Multiview drawings are developed by a process called ______. - Correct
Answer: Orthographic projection
