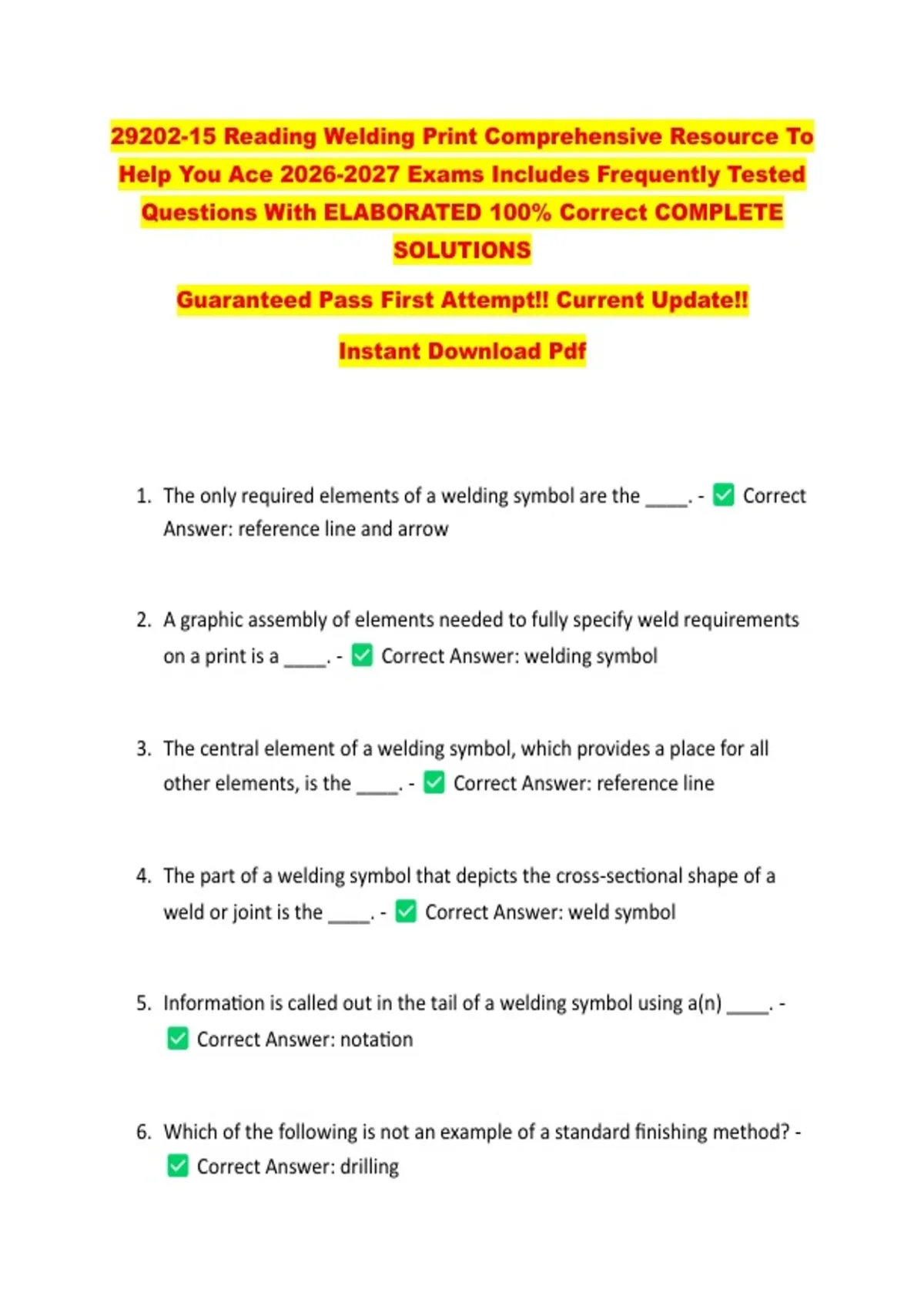

29202-15 Reading Welding Print Comprehensive Resource To
Help You Ace 2026-2027 Exams Includes Frequently Tested
Questions With ELABORATED 100% Correct COMPLETE
SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
Instant Download Pdf
1. The only required elements of a welding symbol are the ____. - Correct
Answer: reference line and arrow
2. A graphic assembly of elements needed to fully specify weld requirements
on a print is a ____. - Correct Answer: welding symbol
3. The central element of a welding symbol, which provides a place for all
other elements, is the ____. - Correct Answer: reference line
4. The part of a welding symbol that depicts the cross-sectional shape of a
weld or joint is the ____. - Correct Answer: weld symbol
5. Information is called out in the tail of a welding symbol using a(n) ____. -
Correct Answer: notation
6. Which of the following is not an example of a standard finishing method? -
Correct Answer: drilling
,7. Which of the following are standard finishing method? - Correct
Answer: Grinding, Machining, & Rolling
8. Which of the following is not an example of a contour for the finished shape
of a weld? - Correct Answer: square
9. Which of the following are examples of a contour for the finished shape of a
weld? - Correct Answer: Concave.
10.Convex.
11.Flat.
12.The size of a weld is placed ____. - Correct Answer: on the left side of
the weld symbol
13.The symbol in the illustration calls for a ____. - Correct Answer: concave
finish
14.A field weld symbol indicates that the weld is to be made ____. -
Correct Answer: at a place other than that of initial construction
15.The shortest distance between the weld root and the face of a weld is the
____. - Correct Answer: actual throat
,16.Which type of weld occurs on both sides of a joint, with weld increments on
one side alternated with respect to those on the other side? - Correct
Answer: staggered intermittent weld.
17.The pitch of an intermittent weld is the ____. - Correct Answer: center-
to-center spacing
18.t or f ? The terms weld symbol and welding symbol mean the same thing. -
Correct Answer: false
19.t ot f? Bevel and J-groove welds have a bent leader. - Correct Answer:
true
20.t or f ?A resistance weld has no arrow side or other side significance. -
Correct Answer: true
21.t or f ? Joints that have more than one type of weld require a separate
reference line for each weld. - Correct Answer: false
22.t or f ?Back welds are made after the required weld indicated by the symbol
is complete. - Correct Answer: true
23.t or f ?Joint penetration is the distance the weld metal extends from the
weld face into a joint. - Correct Answer: true
, 24.t or f ?Melt-through symbols require a back weld to be complete. -
Correct Answer: false
25.t or f ?Nonpreferred weld symbols may be used on new prints for
supplementary information. - Correct Answer: false
26.t or f ? Finish symbols consist of letters that stand for various finishing
processes. - Correct Answer: true
27.t or f ?Additional arrows may be used on the welding symbol if the welder
must make abrupt changes in weld direction. - Correct Answer: true
28.t or f ?When a fillet welding symbol does not include the weld size, the size
is assumed to be 1/2². - Correct Answer: false
29.t or f ?When a fillet weld is to have unequal legs, the weld orientation is
indicated by the symbol. - Correct Answer: false
30.t or f ?Weld length, when included in a welding symbol, is placed to the left
of the weld symbol. - Correct Answer: false
31.t or f ?Hatching is used as an alternative to welding symbols. - Correct
Answer: false
