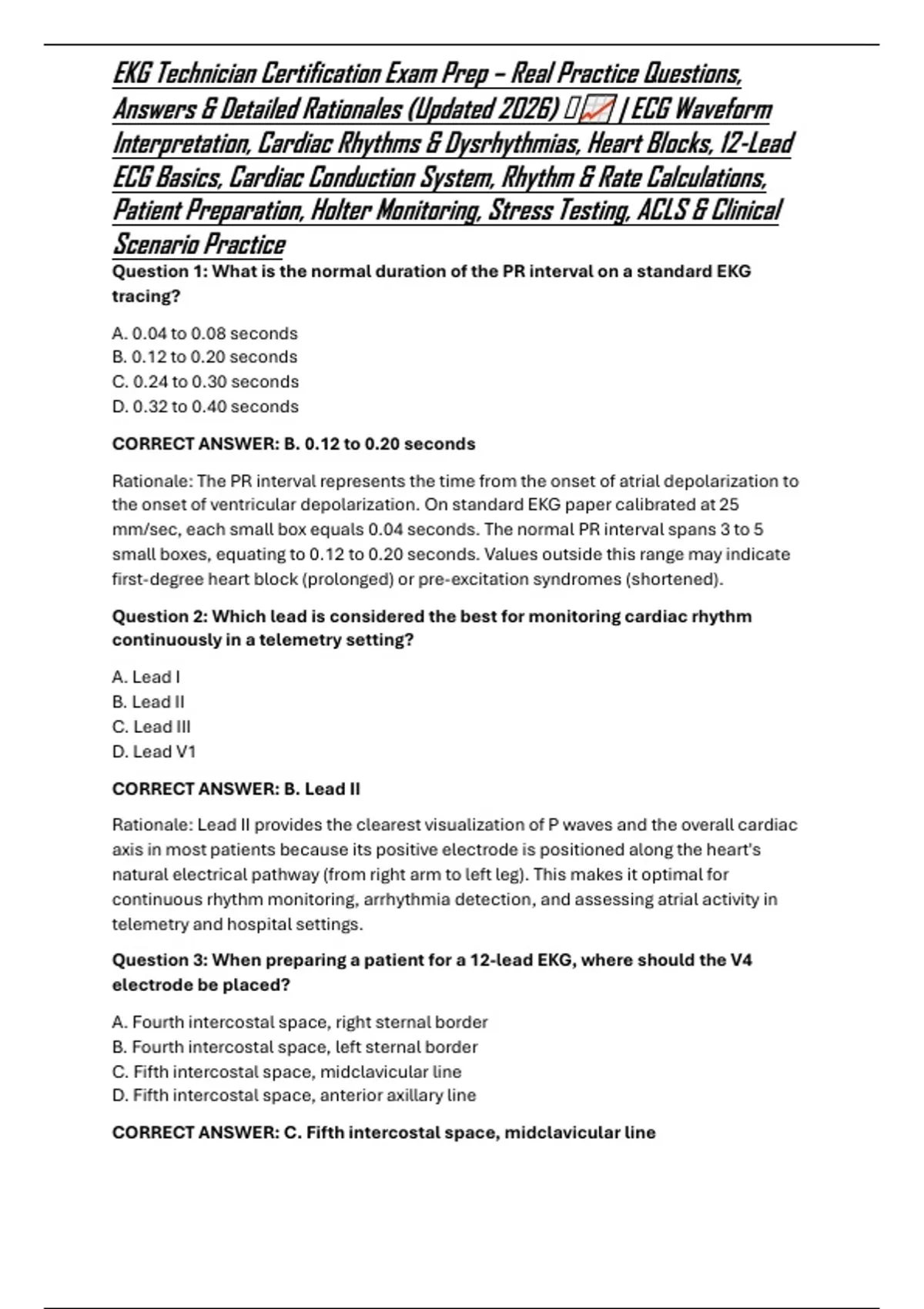

EKG Technician Certification Exam Prep – Real Practice Questions,
Answers & Detailed Rationales (Updated 2026) 🫀 | ECG Waveform
Interpretation, Cardiac Rhythms & Dysrhythmias, Heart Blocks, 12-Lead
ECG Basics, Cardiac Conduction System, Rhythm & Rate Calculations,
Patient Preparation, Holter Monitoring, Stress Testing, ACLS & Clinical
Scenario Practice
Question 1: What is the normal duration of the PR interval on a standard EKG
tracing?
A. 0.04 to 0.08 seconds
B. 0.12 to 0.20 seconds
C. 0.24 to 0.30 seconds
D. 0.32 to 0.40 seconds
CORRECT ANSWER: B. 0.12 to 0.20 seconds
Rationale: The PR interval represents the time from the onset of atrial depolarization to
the onset of ventricular depolarization. On standard EKG paper calibrated at 25
mm/sec, each small box equals 0.04 seconds. The normal PR interval spans 3 to 5
small boxes, equating to 0.12 to 0.20 seconds. Values outside this range may indicate
first-degree heart block (prolonged) or pre-excitation syndromes (shortened).
Question 2: Which lead is considered the best for monitoring cardiac rhythm
continuously in a telemetry setting?
A. Lead I
B. Lead II
C. Lead III
D. Lead V1
CORRECT ANSWER: B. Lead II
Rationale: Lead II provides the clearest visualization of P waves and the overall cardiac
axis in most patients because its positive electrode is positioned along the heart's
natural electrical pathway (from right arm to left leg). This makes it optimal for
continuous rhythm monitoring, arrhythmia detection, and assessing atrial activity in
telemetry and hospital settings.
Question 3: When preparing a patient for a 12-lead EKG, where should the V4
electrode be placed?
A. Fourth intercostal space, right sternal border
B. Fourth intercostal space, left sternal border
C. Fifth intercostal space, midclavicular line
D. Fifth intercostal space, anterior axillary line
CORRECT ANSWER: C. Fifth intercostal space, midclavicular line
,Rationale: Proper precordial lead placement is critical for accurate EKG interpretation.
V4 is positioned at the fifth intercostal space along the midclavicular line on the left
side. This location corresponds to the anatomical position of the left ventricle and is
essential for detecting anterior wall myocardial infarctions. Incorrect placement can
lead to misdiagnosis.
Question 4: What does the QRS complex represent on an EKG tracing?
A. Atrial depolarization
B. Atrial repolarization
C. Ventricular depolarization
D. Ventricular repolarization
CORRECT ANSWER: C. Ventricular depolarization
Rationale: The QRS complex corresponds to the rapid depolarization of the right and left
ventricles. This electrical event triggers ventricular contraction. Normally lasting 0.06 to
0.10 seconds, a widened QRS (>0.12 seconds) may indicate bundle branch block,
ventricular rhythm, or electrolyte abnormalities. Atrial repolarization occurs during the
QRS but is typically masked by its larger amplitude.
Question 5: Which artifact is most commonly caused by patient movement during
EKG acquisition?
A. AC interference
B. Wandering baseline
C. Somatic tremor
D. Interrupted baseline
CORRECT ANSWER: C. Somatic tremor
Rationale: Somatic tremor artifact appears as irregular, jagged deflections on the EKG
tracing and is caused by involuntary muscle movement, shivering, or patient anxiety.
Differentiating this from true arrhythmias is essential. Techniques to reduce it include
reassuring the patient, ensuring comfort, and instructing them to remain still with arms
relaxed at their sides.
Question 6: What is the standard paper speed for diagnostic 12-lead EKGs in the
United States?
A. 10 mm/sec
B. 25 mm/sec
C. 50 mm/sec
D. 100 mm/sec
CORRECT ANSWER: B. 25 mm/sec
Rationale: The universally accepted standard paper speed for diagnostic EKGs is 25 mm
per second. At this speed, each small horizontal box (1 mm) represents 0.04 seconds,
and each large box (5 mm) represents 0.20 seconds. This standardization allows
,consistent measurement of intervals and accurate interpretation across healthcare
settings.
Question 7: In a normal sinus rhythm, where does the electrical impulse originate?
A. Atrioventricular (AV) node
B. Bundle of His
C. Sinoatrial (SA) node
D. Purkinje fibers
CORRECT ANSWER: C. Sinoatrial (SA) node
Rationale: The SA node, located in the right atrium near the superior vena cava, is the
heart's natural pacemaker. It initiates electrical impulses at a rate of 60–100 beats per
minute in adults, resulting in normal sinus rhythm. Impulses then travel through the
atria to the AV node, ensuring coordinated atrial contraction before ventricular
activation.
Question 8: Which of the following is a characteristic of a premature ventricular
contraction (PVC)?
A. Narrow QRS complex with upright P wave
B. Wide, bizarre QRS complex without preceding P wave
C. Inverted P wave before a normal QRS
D. Regular rhythm with consistent PR interval
CORRECT ANSWER: B. Wide, bizarre QRS complex without preceding P wave
Rationale: PVCs originate in the ventricles rather than the SA node, bypassing the
normal conduction system. This results in a wide (>0.12 seconds), bizarre-shaped QRS
complex that is not preceded by a P wave. The T wave is often large and opposite in
direction to the QRS. PVCs may be benign or indicate underlying cardiac pathology.
Question 9: What is the primary purpose of skin preparation before applying EKG
electrodes?
A. To enhance patient comfort during the procedure
B. To reduce electrical impedance and improve signal quality
C. To prevent allergic reactions to electrode adhesive
D. To sterilize the skin and prevent infection
CORRECT ANSWER: B. To reduce electrical impedance and improve signal quality
Rationale: Proper skin preparation—cleaning with alcohol, abrading lightly, and
ensuring dryness—reduces skin impedance by removing oils, dead cells, and debris.
Lower impedance allows clearer transmission of cardiac electrical signals to the
electrodes, minimizing artifact and ensuring diagnostic-quality tracings essential for
accurate interpretation.
, Question 10: Which heart block is characterized by a progressively lengthening PR
interval until a QRS complex is dropped?
A. First-degree AV block
B. Second-degree AV block, Type I (Wenckebach)
C. Second-degree AV block, Type II (Mobitz II)
D. Third-degree (complete) AV block
CORRECT ANSWER: B. Second-degree AV block, Type I (Wenckebach)
Rationale: In Mobitz Type I (Wenckebach), the PR interval progressively lengthens with
each beat until a P wave is not conducted and a QRS complex is "dropped." This pattern
repeats cyclically. It typically occurs at the AV node level, is often transient, and may be
associated with inferior MI or medications. It is usually benign but requires monitoring.
Question 11: What is the normal heart rate range for an adult in normal sinus
rhythm?
A. 40 to 60 beats per minute
B. 60 to 100 beats per minute
C. 100 to 120 beats per minute
D. 120 to 160 beats per minute
CORRECT ANSWER: B. 60 to 100 beats per minute
Rationale: Normal sinus rhythm in adults is defined by a heart rate between 60 and 100
beats per minute, regular rhythm, consistent PR interval (0.12–0.20 sec), and each P
wave followed by a QRS complex. Rates below 60 bpm indicate sinus bradycardia; rates
above 100 bpm indicate sinus tachycardia, both requiring clinical correlation.
Question 12: Which lead placement is incorrect for a standard 12-lead EKG?
A. RA (right arm) electrode placed on the right wrist
B. LL (left leg) electrode placed on the left ankle
C. V1 placed at the fourth intercostal space, right sternal border
D. V3 placed midway between V2 and V4
CORRECT ANSWER: A. RA (right arm) electrode placed on the right wrist
Rationale: Limb electrodes should be placed on the fleshy parts of the upper arms and
lower legs, not on wrists or ankles, to minimize artifact from muscle movement and
bony prominence. While distal placement is sometimes used in monitoring, diagnostic
12-lead EKGs require proximal limb placement (torso or upper limbs) for accurate axis
determination and waveform morphology.
Question 13: What does ST-segment elevation in leads II, III, and aVF most likely
indicate?
A. Anterior wall myocardial infarction
B. Inferior wall myocardial infarction
