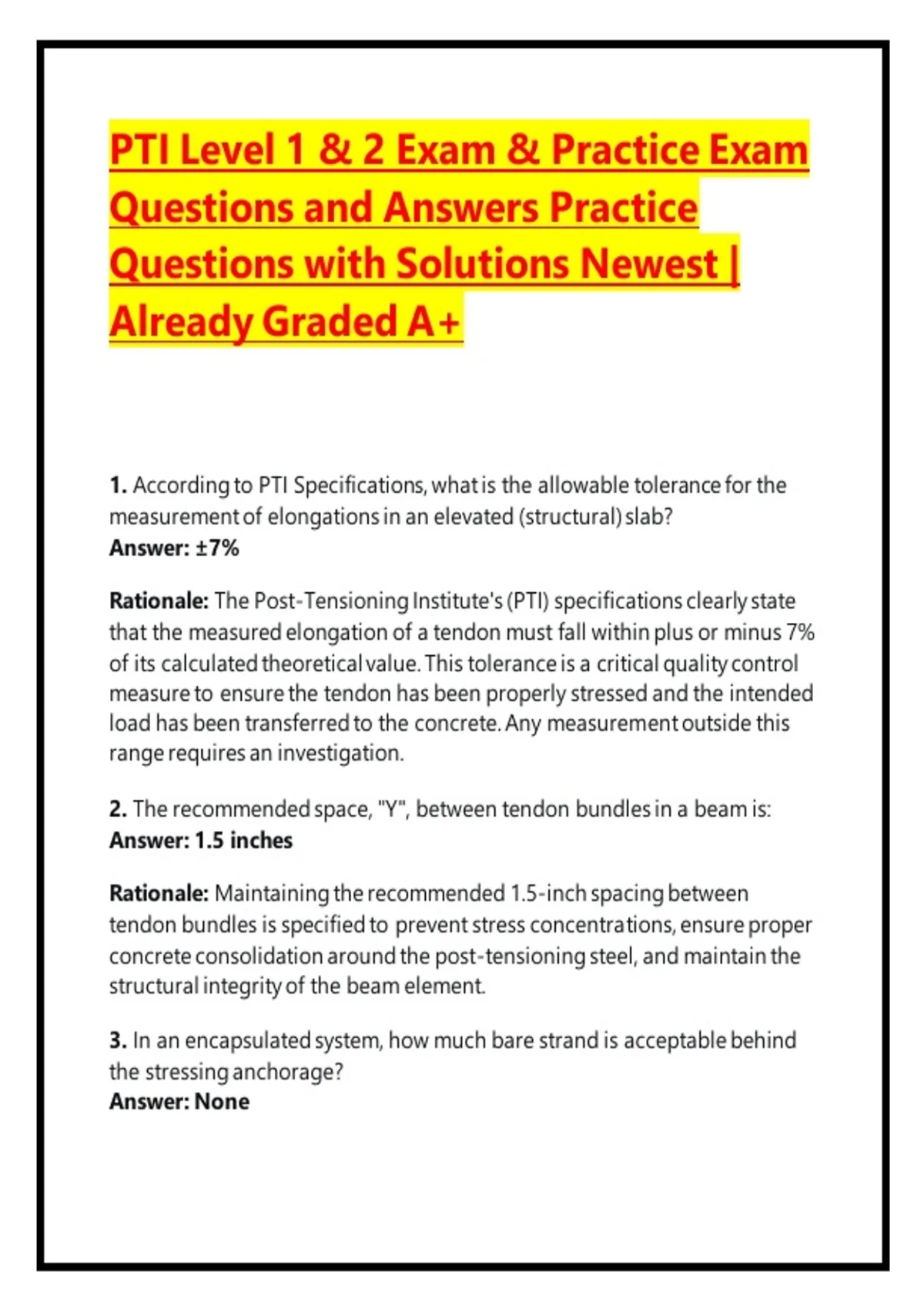

PTI Level 1 & 2 Exam & Practice Exam
Questions and Answers Practice
Questions with Solutions Newest |
Already Graded A+
1. According to PTI Specifications, what is the allowable tolerance for the
measurement of elongations in an elevated (structural) slab?
Answer: ±7%
Rationale: The Post-Tensioning Institute's (PTI) specifications clearly state
that the measured elongation of a tendon must fall within plus or minus 7%
of its calculated theoretical value. This tolerance is a critical quality control
measure to ensure the tendon has been properly stressed and the intended
load has been transferred to the concrete. Any measurement outside this
range requires an investigation.
2. The recommended space, "Y", between tendon bundles in a beam is:
Answer: 1.5 inches
Rationale: Maintaining the recommended 1.5-inch spacing between
tendon bundles is specified to prevent stress concentrations, ensure proper
concrete consolidation around the post-tensioning steel, and maintain the
structural integrity of the beam element.
3. In an encapsulated system, how much bare strand is acceptable behind
the stressing anchorage?
Answer: None
,Rationale: In an encapsulated (or greased and sheathed) post-tensioning
system, the prestressing steel is designed to be permanently protected
against corrosion by a corrosion-inhibiting coating and an extruded plastic
sheathing. Exposing any bare strand behind the anchorage would create a
direct pathway for corrosion and moisture ingress, compromising the entire
protective system and the tendon's long-term durability. Therefore, no bare
strand is acceptable.
4. While stressing a tendon, a subcontractor is observed on the same level
at the far end. What action is needed?
Answer: All of the below
Rationale: Tendon stressing operations are extremely high-risk activities. If
personnel are in the potential line of fire, safety protocols demand an
immediate halt to work. The correct actions include immediately notifying
the subcontractor crew to clear the danger area, reviewing and reinforcing
safety signage, and addressing safe standing areas during safety meetings.
5. Prior to stressing tendons, you notice that the concrete is visibly
honeycombed or cracked around the anchorages. You should:
Answer: Notify the general contractor that the tendons in this area
cannot be stressed until the concrete has been repaired and inspected
Rationale: Honeycombed or cracked concrete around an anchorage is a
severe structural deficiency. The anchorage zone must be sound to safely
transfer the high concentrated forces from the tendon to the concrete.
Proceeding with stressing in this condition could lead to a catastrophic
failure of the anchorage system.
6. Of the following, what is the most important thing a contractor must do
when field installing a fixed-end anchor?
Answer: None of the above
Rationale: Firmly hammering wedges can damage them, greasing wedges
is generally prohibited as it reduces friction needed for the wedges to grip
the strand properly, and stressing a fixed-end anchor at the time of
,installation is not the correct procedure. The most important step is to
ensure the anchor is properly fabricated, positioned correctly, and free of
debris—actions not listed in the options.
7. What would the jacking force be for a 0.60" diameter grade 270 ksi
strand with a cross-sectional area of 0.217 square inches?
Answer: 46.9 KIPS
Rationale: The force (F) in a stressed tendon is calculated by multiplying
the ultimate tensile strength (Fpu) of the steel by its cross-sectional area
(A). The basic calculation is F = A × (0.8 × Fpu) if we assume 80% of
the ultimate strength is used for post-tensioning (a common assumption).
The problem states the strand is grade 270 (meaning Fpu = 270 ksi),
so Force = 0.217 in² × (0.8 × 270 kips/in²) = 46.872 kips,
which rounds to 46.9 KIPS.
8. Which of the following is NOT acceptable for filling the encapsulation
tubes to remove voids?
Answer: Any grease material (Option A)
Rationale: To maintain the corrosion protection integrity of an
encapsulated system, only the specific Post-Tensioning (PT) coating
supplied by the system's manufacturer must be used. Using any other off-
the-shelf grease may not be chemically compatible with the coating or
sheathing and might not provide the long-term, required corrosion
resistance.
PTI Level 1 & 2 Practice Questions 9–30
9. What is the minimum concrete compressive strength required before
stressing tendons in a typical elevated slab?
Answer: 75% of design strength (or minimum 2,500 psi typical)
Rationale: The concrete must achieve sufficient strength to handle the
applied prestressing forces without crushing or spalling. The required
, minimum is typically 75% of the specified design compressive strength
(f'c) before stressing can begin. In many standards, this corresponds to a
minimum compressive strength of around 2,500 psi (17.2 MPa) for post-
tensioning operations, though actual values depend on the project
specifications【8†L110-L112】.
10. What is the purpose of the "dead end" anchorage in a post-tensioning
system?
Answer: To permanently anchor the strand at the opposite end from which
tensioning is applied. The dead end anchor is embedded in the concrete
before stressing and is not intended to be adjustable.
Rationale: The dead end (or fixed-end) anchorage is installed prior to
concrete placement. It consists of an anchor casting (or pocket former) with
a wedge assembly that grips the strand. When the strand is stressed from
the live end, the dead end transfers the full tendon force directly to the
concrete. Unlike the live end, its wedges are not re-engageable after
tensioning.
11. What is the acceptable wedges set (seating loss) for wedge-type
anchors?
Answer: Typically 1/8" to 1/4" (3–6 mm) of strand draw-in per wedge set.
Rationale: Wedge seating loss is the amount of strand that is drawn back
into the anchor as the wedges seat under full load. This loss directly
reduces the effective elongation and must be accounted for in the stressing
calculations. The typical seating loss allowance is between 1/8 inch and
1/4 inch (3 mm to 6 mm) per anchor. Higher seating loss can indicate
problems with the wedges, anchor head, or seating procedure.
12. Which form is normally used to document the prestressing operation?
Answer: A "Tendon Elongation Report" or "Stressing Log Sheet".
Rationale: The PTI requires detailed field records of each stressing
operation. The form includes the tendon identification number, theoretical
elongation, actual elongation (measured after seating loss), peak jack
