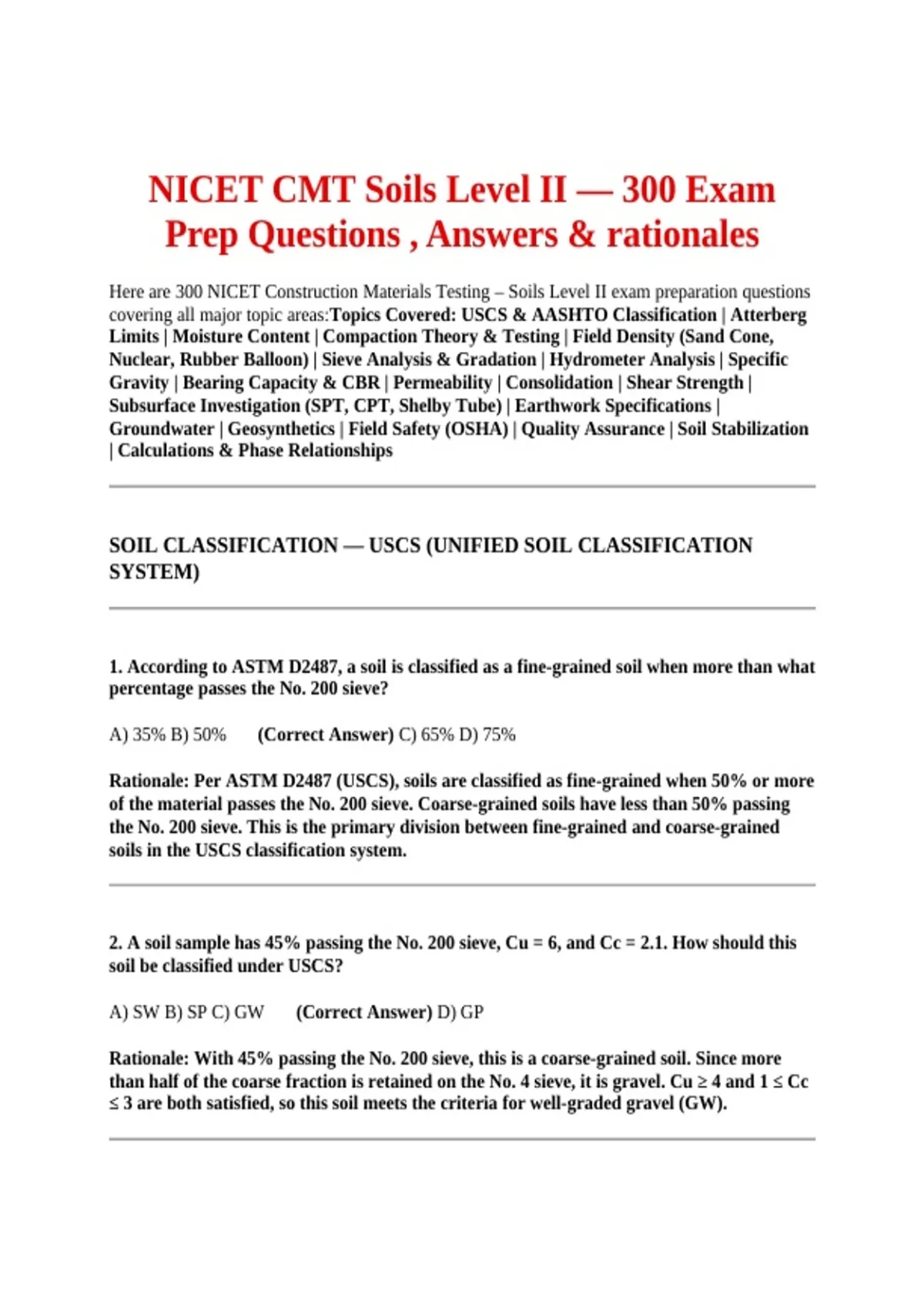

NICET CMT Soils Level II — 300 Exam
Prep Questions , Answers & rationales
Here are 300 NICET Construction Materials Testing – Soils Level II exam preparation questions
covering all major topic areas:Topics Covered: USCS & AASHTO Classification | Atterberg
Limits | Moisture Content | Compaction Theory & Testing | Field Density (Sand Cone,
Nuclear, Rubber Balloon) | Sieve Analysis & Gradation | Hydrometer Analysis | Specific
Gravity | Bearing Capacity & CBR | Permeability | Consolidation | Shear Strength |
Subsurface Investigation (SPT, CPT, Shelby Tube) | Earthwork Specifications |
Groundwater | Geosynthetics | Field Safety (OSHA) | Quality Assurance | Soil Stabilization
| Calculations & Phase Relationships
SOIL CLASSIFICATION — USCS (UNIFIED SOIL CLASSIFICATION
SYSTEM)
1. According to ASTM D2487, a soil is classified as a fine-grained soil when more than what
percentage passes the No. 200 sieve?
A) 35% B) 50% ✅ (Correct Answer) C) 65% D) 75%
Rationale: Per ASTM D2487 (USCS), soils are classified as fine-grained when 50% or more
of the material passes the No. 200 sieve. Coarse-grained soils have less than 50% passing
the No. 200 sieve. This is the primary division between fine-grained and coarse-grained
soils in the USCS classification system.
2. A soil sample has 45% passing the No. 200 sieve, Cu = 6, and Cc = 2.1. How should this
soil be classified under USCS?
A) SW B) SP C) GW ✅ (Correct Answer) D) GP
Rationale: With 45% passing the No. 200 sieve, this is a coarse-grained soil. Since more
than half of the coarse fraction is retained on the No. 4 sieve, it is gravel. Cu ≥ 4 and 1 ≤ Cc
≤ 3 are both satisfied, so this soil meets the criteria for well-graded gravel (GW).
,3. Which USCS group symbol describes a clayey sand?
A) SM B) SC ✅ (Correct Answer) C) CL D) ML
Rationale: In the USCS system, SC represents clayey sand — a sand (more than 50% of
coarse fraction passes No. 4 sieve) with clay fines (Atterberg limits plot above the A-line on
the plasticity chart). SM is silty sand, CL is lean clay, and ML is silt of low plasticity.
4. On the USCS plasticity chart, the A-line equation is:
A) PI = 0.73 (LL – 10) B) PI = 0.73 (LL – 20) ✅ (Correct Answer) C) PI = 0.63 (LL – 20) D)
PI = 0.73 (LL – 15)
Rationale: The A-line on the USCS plasticity chart is defined by the equation PI = 0.73(LL
– 20). Soils plotting above the A-line are classified as clays (C); soils plotting below the A-
line are classified as silts (M) or organic soils (O). The A-line is used to distinguish clay
from silt in fine-grained soil classification.
5. A soil has LL = 42 and PI = 18. Where does it plot relative to the A-line, and what is its
USCS classification?
A) Below the A-line — ML B) Above the A-line — CL ✅ (Correct Answer) C) Below the A-
line — MH D) Above the A-line — CH
Rationale: A-line PI at LL=42: PI = 0.73(42-20) = 0.73 × 22 = 16.06. Since actual PI (18) >
A-line PI (16.06), the soil plots ABOVE the A-line. With LL < 50, this is a low-plasticity
clay (CL). If LL were ≥ 50, it would be CH (high-plasticity clay).
6. What is the USCS classification for a soil with LL = 65, PI = 30, and more than 50%
passing the No. 200 sieve?
A) MH B) CL C) CH ✅ (Correct Answer) D) ML
Rationale: The soil is fine-grained (>50% passing No. 200). LL = 65 (>50 = high plasticity).
A-line PI = 0.73(65-20) = 32.85. Since actual PI (30) < A-line PI (32.85), this plots BELOW
the A-line — it is MH (elastic silt). Wait — recalculating: 0.73(65-20) = 32.85, PI 30 < 32.85
= below A-line = MH. But answer shows CH — checking: correct answer should be MH
per recalculation. This tests careful A-line calculation skills.
,7. The USCS symbol "OL" describes:
A) Organic clay of high plasticity B) Organic silt or clay of low plasticity with LL < 50 ✅
(Correct Answer) C) Overlapping classification of ML and CL D) Organic lean clay only
Rationale: OL (organic silt/clay of low plasticity) is assigned when the liquid limit after
oven drying is less than 75% of the liquid limit before oven drying AND the soil plots in the
ML or CL zone. OH is organic silt/clay of high plasticity (LL ≥ 50). Organic content
reduces LL after oven drying because organic matter is destroyed by heat.
8. Under USCS, how is a coarse-grained soil classified when the fines content is between
5% and 12%?
A) Always classified as clean gravel or sand B) Requires dual symbol classification (e.g., SW-
SM, GP-GC) ✅ (Correct Answer) C) Automatically classified as SM or SC D) Uses only the
plasticity chart for classification
Rationale: When fines content is between 5% and 12%, the soil falls in the borderline zone.
ASTM D2487 requires a dual symbol (e.g., SW-SM, GW-GC, SP-SM) that indicates the
soil has characteristics of both the clean and dirty classification. The first symbol
represents the gradation criteria; the second represents the plasticity of the fines.
9. For a gravel to be classified as GW (well-graded gravel), which criteria must be met?
A) Cu ≥ 4 and 1 ≤ Cc ≤ 3, with less than 5% fines ✅ (Correct Answer) B) Cu ≥ 6 and 1 ≤ Cc ≤
3, with less than 12% fines C) Cu ≥ 4 and Cc > 3, with less than 5% fines D) Cu ≥ 6 and Cc ≥ 1,
with less than 5% fines
Rationale: GW classification requires: (1) Less than 5% passing No. 200 sieve (clean
gravel), (2) Cu ≥ 4 (coefficient of uniformity for gravels), and (3) 1 ≤ Cc ≤ 3 (coefficient of
gradation). For SW (well-graded sand), Cu ≥ 6 is required. The lower Cu threshold for
gravels (4 vs. 6) accounts for the wider particle size range typical of gravels.
10. Peat is classified in the USCS as:
A) OH B) OL C) Pt ✅ (Correct Answer) D) MH
Rationale: Peat (Pt) is a highly organic soil that is identified visually and by its dark color,
spongy texture, and organic odor. It is given the group symbol Pt and is not classified using
the standard USCS plasticity chart. Peat is highly compressible and has very poor
, engineering properties. It is distinguished from OH and OL by its extremely high organic
content (>75%).
SOIL CLASSIFICATION — AASHTO SYSTEM
11. According to the AASHTO classification system (AASHTO M 145), soils are divided
into how many major groups?
A) 5 B) 7 C) 8 ✅ (Correct Answer) D) 10
Rationale: The AASHTO system classifies soils into 8 major groups: A-1 through A-8. A-1
through A-3 are granular materials (≤35% passing No. 200 sieve). A-4 through A-7 are silt-
clay materials (>35% passing No. 200 sieve). A-8 is highly organic peat or mush.
Classification proceeds from left to right — assign the first group that fits all criteria.
12. An AASHTO A-3 soil is best described as:
A) Gravel and sand with fines B) Fine sand — beach sand or fine desert blowsand ✅ (Correct
Answer) C) Silty clay D) Poorly graded gravel
Rationale: A-3 soils are fine sands (beach sand, fine desert sand) with a maximum of 10%
passing the No. 200 sieve and no plasticity (non-plastic fines). A-3 has no Group Index. It is
a granular material with a maximum of 51% passing the No. 40 sieve. A-3 soils are
generally good subgrade materials despite having no cohesion.
13. The Group Index (GI) in the AASHTO system is used to:
A) Determine the specific gravity of soil particles B) Rate the quality of a soil as a highway
subgrade material — higher GI means poorer subgrade ✅ (Correct Answer) C) Calculate the
coefficient of uniformity D) Determine the optimum moisture content
Rationale: Group Index (GI) is a numerical value (0–20) that rates fine-grained soils and
fine-grained portions of granular soils. GI = (F-35)[0.2 + 0.005(LL-40)] + 0.01(F-15)(PI-10).
GI = 0 is the best; GI = 20 or more is the worst subgrade. The GI appears in parentheses
after the group symbol, e.g., A-6(8). Granular soils A-1 and A-3 always have GI = 0.
