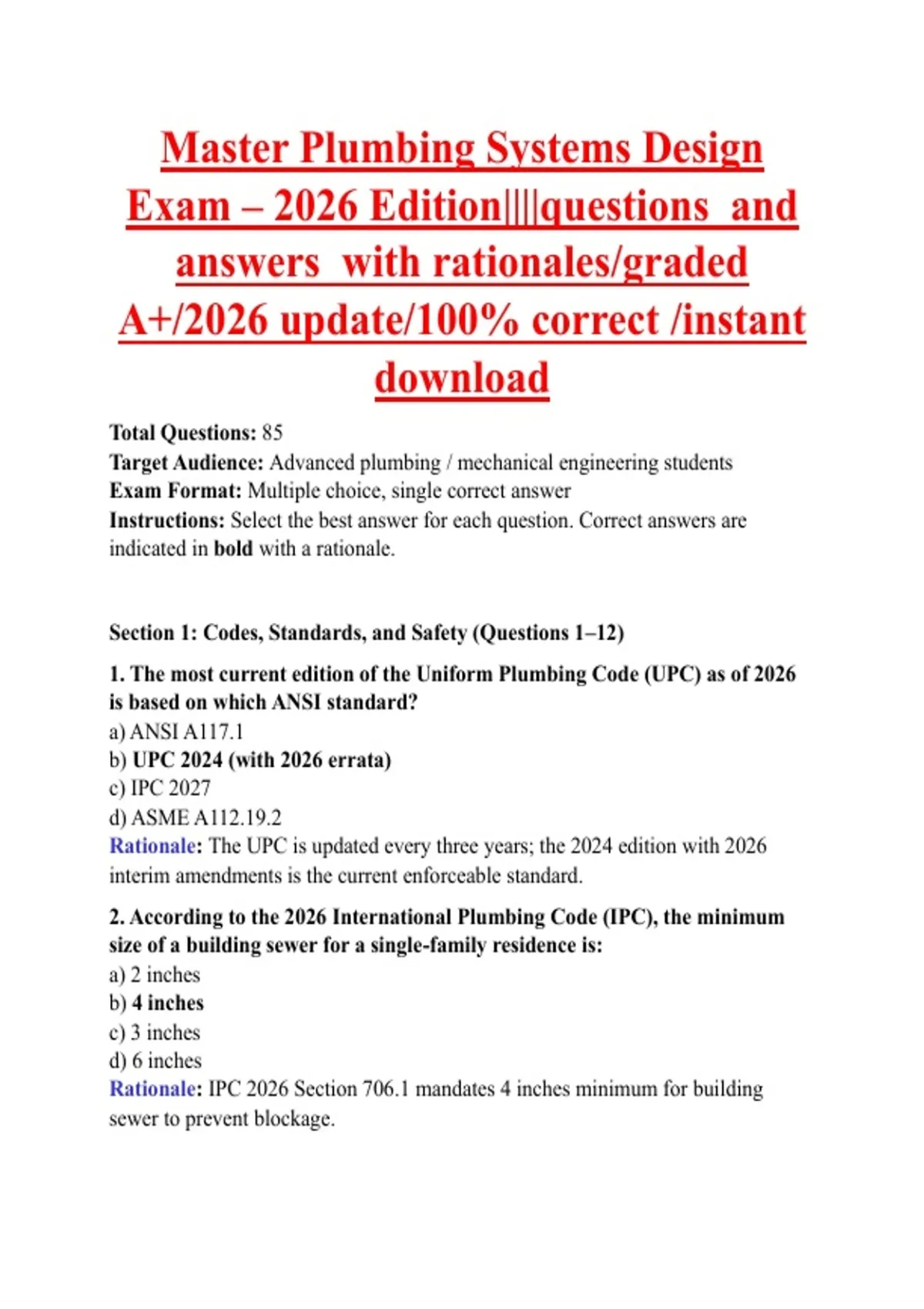

Master Plumbing Systems Design
Exam – 2026 Edition||||questions and
answers with rationales/graded
A+/2026 update/100% correct /instant
download
Total Questions: 85
Target Audience: Advanced plumbing / mechanical engineering students
Exam Format: Multiple choice, single correct answer
Instructions: Select the best answer for each question. Correct answers are
indicated in bold with a rationale.
Section 1: Codes, Standards, and Safety (Questions 1–12)
1. The most current edition of the Uniform Plumbing Code (UPC) as of 2026
is based on which ANSI standard?
a) ANSI A117.1
b) UPC 2024 (with 2026 errata)
c) IPC 2027
d) ASME A112.19.2
Rationale: The UPC is updated every three years; the 2024 edition with 2026
interim amendments is the current enforceable standard.
2. According to the 2026 International Plumbing Code (IPC), the minimum
size of a building sewer for a single-family residence is:
a) 2 inches
b) 4 inches
c) 3 inches
d) 6 inches
Rationale: IPC 2026 Section 706.1 mandates 4 inches minimum for building
sewer to prevent blockage.
,3. What is the maximum vertical distance allowed for a fixture drain without
a cleanout (UPC 2024)?
a) 10 ft
b) 20 ft
c) 30 ft
d) 40 ft
Rationale: UPC 707.4 sets 20 ft max vertical rise between cleanouts in waste
piping.
4. The maximum allowable temperature for hot water delivered to a public
lavatory (sink) under ASSE update is:
a) 100°F
b) 110°F
c) 120°F
d) 140°F
Rationale: 120°F is the scald prevention limit for public handwashing fixtures per
latest ASSE standards.
5. Which backflow prevention device is required for a high-hazard industrial
process connection (2026 IAPMO standards)?
a) Double check valve assembly (DCVA)
b) Reduced pressure principle backflow preventer (RPBP)
c) Atmospheric vacuum breaker (AVB)
d) Pressure vacuum breaker (PVB)
Rationale: RPBP provides highest protection (relief valve opens if backpressure
occurs), mandatory for high-hazard (toxic/lethal) fluids.
6. In the 2026 IPC, the maximum fixture unit (DFU) load for a 4-inch
horizontal branch drain at 1/4” per foot slope is:
a) 160 DFU
b) 180 DFU
c) 216 DFU
d) 90 DFU
Rationale: Updated 2026 IPC Table 710.1(2) increases limit to 180 DFU for 4” @
1/4” slope.
7. What is the minimum required air gap for a dishwasher drain connection
under 2026 UPC?
a) 0.5 inches
, b) 1 inch (above flood rim)
c) 2 inches
d) No air gap required if using high loop
Rationale: UPC 807.4 requires 1-inch air gap above flood rim to prevent
siphonage.
8. Which organization publishes the 2026 Model SFPE Engineering Standard
for Plumbing Fire Protection?
a) ASHRAE
b) NFPA
c) SFPE (Society of Fire Protection Engineers)
d) ASSE
Rationale: SFPE released 2026 edition of “Water-Based Fire Protection Systems
Plumbing Integration.”
9. A Grease Interceptor serving a commercial kitchen must be sized according
to:
a) Number of sinks only
b) Total fixture drainage capacity and peak flow rate (2026 PDI G101)
c) Building square footage
d) Local fire code
Rationale: 2026 PDI G101 requires flow-based sizing for hydromechanical grease
interceptors.
10. The maximum allowable lead content in plumbing fittings per the 2026
Safe Drinking Water Act is:
a) 0.25%
b) 0.25% weighted average
c) 0.10%
d) 0.5%
Rationale: Lead-free definition remains ≤0.25% weighted average for wetted
surfaces.
11. Which pipe material is prohibited for potable water systems in all 2026
model codes?
a) PEX
b) Lead
c) Galvanized steel
d) Both B and C
