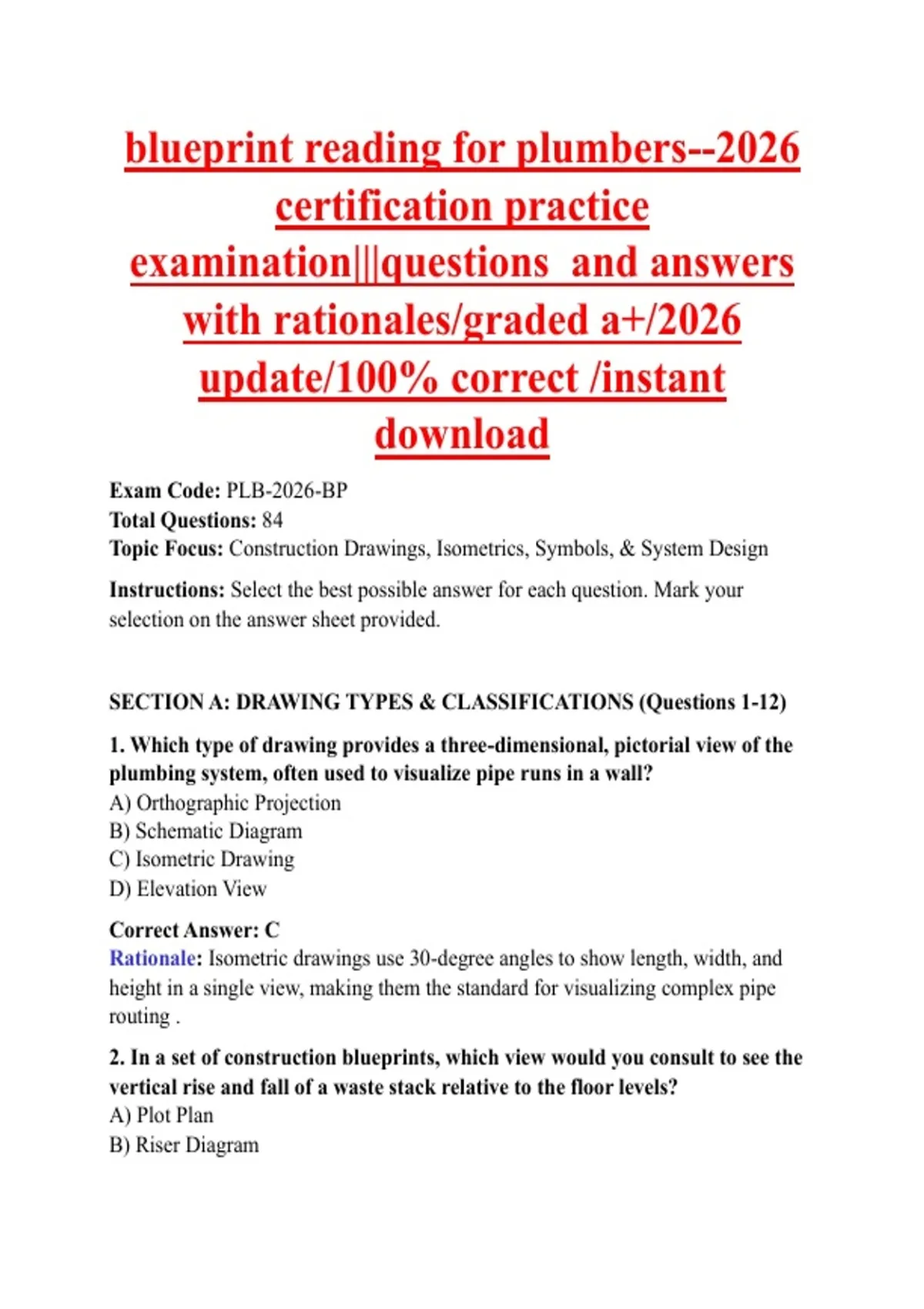

blueprint reading for plumbers--2026
certification practice
examination|||questions and answers
with rationales/graded a+/2026
update/100% correct /instant
download
Exam Code: PLB-2026-BP
Total Questions: 84
Topic Focus: Construction Drawings, Isometrics, Symbols, & System Design
Instructions: Select the best possible answer for each question. Mark your
selection on the answer sheet provided.
SECTION A: DRAWING TYPES & CLASSIFICATIONS (Questions 1-12)
1. Which type of drawing provides a three-dimensional, pictorial view of the
plumbing system, often used to visualize pipe runs in a wall?
A) Orthographic Projection
B) Schematic Diagram
C) Isometric Drawing
D) Elevation View
Correct Answer: C
Rationale: Isometric drawings use 30-degree angles to show length, width, and
height in a single view, making them the standard for visualizing complex pipe
routing .
2. In a set of construction blueprints, which view would you consult to see the
vertical rise and fall of a waste stack relative to the floor levels?
A) Plot Plan
B) Riser Diagram
,C) Detail Drawing
D) Site Plan
Correct Answer: B
Rationale: Riser diagrams are single-line schematic drawings that specifically
illustrate the vertical path of pipes, stacks, and branches from the basement to the
roof .
3. An architect uses a top-view drawing to show the location of walls, doors,
and fixtures on a specific level of a house. What is this called?
A) Elevation
B) Section View
C) Floor Plan
D) Foundation Plan
Correct Answer: C
Rationale: A floor plan is a horizontal "slice" through the building. It provides the
most critical reference for locating where fixtures (toilets, sinks) connect to the
walls .
4. Which drawing shows the property boundaries, the location of the building
on the lot, and the path of the underground water service from the main to the
structure?
A) Isometric Detail
B) Mechanical Plan
C) Site Plan (or Plot Plan)
D) Roof Plan
Correct Answer: C
Rationale: The site or plot plan shows the topography and building placement,
which is essential for determining the length and depth of exterior water and sewer
lines.
5. A plumber needs to understand the thickness and composition of a wall to
ensure a tub fits. Which drawing provides this cross-sectional information?
A) Elevations
B) Schedules
C) Sections
D) Details
, Correct Answer: C
Rationale: Section drawings show a cut through the building (like cutting a cake),
revealing the assembly of walls, floors, and structural members.
6. What is the primary distinction between a "Detail" drawing and a
"Section" drawing?
A) Details are not drawn to scale.
B) Details are a close-up, enlarged view of a complex area shown usually at a
larger scale than a section.
C) Sections only show electrical work.
D) Details only show the roof.
Correct Answer: B
Rationale: A detail zooms in on a specific junction (e.g., a shower drain
connection), providing clarity on how materials intersect that a general section
cannot provide.
7. To find the manufacturer’s model number and the required mounting
height for a commercial sink, which part of the blueprint set should you
consult?
A) The Title Page
B) The General Notes
C) The Fixture Schedule
D) The Isometric Drawing
Correct Answer: C
Rationale: Schedules are tables on the drawings that list specific data, quantities,
manufacturer names, model numbers, and rough-in specifications for fixtures .
8. Orthographic projection usually consists of three views to fully describe an
object. Which three are standard?
A) Top, Isometric, Side
B) Front, Top, Right Side
C) Plan, Profile, Section
D) Plan, Elevation, Isometric
Correct Answer: B
Rationale: Orthographic projection uses flat (2D) views: the front (elevation), top
(plan), and right side to describe an object without perspective distortion.
