EEE f.334 f.Lab f.#2 f.-
f.Online

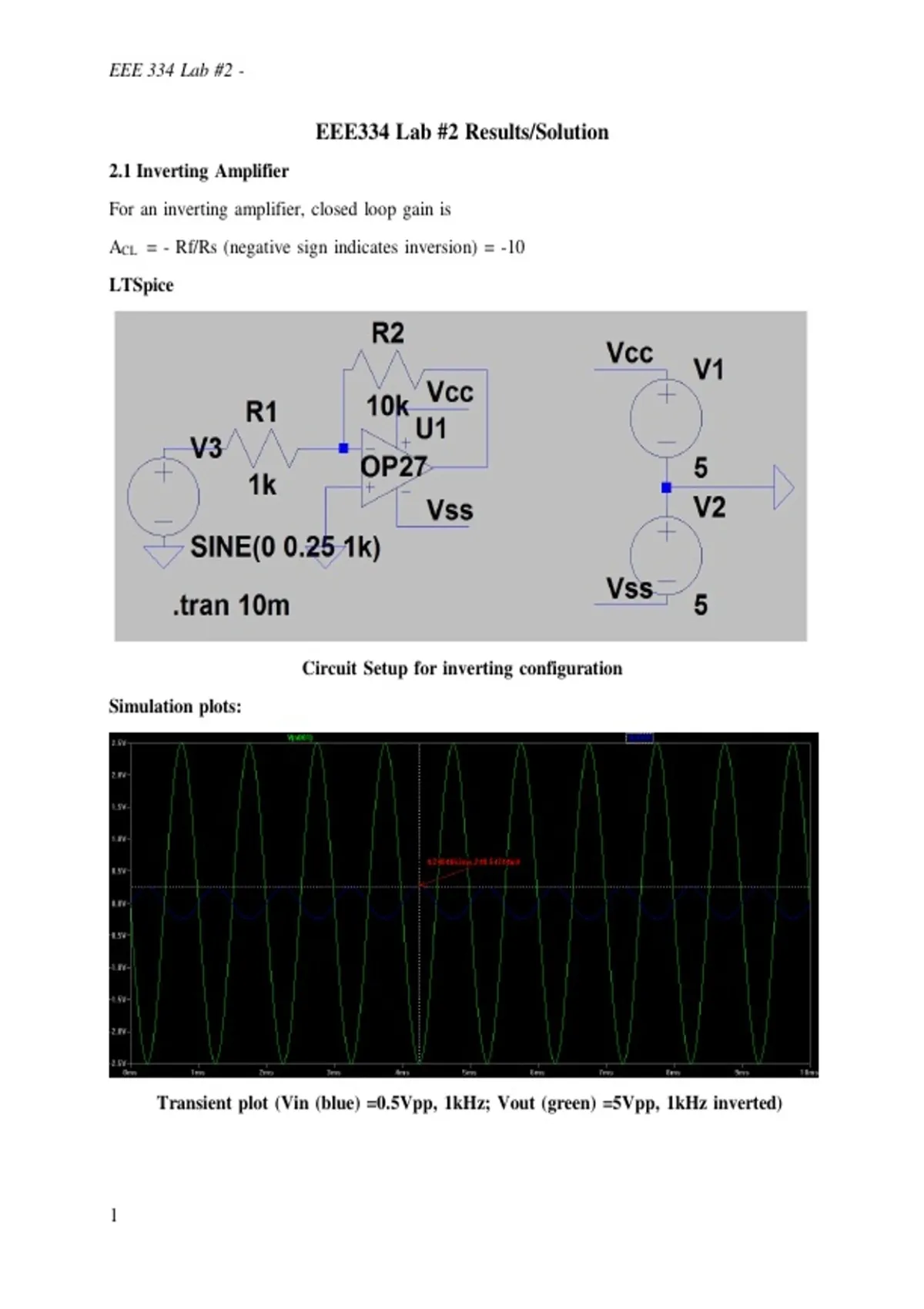

EEE334 Lab #2 Results/Solution
f. f. f.



2.1 Inverting f.Amplifier
For f.an f.inverting f.amplifier, f.closed f.loop f.gain f.is
ACL f . = f.- f.Rf/Rs f.(negative f.sign f.indicates f.inversion) f.= f.-10
LTSpice




Circuit f.Setup f.for f.inverting f.configuration
Simulation f.plots:




Transient f.plot f.(Vin f.(blue) f.=0.5Vpp, f.1kHz; f.Vout f.(green) f.=5Vpp, f.1kHz f.inverted)




1

, EEE f.334 f.Lab f.#2 f.-
f.Online




Frequency f.Response f.(Gain f.=20dB, f.f3dB f.~ f.1.127MHz, f.ft f . ~ f.7.4MHz)
Lab f.Results:




Oscilloscope f.Plot f.(Ch1: f.Input f.of f.402.2mVpp, f.1kHz; f.Ch2: f.Output f.of f.4.015Vpp,
f.1kHz) f.Input f.: f.Vrms f.(ADK=141.4mV, f.Multimeter=137mV), f.Output f.: f.Vrms


f.(ADK=1.413V, f.Multimeter=1.396V) Gain f.= f . 9.993(ADK), f.10.19(Multimeter)
Theoretical f.Vrms=141.4mV f.(i/p), f.1.414V f.(o/p)




2
