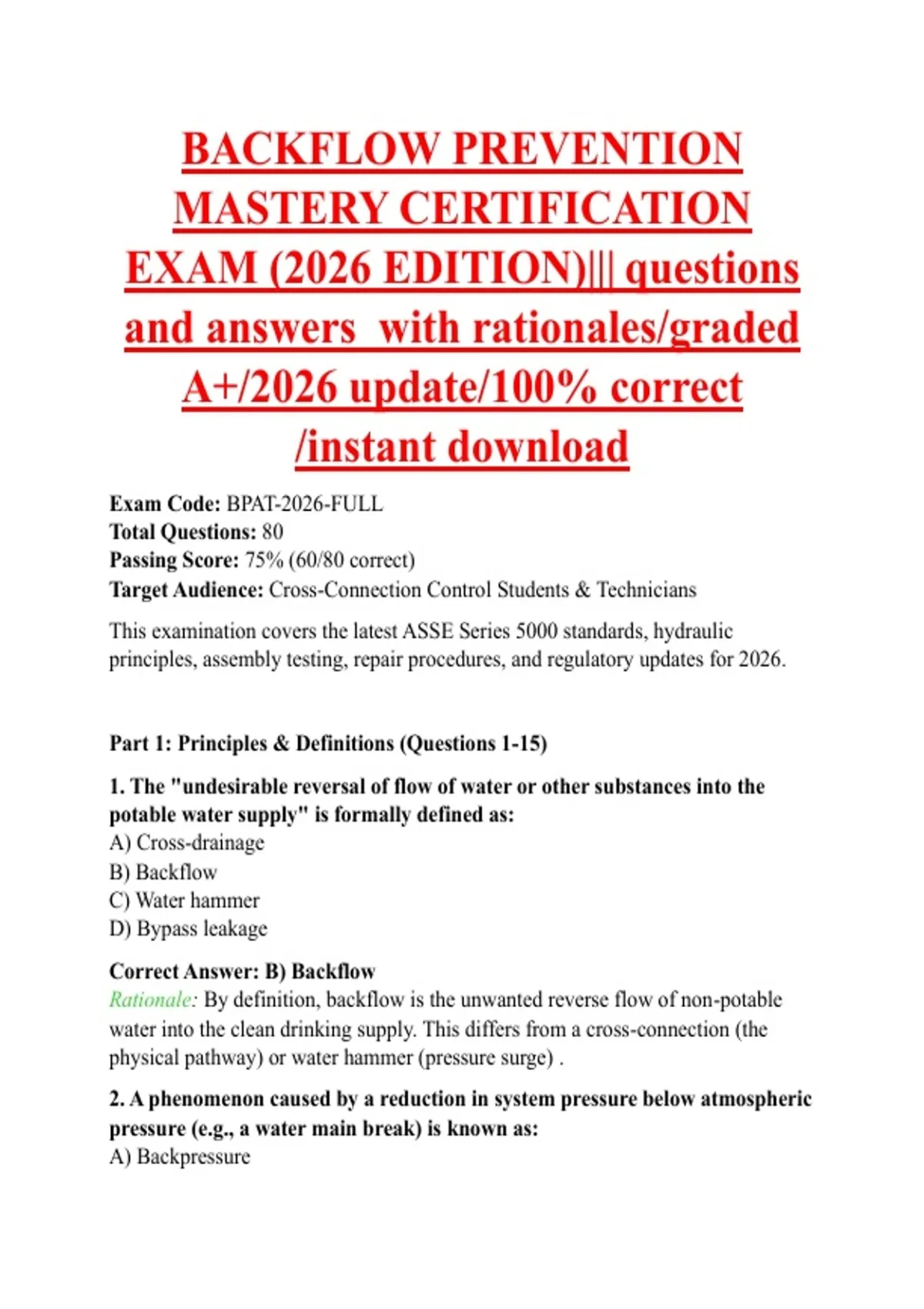

BACKFLOW PREVENTION
MASTERY CERTIFICATION
EXAM (2026 EDITION)||| questions
and answers with rationales/graded
A+/2026 update/100% correct
/instant download
Exam Code: BPAT-2026-FULL
Total Questions: 80
Passing Score: 75% (60/80 correct)
Target Audience: Cross-Connection Control Students & Technicians
This examination covers the latest ASSE Series 5000 standards, hydraulic
principles, assembly testing, repair procedures, and regulatory updates for 2026.
Part 1: Principles & Definitions (Questions 1-15)
1. The "undesirable reversal of flow of water or other substances into the
potable water supply" is formally defined as:
A) Cross-drainage
B) Backflow
C) Water hammer
D) Bypass leakage
Correct Answer: B) Backflow
Rationale: By definition, backflow is the unwanted reverse flow of non-potable
water into the clean drinking supply. This differs from a cross-connection (the
physical pathway) or water hammer (pressure surge) .
2. A phenomenon caused by a reduction in system pressure below atmospheric
pressure (e.g., a water main break) is known as:
A) Backpressure
,B) Thermal expansion
C) Backsiphonage
D) Laminar flow
Correct Answer: C) Backsiphonage
Rationale: Backsiphonage acts like a drinking straw. When supply pressure drops
to zero or negative, it creates a vacuum that sucks contaminants in. Backpressure
requires the downstream pressure to exceed the supply pressure .
3. Backpressure occurs when:
A) A vacuum exists in the supply line.
B) The downstream pressure exceeds the upstream supply pressure.
C) Water temperature exceeds 120°F.
D) Air is trapped in a dead-end main.
Correct Answer: B) The downstream pressure exceeds the upstream supply
pressure.
Rationale: This is often caused by booster pumps, elevated piping (gravity), or
steam boilers operating at pressures higher than the incoming water main .
4. Which of the following scenarios constitutes a "High Health Hazard"?
A) Rusty water due to sediment.
B) Cloudy water caused by entrained air.
C) The presence of E. coli bacteria from sewage.
D) High water hardness (minerals).
Correct Answer: C) The presence of E. coli bacteria from sewage.
Rationale: Health hazards involve contaminants that cause illness or death
(pathogens, toxins). Non-health hazards (pollutants) affect aesthetics (taste, color,
hardness) but not health .
5. Typhoid, cholera, and giardiasis are examples of:
A) Chemical pollutants
B) Physical cross-connections
C) Waterborne disease risks
D) Thermal expansion effects
Correct Answer: C) Waterborne disease risks
Rationale: These are specific illnesses transmitted via contaminated water,
highlighting why high-hazard protection (RPZ) is required for sewage cross-
connections .
, 6. What is the ONLY fail-safe, permanent method of backflow prevention that
requires no maintenance?
A) Reduced Pressure Zone (RPZ)
B) Double Check Valve (DCVA)
C) Air Gap
D) Pressure Vacuum Breaker (PVB)
Correct Answer: C) Air Gap
Rationale: An air gap provides a physical separation between the water outlet and
the flood rim. Because there is no mechanical connection, it cannot fail
mechanically, making it the gold standard .
7. The minimum required vertical distance for an air gap (water outlet to
flood rim) is generally:
A) 1 inch or twice the diameter of the supply pipe, whichever is larger
B) 1/2 inch
C) 6 inches
D) 12 inches
Correct Answer: A) 1 inch or twice the diameter of the supply pipe, whichever
is larger
Rationale: Plumbing codes specify this minimum to prevent backsiphonage due to
"wave action" or splashing that could bridge the gap .
8. Which ASSE standard covers the qualification for Cross-Connection
Control Professionals (Surveyors)?
A) ASSE 1013
B) ASSE 1020
C) ASSE 5110
D) ASSE 5000
Correct Answer: C) ASSE 5110
Rationale: ASSE 5110 specifically covers the certification of personnel. While
Series 5000 covers professional qualifications, the specific standard for Tester
Certification is 5110. (Note: Recent updates align with USC standards) .
9. A "Cross-Connection" is defined as:
A) A pipe intersection in a municipal grid.
B) Any actual or potential connection between potable and non-potable sources.
